mARTEC Lighting Nova 6W Outdoor LED Wall Light
- We strongly recommend that you read this manual carefully before installation.
- Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters

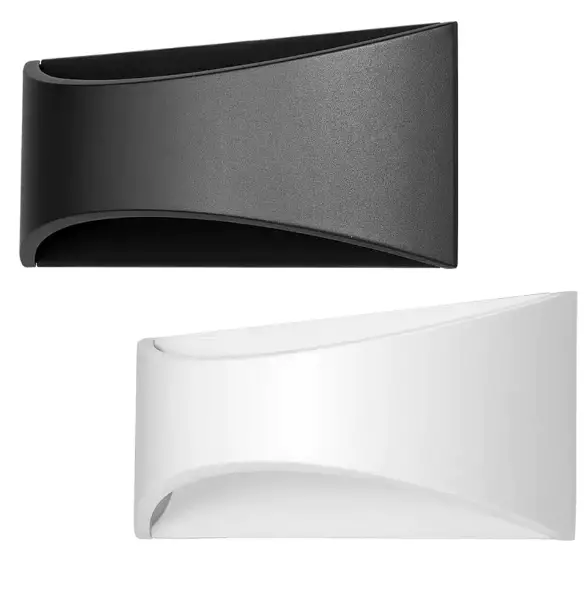

- MLXN3456W: 6W LED Wall Light IP54 Tricolour White
- MLXN3456M: 6W LED Wall Light IP54 Tricolour Matt Black
Installation Instructions
Step 1
- Switch off the mains.
Step 2

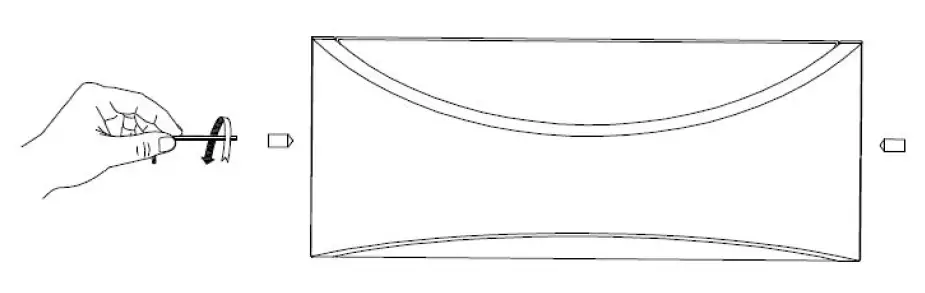

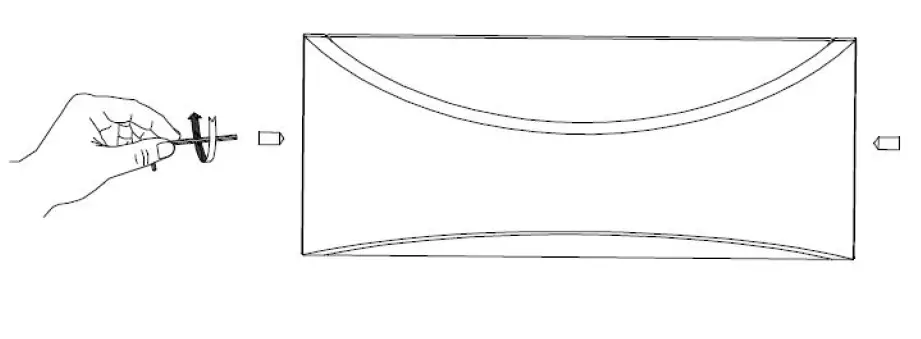

- Unscrew and remove mounting bracket by the allen key supplied.
Step 3

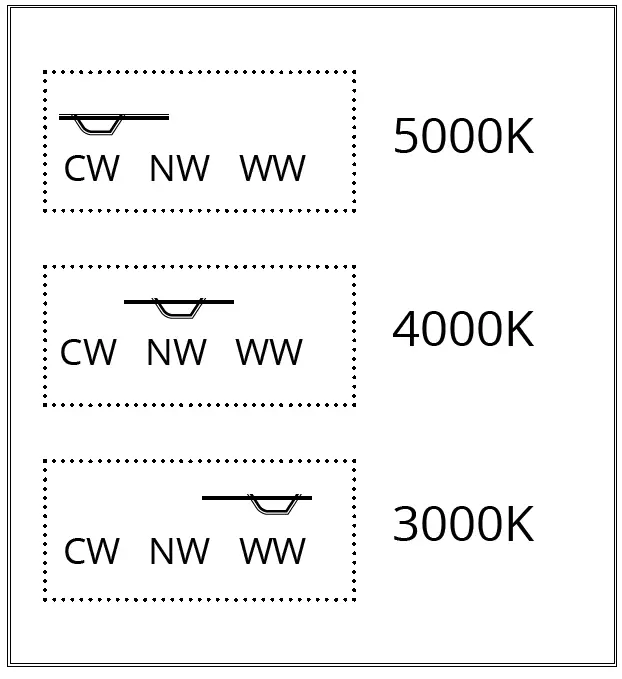

- Choose colour temperature by flicking the switch.
Step 4
- Mount the bracket on the desired surface using the two screws supplied.
Step 5

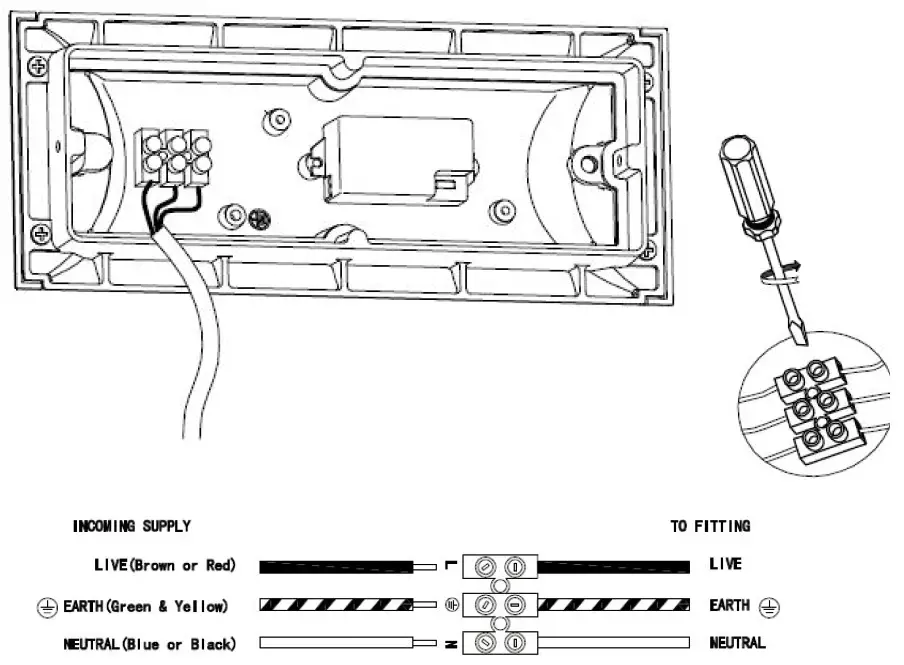

- Wire to mains as illustrated above.
Step 6
- Attach fitting back onto the bracket by fastening the two fixing screws.
Step 7

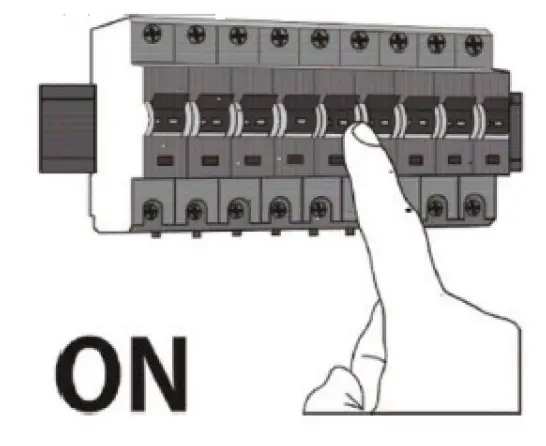

- Switch on the mains.

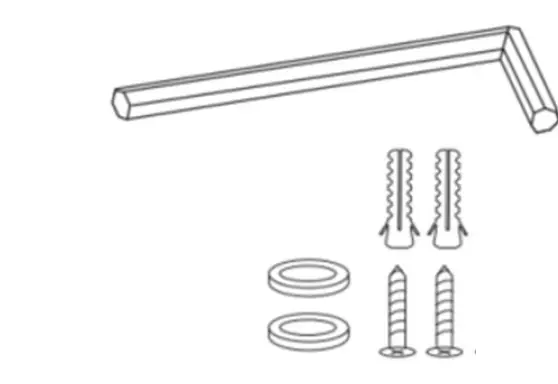

Accessories Supplied
- 1x allen key
- 2x washers
- 2x wall plugs
- 2x screws
N o v a ( 6 W ) L E D W a l l L i g h t s I n s t a l l a t i o n G u i d e

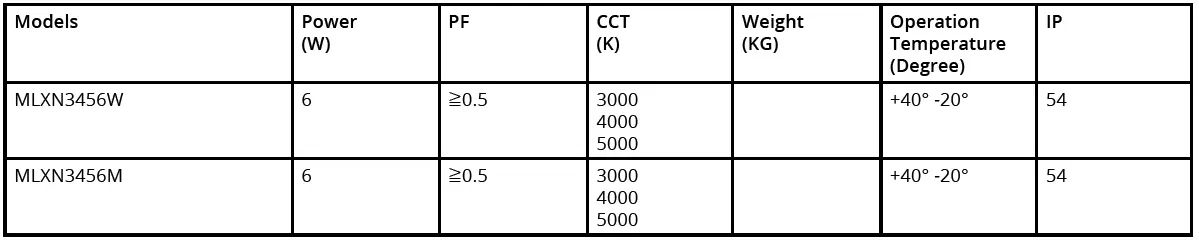

Data Table
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed to a flat solid surface, wall or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if product is not installed according to this installation guide.
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/
E: [email protected] | P: 02 8778 7500 www.martecaustralia.com.au
Martec® Australia | Life, enhanced®
