MARTEC Lighting MLXN3456W Nova 6W/12W Tricolour LED Wall Light Installation Guide





We strongly recommend that you read this manual carefully before installation.
Installation MUST be carried out by a qualified and licensed electrician.

Models Parameters
MLXN3456W: 6W LED Wall Light IP54 Tricolour White
MLXN3456M: 6W LED Wall Light IP54 Tricolour Matt Black

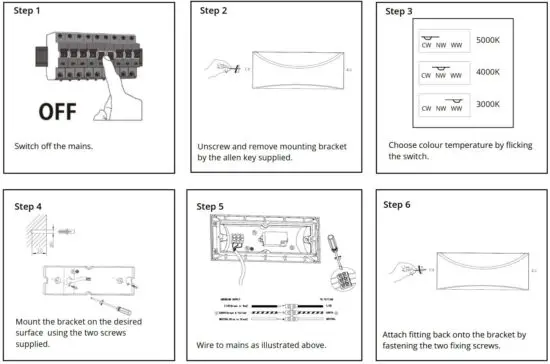

Installation Instructions

FIG 1 Installation Instructions.JPG

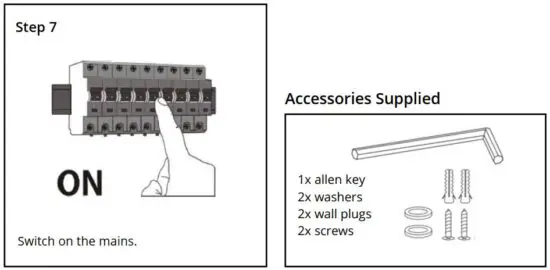

FIG 2 Installation Instructions.JPG

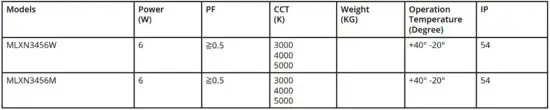

Data Table

FIG 3 Data Table.JPG

WARNING

  • Installation of product MUST follow SAA standards and meet local authority regulations.
  • Installation MUST be carried out by a qualified and licensed electrician.
  • Light MUST be earthed.
  • Light MUST be firmly installed to a flat solid surface, wall or ceiling.
  • DO NOT immerse any part of the light fitting into water or any form of liquid.
  • DO NOT look directly into the LED light.
  • The warranty is VOID if product is not installed according to this installation guide.

2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/

FIG 4 Feature.JPG




E: [email protected] | P: 02 8778 7500
www.martecaustralia.com.au
