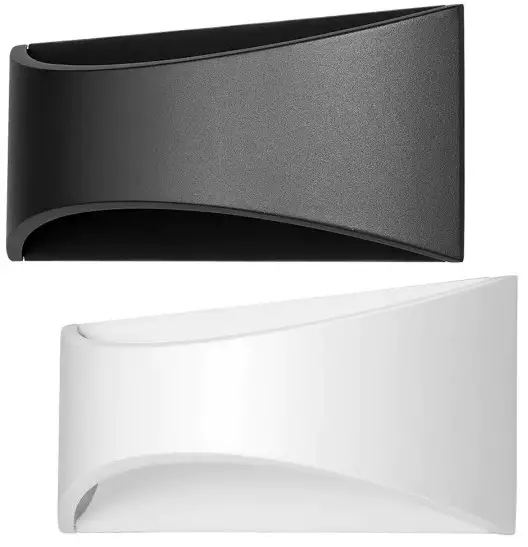

mARTEC Lighting MLXN34510M Nova 10W LED Outdoor Wall Lights Installation Guide
We strongly recommend that you read this manual carefully before installation. Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
- MLXN34510W: 10W LED Wall Light IP54 Tricolour White
- MLXN34510M: 10W LED Wall Light IP54 Tricolour Matt Black
Installation Instructions
- Step 1

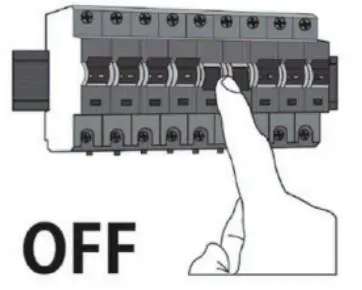

Switch off the mains.
- Step 2

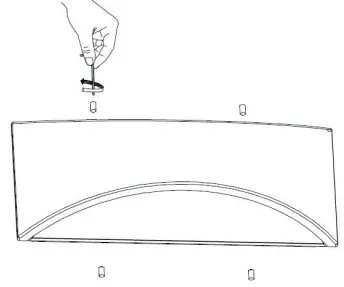

Unscrew and remove mounting bracket by the allen key supplied.
- Step 3

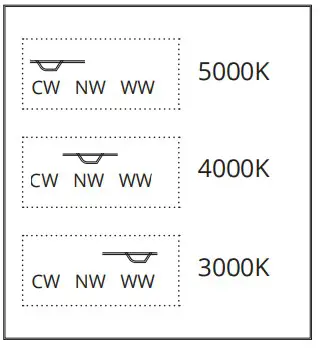

Choose colour temperature by flicking the switch.
- Step 4

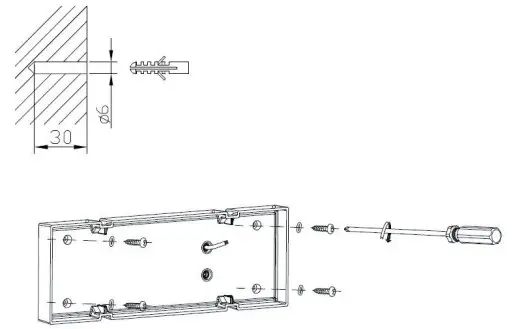

Mount the bracket on the desired surface using the two screws supplied.
- Step 5

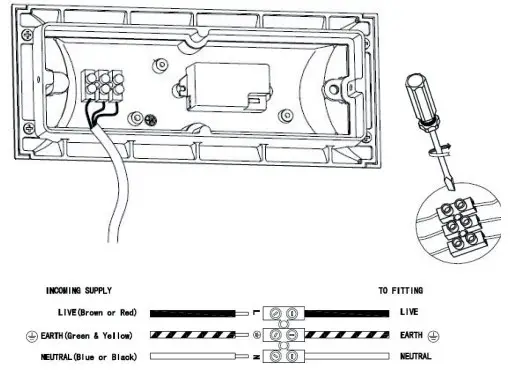

Wire to mains as illustrated above.
- Step 6

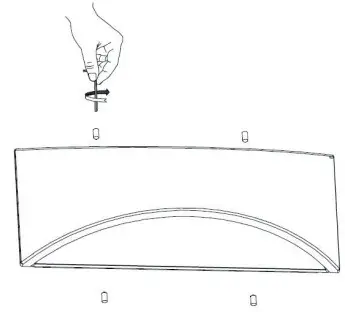

Attach fitting back onto the bracket by fastening the two fixing screws.
- Step 7

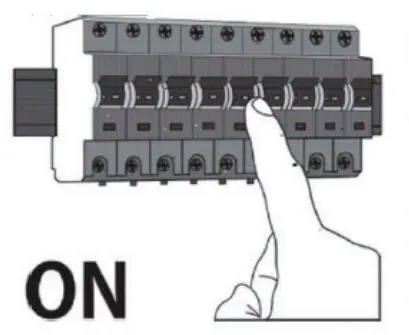

Switch on the mains.

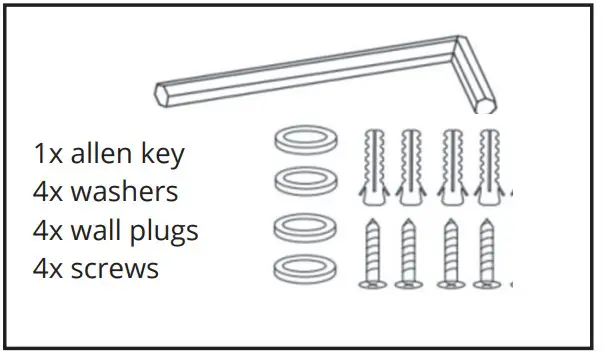

Accessories Supplied
Data Table
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP |
| MLXN34510W | 10 | ≧0.5 | 3000 4000 5000 | +40° -20° | 54 | |
| MLXN34510M | 10 | ≧0.5 | 3000 4000 5000 | +40° -20° | 54 |
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed to a flat solid surface, wall or ceiling.
DO NOT immerse any part of the light fitting into water or any form of liquid. - DO NOT look directly into the LED light.
- The warranty is VOID if product is not installed according to this installation guide.
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/
Support
E: [email protected] |
P: 02 8778 7500
www.martecaustralia.com.au
Martec® Australia | Life, enhanced®
