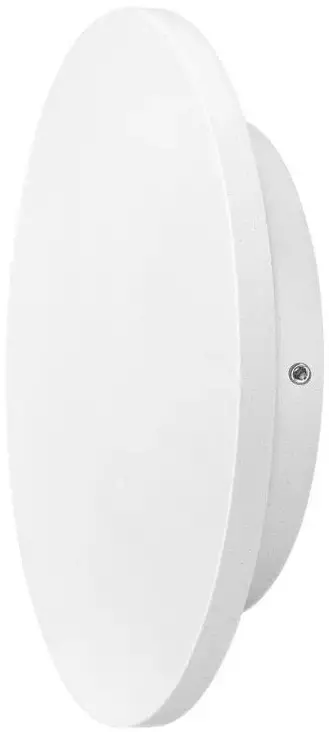

MARTEC MLXT3458W Torino LED Wall Lights
We strongly recommend that you read this manual carefully before installation. Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
- MLXT3458W 6W LED Wall Light IP54 Tricolour White
- MLXT3458M 6W LED Wall Light IP54 Tricolour Matt Black
- MLXT3459W 9W LED Wall Light IP54 Tricolour White
- MLXT3459M 9W LED Wall Light IP54 Tricolour Matt Black
Installation Instructions

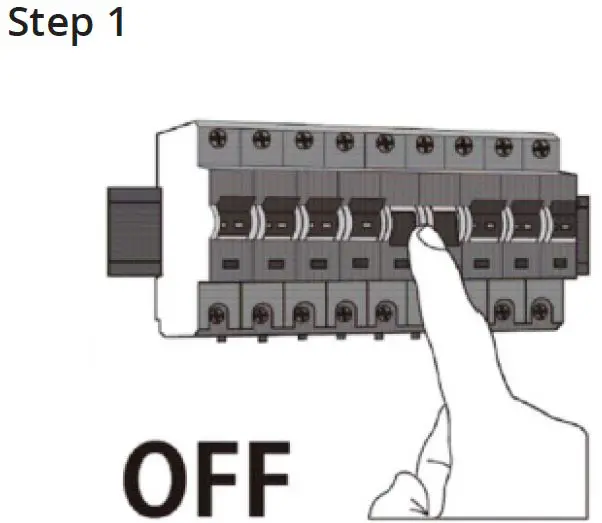

- Switch off the mains.

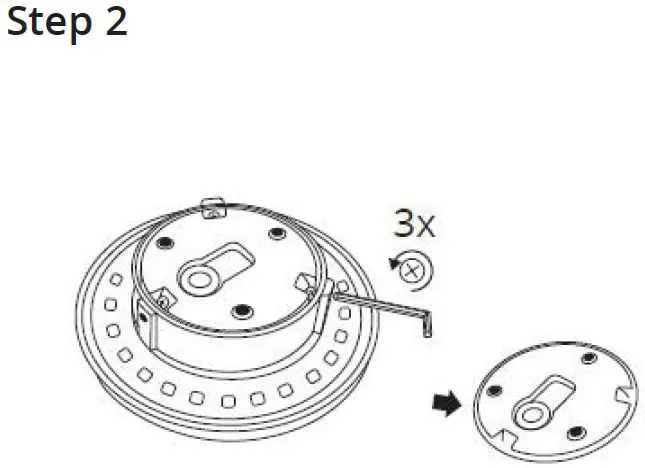

- Unscrew and remove the mounting bracket with the allen key supplied.

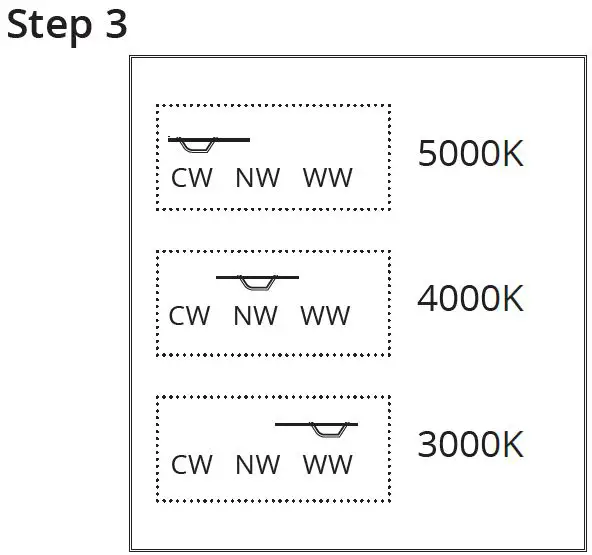

- Choose color temperature by flicking the switch.

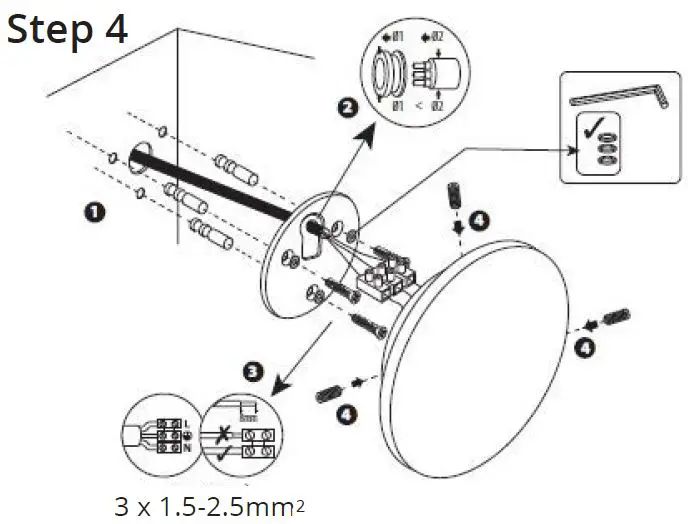

- Mount the bracket on the desired surface using the three screws supplied and wire to the mains as illustrated above.

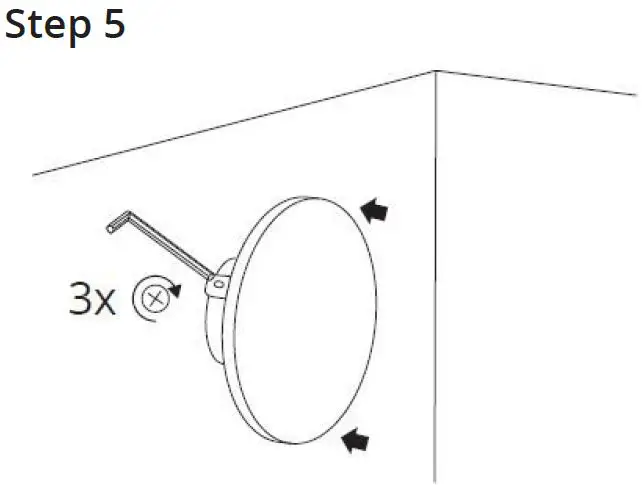

- Attach the fitting back onto the bracket by fastening the three fixing screws.

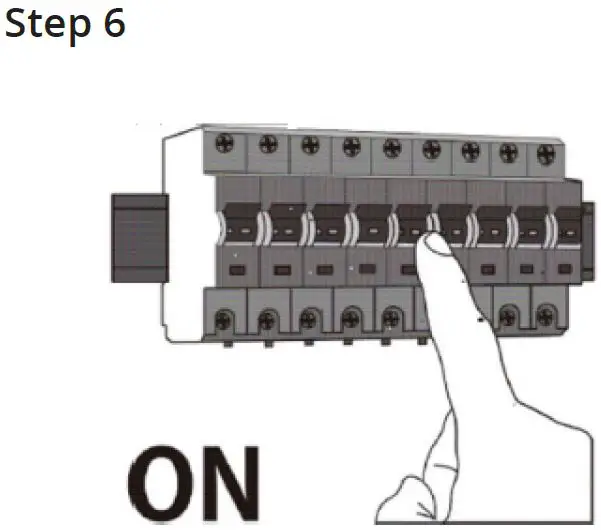

- Switch on the mains.

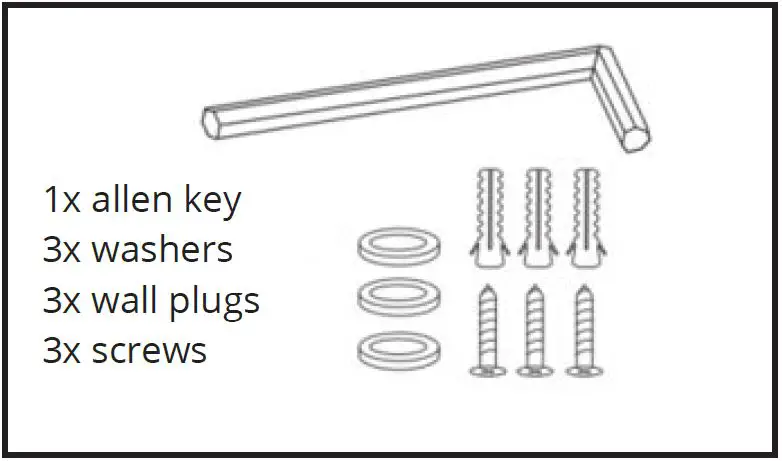

Accessories Supplied
Technical Data
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP |
| MLXT3458W | 6 | ≧0.9 | 3000 4000 5000 | +40° -20° | 54 | |
| MLXT3458M | 6 | ≧0.9 | 3000 4000 5000 | +40° -20° | 54 | |
| MLXT3459W | 9 | ≧0.9 | 3000 4000 5000 | +40° -20° | 54 | |
| MLXT3459M | 9 | ≧0.9 | 3000 4000 5000 | +40° -20° | 54 |
WARNING
- Installation of products MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed to a flat solid surface, wall, or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if the product is not installed according to this installation guide.
2-Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/.
E: [email protected] | P: 02 8778 7500
www.martecaustralia.com.au.
Martec® Australia | Life, enhanced®
