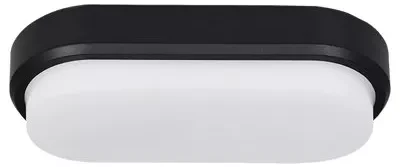

MARTEC Lighting MLXCO34615 Cove LED Bunker Oval Shape
We strongly recommend that you read this manual carefully before installation. Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
MLXCO34615S :15W IP54 Tricolour LED Bunker Oval PIR Motion Sensor White
Installation Instructions

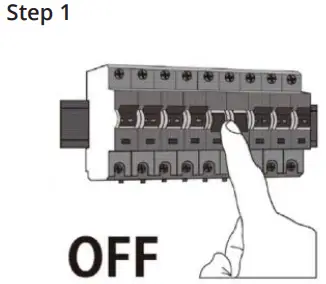

- Switch off the mains
- Remove the diffuser

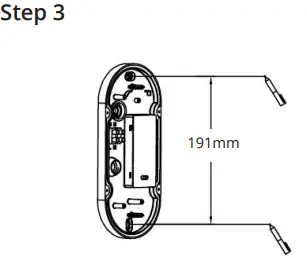

- Mark on the desired mounting surface.
- Drill holes and put the expansion nuts into the hole

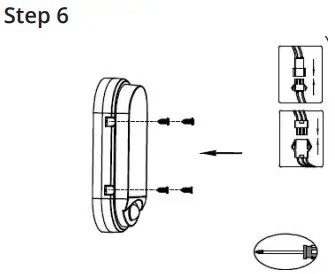

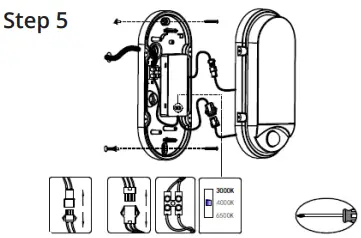

- Mount the housing onto the wall, select desired CCT and connect to power as shown above, Plug both power and sensor connectors between housing and the light fitting.

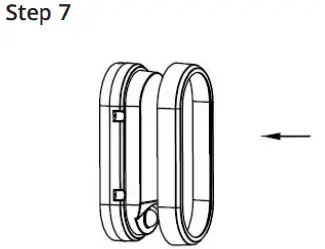

- Put the diffuser back on
- Put the trim back on

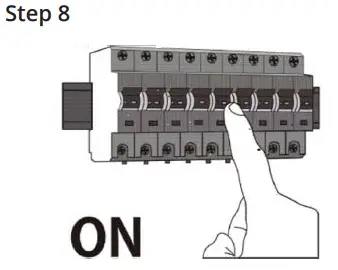

- Switch on the mains
Data Table
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP | In-rush Current (A) |
| MLXCO34615S | 15 | ≧0.5 | 3000 4000 6500 | 0.5 | +40° -20° | 54 | 5 |
Sensor Settings

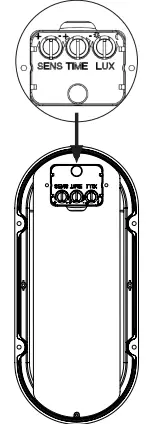

- SENS:
SENS controls the sensing distance of the sensor. When the KNOB is set to:-- “+” (4m) = maximum sensing distance is reached
- ”-” (1m) = minimum sensing distance is reached
- TIME:
- TIME duration is adjustable from 3s (±1) to 8min (±1min)
- Turn this knob towards “+” (8mins) to increase the delay time
- Turn this knob towards “-” (3s) to decrease the delay time
- LUX:
LUX controls the ambient light of the load lamp. When the KNOB is set to:-- “Sun” position = Daytime.
The sensor detects the movement of the human body and triggers the light at night and day. - “Moon” position = Evening.
The sensor detects the movement of the human body at night and triggers the light of the load.
NB: The sensor does not work during the day. Ambient illumination: 5 – 2000lux
- “Sun” position = Daytime.
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed to a flat solid surface, wall or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if product is not installed according to this installation guide.
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/
E: [email protected] | P: 02 8778 7500 www.martecaustralia.com.au
Martec® Australia | Life, enhanced®
