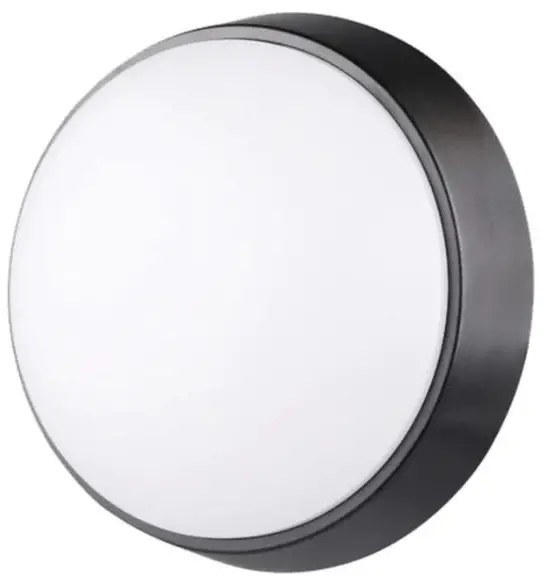

MARTEC Lighting MLXCR34615S Cove LED Bunker Round Sensor
We strongly recommend that you read this manual carefully before installation. Installation MUST be carried out by a qualified and licensed electrician.
Models Parameters
- MLXCR34615S 15W IP54 Tricolour LED Bunker Round PIR Motion Sensor White
Installation Instructions
Step 1
Switch off the mains
Step 2
Remove the diffuser
Step 3
Mark on the desired mounting surface
Step 4
Drill holes and put the expansion nuts into the hole
Step 5

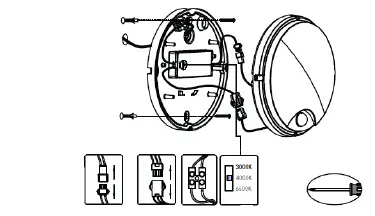

Mount the housing onto the wall, select desired CCT, and connect to power, as shown above, Plug both power and sensor connectors between the housing and the light fitting.
Step 6
Put the diffuser back on
Step 7
Put the ring (or trim) back on
Step 8
Switch on the mains
Data Table
| Models | Power (W) | PF | CCT (K) | Weight (KG) | Operation Temperature (Degree) | IP | In-rush Current (A) |
| MLXCR34615S | 15 | ≧0.5 | 3000 4000 6500 | 0.6 | +40° -20° | 54 | 5 |

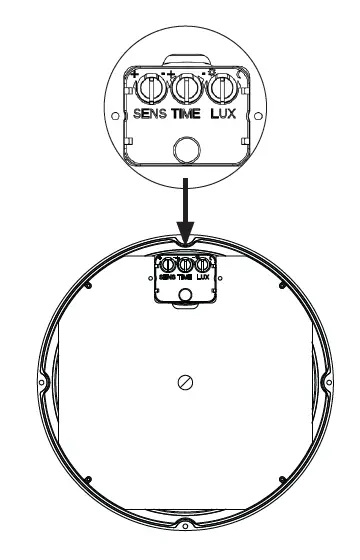

Sensor Settings
SENS:
SENS controls the sensing distance of the sensor. When the KNOB is set to:
- “+” (4m) = maximum sensing distance is reached
- ”-” (1m) = minimum sensing distance is reached
TIME:
- TIME duration is adjustable from 3s (±1) to 8min (±1min)
- Turn this knob towards “+” (8mins) to increase the delay time
- Turn this knob towards “-” (3s) to decrease the delay time
LUX:
LUX controls the ambient light of the load lamp. When the KNOB is set to:
- “Sun” position = Daytime
The sensor detects the movement of the human body and triggers light at night and day. - “Moon” position = Evening
The sensor detects the movement of the human body at night and triggers the light of the load.
NB: The sensor does not work during the day. Ambient illumination: 5 – 2000lux.
WARNING
- Installation of product MUST follow SAA standards and meet local authority regulations.
- Installation MUST be carried out by a qualified and licensed electrician.
- Light MUST be earthed.
- Light MUST be firmly installed on a flat solid surface, wall, or ceiling.
- DO NOT immerse any part of the light fitting into water or any form of liquid.
- DO NOT look directly into the LED light.
- The warranty is VOID if the product is not installed according to this installation guide.
2 Year Replacement Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/.
E: [email protected] | P: 02 8778 7500 www.martecaustralia.com.au.
Martec® Australia | Life, enhanced®
