GIANNI logoGK360 Series Electric Strike
Instruction Manual

GK360 Series Electric Strike

The GK360/361 series electric strikes are designed to accommodate cylindrical locksets with up to 3/4” (19mm) latch throw.
The strikes can be configured to fail-safe or fail-secure on site.

Specifications

Operating Voltage12/24VDC
Current Draw300mA/12VDC, 150mA/24VDC
Operating Temperature32°F to 120°F (0°C to 49°C)
Humidity0% to 85% Non-condensing
Latch Throw3/4″(19mm) (5/8″(16mm) strike depth, 1/8″(3mm) door gap)
Keeper Width1 6/17″ (36mm)
Static Strength1500 lbs (680Kg) (UL Witness test: 2000Ibs)
Dynamic Strength70 ft-lbs
Endurance250,000 cycles (UL tested) 1,000,000 cycles (Factory tested)
Performance LevelDestructive Attack: Level I
Line Security: Level I Standby Power: Level I Endurance: Level IV
ModelLatch MonitorBody Construction
GK360-1224_Zinc Alloy
GK360-ST-1224_Stainless Steel
GK360M-1224Zinc Alloy
GK360M-ST-1224Stainless Steel
GK361-1224_Zinc Alloy
GK361-ST-1224_Stainless Steel
GK361M-1224Zinc Alloy
GK361M-ST-1224Stainless Steel

Note:
For GK360-ST-1224,GK361-ST-1224,GK360M-ST-1224,GK361M-ST-1224, remove the “Listed Fire Rated Hardware” label if the strike is used in the fail safe operation.  Using the above-mentioned strikes in Fail Safe operation negates the fire rating.

UL Requirements

For indoor use only.
Wiring methods shall be in accordance with NFPA70.
The GK360 series is intended to be used with UL Listed
Exit Hardware.
The GK360 series shall not impair the intended operation of an emergency exit.
The GK360 series shall not impair the operation of panic hardware mounted on the door.

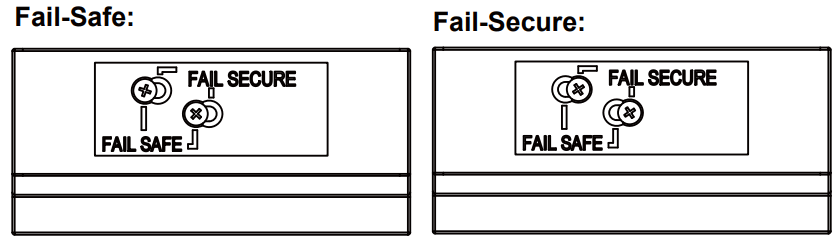

Fail-Safe / Fail-Secure Reversible

Change screw position at fail-safe /fail-secure hole to the desired setting.

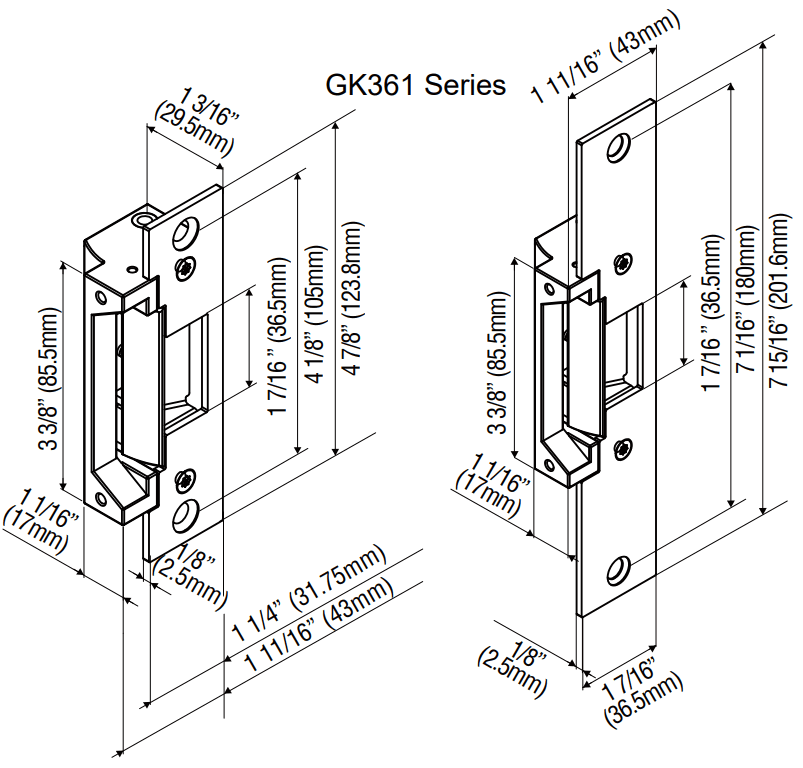

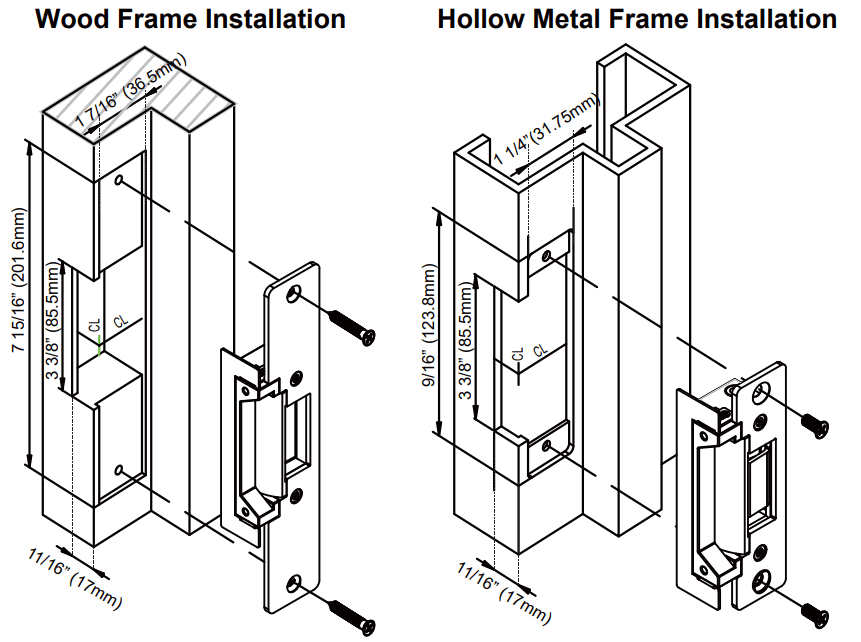

GIANNI GK360 Series Electric StrikeFrame Application

GIANNI GK360 Series Electric Strike - figGIANNI GK360 Series Electric Strike - fig 1

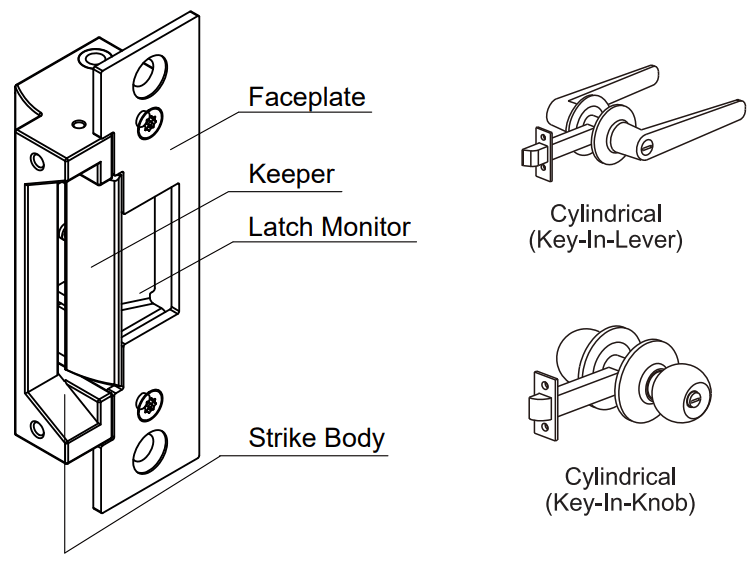

Compatible LocksetsGIANNI GK360 Series Electric Strike - fig 2

Installation Instructions

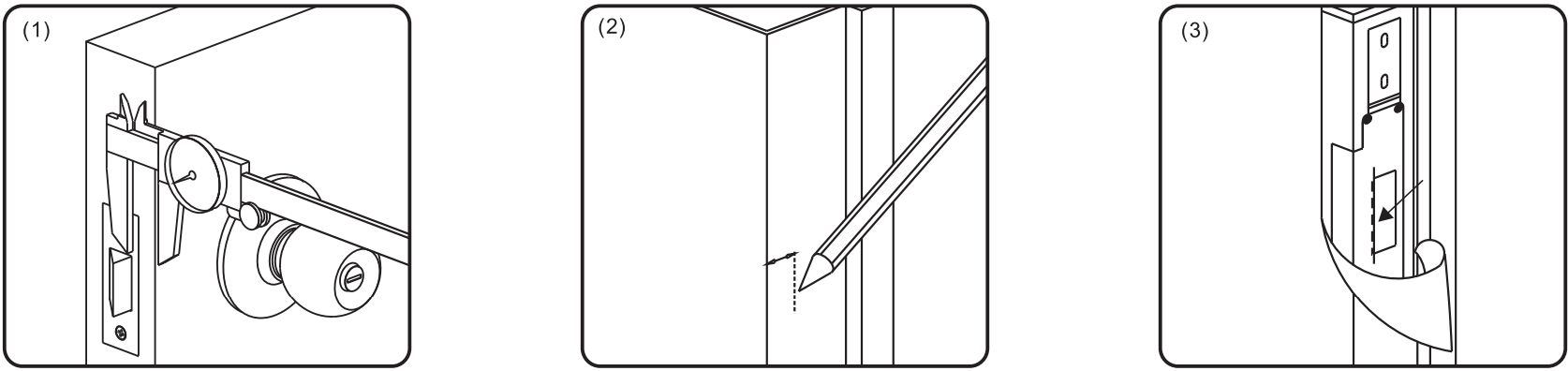

GIANNI GK360 Series Electric Strike - fig 3
Measure latch positionMark latch position lineAttach sticker template to marked centerline

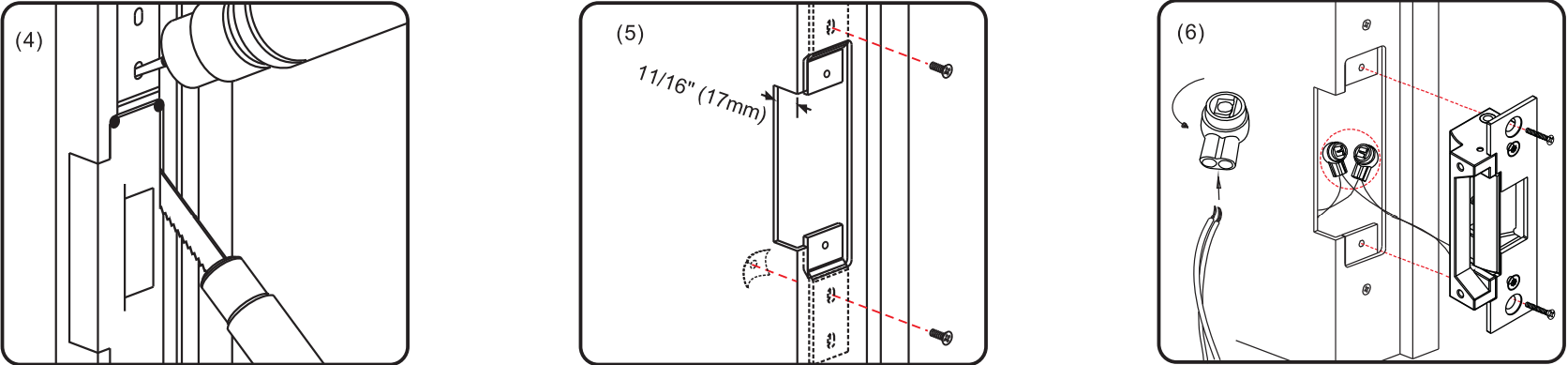

GIANNI GK360 Series Electric Strike - fig 4
Cut hole using templateInstall the mounting tabsConnect the wires using the crimp connectors,  then test the strike, ensure to give it correct voltage.

Caution
Proper gap must be reserved between the strike keeper and latch bolt to prevent failure of solenoid valve.

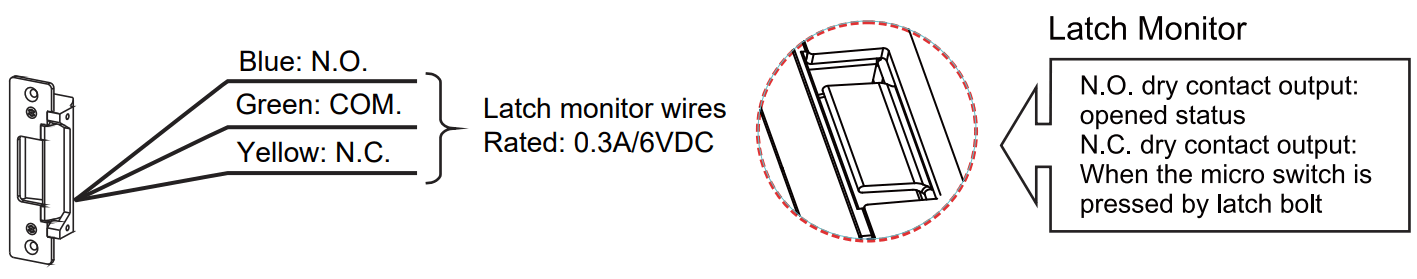

Connecting Diagram

GIANNI GK360 Series Electric Strike - fig 5

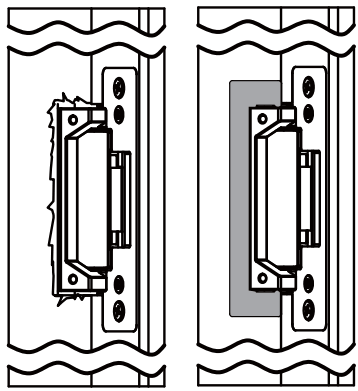

Using the Trim PlateGIANNI GK360 Series Electric Strike - fig 6

In case of over-cutting, use the enclosed trim plate to cover up any errors.

12/24 VDC Plug-In Wiring

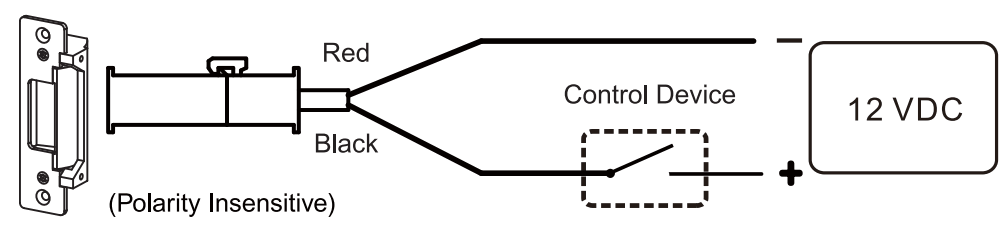

For 12VDC Operation:GIANNI GK360 Series Electric Strike - fig 7

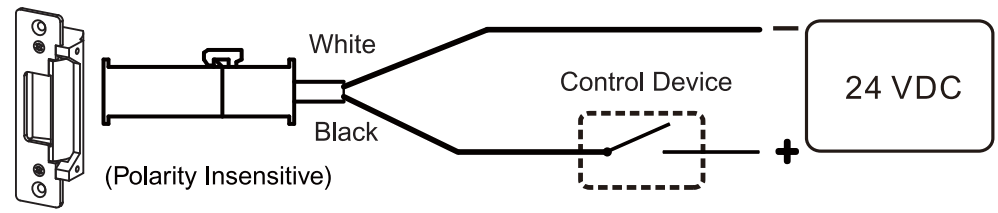

For 24VDC Operation:GIANNI GK360 Series Electric Strike - fig 8

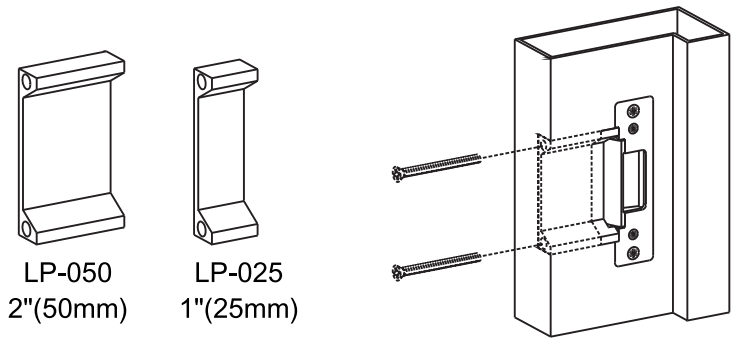

Optional Brackets

Lip extension brackets are available for wider jambs.GIANNI GK360 Series Electric Strike - fig 9

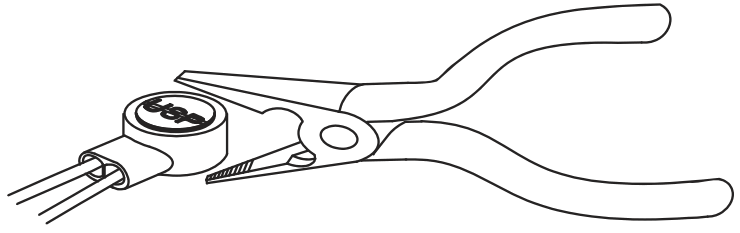

Installing the Crimp Connectors:
Crimp connectors are provided to make wiring connections easier and more reliable. To install the connectors: GIANNI GK360 Series Electric Strike - fig 10

  1. Insert the wires into the connector.
  2. Use a crimping tool or pliers to evenly press down on the head of the connector.

Copyright © All rights reserved.
P-MU-GK360-N Published: 2022.05.27
