INDUSTRIES GK1900 Series Electric Strike
Installation Guide
Electric Strike Installation Instructions GK1900 Series

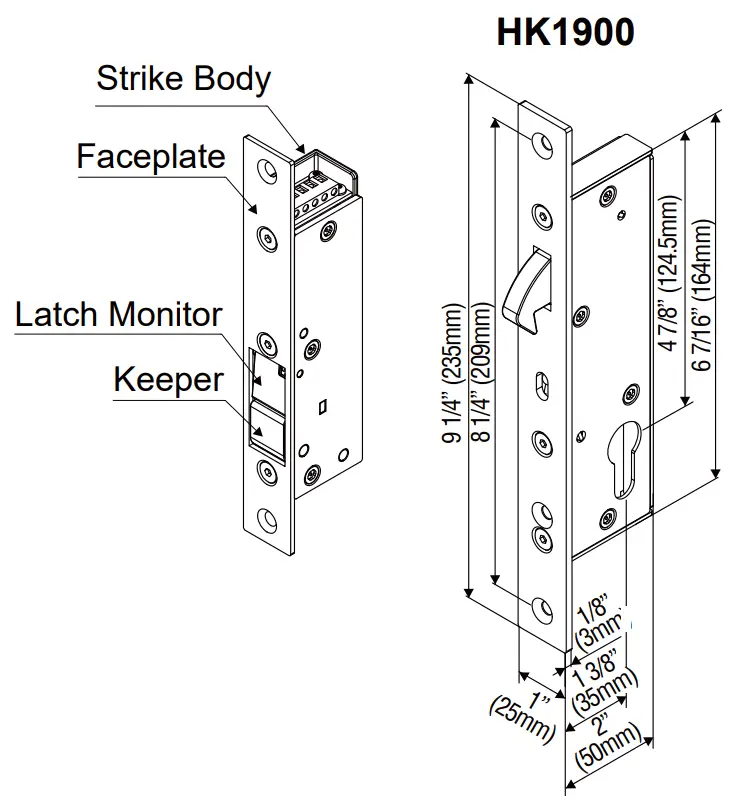

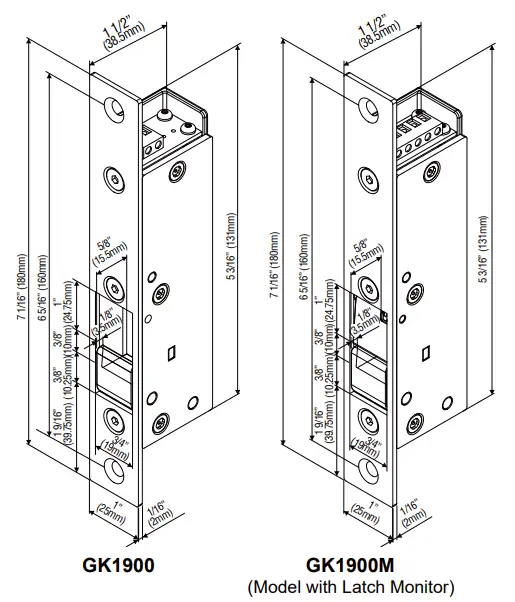

Specifications
| Operating Voltage | 12/24VDC |
| Voltage Tolerance | ±15% |
| Current Draw | 700mA/12VDC, 350mA/24VDC |
| Operating Temperature | -10~49˚C |
| Humidity | 0% to 85% Non-condensing |
| Application | Sliding doors |
| Lock Mode | Fail-secure |
| Cavity Depth | 5/8” (15.5mm) |
| Keeper Width | 3/4” (19mm) |
| Endurance | 250,000 cycles |
| Static Strength | 700 lbs |
| Preload | 100 lbs |

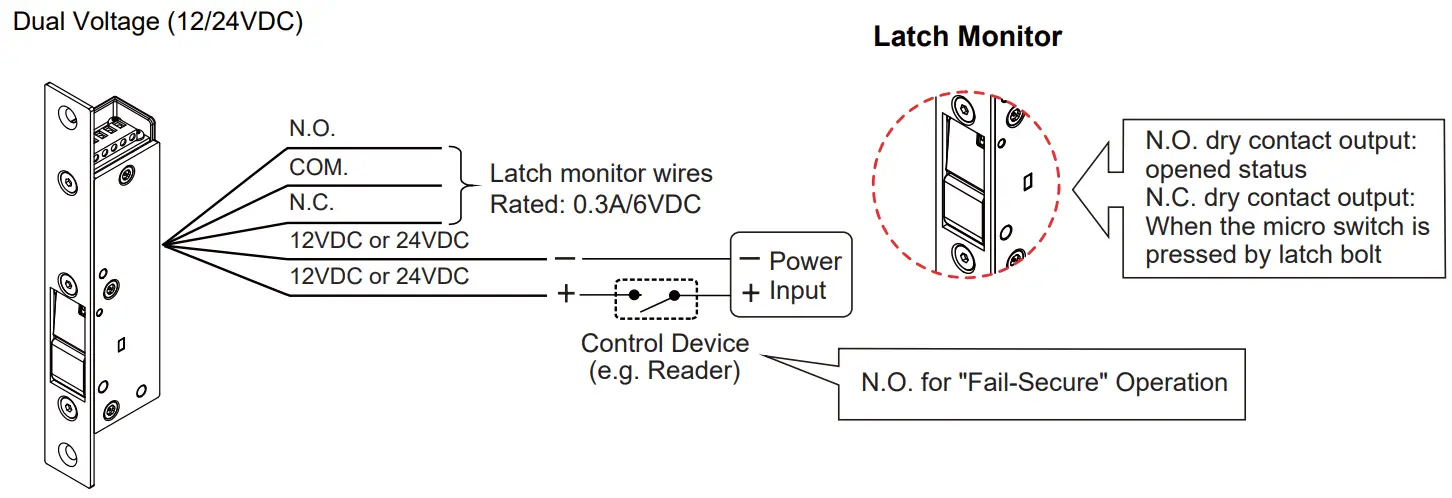

Connecting Diagram

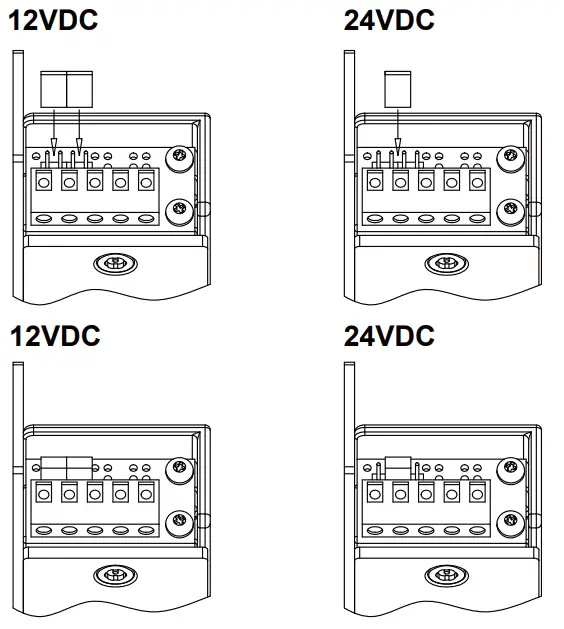

Voltage Selection

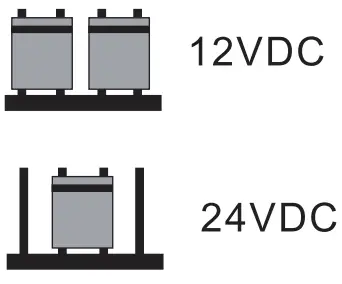

Voltage Selection Jumpers
Check jumper settings before connecting the lock to 24VDC inpput power. Damage to the lock may result from incorrect jumper settings.
Hollow Metal Frame Installation
Installation Steps

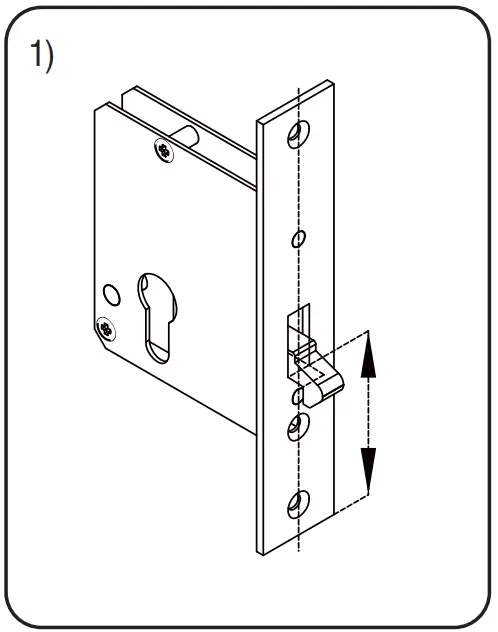

Measure the centerline of the latchbolt

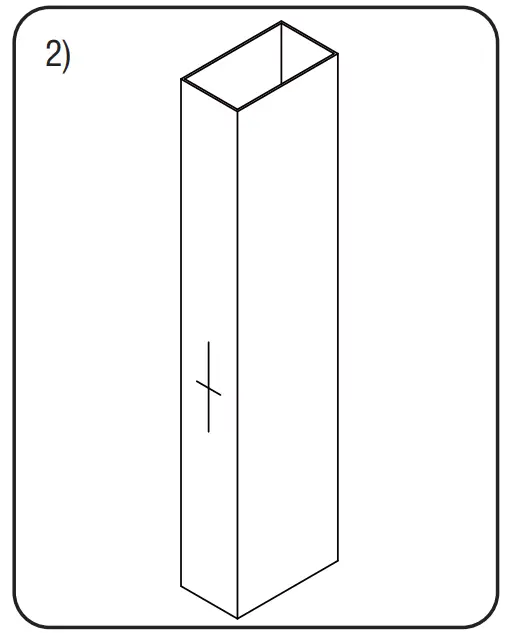

Align to the latchbolt’s center position and mark on the frame

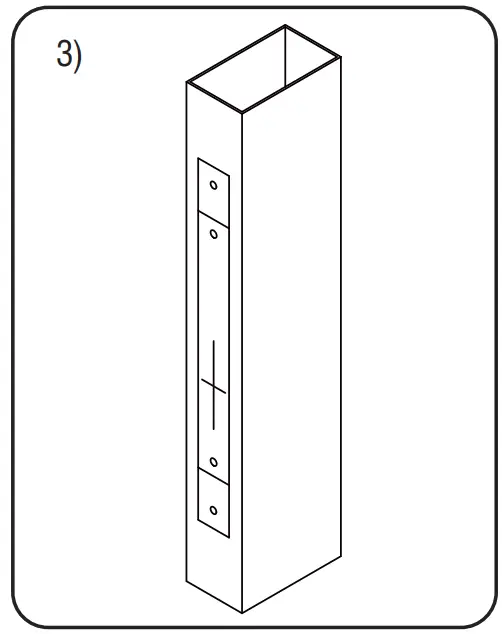

Attach the template to the marked position

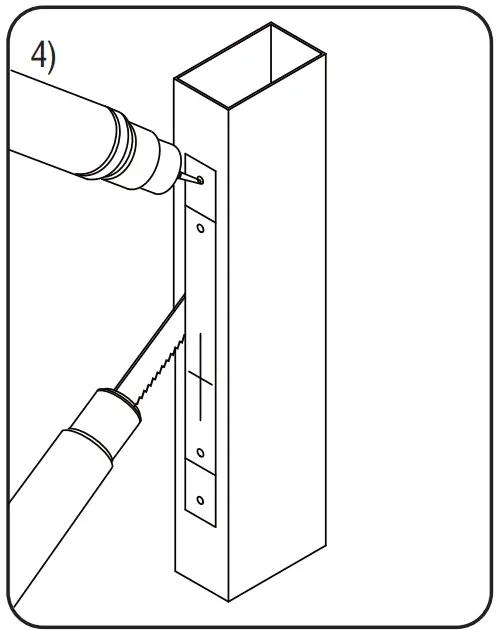

Cut hole using template

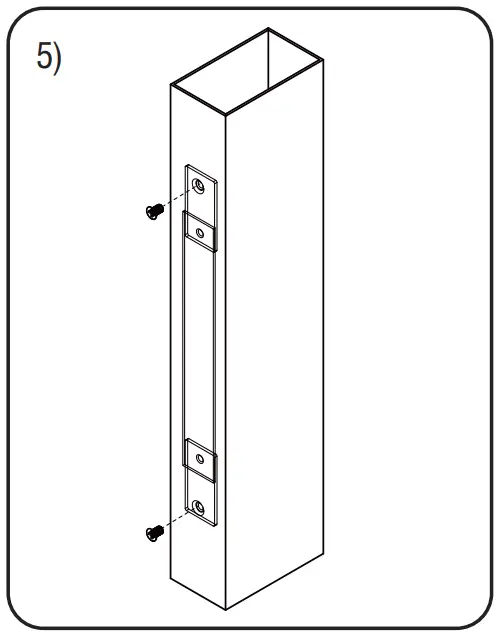

Install the mounting tabs

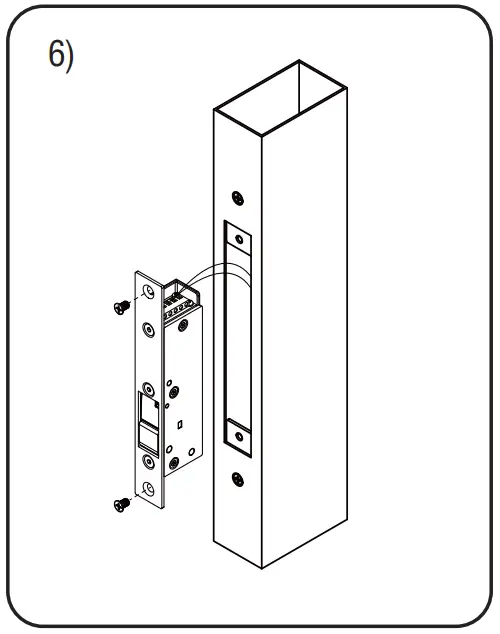

Connect the wires, and install the strike
Copyright © All Rights Reserved.
P-MU-GK1900 Published: 2021.09.09
