KI460ZT Electric hobs Black
Installation Guide
KI460ZT Electric hobs Black
The fitting of the appliance should only be carried out by a registered Corgi-qualified installer. Please read the safety regulations.
Pictograms used
Important information

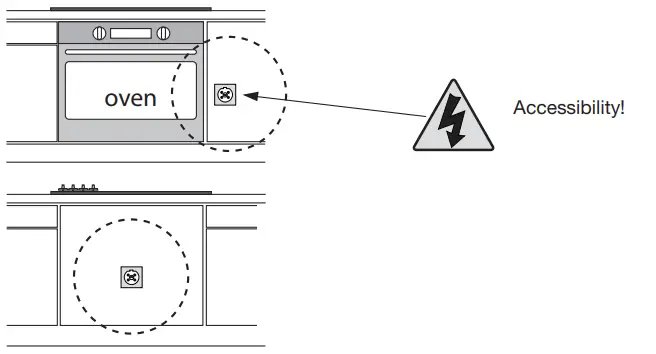

Electrical connection This appliance must be earthed.
The electrical connection must comply with national and local regulations.

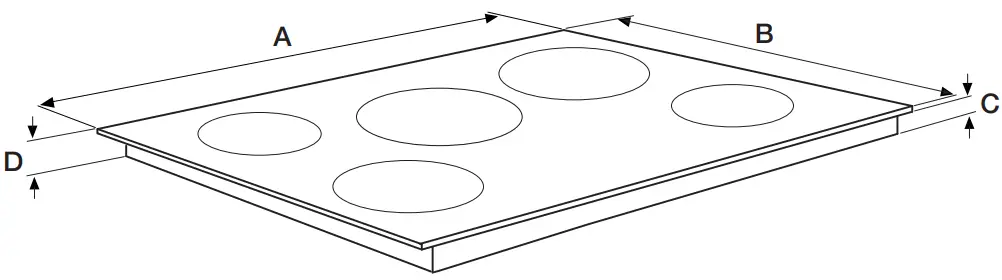

KI2160ZT/KI1160ZT/IK1264/KI2160RVS
| A (mm) | B (mm) | C (mm) | D (mm) |
| 590 | 520 | 56 | 60 |
| 592.5 | 522.5 | 57 | 61 |

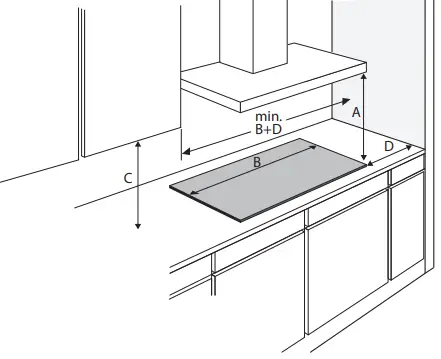

Free space around the appliance
| A (mm) | C (mm) | D (mm) |
| min. 650 | min. 650 min. 450 | min. 40 |
Connected load
| L1 (W) | L2 (W) | L3 (W) | Total load (W) |
| 3700 | 3700 | – | 7400 |

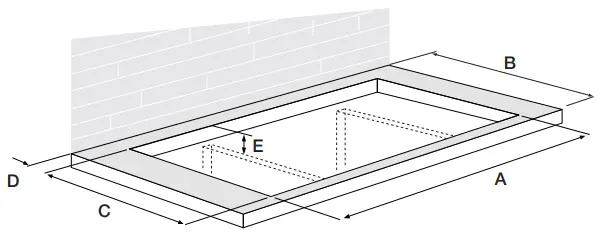

| A (mm) | B (mm) | C (mm) | D (>mm) | E (>mm) |
| 560 | 600 | 490 | 40 | 70 |

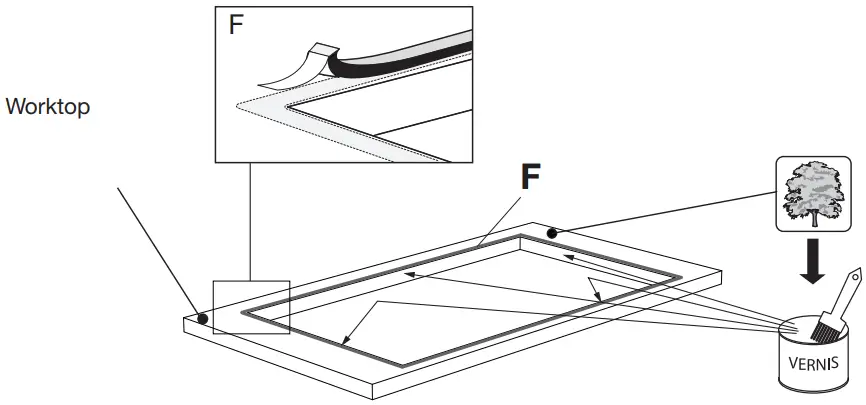

Placing sealing tape

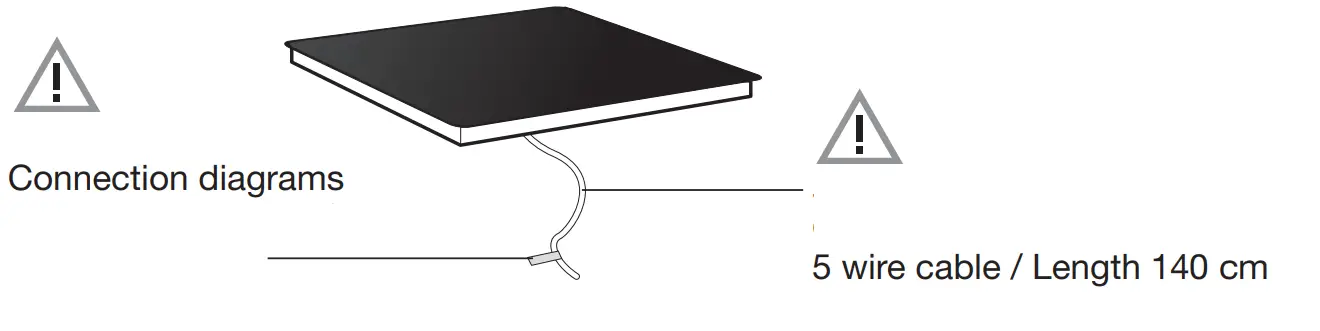

Electrical connection

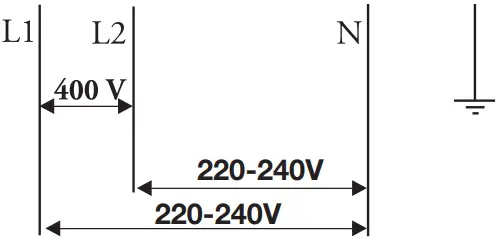

2N 380-415V 50/60Hz – 2x 16A
2 phases – 1 neutral
Cross-sectional area

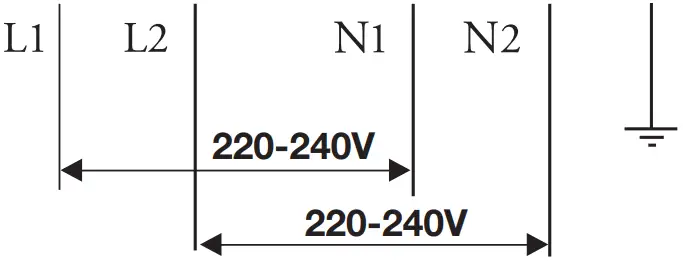

2-2N 220-240V 50Hz – 2x 16A
2 phases – 2 neutral
Cross-sectional area
Only NL
1 1N 220-240V 50/60Hz – 1x 32A
1 phase – 1 neutral
Cross-sectional area

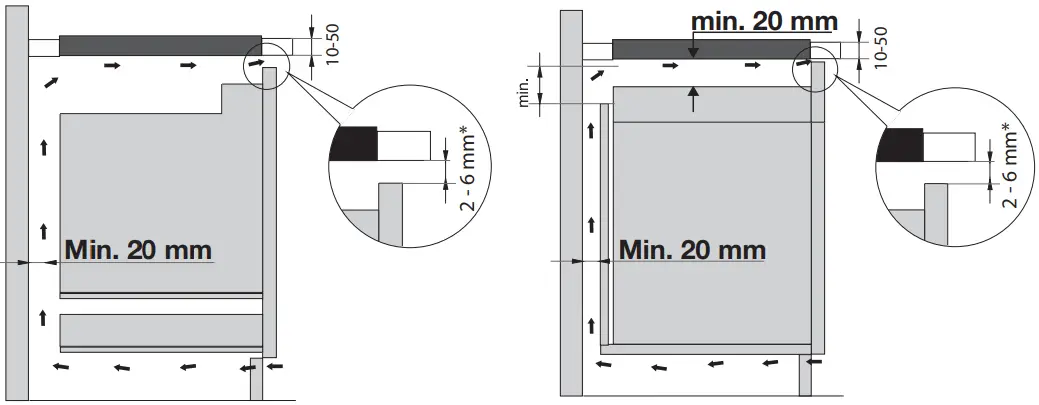

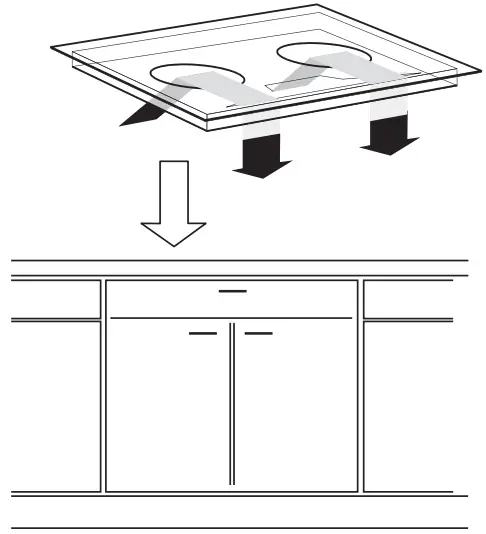

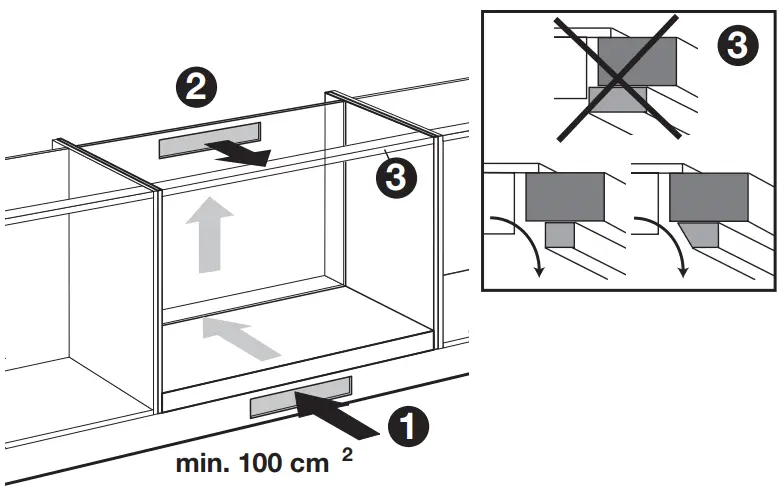

Ventilation
* To reach the best hob performance, we advise a ventilation gap as large as possible.
You can find the most recent version of the installation instructions on our website.
825810 / VER 4 / 15-02-2022
