ETNA AKI683ZT Induction Hob with Extractor Instruction Manual

PRODUCT OVERVIEW

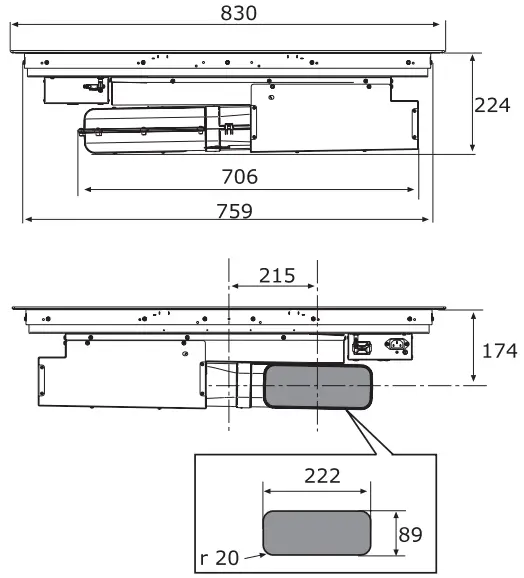

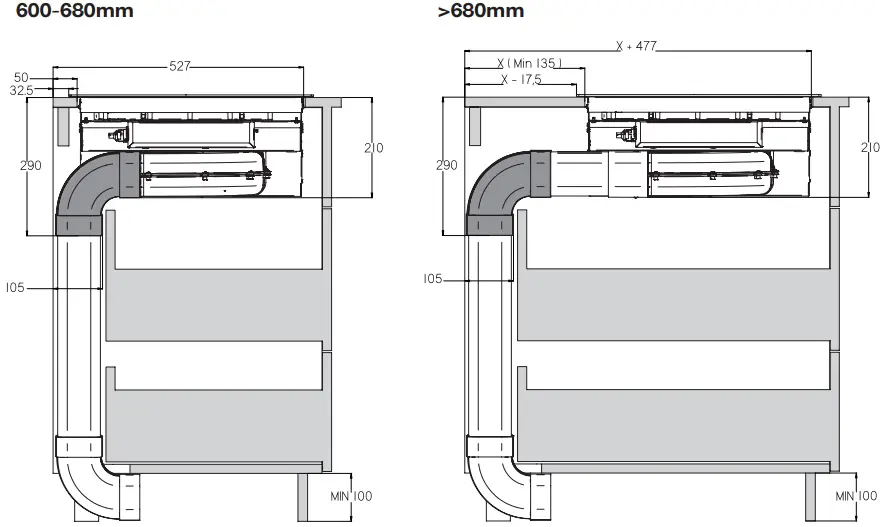

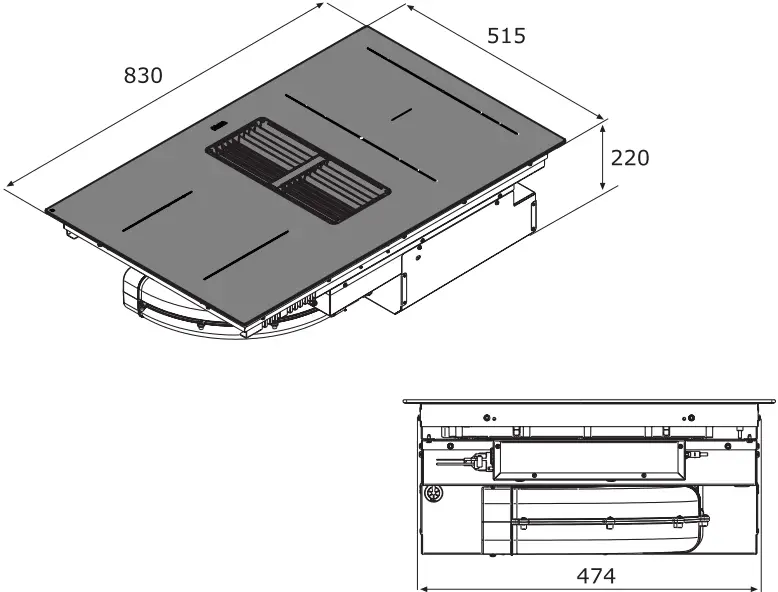

Product Dimension

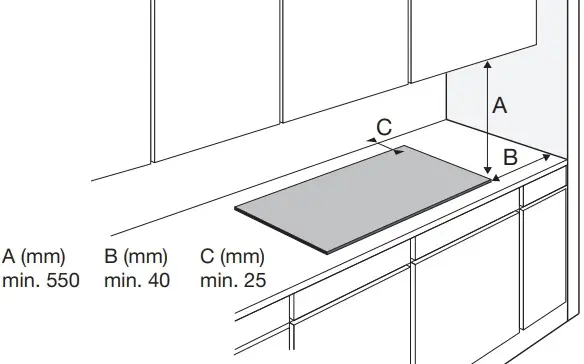

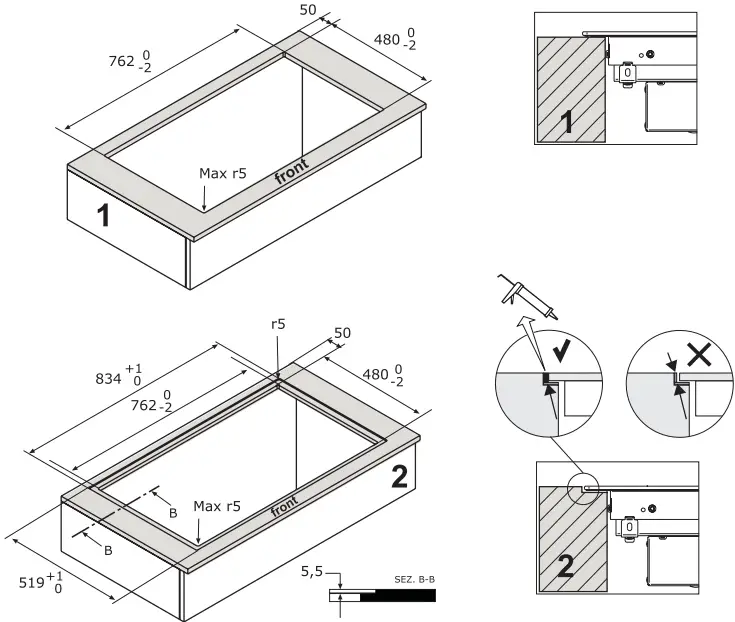

Free space around appliance

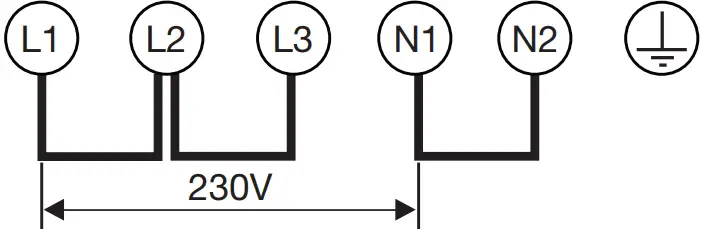

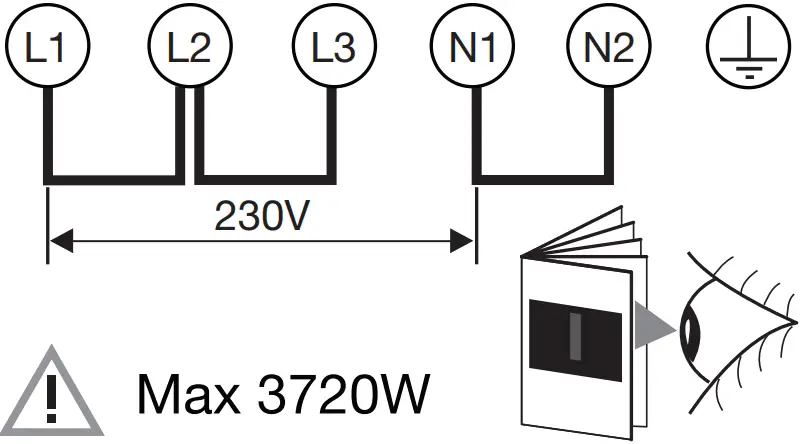

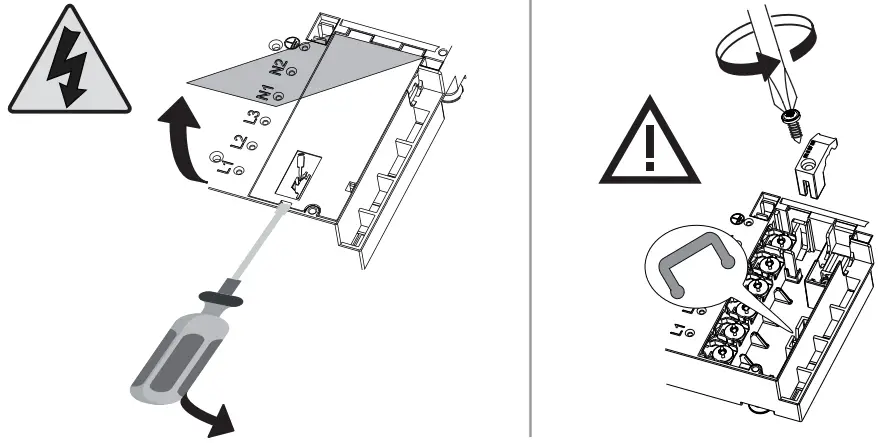

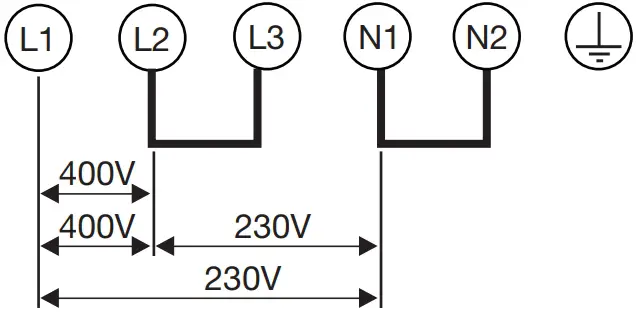

Specification

• 2N 380-415V 50/60Hz – 2x 16A
• 2 phases – 1 neutral
• Cross sectional area- 4×1,5 mm²

• 1N 220-240V 50/60Hz – 1x 16A
• 1 phase – 1 neutral
• Cross sectional area- 4×1,5mm²

• 1N 220-240V 50/60Hz – 1x 32A
• 1 phase – 1 neutral
• Cross sectional area- 3x4mm²

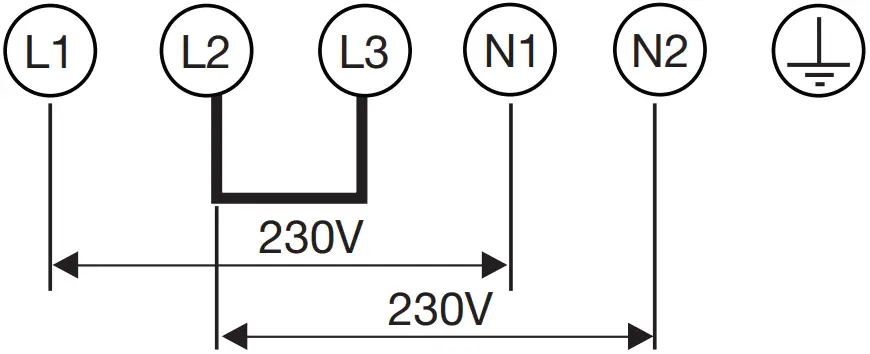

• 2-2N 230V 50Hz – 2x 16A
• 2 phases – 2 neutral
• Cross sectional area- 5×1,5  mm²

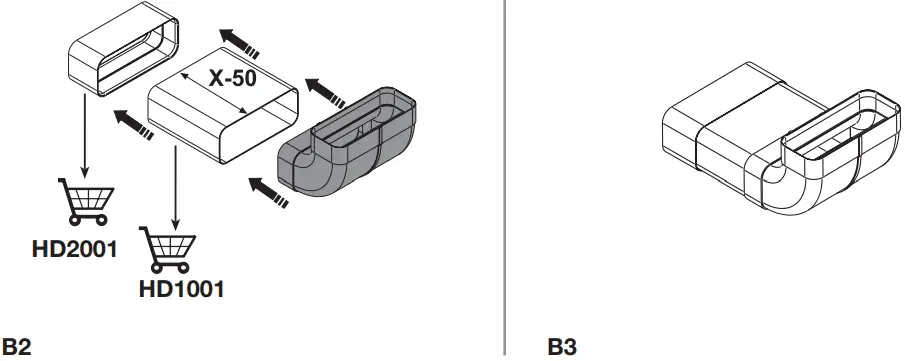

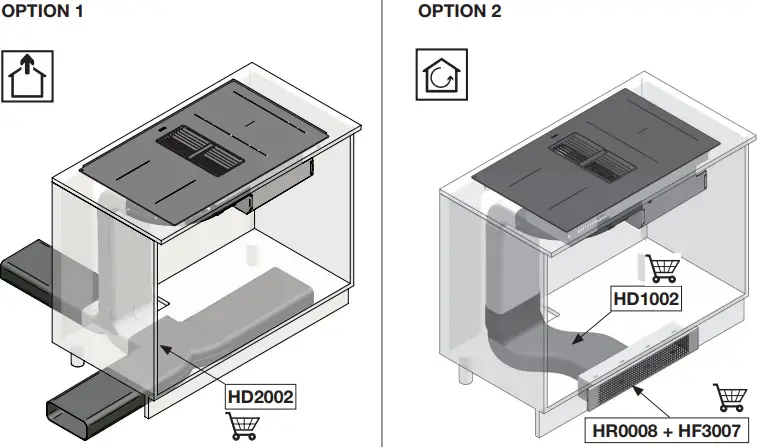

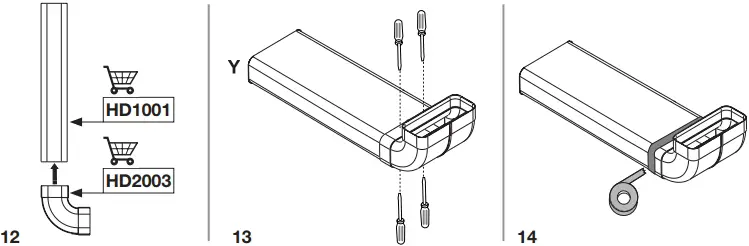

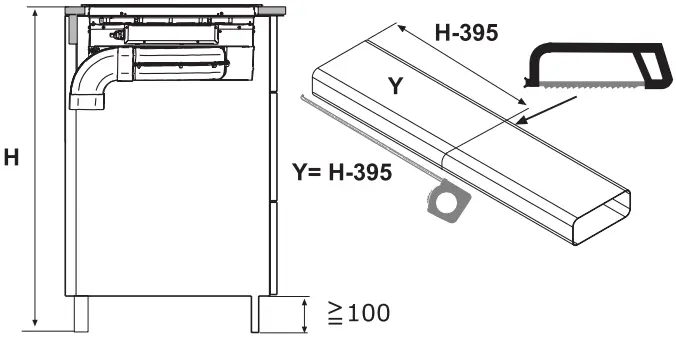

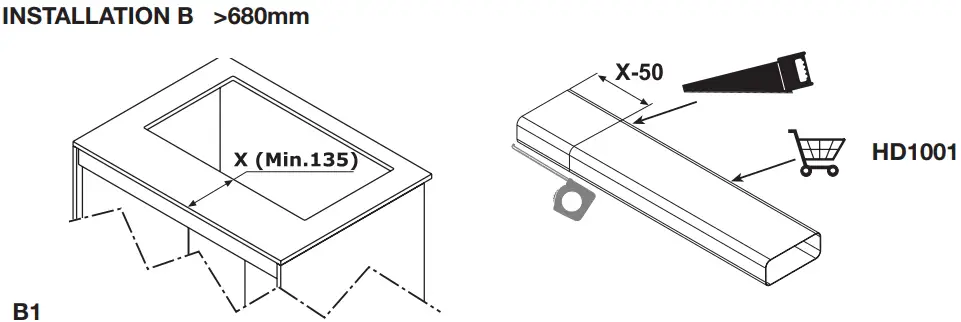

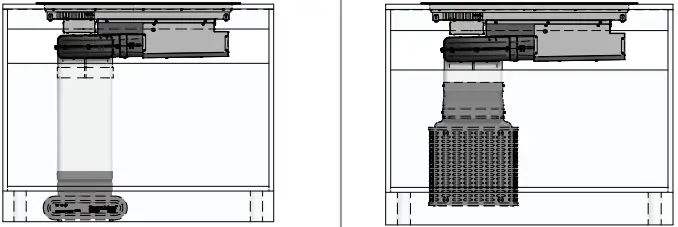

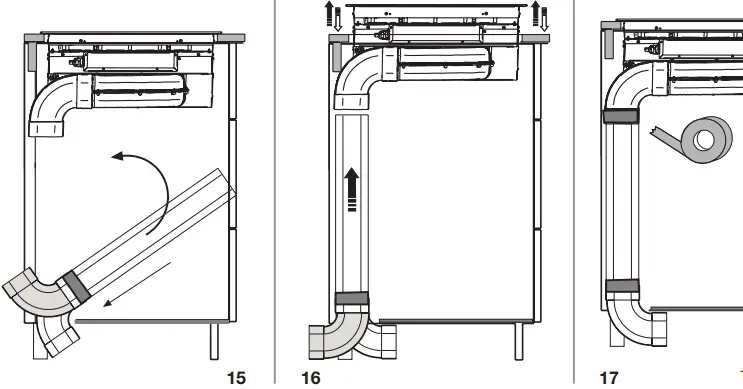

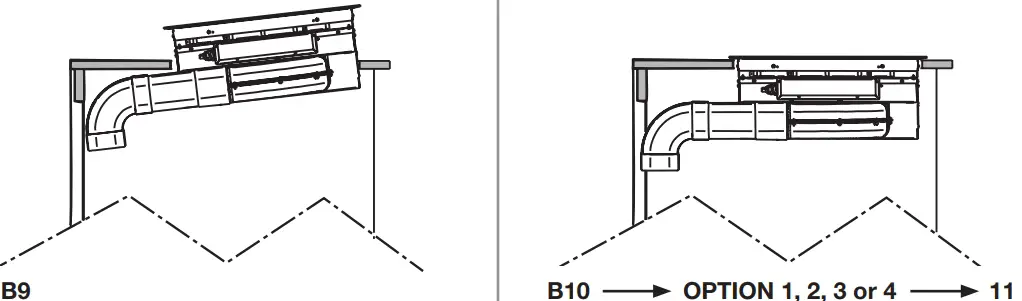

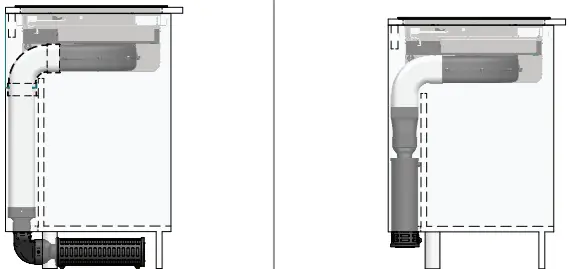

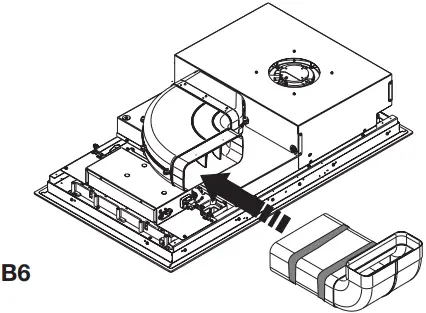

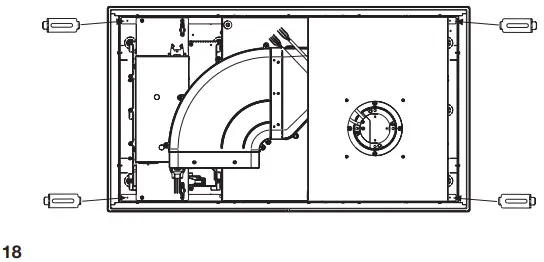

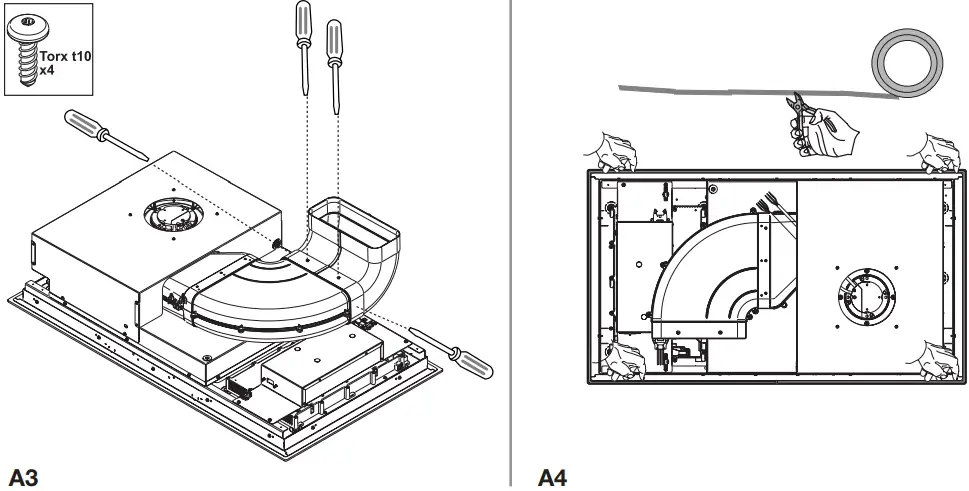

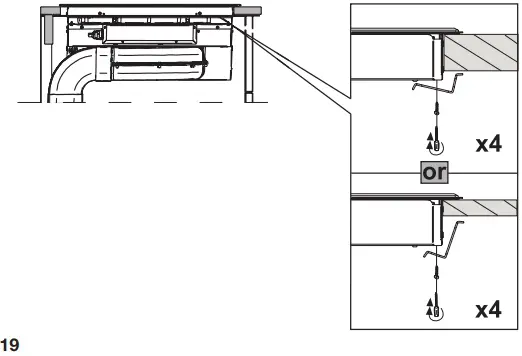

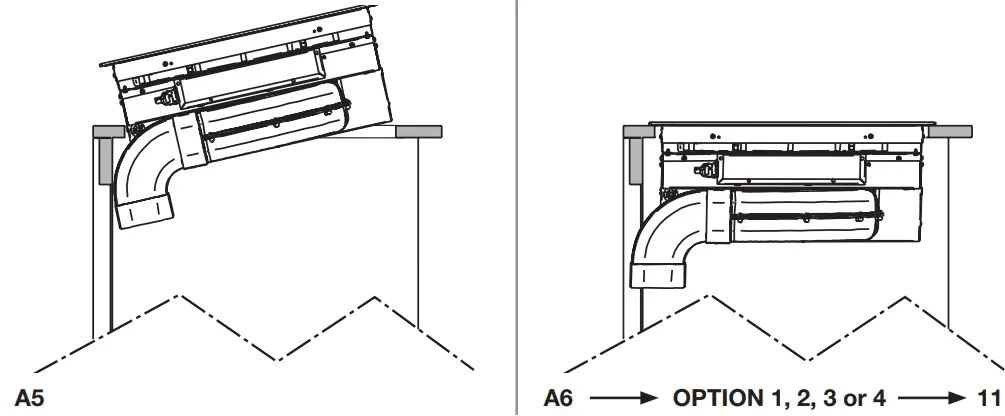

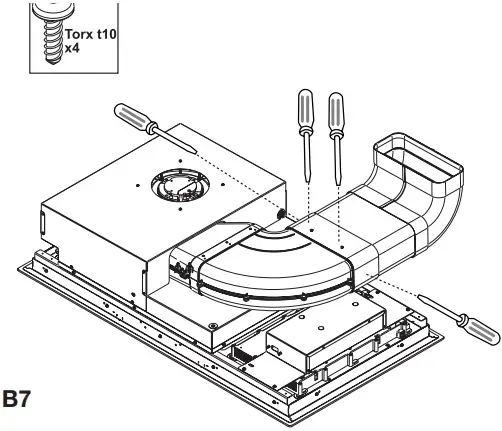

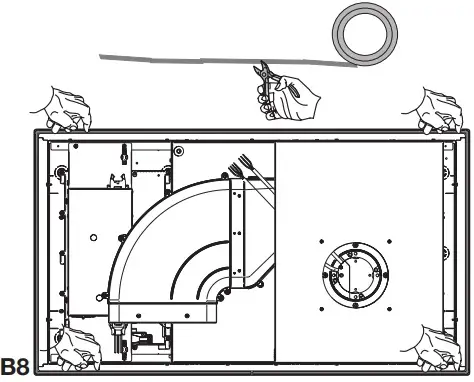

Installation

1. https://etna.nl/wp-content/uploads/2017/06/E-21-01-103-Leaflet-koppelstukken1.pdf
2. https://etna.nl/wp-content/uploads/2017/06/E-21-01-103-Leaflet-koppelstukken1.pdf
3. https://etna.nl/wp-content/uploads/2017/06/E_21_01_103_Leaflet-koppelstukken1.pdf

Verify the correct functioning of the appliance.

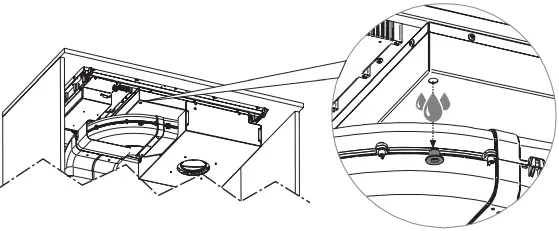

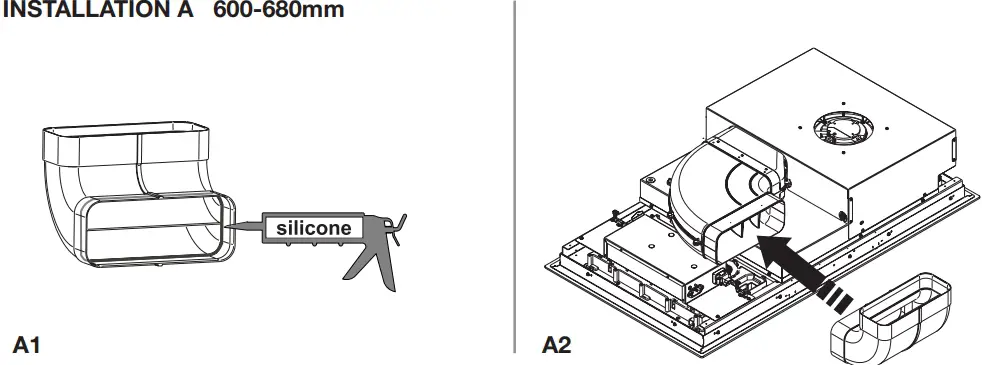

Wait for silicon to dry

Support & Service

You can find the most recent version of the installation instructions on our website.

http://www.etna.nl/

http://www.etna.be/
