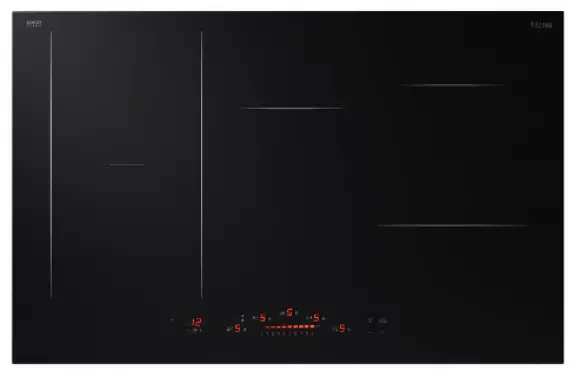

ETNA KIF780ZT Induction Hobs
WARNING
The fitting of the appliance should only be carried out by a registered and qualified installer. Please read the safety regulations.
Preparations for installation
Pictograms used
- Important information
- Electrical connection

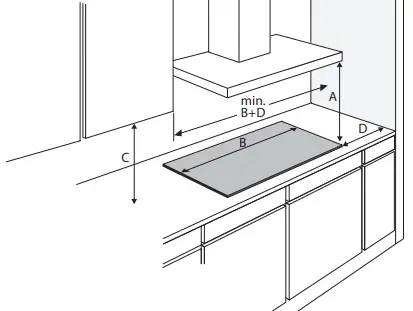

Free space around the appliance
| A (mm) | C (mm) | D (mm) |
| min. 650 | min. 450 | min. 40 |
This appliance must be earthed.
The electrical connection must comply with national and local regulations.
Connected load
| L1 (W) | L2 (W) | L3 (W) | Total load (W) | |
| KIF780ZT | 3600 | 3600 | 0 | 7200 |
| KIF780DS | 3600 | 3600 | 0 | 7200 |
| KIF790ZT | 3600 | 3600 | 0 | 7200 |

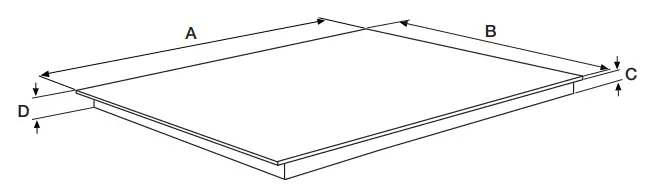

| A (mm) | B (mm) | C (mm) | D (mm) | |
| KIF780ZT | 800 | 520 | 54,1 | 58,1 |
| KIF780DS | 800 | 520 | 54,1 | 58,1 |
| KIF790ZT | 900 | 520 | 54,1 | 58,1 |
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | |
| KIF780ZT | 750 | 600 | 490 | 50 | 56 |
| KIF780DS | 750 | 600 | 490 | 50 | 56 |
| KIF790ZT | 750 | 600 | 490 | 50 | 56 |
Accessibility!

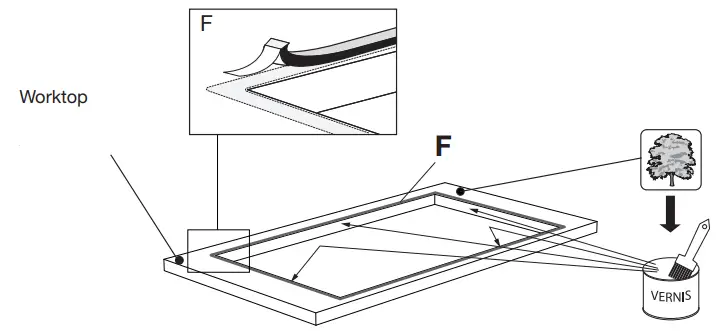

Placing sealing tape
Electrical connection

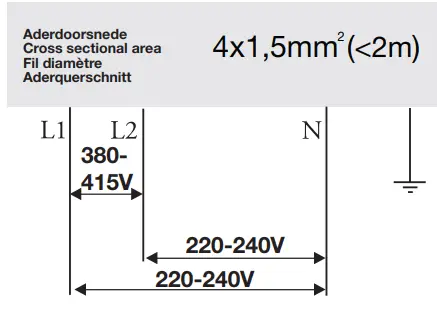

- 2N 380-415V 50/60Hz – 2x 16A
- 2 fase – 1 nul / 2 phases – 1 neutral

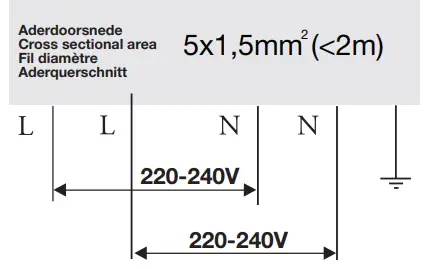

- 2-2N 220-240V 50Hz – 2x 16A
- 2 fase – 2 nullen / 2 phases – 2 neutral

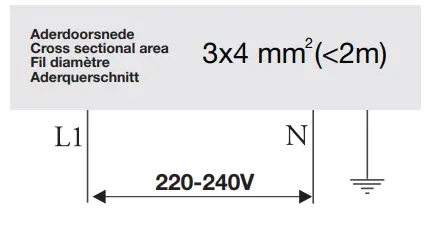

- 1 1N 220-240V 50/60Hz – 1x 32A
- 1 fase – 1 nul / 1 phase – 1 neutral

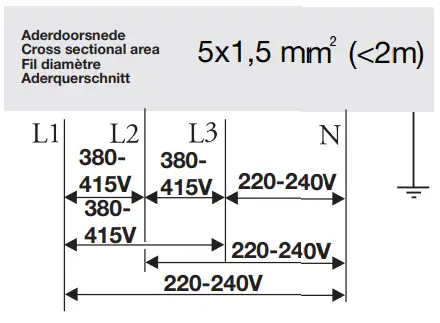

- 3N 380-415V 50/60Hz – 3x 16A
- 3N 380-415V 50/60Hz – 3x 16A
Consult the wiring diagrams on the back of the appliance/Make the required connections on the connecting block.
You can find the most recent version of the installation instructions on our website.
