KI460ZT Induction Hobs
Instruction Manual
The fitting of the appliance should only be carried out by a registered and qualified installer. Please read the safety regulations.
Preparations for installation
Pictograms used
Important information

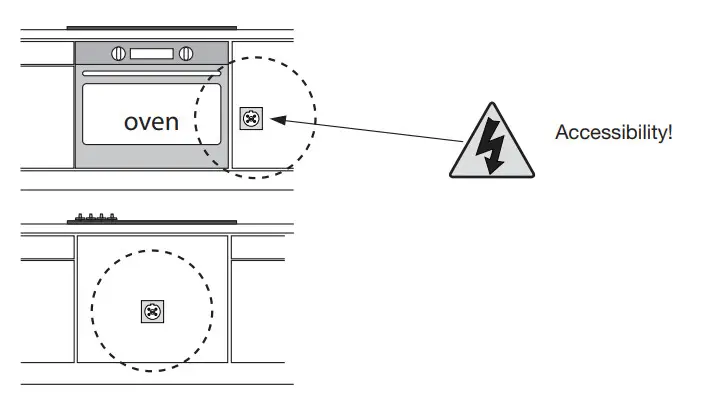

Electrical connection
This appliance must be earthed.
The electrical connection must comply with national and local regulations.

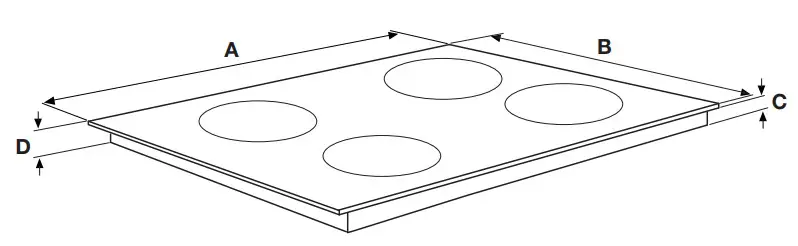

| A (mm) | B (mm) | C (mm) | D (mm) | |
| I K4062M | 600 | 522 | 50 | 54 |
| I K4062R | 598 | 520 | 50 | 54 |
| I K4064M | 600 | 522 | 50 | 54 |
| 1K4064SR/R | 598 | 520 | 50 | 54 |
| I K4073M | 705 | 522 | 50 | 54 |
| IK4083M | 800 | 522 | 50 | 54 |
| IK4084M | 800 | 522 | 50 | 54 |
| I K4084R | 798 | 520 | 50 | 54 |

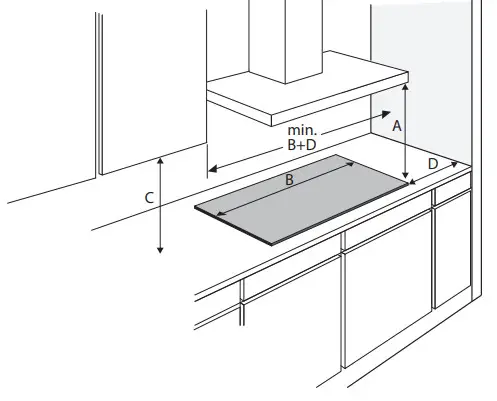

Free space around the appliance
A (mm) C (mm) D (mm)
min. 650 min. 450 min. 40
Connected load
| L1 (W) | L2 (W) | L3 (W) | Total load (W) | |
| IK4062M | 3700 | 3700 | 0 | 7400 |
| IK4062R | 3700 | 3700 | 0 | 7400 |
| IK4064SR | 3680 | 0 | 0 | 3680 |
| IK4064M | 3600 | 3600 | 0 | 7200 |
| IK4064R | 3600 | 360 | 0 | 7200 |
| IK4073M | 3700 | 3700 | 0 | 7400 |
| IK4083M | 3700 | 3700 | 0 | 7400 |
| IK4084M | 3600 | 3600 | 0 | 7200 |
| IK4084R | 3600 | 3600 | 0 | 7200 |

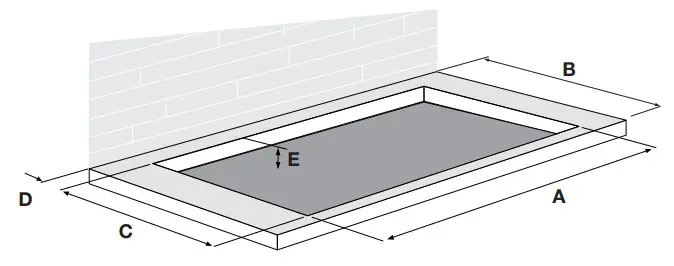

| A (mm) | B (mm) | C (mm) | D (>mm) | E (>mm) | |
| IK4062/IK4064 | 560 | 600 | 490 | 40 | 70 |
| IK4073 | 560 | 600 | 490 | 40 | 70 |
| IK4083/IK4084 | 750 | 600 | 490 | 40 | 70 |
Placing sealing tape
Electrical connection

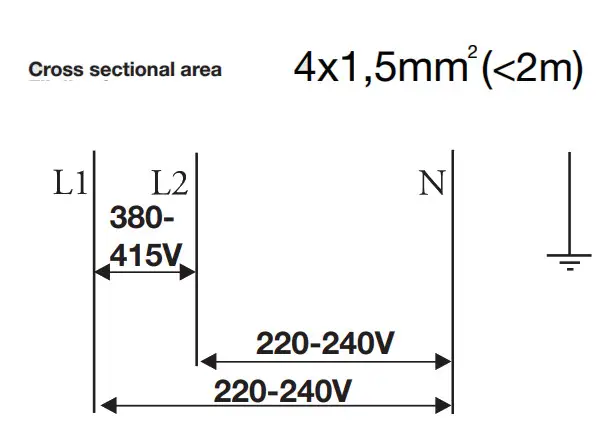

2N 380-415V 50/60Hz – 2x 16A
2 fase – 1 nul / 2 phases – 1 neutral
2 Phasen – 1 Nullanschluss / 2 phases et 1 neutre

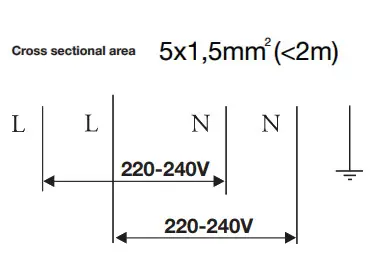

2-2N 220-240V 50Hz – 2x 16A
2 fase – 2 nullen / 2 phases – 2 neutral
2 Phasen – 2 Nullanschlusse / 2 phases et 2 neutres

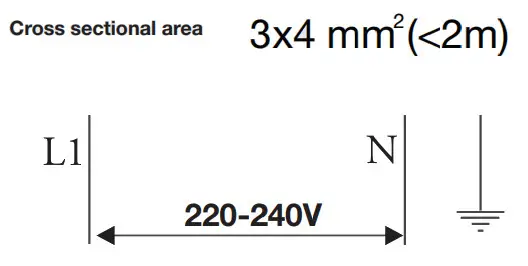

1 1N 220-240V 50/60Hz – 1x 32A
1 fase – 1 nul / 1 phase – 1 neutral
1 Phase – 1 Nullanschluss / 1 phase et 1 neutre

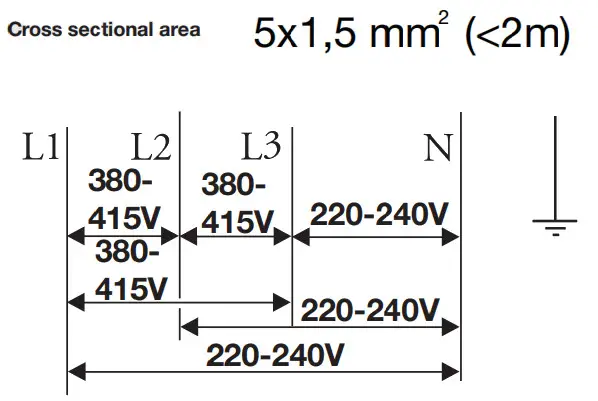

3N 380-415V 50/60Hz – 3x 16A
3 fase – 1 nul / 3 phases – 1 neutral
3 Phasen- 1 Nullanschluss / 3 phases et un neutre
Make the required connections on the connecting block.
You can find the most recent version of the installation instructions on our website.
