Sealey Fh3000 Industrial Fan Heater Instruction Manual

3000W INDUSTRIAL FAN HEATER
MODEL NO: FH3000
Instruction Manual

FH3000 Industrial Fan Heater

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble-free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE  AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

SAFETY

1.1. ELECTRICAL SAFETY
‰ WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets, and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimized by the installation of appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated into the main distribution board. We also recommend that a Residual Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are
plugged into a supply that is not protected by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey stockist.
You must also read and understand the following instructions concerning electrical safety.
The Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.
The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2. and use a Portable Appliance Tester.
Ensure that cables are always protected against short circuits and overload.
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that none are loose.
Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that the plug is fitted with the correct fuse – see fuse rating at right.
DO NOT pull or carry the appliance by the power cable.
DO NOT pull the plug from the socket by the cable.
DO NOT use worn or damaged cables, plugs, or connectors. Immediately have any faulty item repaired or replaced by a qualified electrician. When a BS 1363/A UK 3-pin plug is damaged, cut
the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (the UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been connected correctly, that the cable outer insulation extends beyond the cable restraint and that the restraint is tight. Double-insulated products, which are always marked with this symbol, are fitted with live (brown) and neutral (blue) wires only. To rewire, connect the wires as indicated above.
DO NOT connect either wire to the earth terminal.
1.2. GENERAL SAFETY
‰ WARNING! Disconnect the heater from the mains power supply, before servicing or performing any maintenance. Servicing or maintenance must only be carried out by an authorized service agent.
Check that the heater is in sound condition and in good working order. Take immediate action to repair or replace damaged parts.
Use recommended parts only. Unapproved parts may be dangerous and will invalidate the warranty.
Position the heater at least a minimum of 0.5m at the rear and sides, and 2m, at the front, from any walls or objects.
‰ WARNING! DO NOT use the heater near flammable material, liquids, solids, gases or compressed gas cylinders, etc.
DO NOT obstruct the air inlet and outlet sections of the heater.
DO NOT cover the heater.
DO NOT operate the heater when you are tired or under the influence of alcohol, drugs, or intoxicating medication.
DO NOT touch the heater casing or grill when first switched off, as these will be very hot and will take time to cool.
DO NOT use the heater for anything other than its intended purpose. It is designed to provide heat in enclosed areas larger than 4m³, such as workshops and other industrial areas. It is not suitable for drying clothes or laundry.
DO NOT place the heater close to a bath, wash basin, shower, swimming pool, or any other water-filled area or wet surface.
DO NOT get the heater wet or use it in areas of high condensation.
DO NOT place the heater up against any surface such as a wall, door or furniture, etc.
DO NOT place the heater immediately below any electrical outlet.
DO NOT allow the power lead to touch the radiator surface.
DO NOT attempt to repair a damaged heater, contact an authorized service agent.
DO NOT stand on the heater.
DO NOT connect the heater to a timer device or other equipment that can automatically switch the heater on or off.
Only use the heater in an upright position.
Ensure that the heater is correctly turned off when not in use and stored in a safe, dry, childproof location.
NOTE: Children of less than 3 years should be kept away unless supervised continuously.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

INTRODUCTION

Portable Industrial heater with a fan only and two heat settings. Tough composite case with integral carry handle. Full-range ambient room thermostat maintains temperature. Fan doubles as a cool air blower for use in the summer.
Supplied without a plug.

SPECIFICATION

Model No: ……………………………..FH3000
Supply: ………………..230V~50Hz – 16A (Supplied without plug)
Power: ……………………………….. 3000W

OPERATION

4.1. Position the heater in an upright position on a firm surface and at a safe distance from any obstructions, flammable substances, etc. Keep to a minimum of 0.5mtr clearance at the rear and sides, and 2mtr clearance at the front.
4.2. Connect the heater to a suitable main supply.
4.3. Set the thermostat to the required temperature (max. = ~ 100°C).

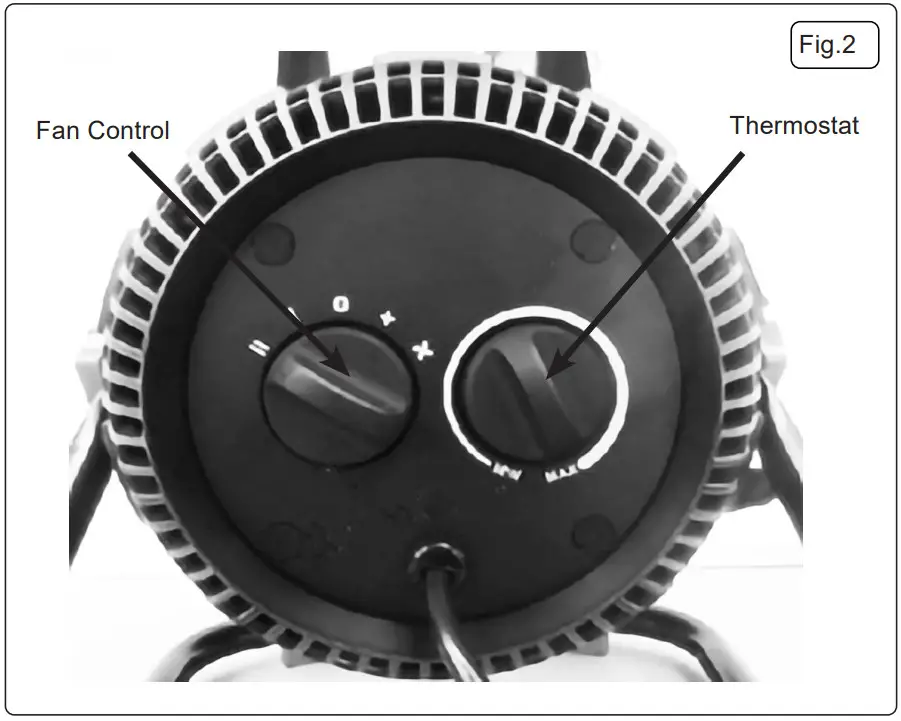

4.4. Set the required temperature using the Fan Control dial set to either the ‘ I ‘ (lower value) or ‘ II ‘ (higher value) (Fig.2).
4.5. Once the room reaches the required temperature, turn the thermostat dial slowly counter-clockwise until the thermostat clicks, leave the dial in this position to maintain the room temperature at this setting. The heater will continue to operate until the Fan Control is turned to the OFF‘ 0 ‘ position.
4.6. For fan-only operation, turn the Fan Control clockwise to the fan-only settings (low) or (high) and set the thermostat to its minimum setting (Fig.2).
4.7. When not in use, disconnect the heater from the main supply. Store it in a safe, dry, childproof location.

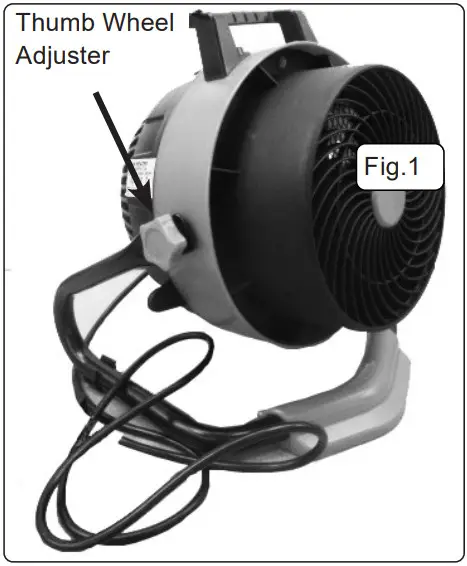

4.8. To adjust fan direction, loosen the thumb wheels on the side of the support frame (fig.1) and fully tighten them when the required angle is set.

MAINTENANCE

‰ WARNING! Before attempting any maintenance, ensure that the unit is unplugged from the main power supply and that it has cooled down.
5.1. Clean the heater with a soft dry cloth only. DO NOT use abrasives or solvents.
5.2. Periodically check the heater grille to ensure that it is not blocked.
No other maintenance is necessary. If a problem with the heater is experienced, or if the power lead or plug is damaged, contact your local authorized service agent for repair. DO NOT dismantle or tamper with the heater, as this may be dangerous and will invalidate the warranty.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling center, and disposed of in a manner that is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications, and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: The guarantee is 12 months from the purchase date, proof of which is required for any claim.

Information requirements for electric local space heaters

Model identifier(s):    FH3000.V1
Item	Symbol	Value	Unit	Item	Unit
Heat output	Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	3.00	kW	Manual heat charge control, with integrated thermostat	Yes           No
Minimum heat output (indicative)* * Enter figure or NA	Pmin	1.50	kW	Manual heat charge control with room and/or outdoor temperature feedback	Yes           No
Maximum continuous heat output	Pmax,c	3.00	kW	Electronic heat charge control with room and/or outdoor temperature feedback	Yes           No
	Fan-assisted heat output				Yes           No
Auxiliary electricity consumption	Type of heat output/room temperature control (select one)
At nominal heat output	elmax	N/a	kW	Single-stage heat output and no room temperature control	Yes           No
At minimum heat output	elmin	N/a	kW	Two or more manual stages, no room temperature control	Yes           No
In standby mode	elSB	N/a	kW	With mechanic thermostat room temperature control	Yes     No
	With electronic room temperature control				Yes           No
	Electronic room temperature control plus day timer				Yes           No
	Electronic room temperature control plus week timer				Yes           No
	Other control options (multiple selections possible)
	Room temperature control, with the presence detection				Yes           No
	Room temperature control, with open window detection				Yes           No
	With the distance control option				Yes           No
	With adaptive start control				Yes           No
	With working time limitation				Yes           No
	With a black bulb sensor				Yes           No
Contact details: Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk, IP32 7AR.     www.sealey.co.uk
v1      ERP Table 2

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500
01284 703534
[email protected]
www.sealey.co.uk
© Jack Sealey Limited
Original Language Version
FH3000 Issue
