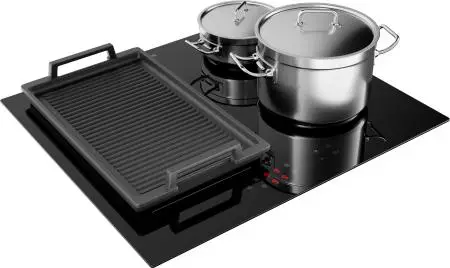

ETNA KIF160ZT Induction Hobs
Preparations for installation
- Important information

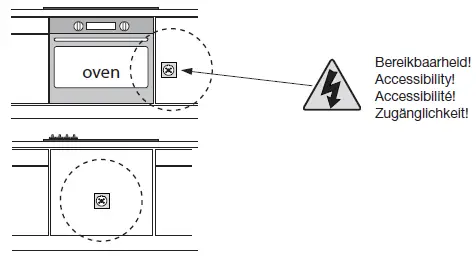

- Electrical connection
- This appliance must be earthed
- The electrical connection must comply with national and local regulations.

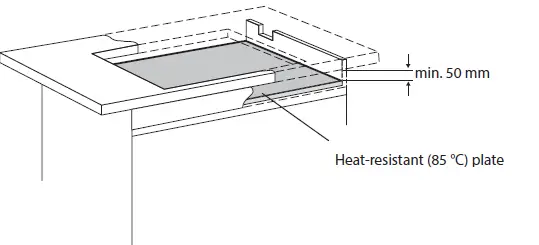

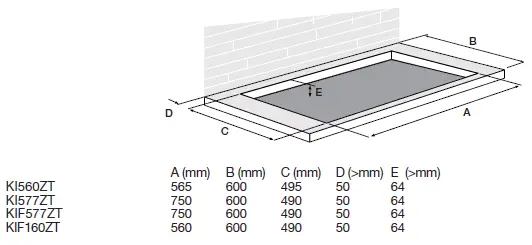

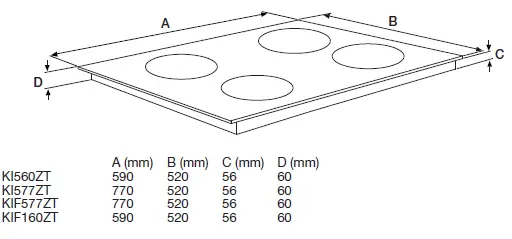

Free space around appliance
A (mm) C (mm) D (mm) min. 650 min. 450 min. 50
Connected load
L1 (W) L2 (W) L3 (W) Total load (W)
- KI560ZT 3500 3500 7000
- KI577ZT 3500 3500 7000
- KIF577ZT 3500 3500 7000
- KIF160ZT * 3500 3500 7000
Model KIF160ZT is standaard ingesteld op 7000W. Het maximaal vermogen kan ingesteld worden, zie de uitleg in de gebruikershandleiding.
Model KIF160ZT is set to 7000W by default. The maximum power can be set, see the explanation in the user manual

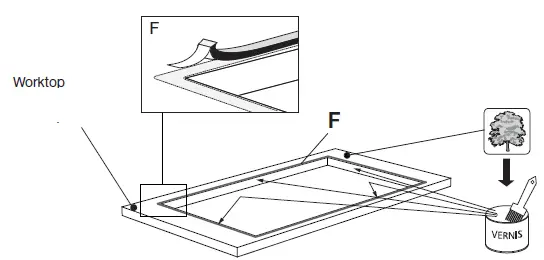

Placing sealing tape
Electrical connection
The connection is based on the maximum power. Read the instruction in the user manual for setting the power limiter
Consult the wiring diagrams on the back of the appliance/Make the required connections on the connecting block.

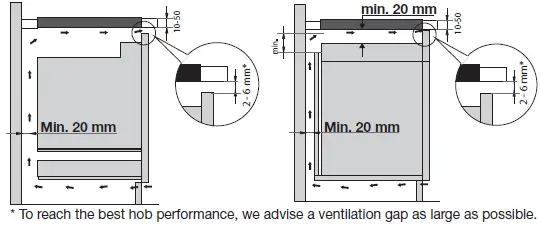

Ventilation
You can find the most recent version of the installation instructions on our website
