AQUADECK welldana Inserted Beam

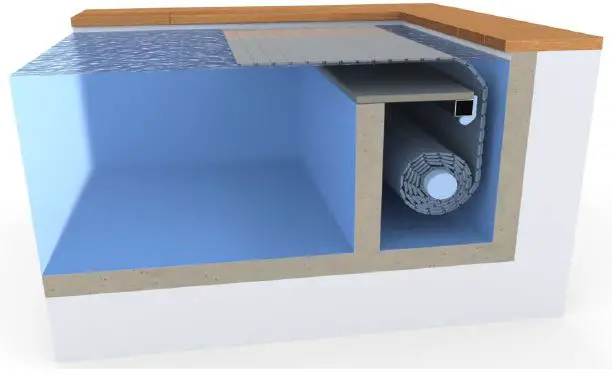

Inserted beam

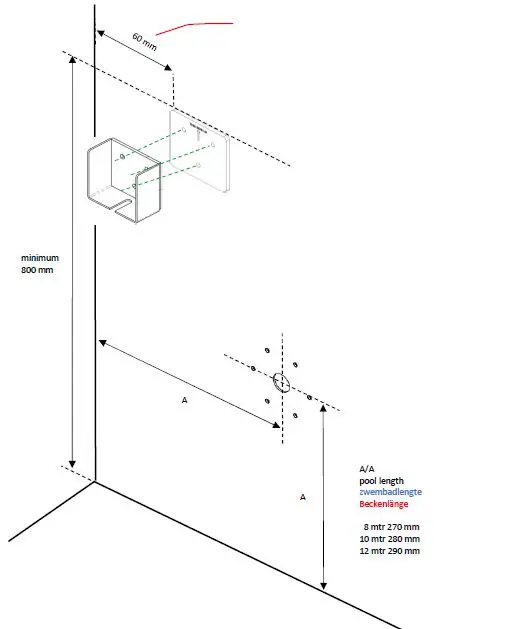

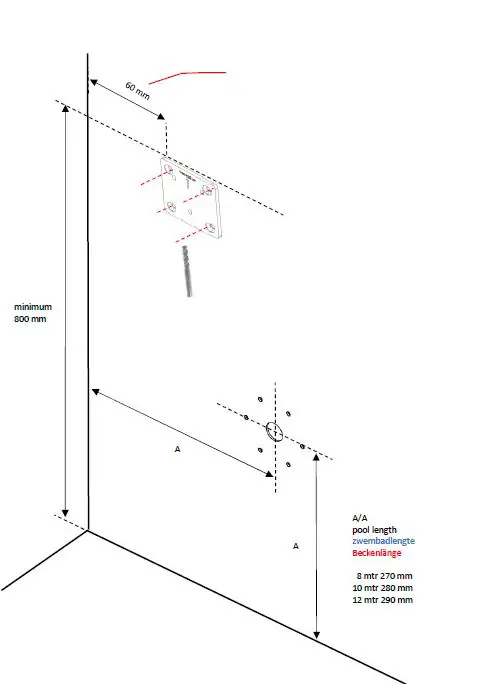

Position the bracket 60 mm from the rear wall If skimmers are on the wall, take extra space
Pay attention:

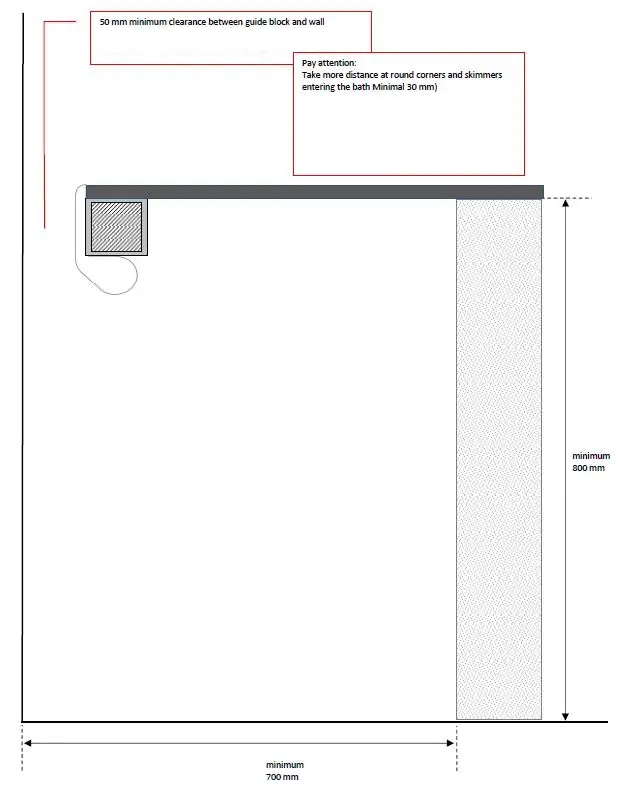

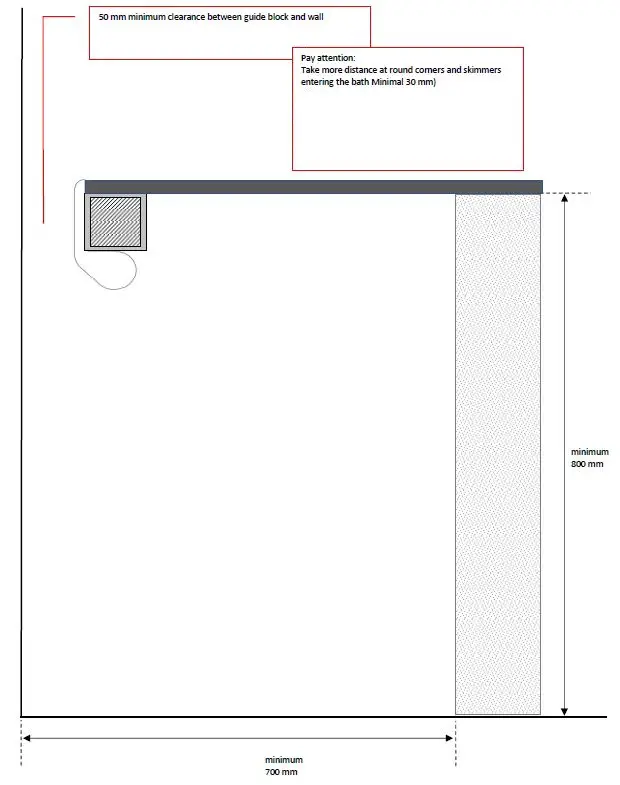

Always use sealant when mounting the fasteners Take more distance at round corners and skimmers entering the bath Minimal 30 mm)
Inserted beam with Cast-in elements

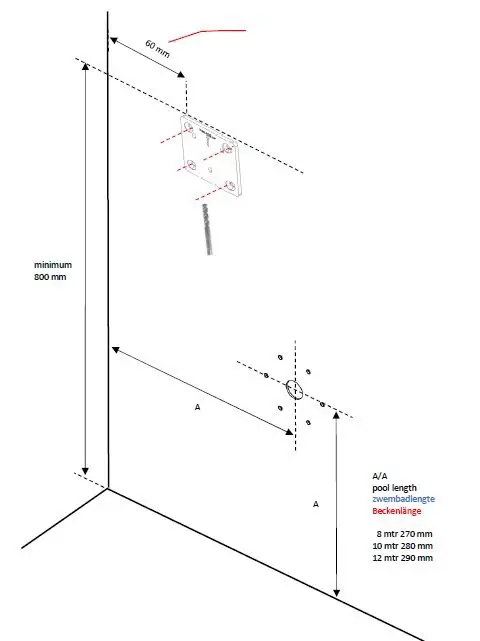

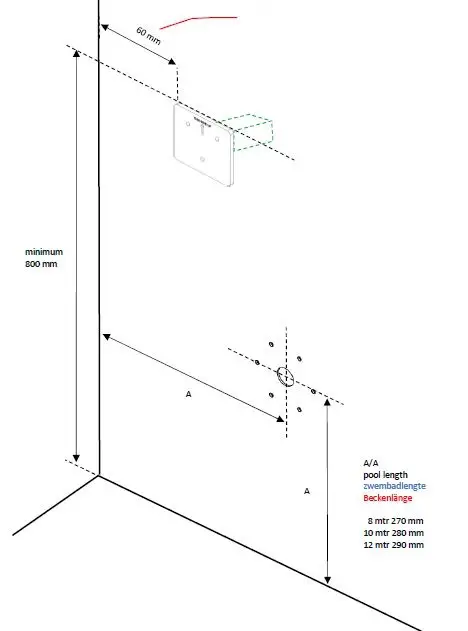

Position the Cast-in element 60 mm from the rear wall If skimmers are on the wall, take extra space

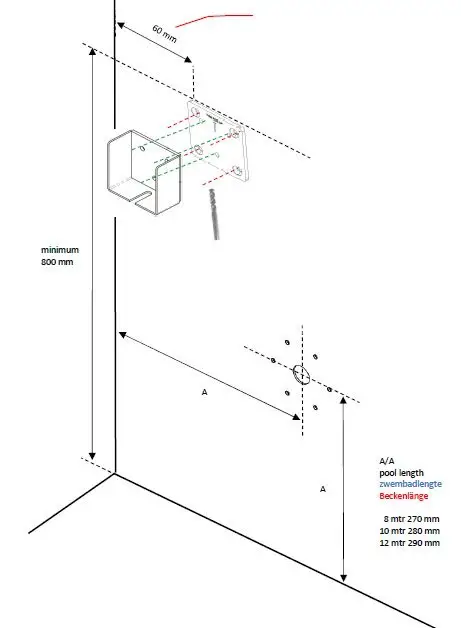

Inserted beam with Pre-assembled elements
Inserted beam with Pre-assembled elements
Inserted beam
Assembling the brackets and the inserted beam
- Inserted beam
- Drill the 6 mounting holes with drill 11 mm (80 mm deep)

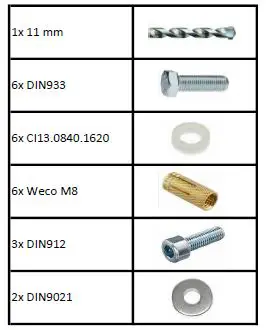

- Mount the brackets with the gaskets (6x DIN933, 6x CI13.0840.1620, 6x Weco M8)
- Place the inserted beam and secure it (2x DIN912, 2x DIN9021)
Inserted beam with Cast-in elements
+
Inserted beam with Pre-assembled elements
Mount the brackets with the gaskets (6x DIN912, 6x CI13.0840.1620
Place the inserted beam and secure it (2x DIN912, 2x DIN9021)
Pre-assembled elements for inserted beam
Inserted beam with Pre-assembled elements
Assembly of the Pre-assembled elements
Inserted beam

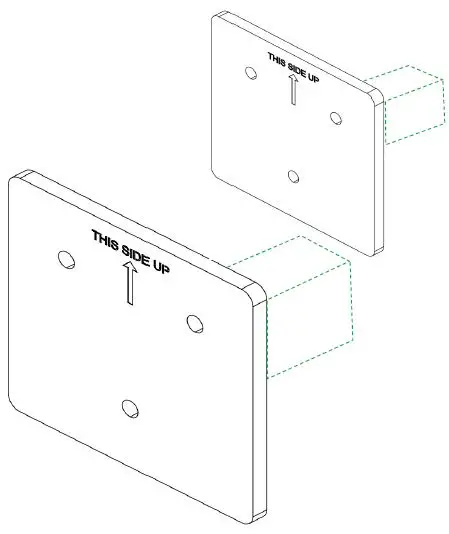

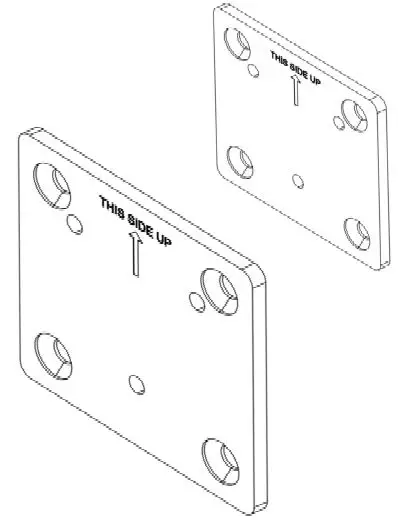

Cast-in elements for inserted beam
Cast-in elements inserted beam
Inserted beam
