SCT013-RJ11 Split core current transformer
User Guide

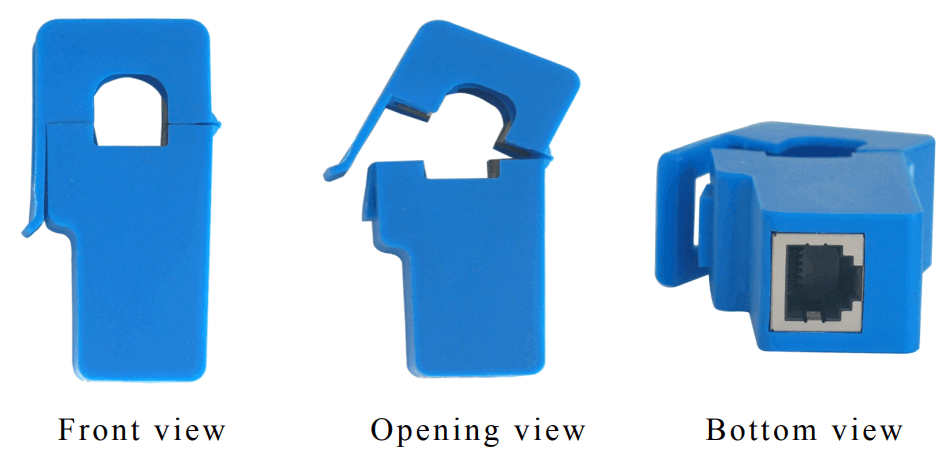

SCT013-RJ11
13 mm Aperture Split core current transformer
Product features
·Safety lock buckle simple installation ·RJ11 interface output ·Suspended type
Product application
- Portable instrument
- Household metering
- Monitoring the load of the machine
Product advantage
- Small volume lightweight
- Low cost
- High turnsHigh precision

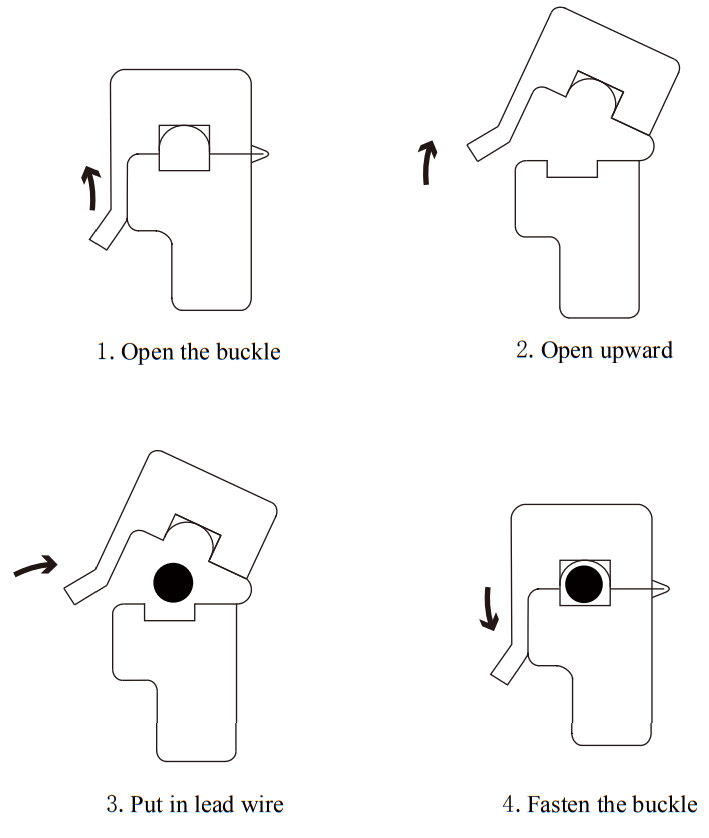

Installation diagram
Primary threading method
Typical technical index
- Material of core—-Ferrite
- Working voltage—-Phase voltage720V
- Working temperature—–25+60
- Storage temperature—–30+90
- Frequency range—-50Hz1KHz
- Dielectric strength—-Inputcbare conductor/output AC 800V/1min 5mA 50Hz
- Output/Outer shell AC 3.5KV/1min 5mA 50Hz
Electrical parameters: The following parameters are typical values and actual values will be subject to product testing

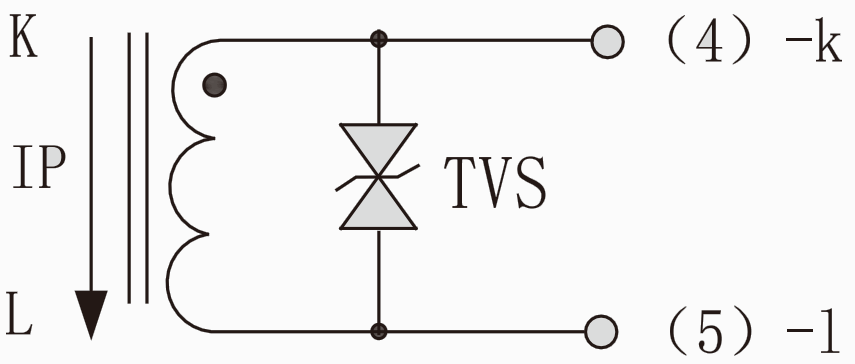

| Model | Input current | Input current | Accuracy | Load resistance | Wiring schematic diagram： TVS: Transient voltage suppressor(7.5V) Current output typeSecondary doesn’t allow open circuit |
| SCT013-RJ11 | 50A | 50A | 1% | 10Ω | |
| SCT013-RJ11 | 100A | 50mA | 1% | 10Ω | |
| SCT013-RJ11 | – | – | – | – | |
| SCT013-RJ11 | – | – | – | – |
| Model | Input current | Output Voltage AC | Accuracy | Load resistance | Wiring schematic diagram： |

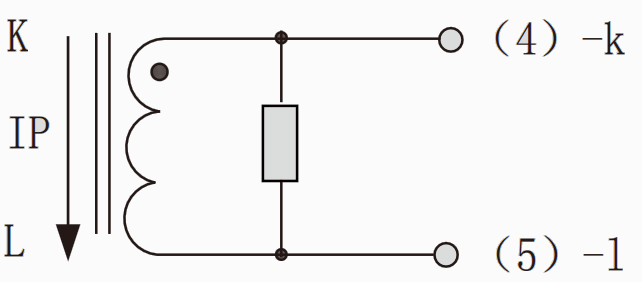

| SCT013-RJ11 | 5A | 0.333V | 1% | ≥10KΩ |  Built-in sampling resistanceVoltage output type Secondary doesn’t allow short circuit |
| SCT013-RJ11 | 10A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 15A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 20A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 25A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 30A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 50A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 60A | 0.333V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 100 | 0.333V | 1% | ≥10KΩ |
| Model | Input current | Output Voltage AC | Accuracy | Load resistance | Wiring schematic diagram： |
| SCT013-RJ11 | 5A | 1V | 1% | ≥10KΩ | Built-in sampling resistance Voltage output type Secondary doesn’t allow short circuit |
| SCT013-RJ11 | 10A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 15A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 20A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 25A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 30A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 50A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 60A | 1V | 1% | ≥10KΩ | |
| SCT013-RJ11 | 100 | 1V | 1% | ≥10KΩ |

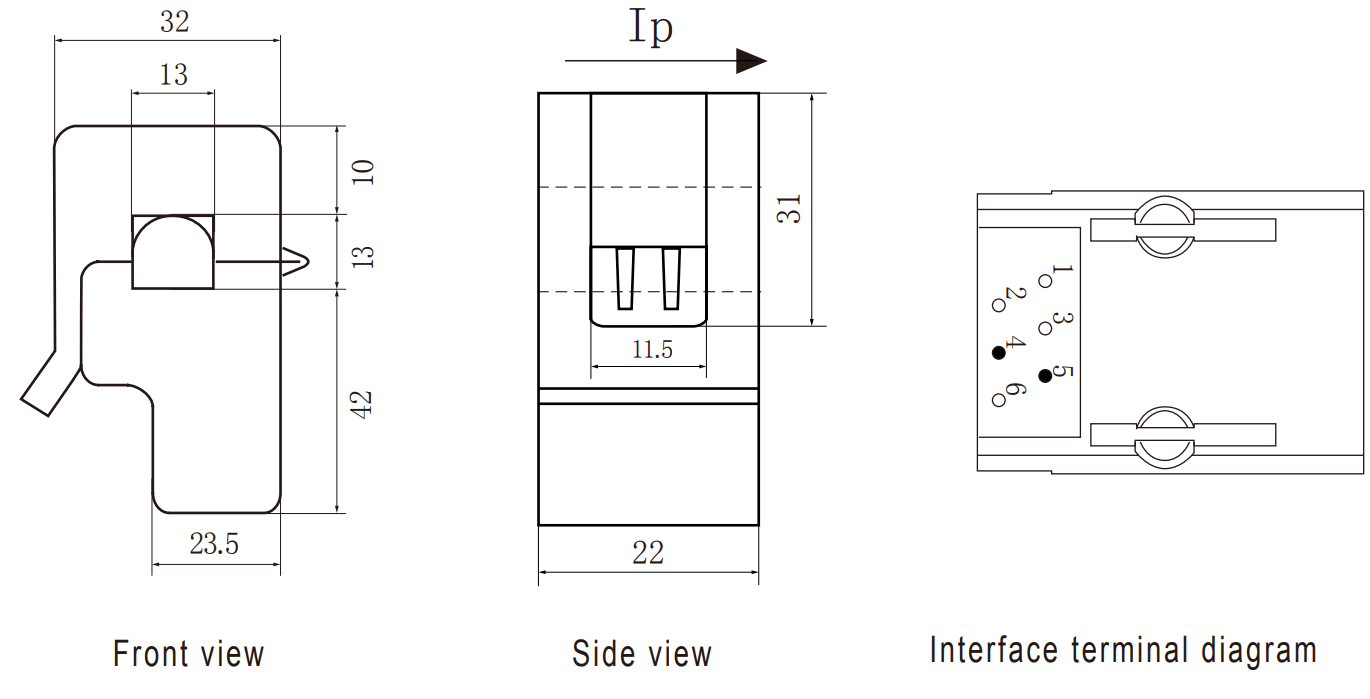

Dimensions: (in:mm±0.5)
