SCT016T-D
Instruction Manual

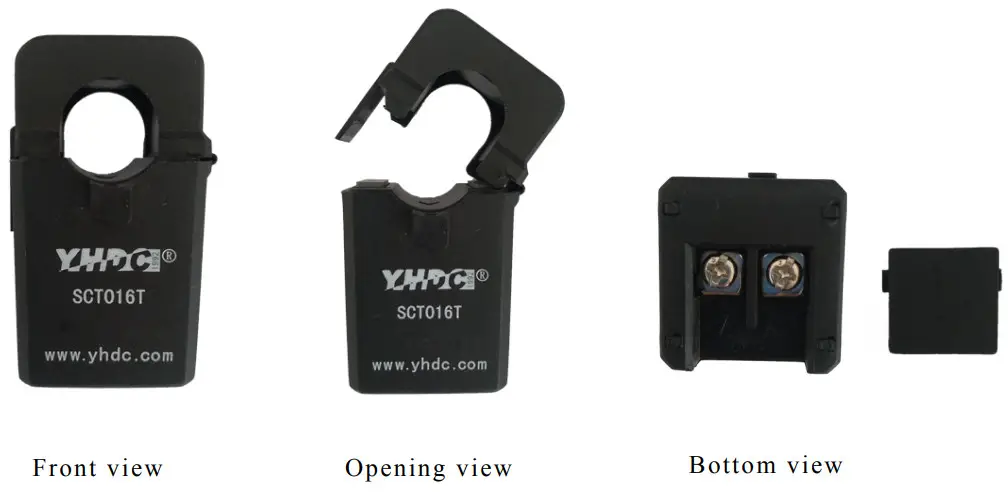

SCT016T-D Split Core Current Transformer
Ф16mmAperture Dc voltage output Split core current transformer
Characteristic
- Safety lock clasp, easy to install
- Built-in rectifier
- Crimping terminal output
- Mounted mounting
Product application
- Portable instrument
- Household metering
- Monitor motor load
Product advantage
- Economic and practical
- Improve efficiency
- High cost performance

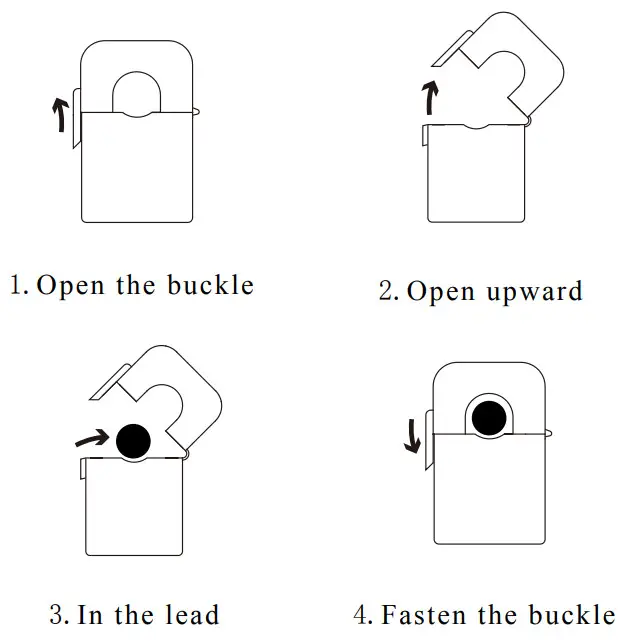

Installation diagram
Primary threading method（Live wire）
Typical technical index：
- Material of core——Ferrite
- Working voltage——Phase voltage≤720V
- Working temperature——-25℃～+60℃
- Storage temperature——-30℃～+90℃
- Frequency range——50Hz～1KHz
- Dielectric strength——Input（bare conductor）/output AC 800V/1min 5mA 50Hz Output/Outer shell AC 3.5KV/1min 5mA 50Hz
- Weight–70g
Electrical parameters:（The following parameters are typical values and actual values will be subject to product testing）
| Input current A/AC | Output voltage V/DC | Accuracy % | Sampling resistor Ω | Number of turns | |
| 1V Output | 5A | 1V | 2% | built-in | 1 |
| 10A | 1V | ||||
| 20A | 1V | ||||
| 30A | 1V | ||||
| 50A | 1V | ||||
| 80A | 1V | ||||
| 100A | 1V | ||||
| 3V Output | 5A | 3V | 2% | built-in | 1 |
| 10A | 3V | ||||
| 20A | 3V | ||||
| 30A | 3V | ||||
| 50A | 3V | ||||
| 80A | 3V | ||||
| 100A | 3V | ||||
| 5V Output | 5A | 5V | 2% | built-in | 1 |
| 10A | 5V | ||||
| 20A | 5V | ||||
| 30A | 5V | ||||
| 50A | 5V | ||||
| 80A | 5V | ||||
| 100A | 5V |
*Parameters can be customized according to user requirements
Wiring schematic diagram:
Secondary are not allowed to short circuit
Instructions:
- Primary threading direction: mark by arrow
- Secondary output direction: k→l

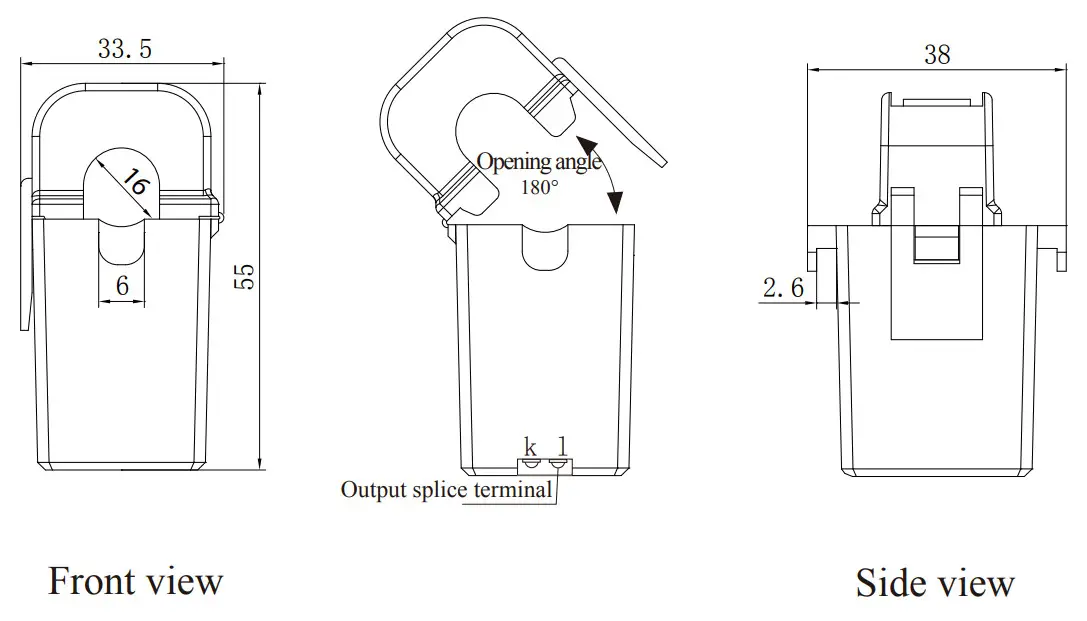

Outline size： (in:mm)
