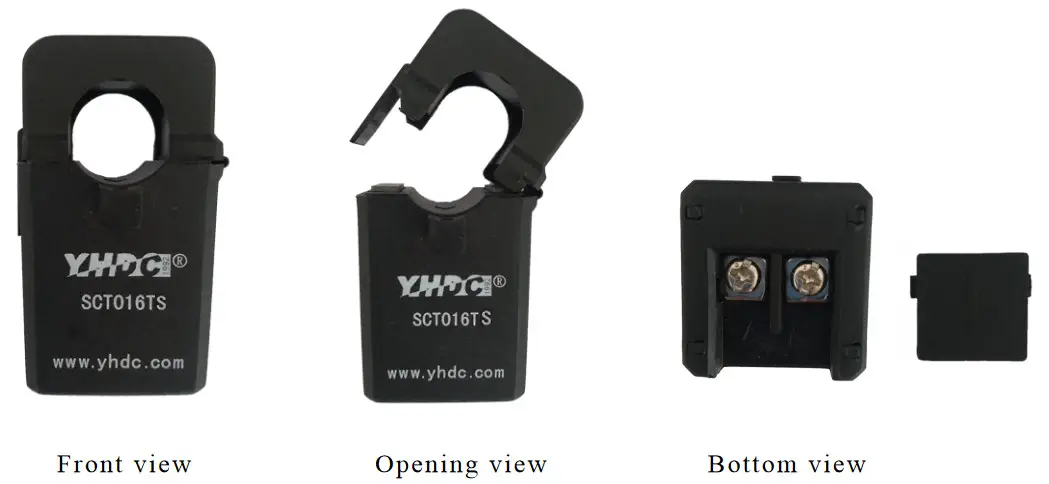

SCT016TS
Ф16mmAperture Split core current transformer
SCT016TS Split Core Current Transformer
Characteristic
- Safety lock buckle, easy to install
- Built-in over-voltage protection device (TVS tube)
- Crimping terminal output
- Suspended type
Product application
- Portable instrument
- Household metering
- Monitor motor load
Product advantage
- Small volume，Light weight
- Low cost
- High turns，High precision

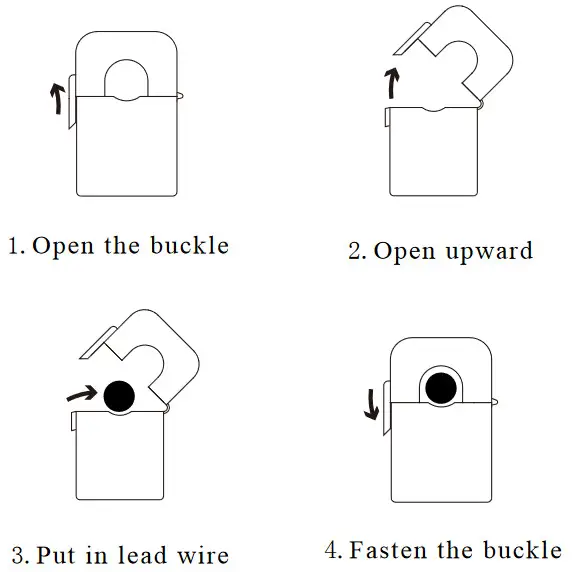

Installation diagram
Primary threading method（Firing line）
Typical technical index：
- Material of core——Silicon steel sheet
- Working voltage——Phase voltage≤720V
- Working temperature——-25℃～+60℃
- Storage temperature——-30℃～+90℃
- Frequency range——50Hz～60Hz
- Dielectric strength——Input（bare conductor）/output AC 800V/1min 5mA 50Hz
Output/Outer shell AC 3.5KV/1min 5mA 50Hz
Electrical parameters:（The following parameters are typical values and actual values will be subject to product testing）
| Model | Input current | Output | Turns ratio | Load resistance | Accuracy | Linearity | Weight |
| SCT016TS | 50A | 100mA | 1: 500 | 5 Ω | 0. 5%/1% | I ‘0 | 85g |
| SCT016TS | 100A | 100mA | 1: 1000 | 5 Ω | 0. 5%/1% | 1% | 85g |
| SCT016TS | 120A | 40mA | 1: 3000 | 10 Ω | 0. 5%/1% | 1% | 85g |
| SCT016TS | 150A | 100mA | 1: 1500 | 10 Ω | 0. 5%/1% | 1% | 85g |
| SCT016TS | 150A | 50mA | 1: 3000 | 10 Ω | 0. 5%/1% | 1% | 85g |
| SCT016TS | 160A | 10mA | 1: 4000 | 10 Ω | 0. 5%/1% | 1% | 85g |
| Model | Input current | Output | Turns ratio | Power | Accuracy | Linearity | Weight |
| SCT016TS | 50A | 1. | 1:50 | 0.1VA | 1% | 1% | 85g |
| SCT016TS | 80A | i A | 1:80 | 0.1VA | 1% | 1% | 85g |
| SCT016TS | 100A | lA | 1:100 | 0.1VA | 1% | 1% | 85g |
| Model | current | Output | Tums ratio | Load resistance | Accuracy | Linearity | Weight |
| SCT016TS | 50A | 0. 333V | – | built-in | 0. 5%/1% | 1% | 85g |
| SCT016TS | 100A | 0.333V | – | built-in | 0. 5%/1% | 1% | 85g |
| SCT016TS | 150A | 0.333V | – | built-in | 0. 5%/1% | 1% | 85g |
*Can be customized parameters/lead length/lead specifications according to user requirements.
Wiring schematic diagram：

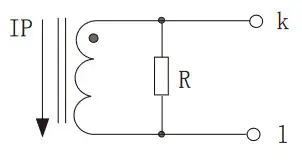

Built-in sampling resistance
Voltage output type
Secondary doesn’t allow short circuit
TVS：Transient voltage suppressor

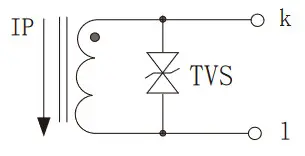

Current output type
Secondary doesn’t allow open circuit

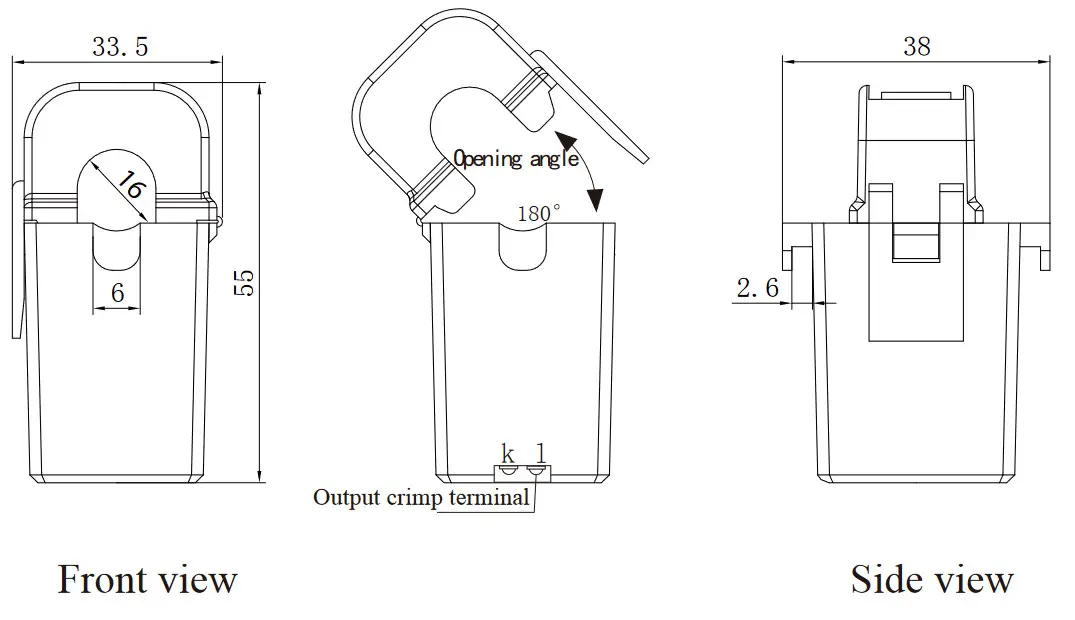

Outline size: (in:mm):
