YHDC SCT036TS-D Split Core Current Transformer
PRODUCT OVERVIEW
Ф36mmAperture Dc voltage output Split core current transformer

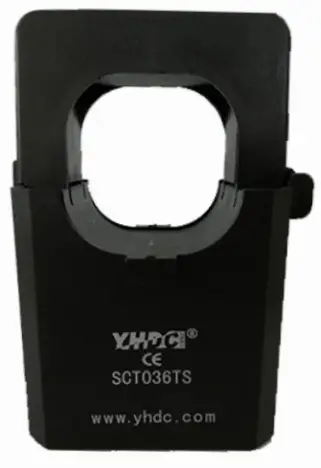

- Front view

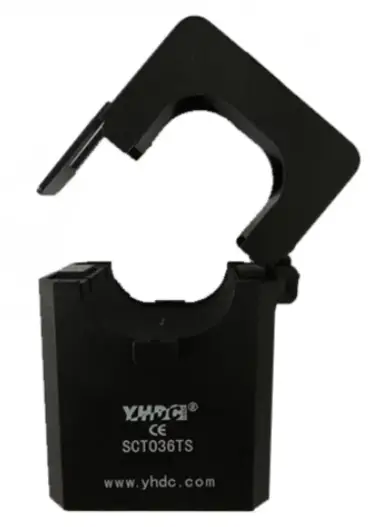

- Opening view

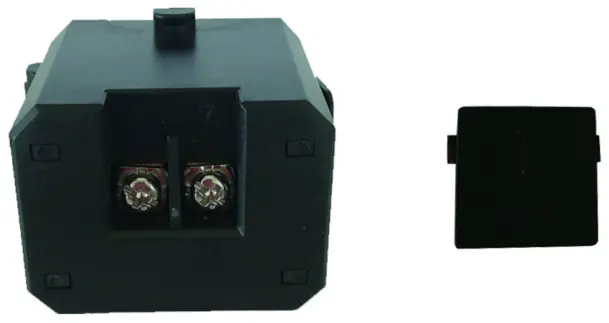

- Bottom view
Characteristic
- Safety lock clasp, easy to install
- Built-in rectifier
- Crimping terminal output
- Mounted mounting
Product application
- Portable instrument
- Household metering
- Monitor motor load
Product advantage
- Economic and practical
- Improve efficiency
- High cost performance
Installation diagram
Primary threading method（Live wire）
- Open the buckle
- Open upward
- In the lead
- Fasten the buckle
Typical technical index
- Material of core: Silicon steel sheet
- Working voltage: Phase voltage≤720V
- Working temperature: 25℃～+60℃
- Storage temperature: 30℃～+90℃
- Frequency range: 50Hz～60Hz
- Dielectric strength: Input（bare conductor）/output AC 800V/1min 5mA 50Hz
Output/Outer shell: AC 3.5KV/1min 5mA 50Hz - Weight–310g
Electrical parameters
(The following parameters are typical values and actual values will be subject to product testing)
| Input current A/AC | Output voltage V/DC | Accuracy % | Sampling Sampling 0 | Number turns | |
| IV Output | 100A | IV | 2% | built-in | 1 |
| 150A | IV | ||||
| 200A | IV | ||||
| 300A | DI | ||||
| 400A | IV | ||||
| 500A | IV | ||||
| 3V Output | 100A | 3V | 2% | built-in | 1 |
| 150A | 3V | ||||
| 200A | 3V | ||||
| 300A | 3V | ||||
| 400A | 3V | ||||
| 500A | 3V | ||||
| 5V Output | 100A | 5V | 2% | built-in | 1 |
| 150A | 5V | ||||
| 200A | 5V | ||||
| 300A | 5V | ||||
| 400A | 5V | ||||
| 500A | 5V | ||||
Parameters can be customized according to user requirements
Wiring schematic diagram:
Voltage output type
Secondary are not allowed to short circuit
Instructions
- Primary threading direction: mark by arrow
- Secondary output direction: k →l

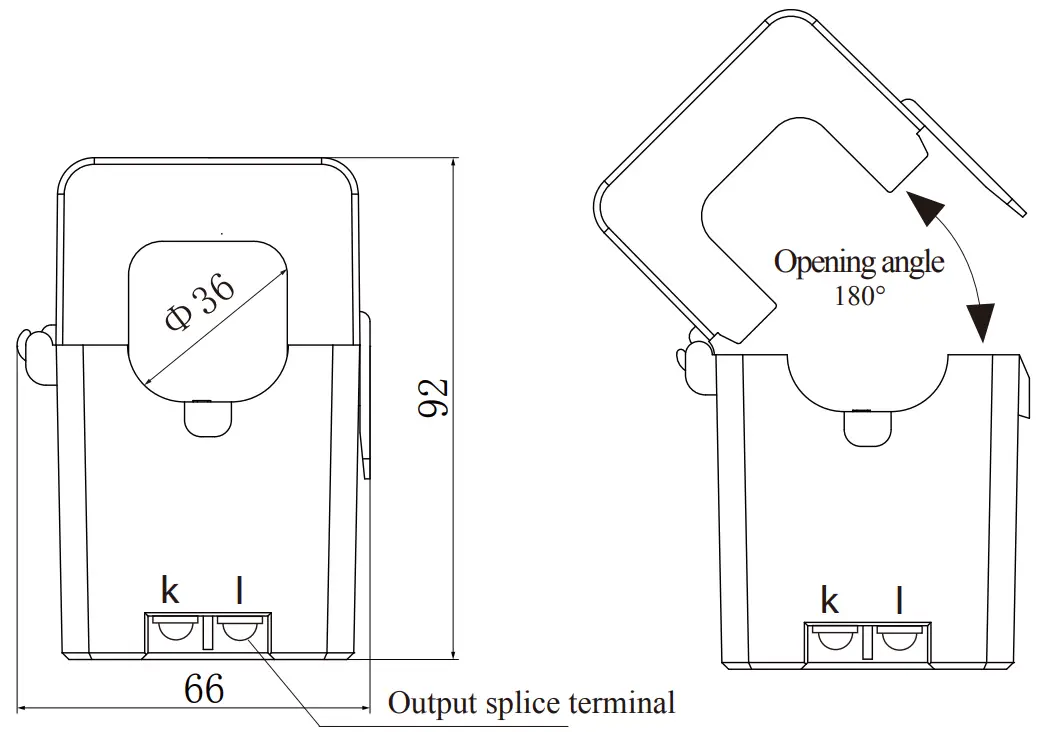

Outline size: (in:mm)
Front view

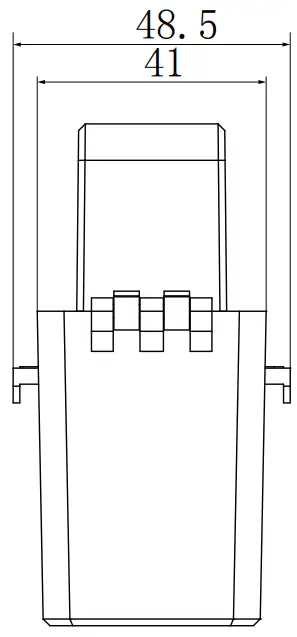

Side view
