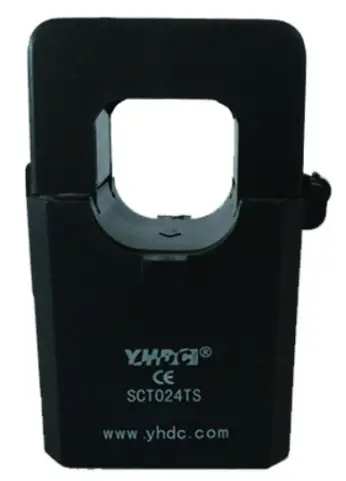

YHDC SCT024TS-D 24mm Aperture DC Voltage Output Split Core Current Transformer
Characteristic
- Safety lock clasp, easy to install
- Built-in rectifier
- Crimping terminal output
- Mounted mounting
Product application
- Portable instrument
- Household metering
- Monitor motor load
Product advantage
- Economic and practical
- Improve efficiency
- High cost performance

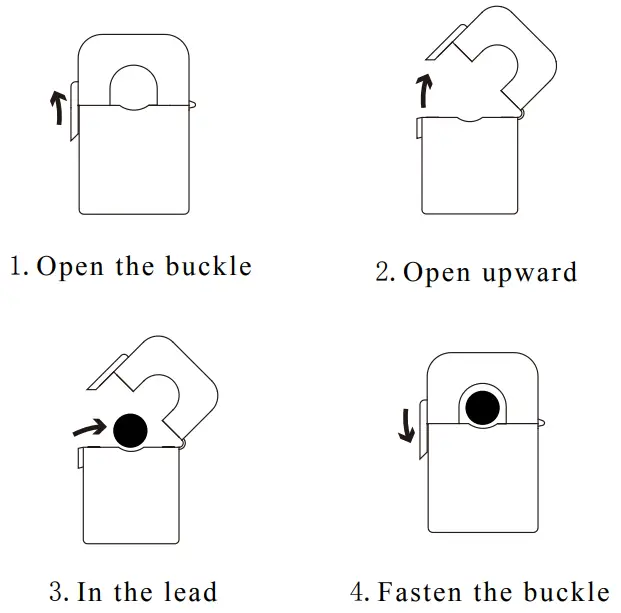

Installation diagram
Primary threading method（Live wire）
Typical technical index
- Material of core: Silicon steel sheet
- Working voltage: Phase voltage≤720V
- Working temperature: 25℃～+60℃
- Storage temperature: 30℃～+90℃
- Frequency range: 50Hz～60Hz
- Dielectric strength
- Input（bare conductor）/output AC 800V/1min 5mA 50Hz
- Output/Outer shell AC 3.5KV/1min 5mA 50Hz
- Weight: 204g

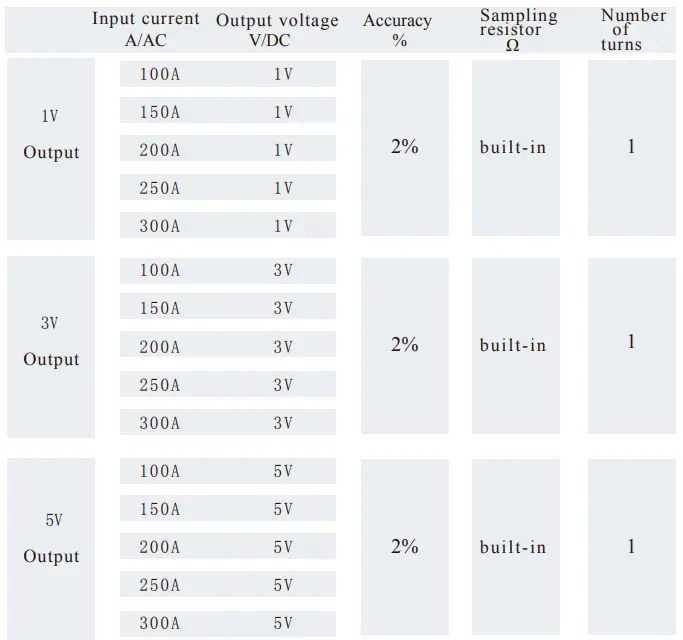

Electrical parameters
The following parameters are typical values and actual values will be subject to product testing
*Parameters can be customized according to user requirements

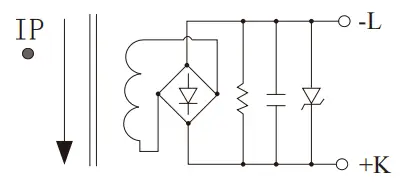

Wiring schematic diagram
Voltage output type Secondary are not allowed to short circuit
Instructions
- Primary threading direction: mark by arrow
- Secondary output direction: k l
Outline size
(in:mm)
