YHDC SCT 010 Split Core Current Transformer Instruction Manual

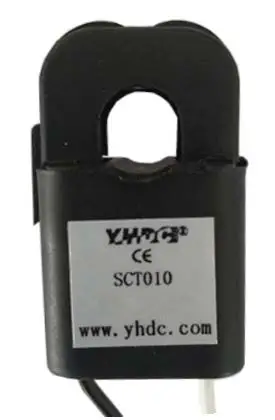

S C T 0 1 0

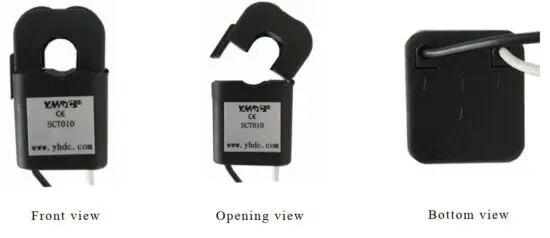

Characteristic
- Safety lock buckle, easy to install
- Built-in over-voltage protection device (TVS tube)
- Lead type output, length can be customized
- Suspended type
Product application
- Portable instrument
- Household metering
- Monitor motor load
Product advantage
- Small volume, Light weight
- Low cost
- High turns, High precision

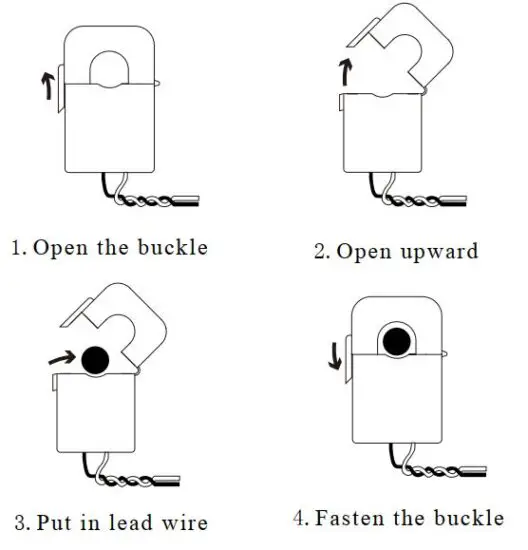

Installation diagram
Primary threading method（Firing line）

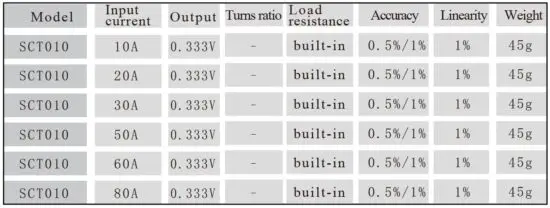

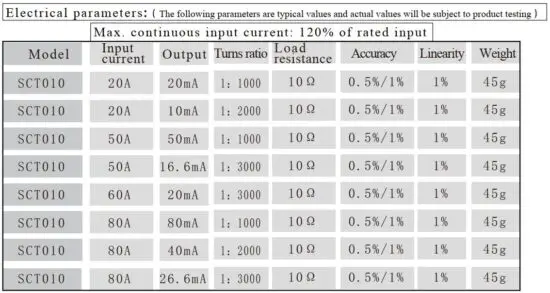

Typical technical index：
- Material of core——Ferrite
- Working voltage——Phase voltage≤ 7 2 0 V
- Working temperature——-25℃～+60℃
- Storage temperature——-30℃～+90℃
- Frequency range— — 5 0 H z ～ 1 K H z
- Dielectric strength——Input（bare conductor）/output AC 800V/1min 5mA 50Hz
Output/Outer shell AC 3.5KV/1min 5mA 50Hz
*Can be customized parameters/lead length/lead specifications according to user requirements.

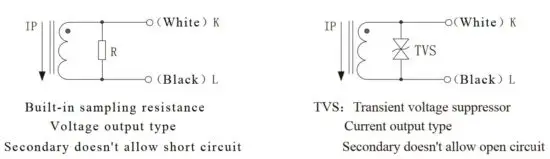

Wiring schematic diagram：
Cable（AWG22）：
Specifications of lead wire：0.3mm black and white twisted pair
The length of lead wire：50cm
Color of lead wire：white，black

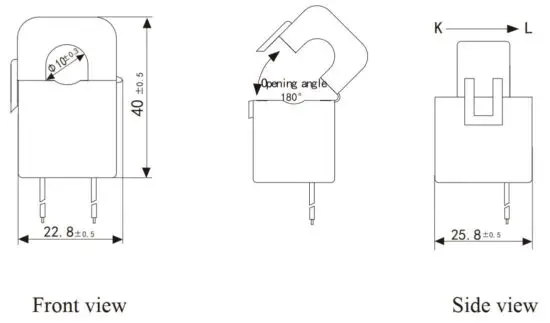

Outline size： (in:mm)
