YHDC SCT036TS 36mm Aperture Split Core Current Transformer
Ф36mmAperture Split core current transformer

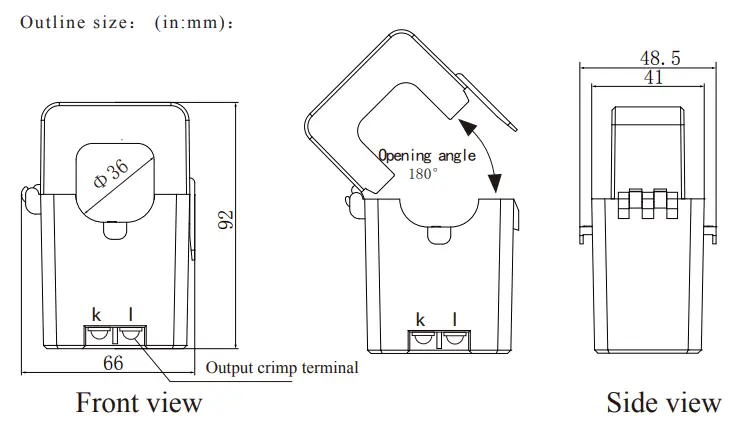

- Front view
- Opening view
- Terminal view

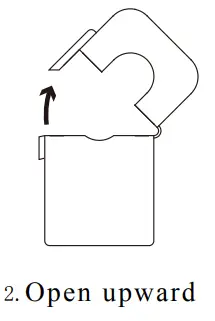

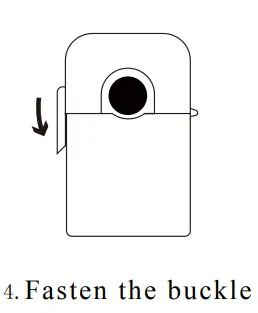

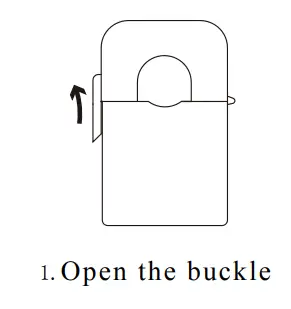

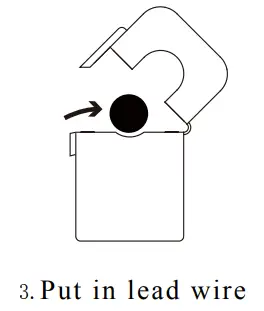

Installation diagram
Primary threading method (Firing line)
Characteristic
- Safety lock buckle, easy to install
- Crimping terminal output
- Can customize a variety of output
- Suspended type
Product application
- Portable instrument
- Household metering
- Monitor motor load
Product advantage
- Small volume，Light weight
- Low cost
- High turns，High precision
Typical technical index：
- Material of core——Silicon steel sheet
- Working voltage——Phase voltage≤720V
- Working temperature——-25℃～+60℃
- Storage temperature——-30℃～+90℃
- Frequency range——50Hz～60Hz
- Dielectric strength——Input (bare conductor）/output AC 800V/1min 5mA 50Hz Output/Outer shell AC 3.5KV/1min 5mA 50Hz

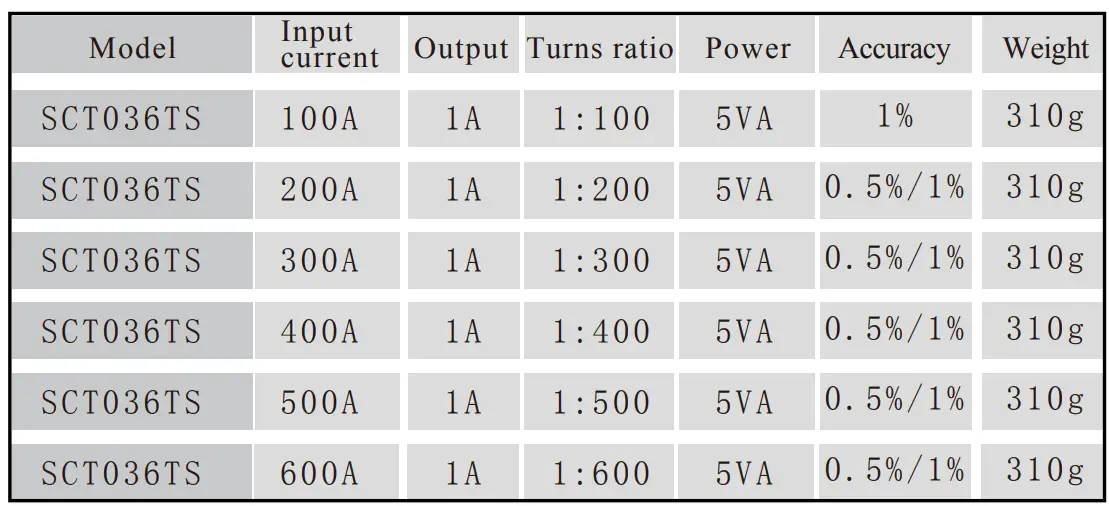

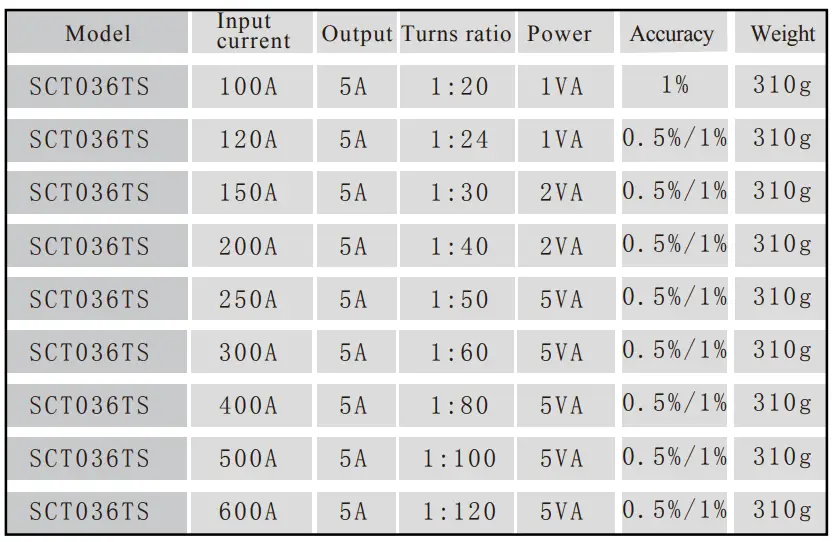

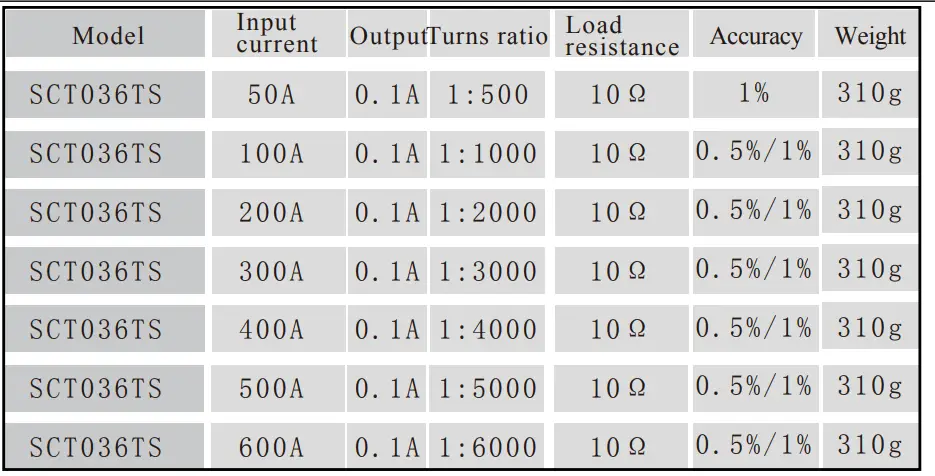

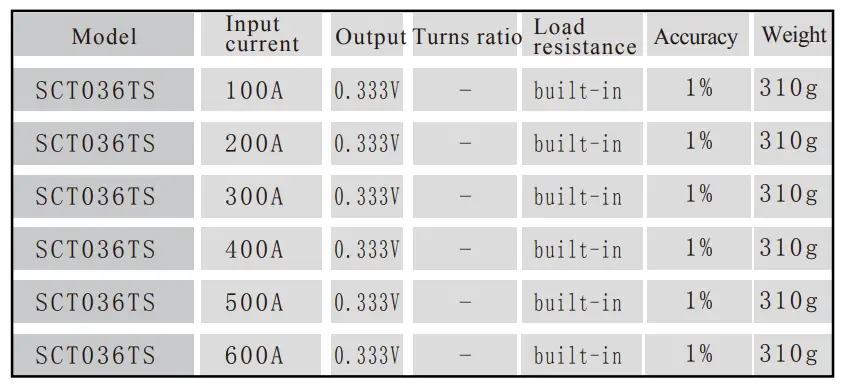

Electrical parameters
:(The following parameters are typical values and actual values will be subject to product testing）

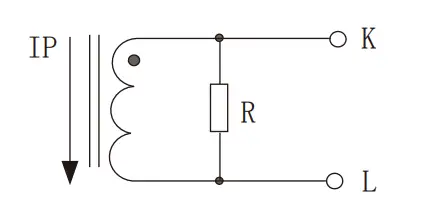

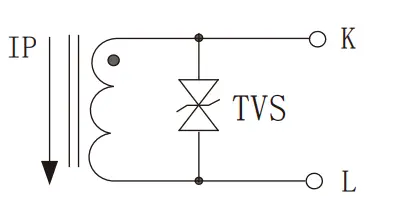

Wiring schematic diagram
Built-in sampling resistance oltage output type Secondary doesn’t allow short circuit
TVS:Transient voltage suppressor（5 A output without) Current output type Secondary doesn’t allow open circuit
