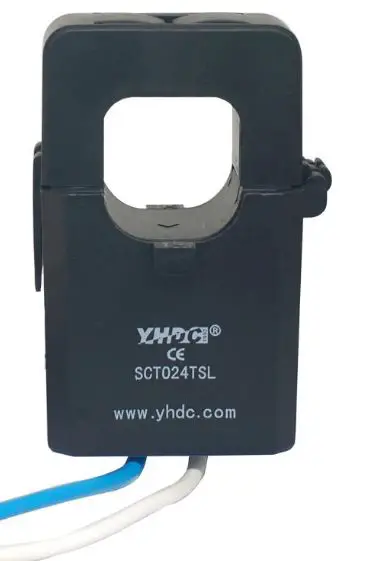

YHDC SCT024TSL 24mm Diameter Split Core Current Transformer
Product features
- Secure locking buckle, easy to install
- Leading wire output(Three lead specifications)
- Can custom1ze a variety of output
- Suspended mounting
Product application
- Portable instrument
- Household metering
- Monitoring the load of machine
Product advantage
- Small volume, Lightweight
- Low cost
- High turns, High precision
Installation diagram
- Open the buckle
- Open upward
- Put in lead wire
- Fasten the buckle
Typical technical index
- Material of core–Silicon steel sheet
- Working voltage–Phase voltages720V
- Working temperature—25C~+60 CC
- Storage temperature—30C~+90 C
- Frequency range-50Hz60Hz
- Dielectric strength–input ( Bare conductor) /output AC 800V/Imin 5mA 50Hz output/outshell AC 3.5KV/1 min 5mA 50Hz)
- Weight–220g

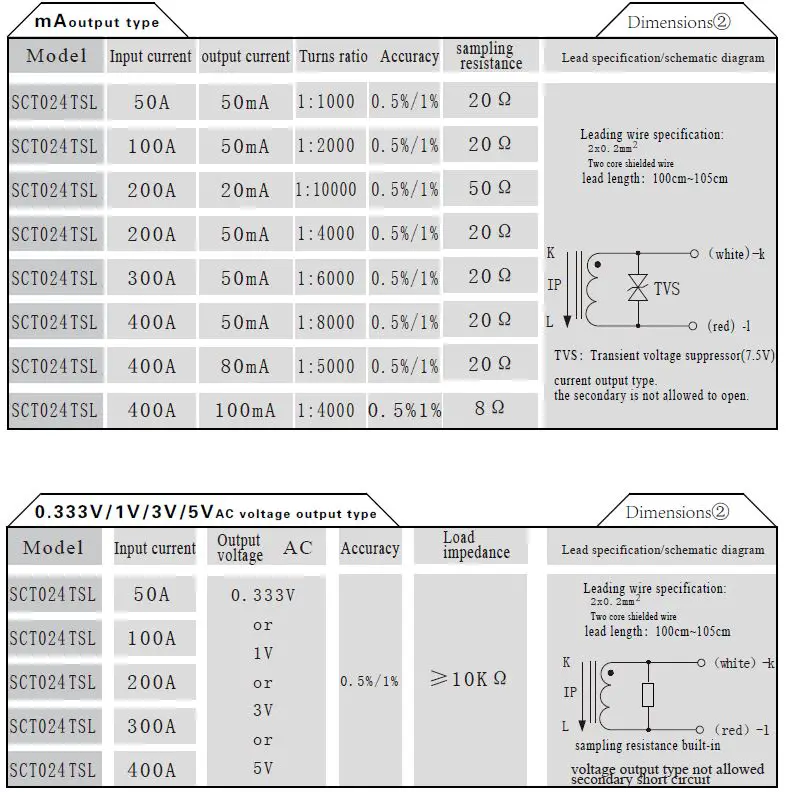

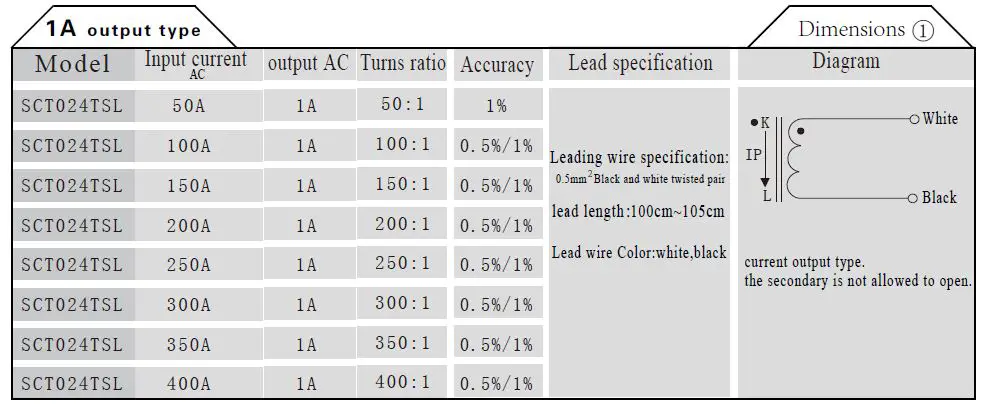

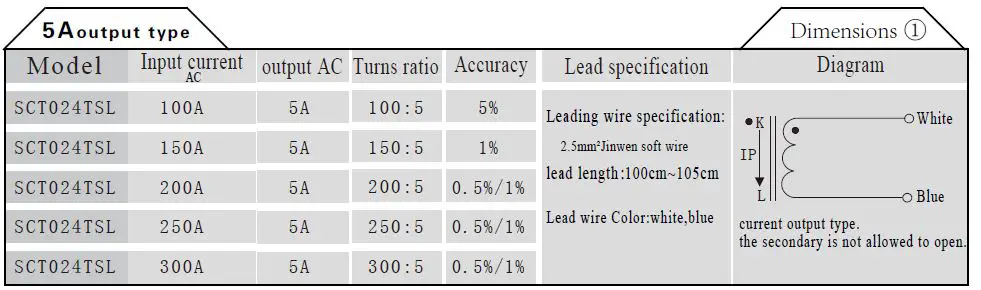

Electrical parameters
(The following parameters are typical values. The actual values shall be subject to the

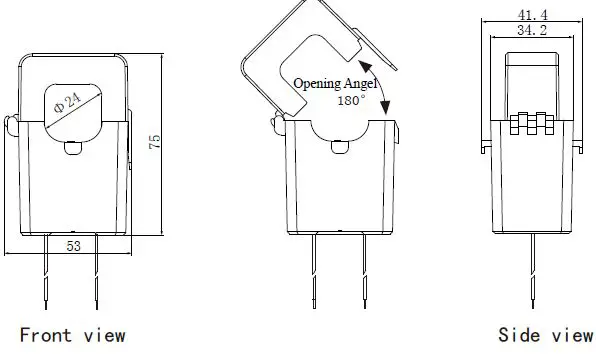

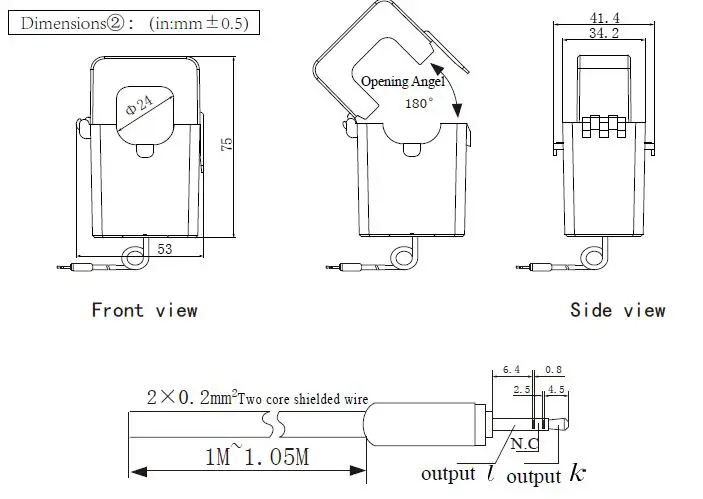

Dimensions
- (in:mm 0.5)]
- (in:mm 0.5)|
