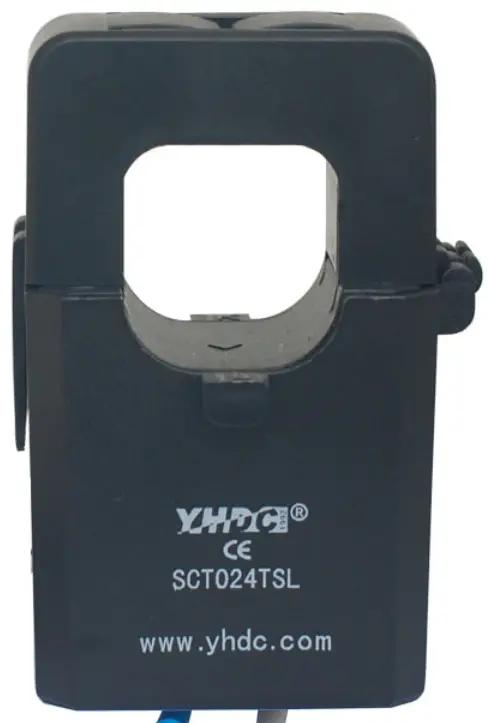

YHDC SCT024TSL Split Core Current Transformer Instruction Manual
Product features
- Secure locking buckle, easy to install
- Leading wire output (Three lead specifications)
- Can customize a variety of output
- Suspended mounting
Product application
- Portable instrument
- House hold metering
- Monitoring the load of machine
Product advantage
- Small volume, Light weight
- Low cost
- High turns, High precision

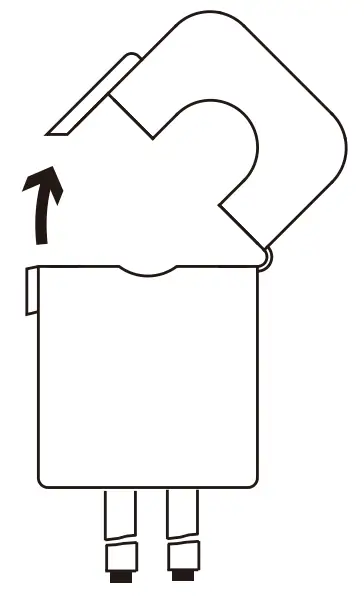

Installation diagram
- Open the buckle
- Open upward

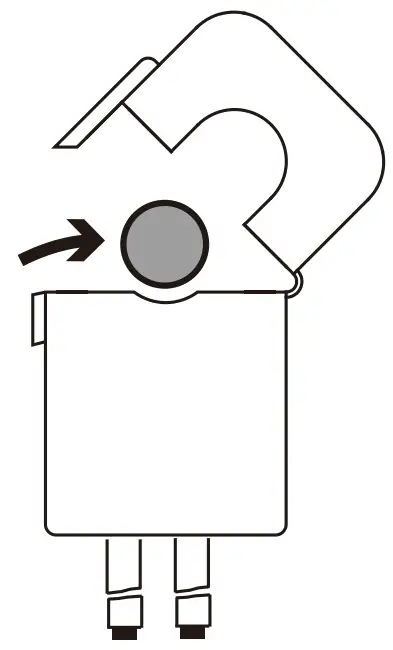

- Put in lead wire

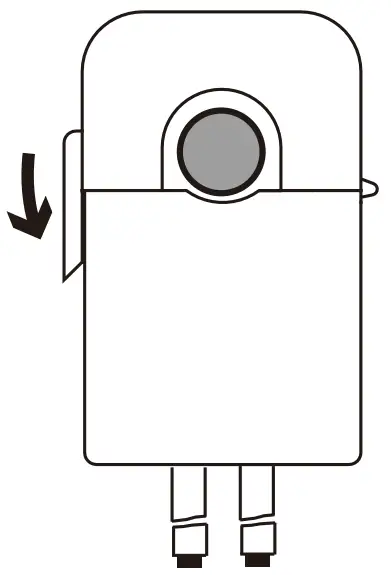

- Fasten the buckle
Typical technical index:
- Material of core——Silicon steel sheet
- Working voltage——Phase voltage ≤ 720 V
- Working temperature——-25℃～+60℃
- Storage temperature——-30℃～+90℃
- Frequency range——50Hz～60Hz
- Dielectric strength—— input (Bare conductor)/output AC 800V/1min 5mA 50Hz output/outshell AC 3.5KV/1min 5mA 50Hz）
- Weight————220g
Electrical parameters
(The following parameters are typical values. The actual values shall be subject to the
| 1A output type | Dimensions: 1 | |||||

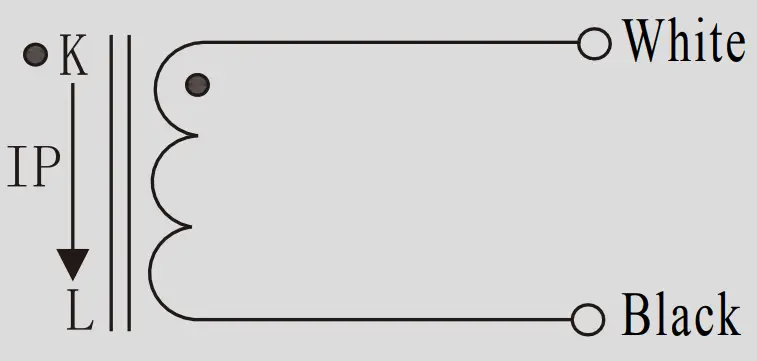

| Model | Input current AC | output AC | Turns ratio | Accuracy | Lead specification Leading wire specification: 0.5mm 2 Black and white twisted pairlead length： 00cm~105cm Lead wire Color: white, black | Diagram |
| SCT024TSL | 50A | 1A | 50 : 1 | 1% |  current output type. the secondary is not allowed to open. | |
| SCT024TSL | 100A | 1A | 100 : 1 | 0.5%/1% | ||
| SCT024TSL | 150A | 1A | 150 : 1 | 0.5%/1% | ||
| SCT024TSL | 200A | 1A | 200 : 1 | 0.5%/1% | ||
| SCT024TSL | 250A | 1A | 250 : 1 | 0.5%/1% | ||
| SCT024TSL | 300A | 1A | 300 : 1 | 0.5%/1% | ||
| SCT024TSL | 350A | 1A | 350 : 1 | 0.5%/1% | ||
| SCT024TSL | 400A | 1A | 400 : 1 | 0.5%/1% | ||
| 5A output type | Dimensions: 1 | |||||
| Model | Input current AC | output AC | Turns ratio | Accuracy | Lead specification | Diagram |

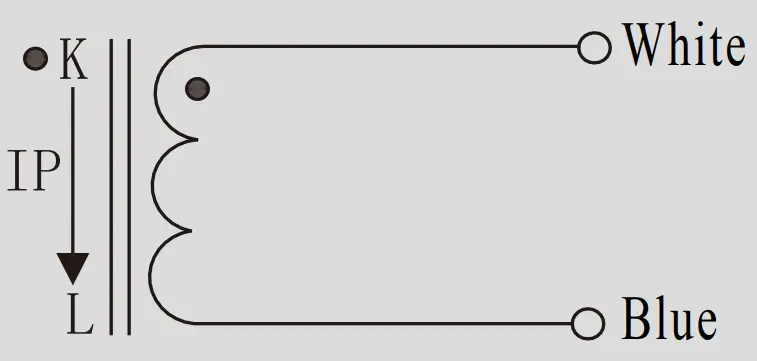

| SCT024TSL | 100A | 5A | 100:5 | 5% | Leading wire specification: 2.5mm² soft wire lead length：100cm~105cm Lead wire Color: white, blue |  current output type. the secondary is not allowed to open. |
| SCT024TSL | 150A | 5A | 150:5 | 1% | ||
| SCT024TSL | 200A | 5A | 200:5 | 0.5%/1% | ||
| SCT024TSL | 250A | 5A | 250:5 | 0.5%/1% | ||
| SCT024TSL | 300A | 5A | 300:5 | 0.5%/1% | ||
| mA output type | Dimensions: 2 | |||||

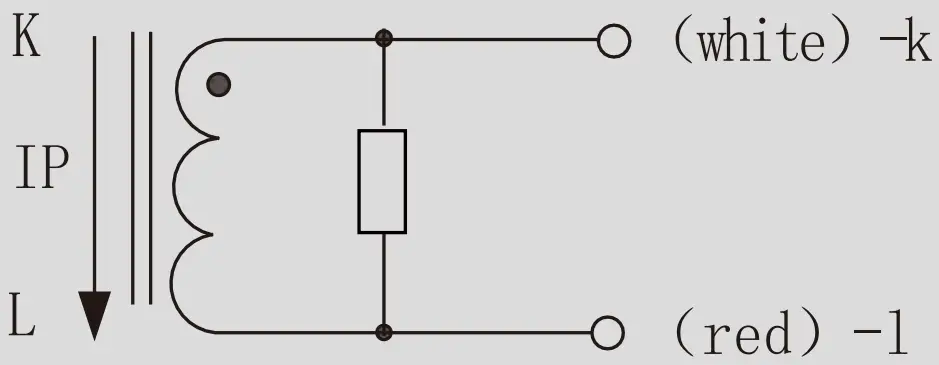

| Model | Input current | output current | Turns ratio | Accuracy | sampling resistance | Lead specification/schematic diagram |
| SCT024 TSL | 50A | 50mA | 1:1000 | 0.5%/1% | 20Ω | Leading wire specification: 2×0. 2 mm 2 Two core shielded wire lead length：100cm~105cm

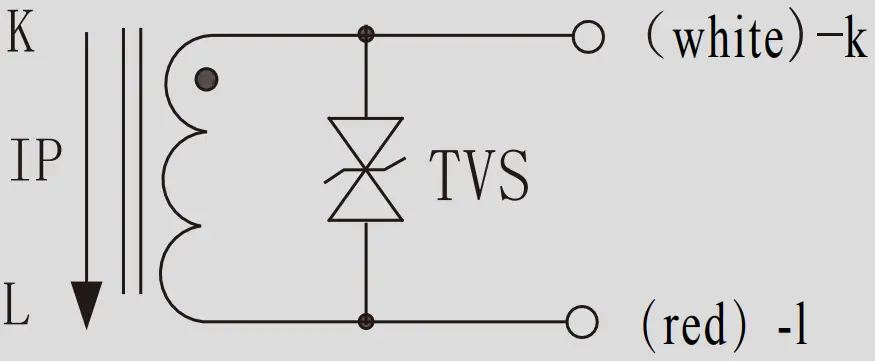

TVS: Transient voltage suppressor(7.5V) current output type. |
| SCT024 TSL | 100A | 50mA | 1:2000 | 0.5%/1% | 20Ω | |
| SCT024 TSL | 200A | 20mA | 1:10000 | 0.5%/1% | 50Ω | |
| SCT024 TSL | 200A | 50mA | 1:4000 | 0.5%/1% | 20Ω | |
| SCT024 TSL | 300A | 50mA | 1:6000 | 0.5%/1% | 20Ω | |
| SCT024 TSL | 400A | 50mA | 1:8000 | 0.5%/1% | 20Ω | |
| SCT024 TSL | 400A | 80mA | 1:5000 | 0.5%/1% | 20Ω | |
| SCT024 TSL | 400A | 100mA | 1:4000 | 0.5%1% | 8Ω | |
| 0.333V/1V/3V/5VAC voltage output type | Dimensions: 2 | ||||
| Model | Input current | Output AC voltage | Accuracy | Load impedance | Lead specification/schematic diagram |
| SCT024 TSL | 50 A | 0.333V or 1V or 3V or 5V | 0.5%/1% | ≥10KΩ | Leading wire specification: 2×0. 2 mm 2 Two core shielded wire lead length：100cm~105cm
sampling resistance built-in voltage output type not allowed secondary short circuit |
| SCT024 TSL | 100 A | ||||
| SCT024 TSL | 200 A | ||||
| SCT024 TSL | 300 A | ||||
| SCT024 TSL | 400 A | ||||

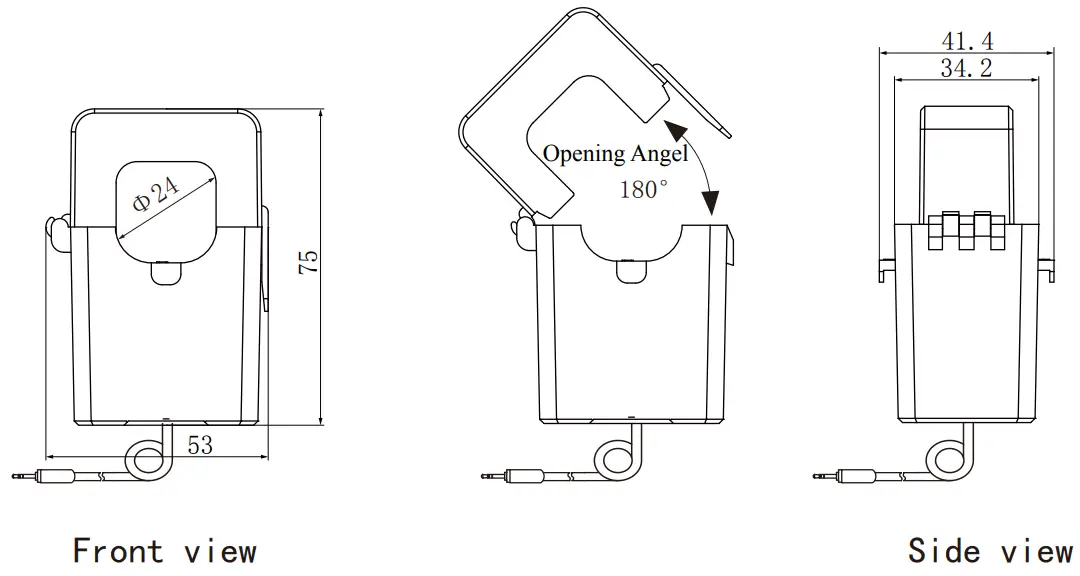

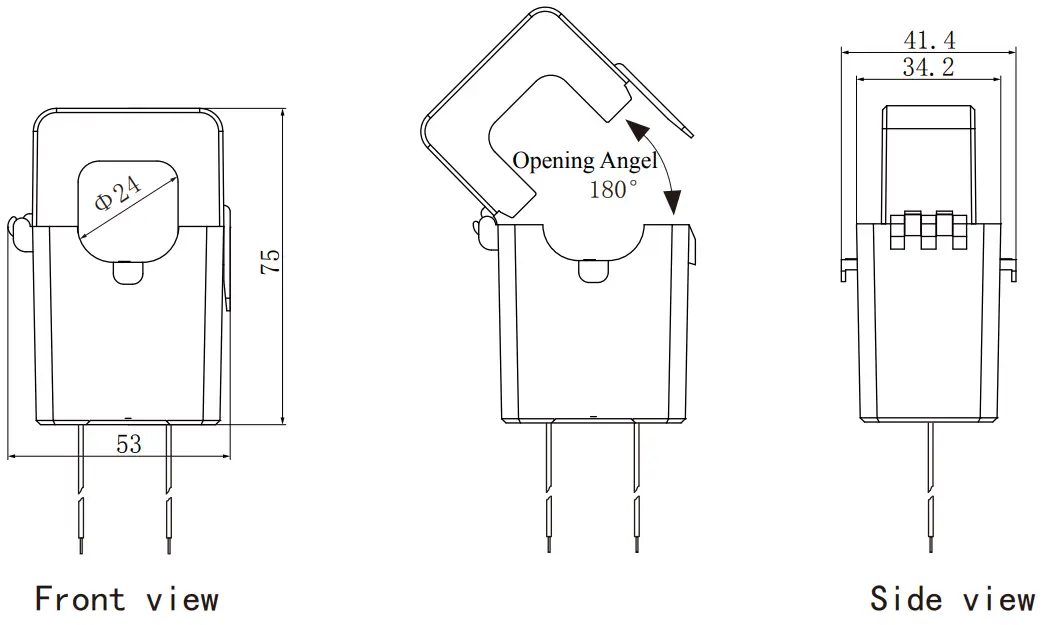

Dimensions 1: (in:mm±0.5)
Dimensions 2: (in:mm±0.5)

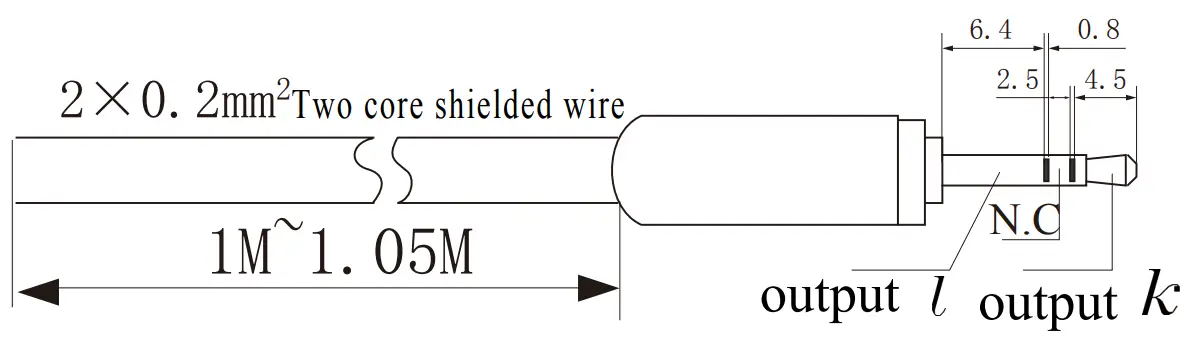

Standard Ф3.5mm three-pin plug diagram
