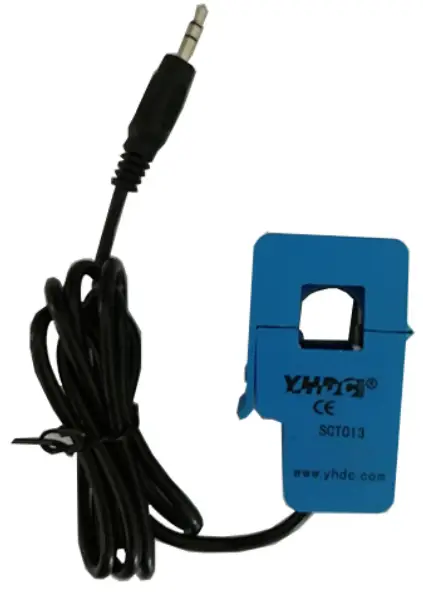

YHDC SCT013 Split Core Current Transformer
Product features
- Safety lock buckle，Simple installation
- Audio connector output
- Lead type output，The length can be customized
- Suspended mounting
Product application
- Portable instrument
- Household metering
- Monitoring the load of the machine
Product advantage
- Small volume，Light weight
- Low cost
- High turns，High precision

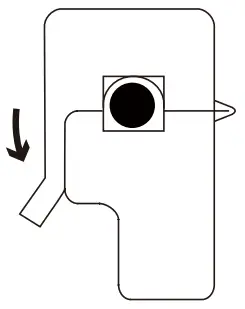

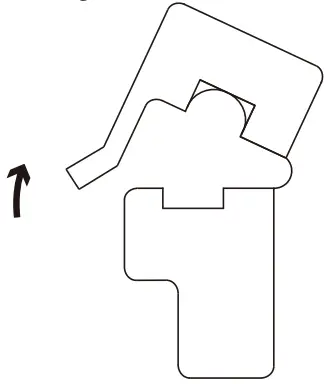

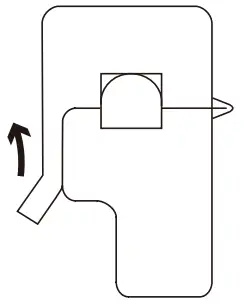

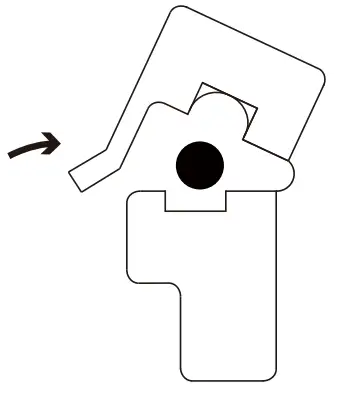

Installation diagram
One time threading
- Open the buckle
- Open the buckle
- Drop lead
- Fasten the buckle
Typical technical index
- Core material—— ferrite
- Working voltage—— Phase voltage≤720V
- Working temperature——- 25℃～+60℃
- Storage temperature——- 30℃～+90℃
- Frequency range—— 50Hz～1KHz
- Electrical resistance
- input（Bare conductor）
- output AC 800V/1min 5mA 50Hz
- output /Outer shell AC 3.5KV/1min 5mA 50Hz
Electrical parameters
| Model | Input current | output | Turns | Load resistance | Accuracy | linearity | weight | ||
| SCT013-000 | 100A | 50mA | 1：2000 | 10Ω | 1% | 1% | 50g | ||
| SCT013-005 | 5A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-010 | 10A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-015 | 15A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-020 | 20A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-025 | 25A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-030 | 30A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-050 | 50A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-060 | 60A | 1V | – | built-in | 1% | 1% | 50g | ||
| SCT013-100 | 100A | 1V | – | built-in | 1% | 1% | 50g | ||
| Model | Input current | output | Turns | Load resistance | Accuracy | linearity | weight | ||
| SCT013 | 5A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 10A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 15A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 20A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 25A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 30A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 50A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 60A | 0.333V | – | built-in | 1% | 1% | 50g | ||
| SCT013 | 100A | 0.333V | – | built-in | 1% | 1% | 50g | ||

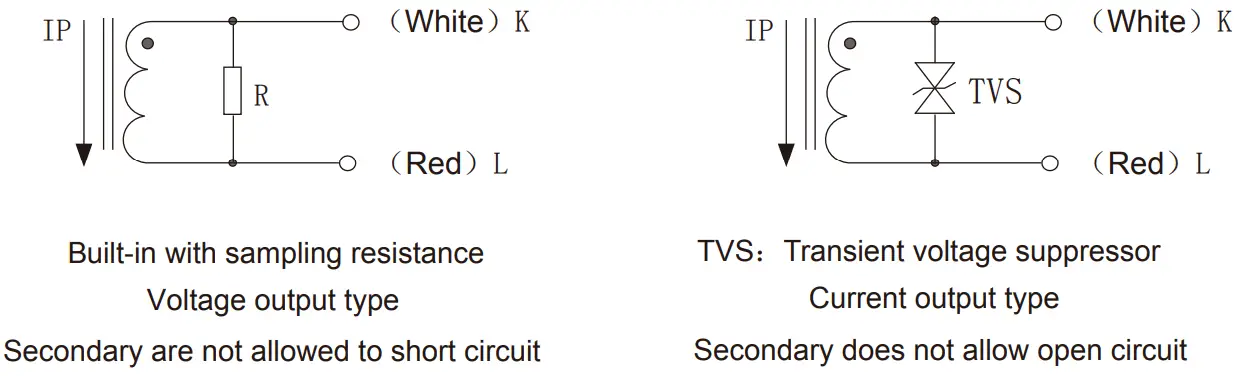

Wiring schematic diagram

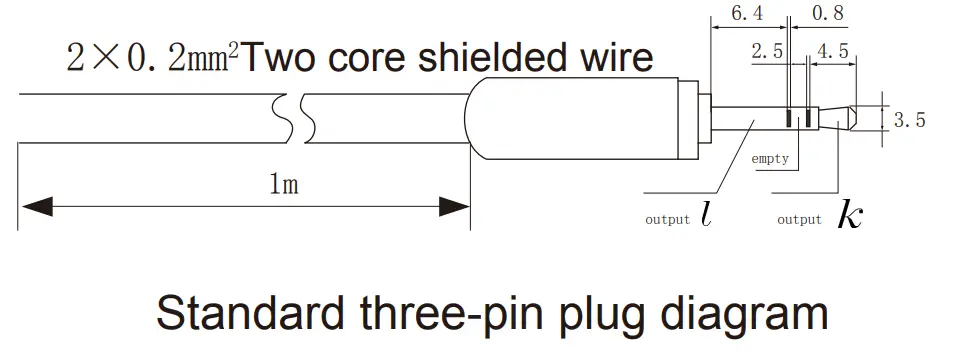

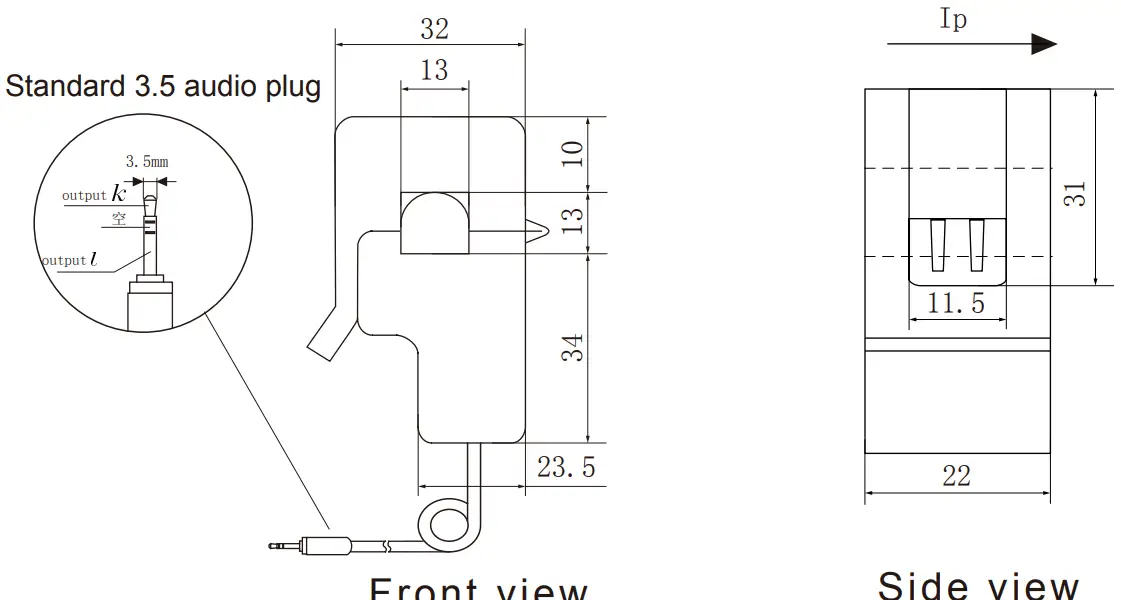

Dimensions（in mm）
