PSTT036 Split Core Current Transformer
Ф36mm Aperture Split core current transformer With electricity, temperature measurement function.
Product features
- Opening and closing structure
- simple installation
- Puncture of their
- Temperature monitoring
Product application
- Electric instrument and meter
- Electronic multifunction meter
- Check instrument
Product advantage
- Economic and practical
- Improve efficiency
- High cost performance

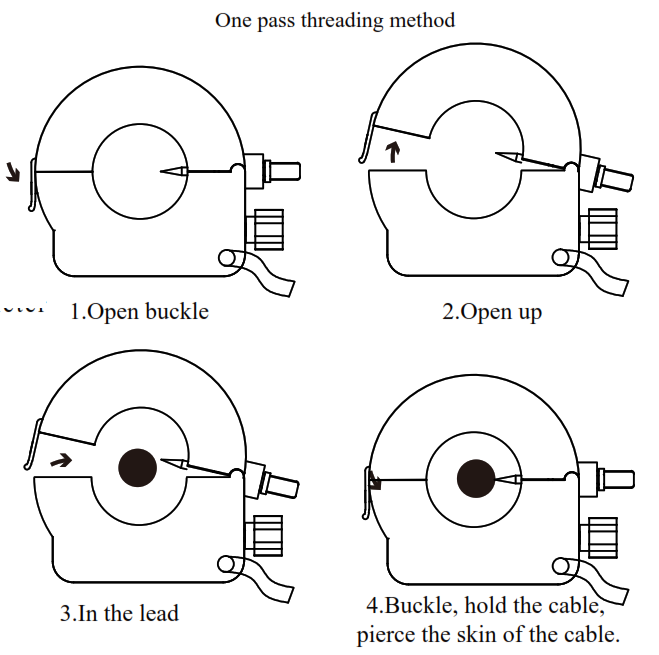

Installation diagram
Typical technical index：
- Material of core——Nanocrystalline
- Work voltage——Phase voltage≤720V
- Operating temperature——-30℃～+75℃
- Storage temperature——-40℃～+85℃
- Work frequency——20Hz～20KHz
- Delectric strength——Output/shell AC 3.5KV/1min 5mA 50Hz
- weight—— g
Electrical parameters:（The following parameters are typical values and actual values will be subject to product testing） Remarks:
| Rated input41C100A | ||||||||
| 200A | 300A | -100A | 500A | 600A | Can be made according to user requirements parameters | |||
| Rated output | 0. lA | O. lA | O. lA | O. IA | 0. lA | 0. lA | ||
| Turns ratio _j 1:1000 | 1:2000 | 1:3000 | 1:4000 | 1:5000 | 1:6000 | |||
| Accuracy | 0. | 5% | ||||||
| Sampling resistance | 100 Q 10K Q ± 1% (25°C) | |||||||
| B25’C’/50t: 3,950K ±1% (B value)
| ||||||||
| Temperature | ||||||||
| Fetch parameter | 110V/22 OV/38 OV | Take electricity can only be used as a measure the voltage puncture, cannot be used to take to, otherwise accident may occur | ||||||
| Current output line | Black: I+ Yellow: F | |||||||
| Take the output line | Red: Voltage U | |||||||
| Temperature output ling | Blue : temperature Oran2e: temperatureT T | |||||||

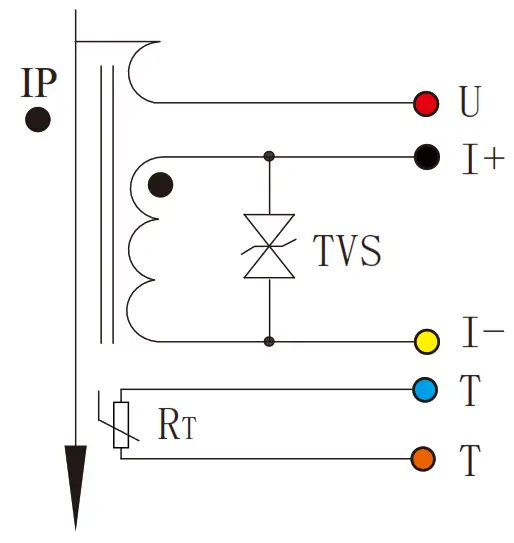

Schematic Diagram
Cable：
Diameter：6mm
Pressure：2KV/0.5mA/1min
Temperature：-30℃~+80℃
Leading wire specification：Five core shielding wire color of lead wire：Red、Black Yellow、Blue、Orange
Red-0.2mm²
Black-0.1mm²
Yellow-0.1mm²
Blue-0.1mm²
Orange-0.1mm²

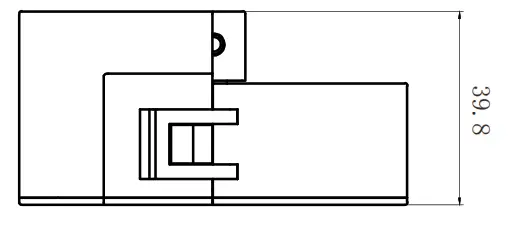

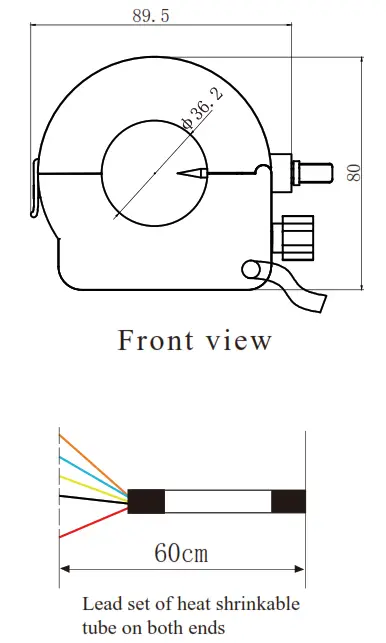

Dimensions(in mm±0.5）：
| Color | Define |
| Red | voltage U |
| Black | current I+ |
| Yellow | current I- |
| Blue | Temperature T |
| Orange | Temperature T |
Instructions for use：
- According to the connection mode of correct connection
- The direction shown by the arrow is positive
- Full hole measurement, the best effect
- Faulty wiring can lead to product damage and output uncertainty
Safe operation:
- Please read this specification carefully before use.
- Need to replace product, please be sure to take insulating gloves, remove all the splice of the connected with.
- If found shell, devices attached to the fixed parts, wire, or have any damaged, please immediately deal with hidden dangers.
- If there is any doubt about the safe operation of the equipment, the equipment and the corresponding accessories should be closed immediately, and the fastest time for troubleshooting.
Proclamations：
As our products are constantly being improved and updated, we reserve the right to modify the content of this specification at any time without prior notice.
