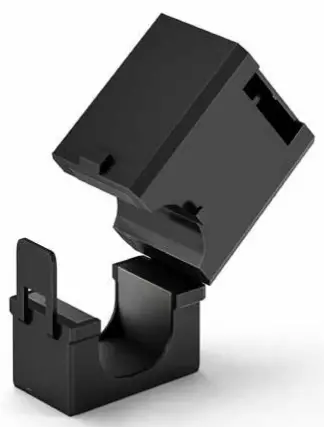

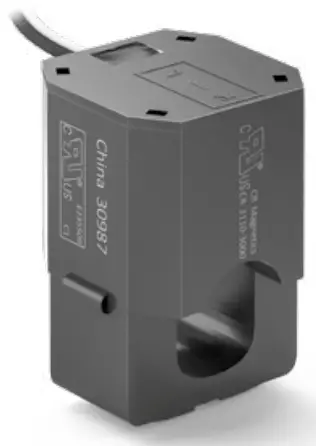

SPLIT-CORE CURRENT TRANSFORMERS FOR THE UMG 20CM, TYPE SC-CT-20, CLASS 1
Split-core current transformers are suitable for quick and safe installation in existing systems and offer transformer ratios from 3000/1 to 6000/1. They are only compatible with the UMG 20CM
SPLIT-CORE CURRENT TRANSFORMER FOR THE UMG 20CM, TYPE SC-CT-20 – TECHNICAL DATA
| SPLIT-CORE CURRENT TRANSFORMER, TYPE SC-CT-20 | |||||||
TYPE | MAX. OPERATING CURRENT in A | RATIO | MAX Ø OF PRIMARY CONDUCTOR in mm | CLASS | DIMENSIONS in mm (W x H x D) | WEIGHT in kg | PART NO. |
| SC-CT-20* | 63 | 3000/1 | 10 | 1 | approx. 32 x 41.4 x 32.3 | 0.04 | 15.03.092 |
| INDIVIDUAL ACCESSORIES (LOAD IS INCLUDED IN THE SCOPE OF DELIVERY WITH THE SC-CT-20 | |||||||
| Load (3.9 Ω) for SC-CT-20 operating current transformers with 1.5 m connection cable and spring terminal | |||||||
| * Incl. prefabricated connecting cable; 1.5 m with load and spring terminal for operating current measurement | |||||||

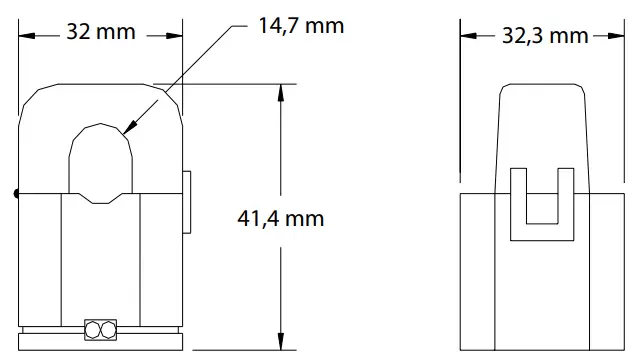

SPLIT-CORE CURRENT TRANSFORMER FOR THE UMG 20CM, TYPE SC-CT-20 – DIMENSIONAL DRAWINGS
