SEPARABLE CURRENT TRANSFORMERS, TYPE KBU, CLASS 0.5 AND 1

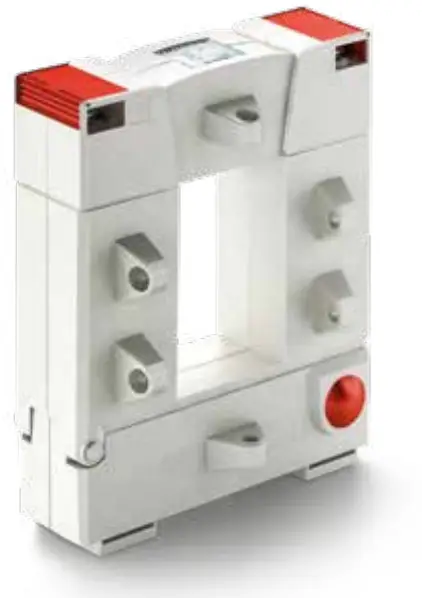

Separable current transformers are particularly suitable for retrofitting, as they can also be installed during operation and without interrupting the primary conductor. They are available in the model type KBU
SEPARABLE CURRENT TRANSFORMERS, TYPE KBU – TECHNICAL DATA
| SEPARABLE CURRENT TRANSFORMERS, TYPE KBU – KUW1 SERIES FOR INSULATED CABLES UP TO MAX. 18 MM IN DIAMETER | |||||||||||
TYPE | PRIMARY CURRENT in A | SECONDARY CURRENT in A | POWER in VA | CLASS | DIMENSIONS in mm | WEIGHT in kg | PART NO. | ||||
| A | B | C / C1 | D | E | |||||||
KBU 58 | 250 | 5 | 1.5 | 1 | 125 | 158 | 34 / 58 | 55 | 85 | 0.9 | 15.02.316 |
| KBU 58 | 400 | 5 | 1 | 0.5 | 125 | 158 | 34 / 58 | 55 | 85 | 0.9 | 15.02.868 |
KBU 58 | 500 | 5 | 2.5 | 0.5 | 125 | 158 | 34 / 58 | 55 | 85 | 0.9 | 15.02.819 |
| KBU 58 | 600 | 5 | 2.5 | 0.5 | 125 | 158 | 34 / 58 | 55 | 85 | 1.0 | 15.02.315 |
KBU 58 | 1000 | 5 | 5 | 0.5 | 125 | 158 | 34 / 58 | 55 | 85 | 1.0 | 15.02.320 |
| KBU 812 | 600 | 5 | 2.5 | 0.5 | 155 | 198 | 34 / 58 | 85 | 125 | 1.3 | 15.02.869 |
KBU 812 | 800 | 5 | 2.5 | 0.5 | 155 | 198 | 34 / 58 | 85 | 125 | 1.3 | 15.02.870 |
| KBU 812 | 1000 | 5 | 5 | 0.5 | 155 | 198 | 34 / 58 | 85 | 125 | 1.3 | 15.02.871 |
KBU 812 | 1250 | 5 | 7.5 | 0.5 | 155 | 198 | 34 / 58 | 85 | 125 | 1.3 | 15.02.328 |

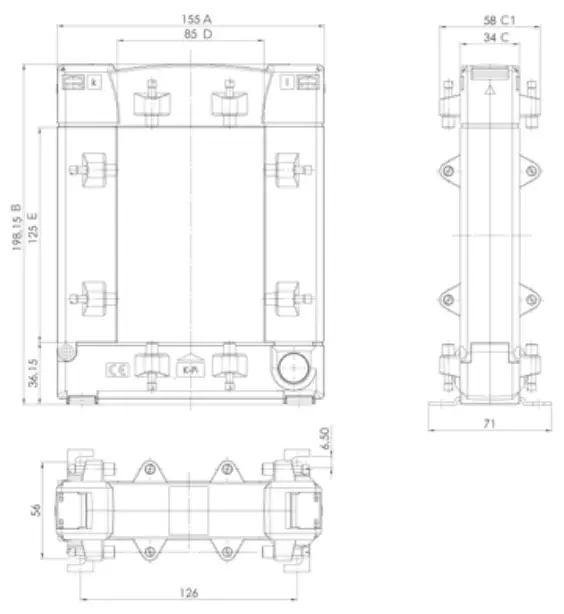

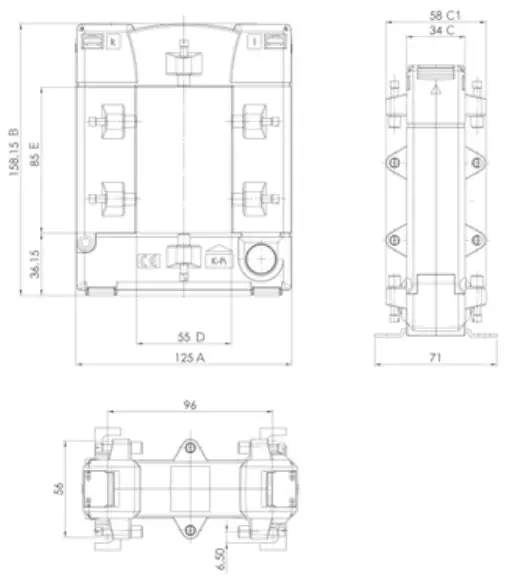

SEPARABLE CURRENT TRANSFORMERS, TYPE KBU – DIMENSIONAL DRAWINGS
