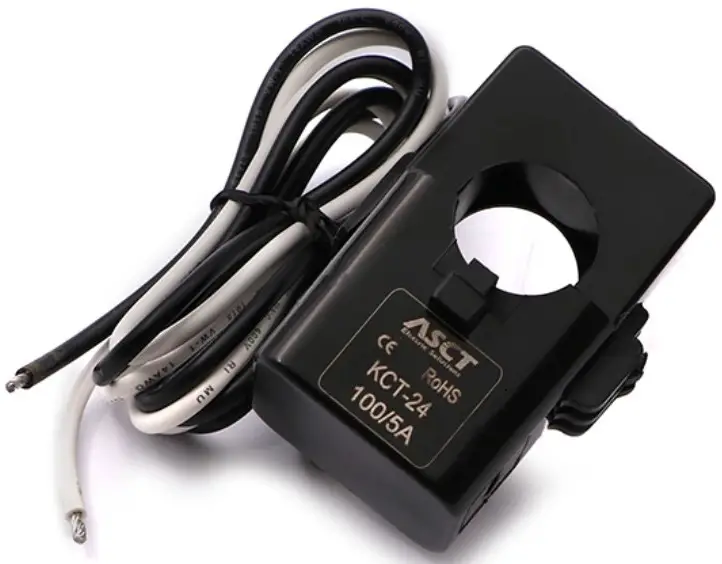

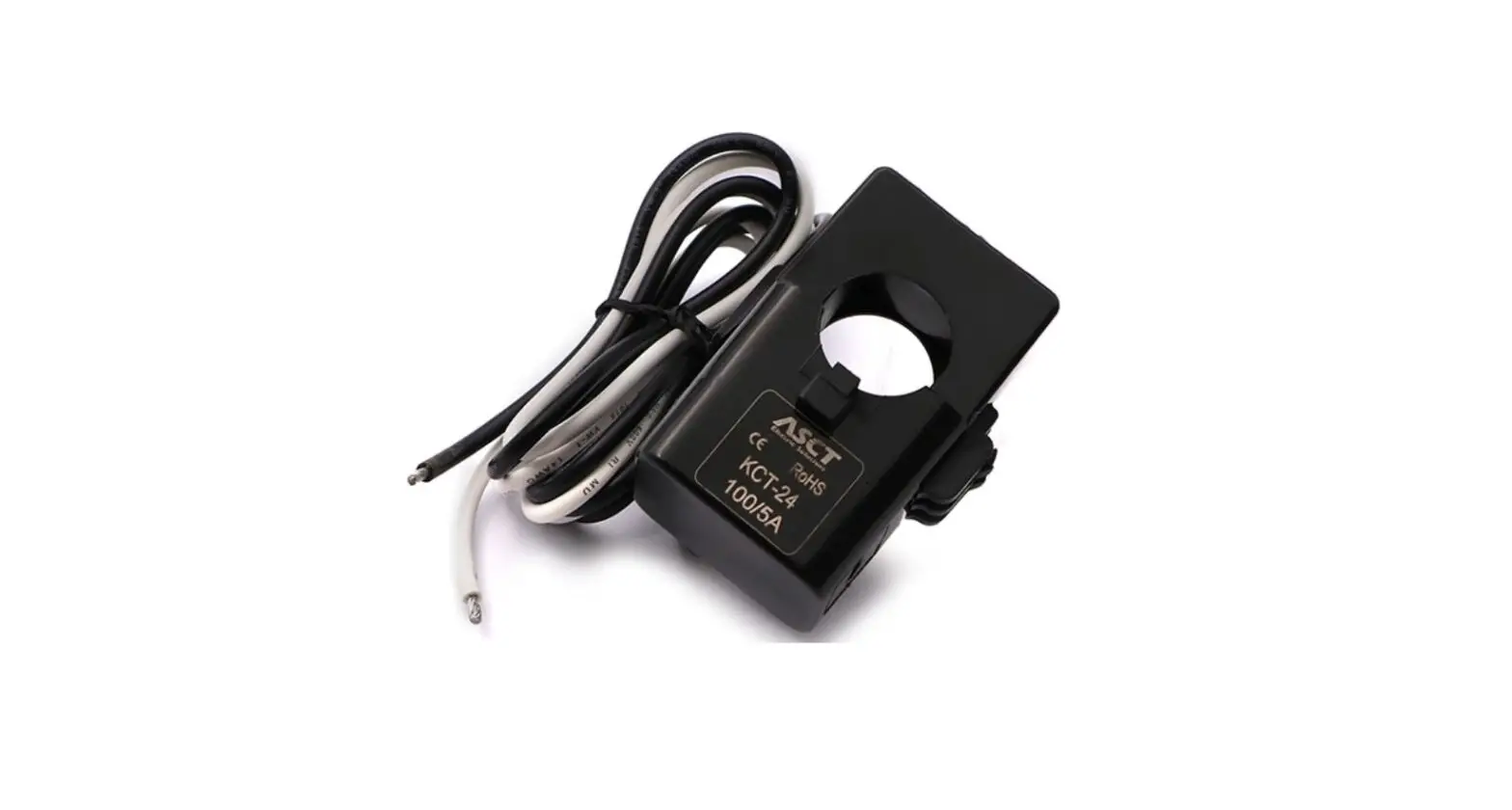

Taiyedq Kct-24 100/5a Split Core Current Transformer Clamp Ct Sensor User Guide

TAIYEDQ KCT-24 100/5A Split Core Current Transformer Clamp CT Sensor User Guide

Features

1. Self-locking design, safe, easy to install, portable.
2. Wide inner window to allow large cables or busbars to be clamped.
3. Wide range of sizes to accommodate all existing installations.
4. Recognized insulated plastic case.
5. Complies with standard IEC60044-1 and ANSI C12.20.
6. High precision class, wide linearity.
7. Superior stability, separate external magnetic interference field.
8. Measure the current directly.

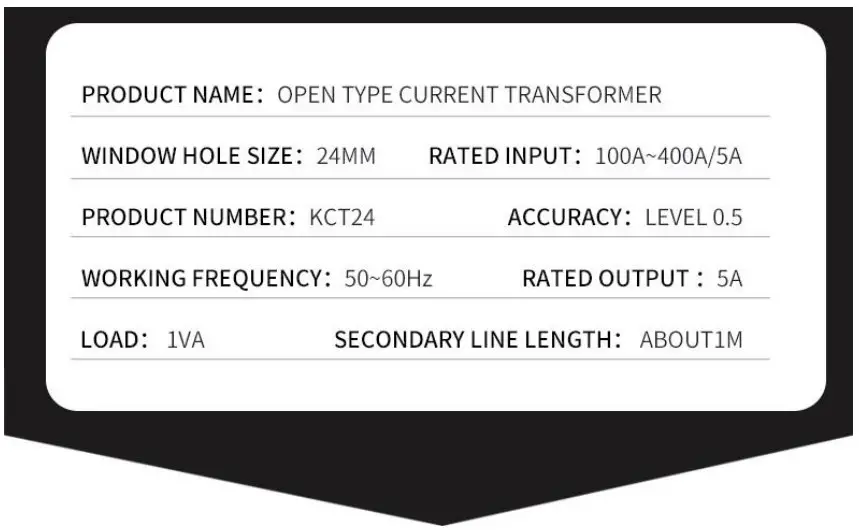

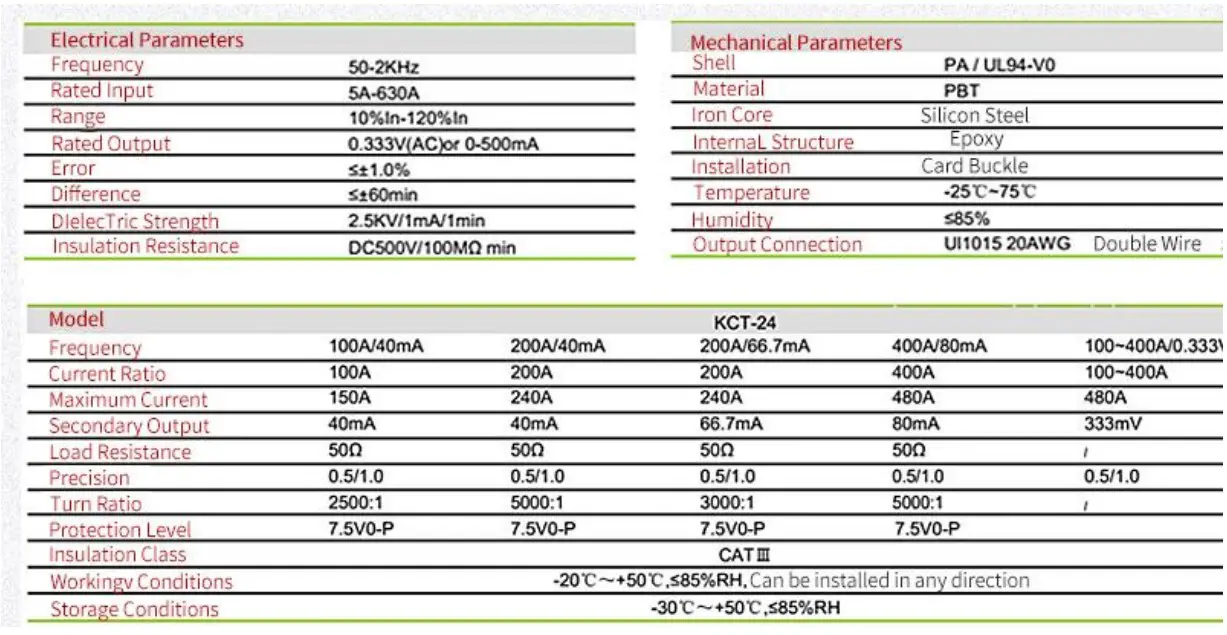

Specifications

• Accuracy: class 1
• Operating Temperature: -40°C~+70 °C
• Ratio: 100/5A
• Window Hole Size: 24mm
• Wire Length: 1 m
• Application: electricity measurement

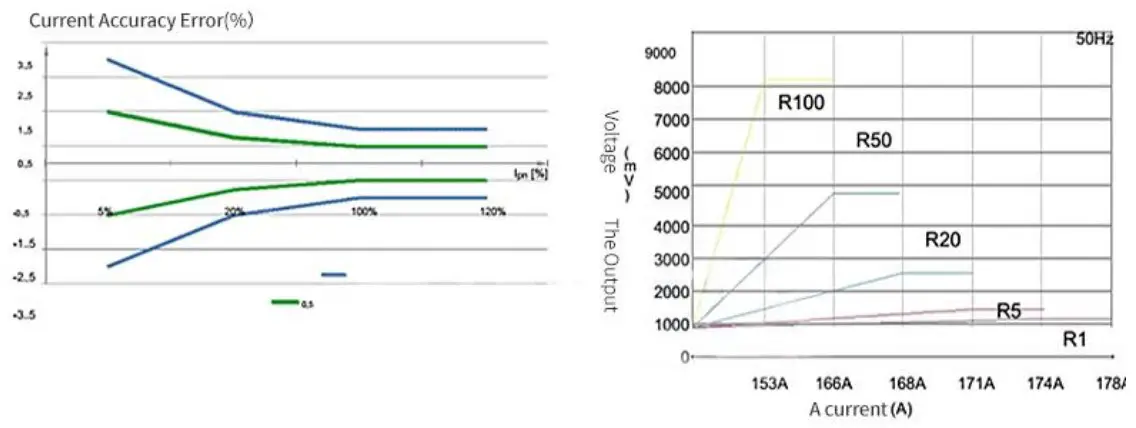

Application

1. Current measurement, monitoring and protection of electrical wiring and equipment.
2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air conditioning equipment and automatic control system.
3. Current, power and energy monitoring device.
4. Relay protection device.
