CT-CON-0150EZ-U 150A EZ Clamp Current Transformer
Owner’s Manual

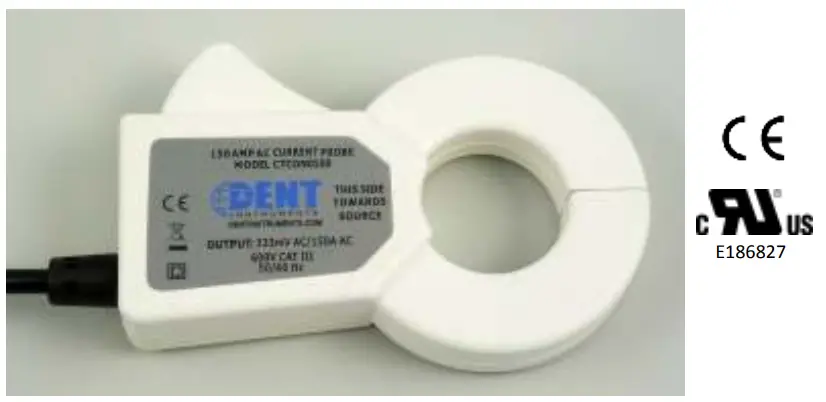

CT-CON-0150EZ-U 150A EZ Clamp Current Transformer
HIGH PERFORMANCE CLAMP-ONCURRENT TRANSFORMER
150A EZ Clamp
DENT’s affordable and compact 150A EZ Clamp current transformers are the one-handed operating solution for temporary or long-term studies. They are designed to work in tight places and clamp around insulated cables or wires.
DENT’s energy monitoring components are used for a variety of applications, including building automation, tenant submetering, performance verification, energy management and new technology assessment.
KEY SPECIFICATIONS
| Window Size | 1” (25 mm) |
| Current Range | .5 to 300A AC |
| Output | 333 mV @ 150 A AC 2.22 mV/A AC |
| Accuracy | <1% From .5– 300 A AC |
| Phase Shift | <1° From 5-25 A AC 1° From 25-150 A AC <1.5° from 150-300 A AC |
ELECTRICAL
| Max Output Wire Polarity Phasing Orientation Frequency Range | 666 mV @ 300 A Red = High, positive (+) Black = Low, negative (-) Label on Case Points Toward Source 50 Hz to 400 Hz |
MECHANICAL

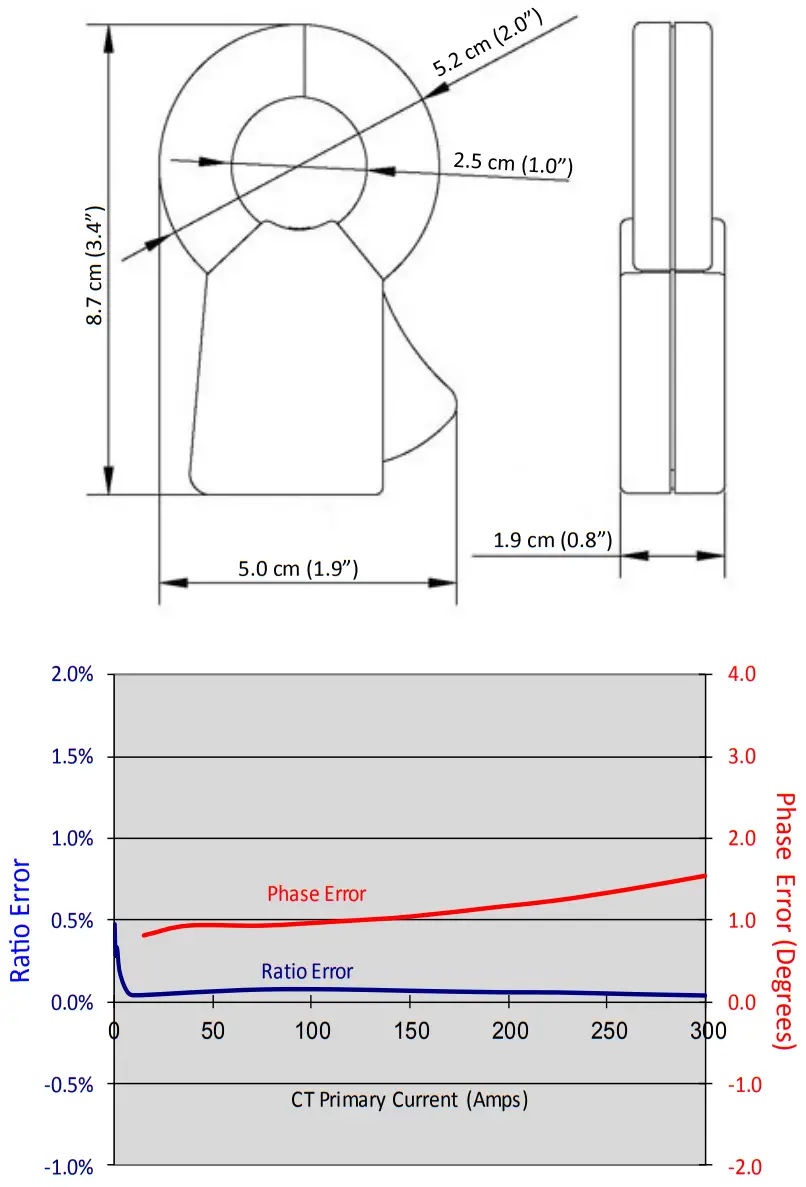

| Case Material Leads Working Temperature | White ABS, UL 94 V-0 8’ (2.4M), 22 gage, 600V -25° to 70 °C (-13° to 158 °F ) |
SAFETY
| Working Voltage Dielectric Strength Certifications | 600 VAC Category III 5200 VAC, 50/60 Hz for one minu Conforms to:  UL STD 61010-1Certified to: CAN/CSA STD C22.2 No. 61010-1 |
PART NUMBERS
| CT-CON-0150EZ-U CT-CON-0150EZ-B | Crimp ferrules on leads With Banana Plugs (for use with Legacy Weather-tight PRO-Series Instruments) |
CONTACT US
DENT Instruments, Inc.
Energy & Power Measurement Solutions
925 SW Emkay Dr
Bend, Oregon 97702 USA
541.388.4774 | 800.388.0770
www.DENTinstruments.com
All specifications contained in this document are
subject to change without notice.
© DENT INSTRUMENTS, INC.
rev 102814
