HIGH PERFORMANCE MIDI HINGED
CURRENT TRANSFORMERS 100A

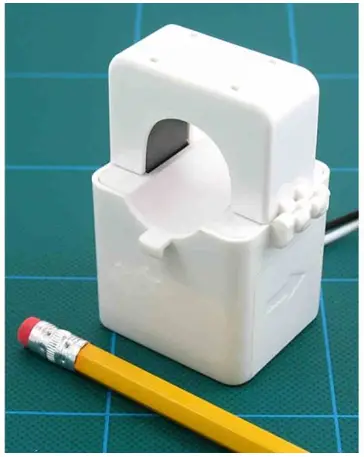

CT-HMC-0100-U High Performance Midi Hinged Current Transformers
The hinged “Midi” CTs are high performance, medium amperage, hinged current transformers. Use for current measurement, energy metering, load surveys, demand metering, energy research, and submetering.
KEY SPECIFICATIONS

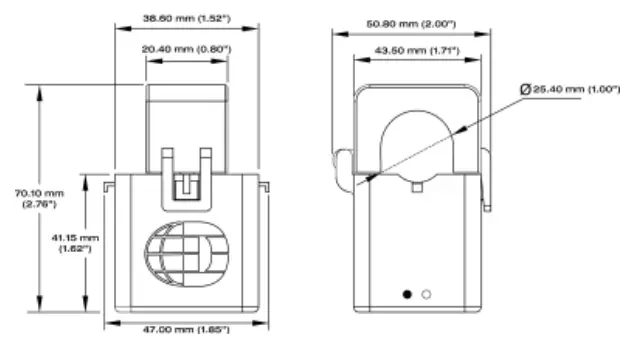

| Window Size | 25 mm (1.0”) |
| Current Range | 1 – 200A AC |
| Output | 333 mV @ 100 A AC 3.33 mV/A AC |

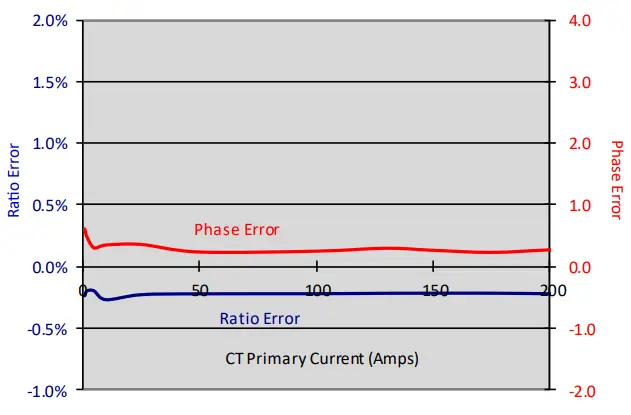

| Ratio Error* | <0.3% from 1.0 A to 200 A AC (typical) |
| Phase Error* | <0.5° from 1.0 A to 200 A AC |
* For maximum performance, keep CT contact surfaces wiped clean and free of debris.
ELECTRICAL
| Output | 333 mV @ 100 A |
| Wire Polarity | White = Hi, positive (+) Black = Low, negative (-) |
| Phasing | Arrow On Case Points |
| Orientation | Toward Load |
| Frequency Range | 50 to 400 Hz |
MECHANICAL
| Case Material | White Nylon, UL 94 V-0 |
| Leads | 600V, 22 gage |
| Operating Temperature | -15 to 60°C (5 to 140°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
SAFETY
| Working Voltage | 600 VAC, Category III |
| Dielectric Strength | 5200 VAC for 1 minute |
| Safety Standards |  UL STD 61010-1 CAN/CSA STD C22.2No. 61010-1 |
PART NUMBERS
| 7 M Leads | ||
| 100A Midi Hinged CT | CT-HMC-100-U | CT-HMC-100-U-7M |
CONTACT US
| DENT Instruments, Inc. Energy & Power Measurement Solutions | 925 SW Emkay Drive Bend, Oregon 97702 USA 541.388.4774 800.388.0770 www.DENTinstruments.com |
All specifications contained in this document are subject to change without notice.
© DENT INSTRUMENTS, INC.
rev 030119
