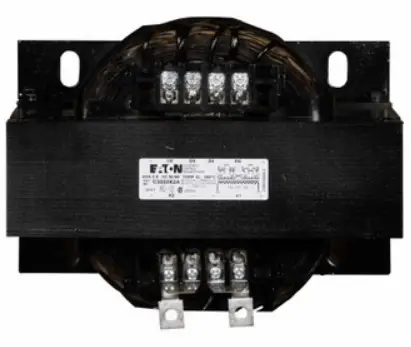

EATON C3000K2A Industrial Control Transformer
Production Specifications
Catalog number: C3000K2A
Eaton type MTK, industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 115°c, 3000 va
General specifications
Product Name
Eaton Type MTK industrial control transformer
Product Length/Depth
7.12 in
Product Width
9 in
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Catalog Number C3000K2A
UPC
- 786680125751
Product Height
- 7.5 in
Product Weight
- 63.6 lb
Compliances
- RoHS Compliant
Certifications
- UL Listed CSA Certified cUL Certified
Catalog Notes
Epoxy resin impregnated coil design, 50/60 Hz operation, 180°C insulation system
Physical Attributes
- Coil material Copper windings
- Design MTK
- Tap size None
Resources
- Brochures dry-type distribution transformer-flex center line card
- Industrial control transformers brochure
- Catalogs
- Transformer distribution catalog, volume 2, tab 2
- Eaton’s Volume 7—Logic Control, Operator Interface and Connectivity Solutions
- Specifications and datasheets
- Eaton Specification Sheet – C3000K2A
- Transformer consulting application guide
Performance Ratings
Primary voltage
- 220 x 440 V
- 240 x 480 V
- 230 x 460 V
- Temperature rating 115°C
- Volt ampere rating 3000 VA
- Secondary voltage 120/115/110 V
