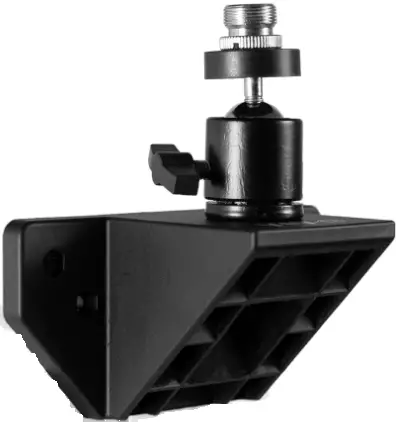

V I V O MOUNT-VBHA1 VESA Ball Head Adapter for Monitor Arms Instruction Manual

  WARNING!

WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

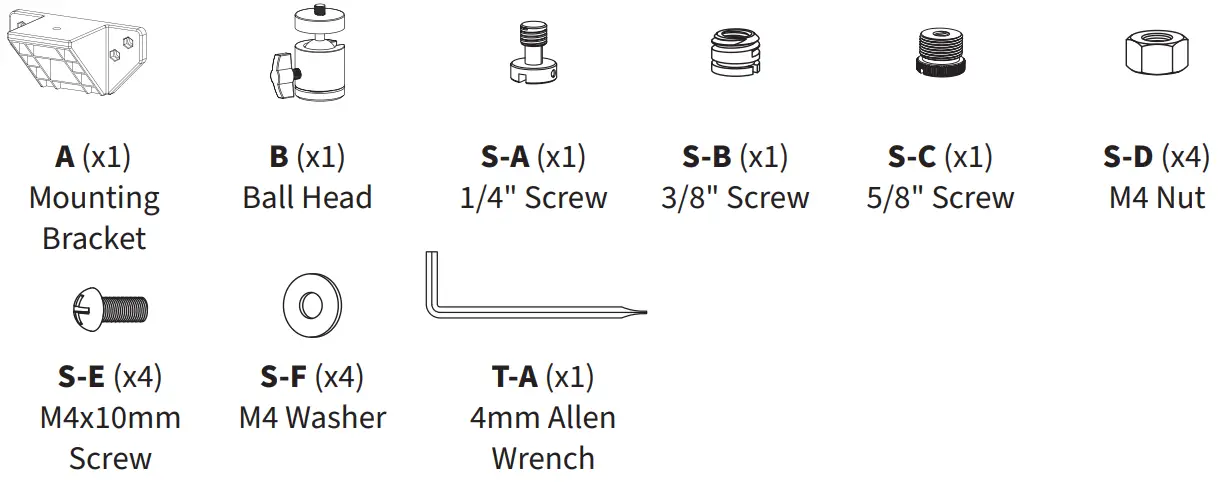

PACKAGE CONTENTS

TOOLS NEEDED

DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury

ASSEMBLY STEPS

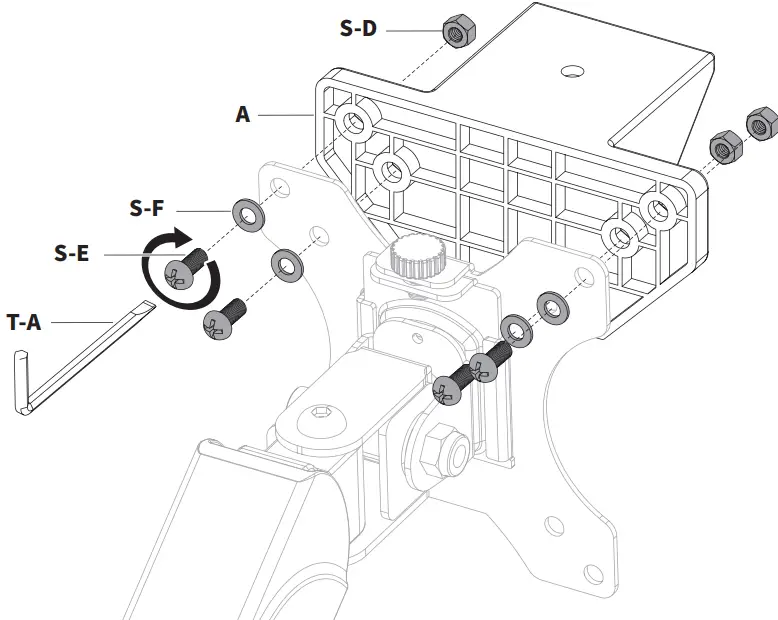

STEP 1

Connect Mounting Bracket (A) to exisiting monitor arm VESA Plate using M4x10mm Screws (S-E), M4 Washers (S-F), M4 Nut (S-D), and 4mm Allen Wrench (T-A)

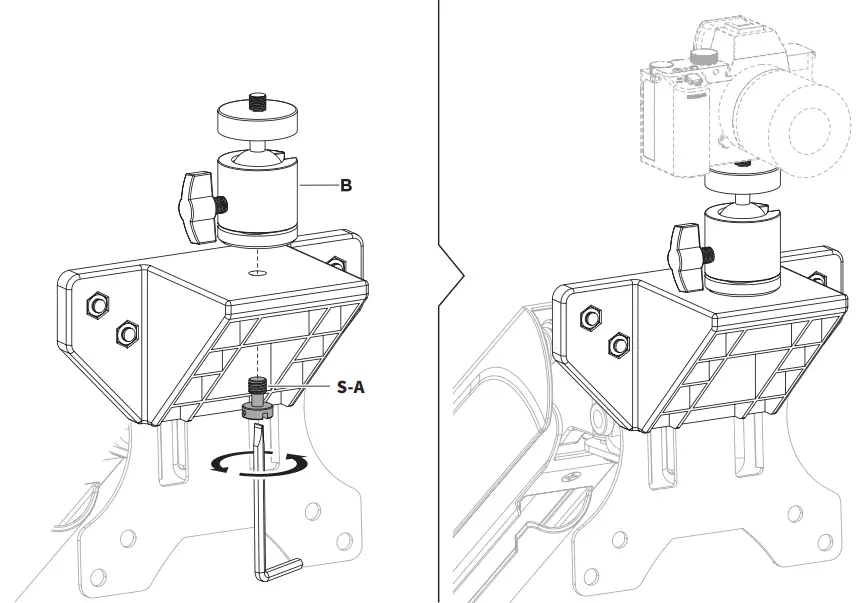

STEP 2

Connect Ball Head (B) to Mounting Bracket (A) using 1/4″ Screw (S-A) and 4mm Allen Wrench (T-A).

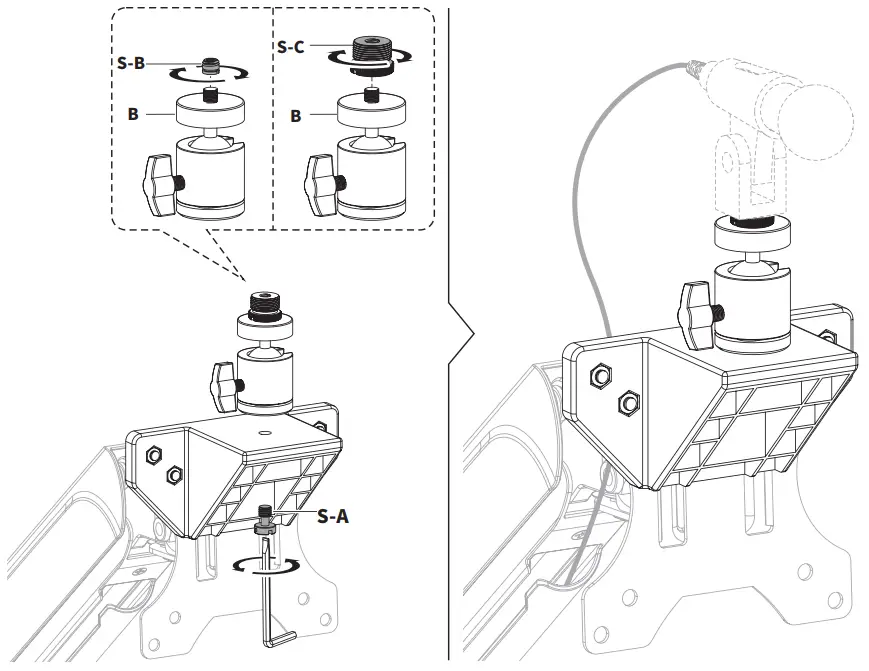

Optional: 3/8″ Screw (S-B) and 5/8″ Screw (S-C) may be installed on Ball Head (B) to accomdate mounting threads of device.

 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us

Open Monday – Friday 7:00am – 7:00pm CST,
our dedicated support team can offer immediate assistance with rapid response times. If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.

 309-278-5303  AVG. RESOLUTION TIME (within office hrs): 5M 4S

www.vivo-us.com Chat live with an agent!  AVG. RESOLUTION TIME (within office hrs): < 15 M

 [email protected] AVG. RESPONSE TIME (within office hrs): 1HR 8M

• 23% within < 15m
• 38% within < 30m
• 61% within < 1hr
• 83% within < 2hr
• 92% within < 3hr
