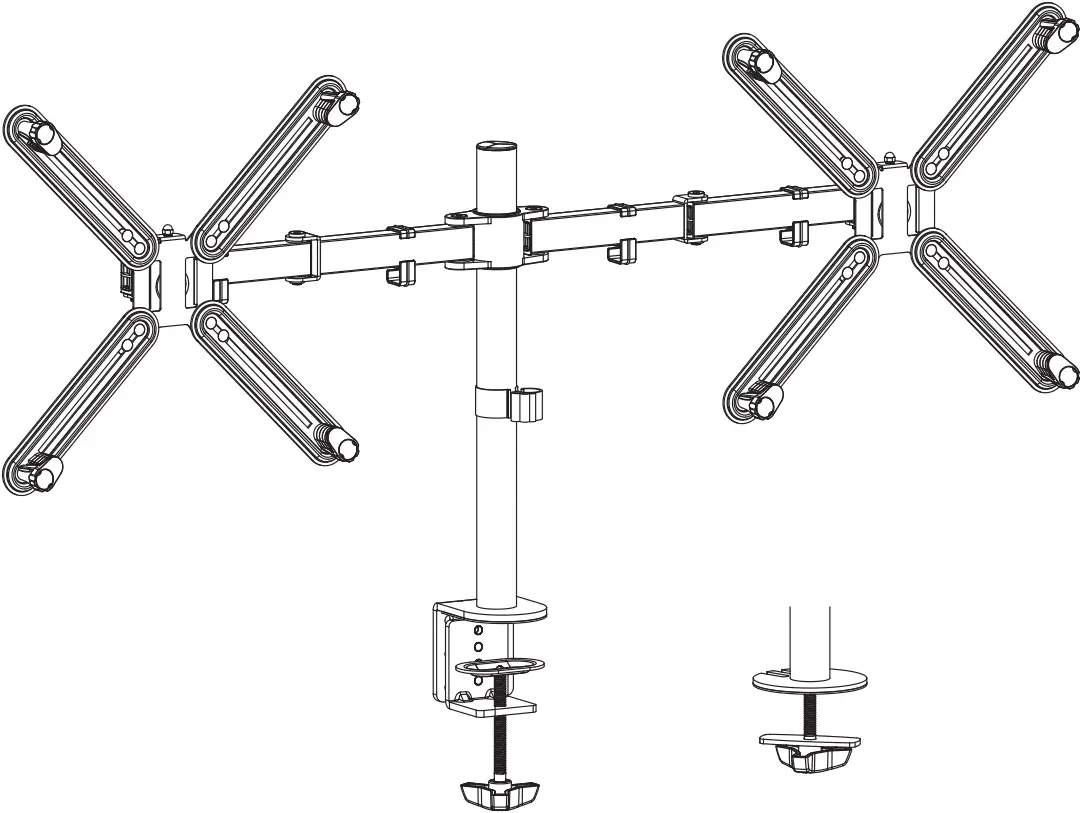

Dual Monitor Desk Mount with VESA Adapter Bracket
Instruction Manual
SKU: STAND-V002VA
Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002va
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
[email protected] www.vivo-us.com 309-278-5303
Chat live with an agent!
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
- NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
- USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS

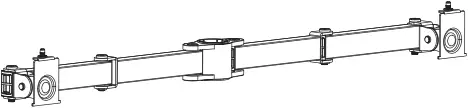

A (x1) Pole B (x1) Clamp C (x1) Swivel Arm
D (x2) VESA Plate E (x1) Grommet Base Plate F (x1) Soft Pad
G (x1) Support Plate H (x1) Pole Cap I (x8) Bracket Arms
J (x8) “L” Support Holder K (x1) Pole Cable Clip L (x4) Arm Cable Clip
M (x8) Plastic Cover
S-A (x3) M6x16mm Screw S-B (x2) M6 Security Nut S-C (x16) Nut
S-D (x16) Carriage Bolt S-E (x8) M6x40mm Screw S-F (x8) M6x60mm Screw

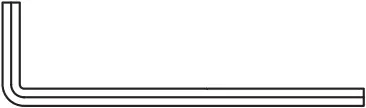

S-G (x8) M6x80mm Screw T-A (x1) Wrench T-B (x1) 3mm Allen Wrench

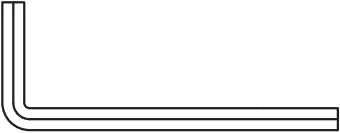

T-C (x1) 5mm Allen Wrench T-D (x1) 6mm Allen Wrench
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
ALTERNATIVE MOUNTING HARDWARE
If Bracket Arms are not used.
M-A (x8) M4x12mm Thumbscrew M-B (x8) M4x30mm Screw
M-C (x8) M6 Spacer
TOOLS NEEDED
Phillips Screwdriver
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
ASSEMBLY STEPS
STEP 1

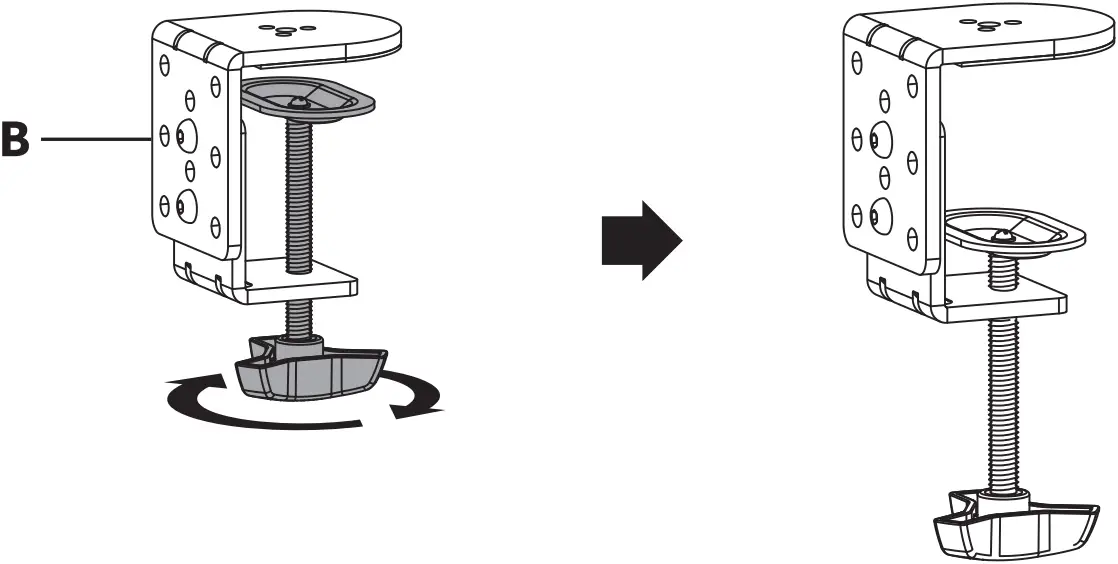

Unscrew the hand crank of Clamp (B) to create an opening for the clamp to placed on desktop.
STEP 2
OPTION A: Desk Clamp Install
Install the Clamp (B) to the Pole (A) using M6x16 Screws (S-A) and tighten using 3mm Allen Wrench (T-B). Mount Clamp (B) to the desktop and tighten using the hand crank.
OPTION B: Grommet Installation
Separate the Hand Crank (B1) from Clamp (B) by removing the screw with a Phillips screwdriver.

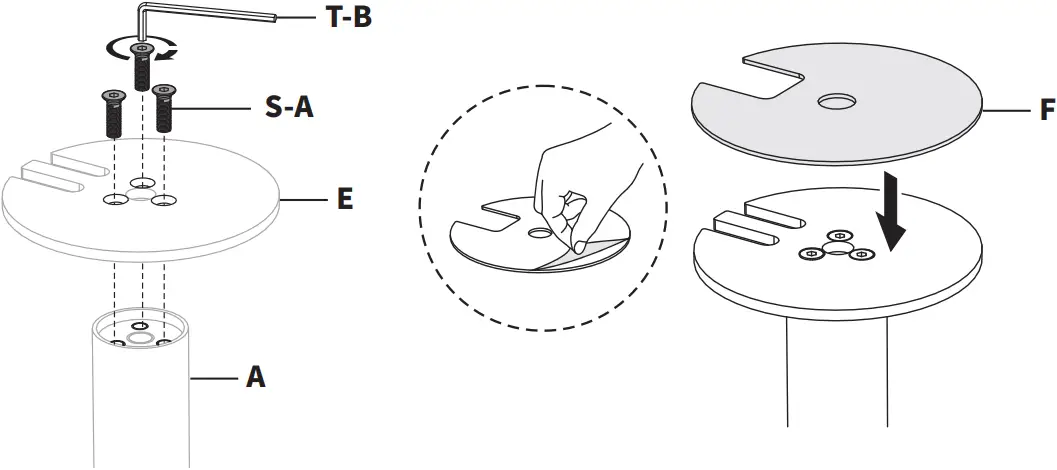

Install Grommet Plate (E) to the Pole (A) using M6x16 Screws (S-A) and 3mm Allen Wrench (T-B). Attach Soft Pad (F) to the Grommet Plate (E).

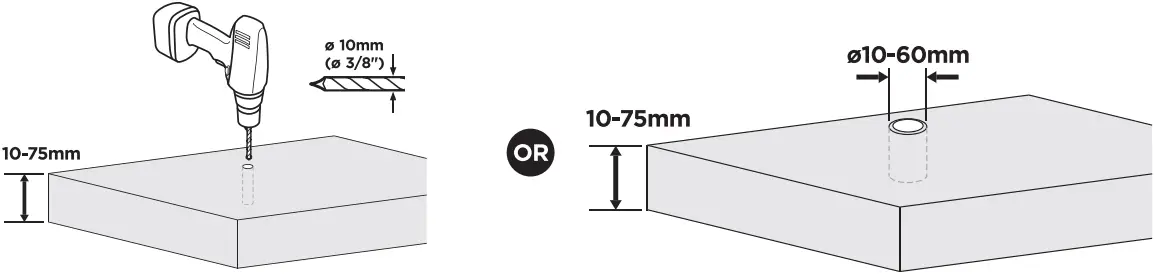

If desk does not have an existing grommet hole, drill a 3/8″ (10mm) diameter hole at the desired position through the mounting surface. Otherwise, you may use any existing 10-60mm gromment hole.
Desktop with Existing Through-Hole.

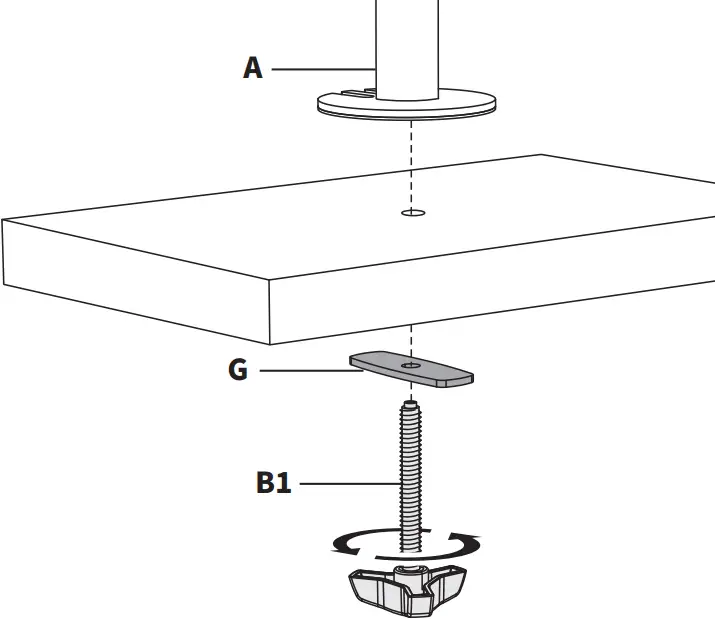

Position Pole (A) on the mounting surface and secure using the Support Plate (G) and Knob (B1).
STEP 3

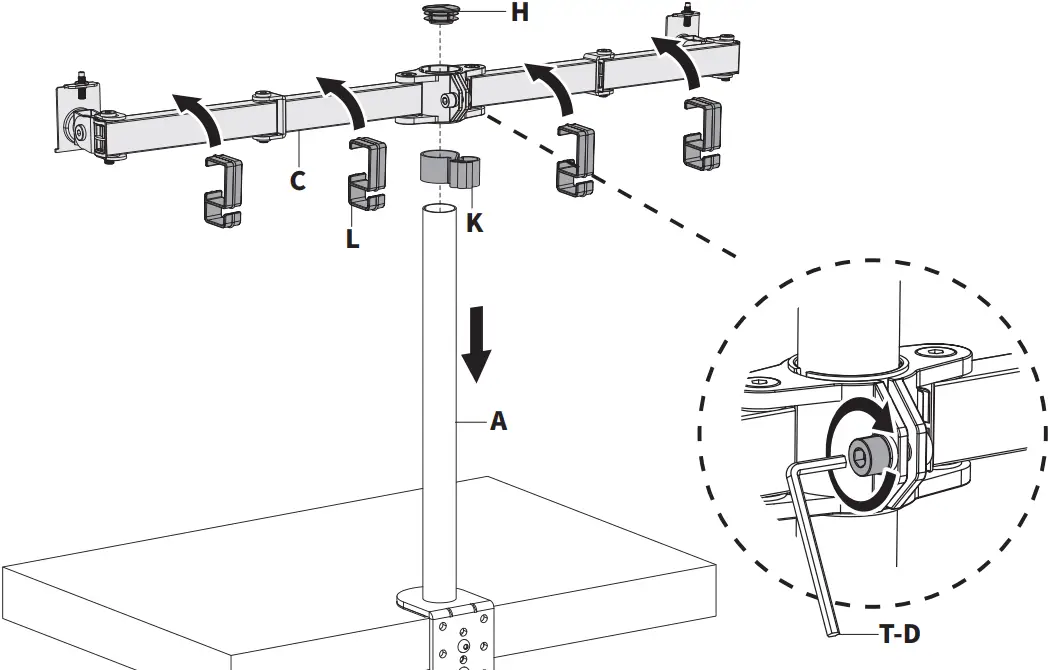

Slide Pole Cable Clip (K) and Swivel Arm (C) onto Pole (A). Tighten Swivel Arm (C) at desired height using 6mm Allen Wrench (T-D). Insert Pole Cap (H) into top of Pole (A). Place Cable Clips (L) onto Swivel Arm (C).
STEP 4

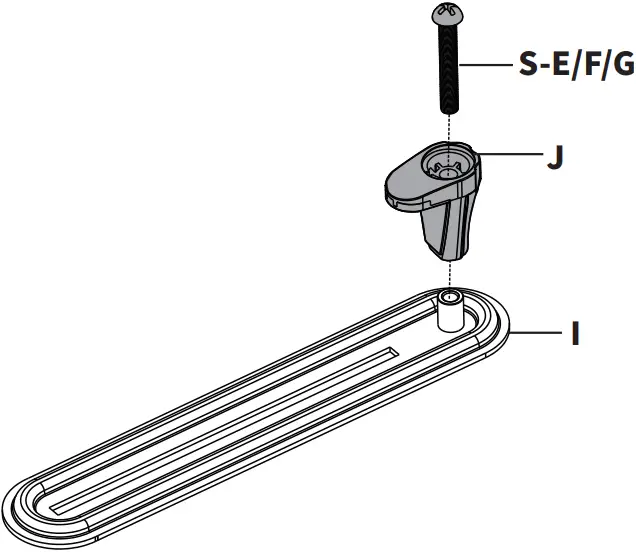

Attach “L” Support Holders (J) to Bracket Arms (I) using appropriate M6 Screws (S-E, S-F, or S-G) for monitor thickness and a Phillips screwdriver. Do not tighten fully.
STEP 5

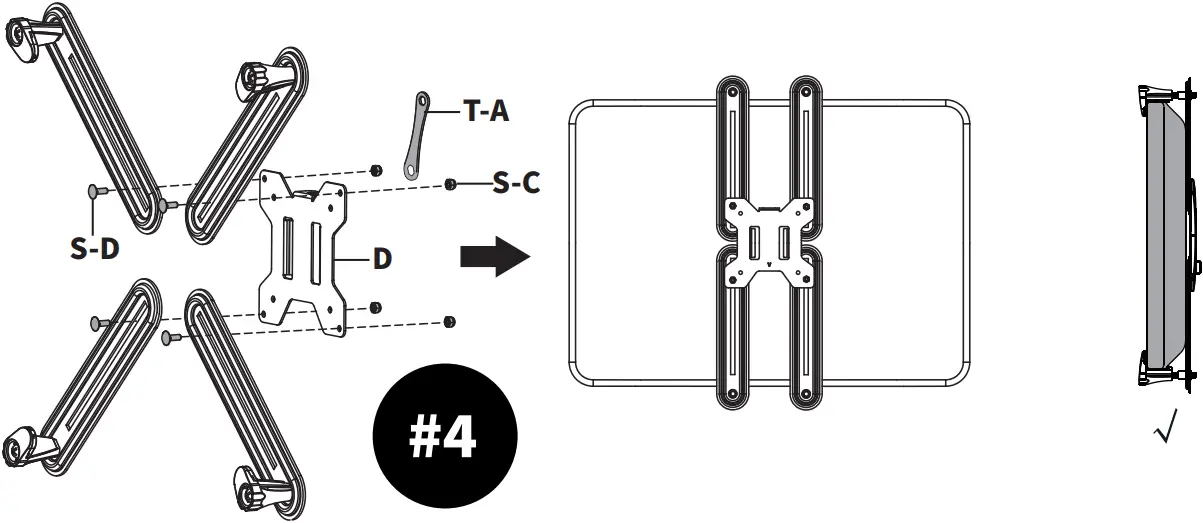

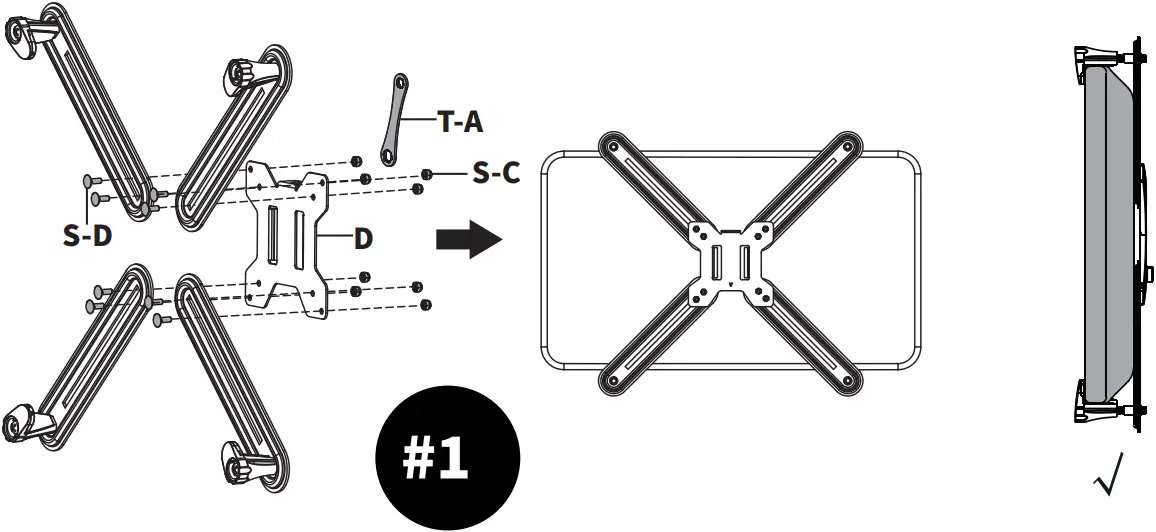

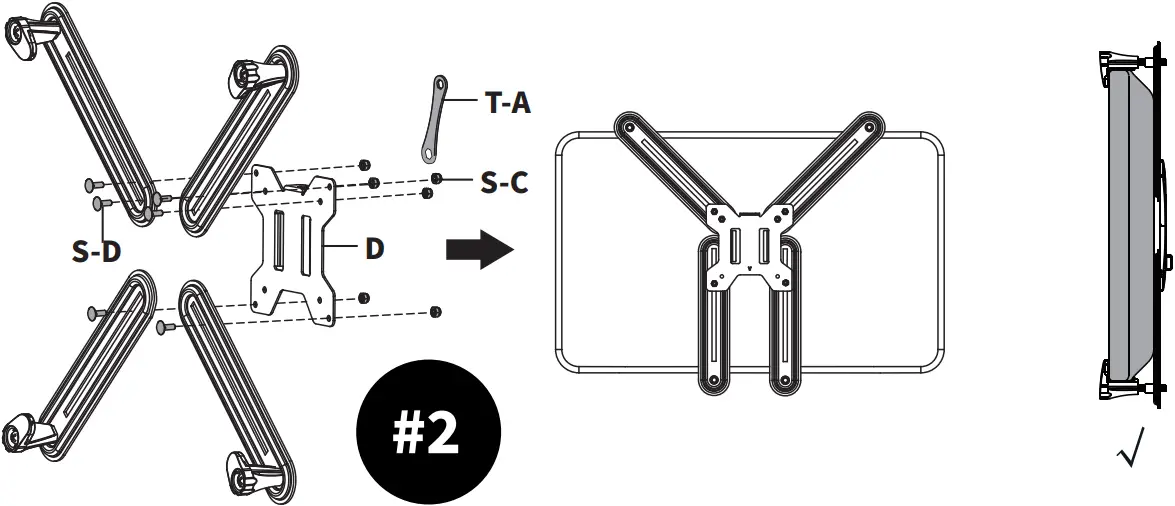

Connect VESA Plate (D) to assembled arms using Carriage Bolts (S-D), Nuts (S-C), Wrench (T-A) and a Phillips screwdriver. Arms can be assembled in one of four methods, which are shown below and on next page.
STEP 6

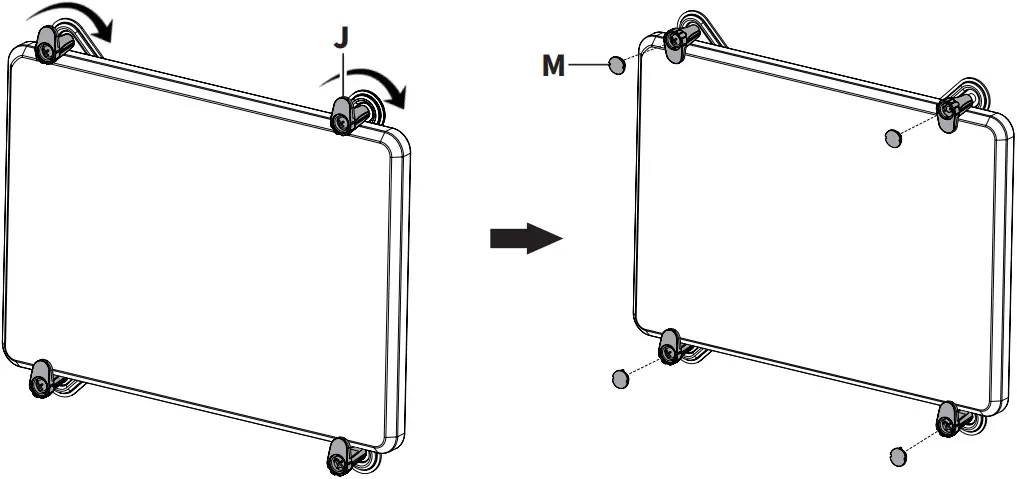

With all “L” Shaped Holders (J) facing up, place monitor on lower two holders and fully tighten lower two screws with a Phillips screwdriver. Turn top Holders down and tighten top screws, then tighten nuts for the upper arms. Install Plastic Covers (M) to cover screws.
STEP 7

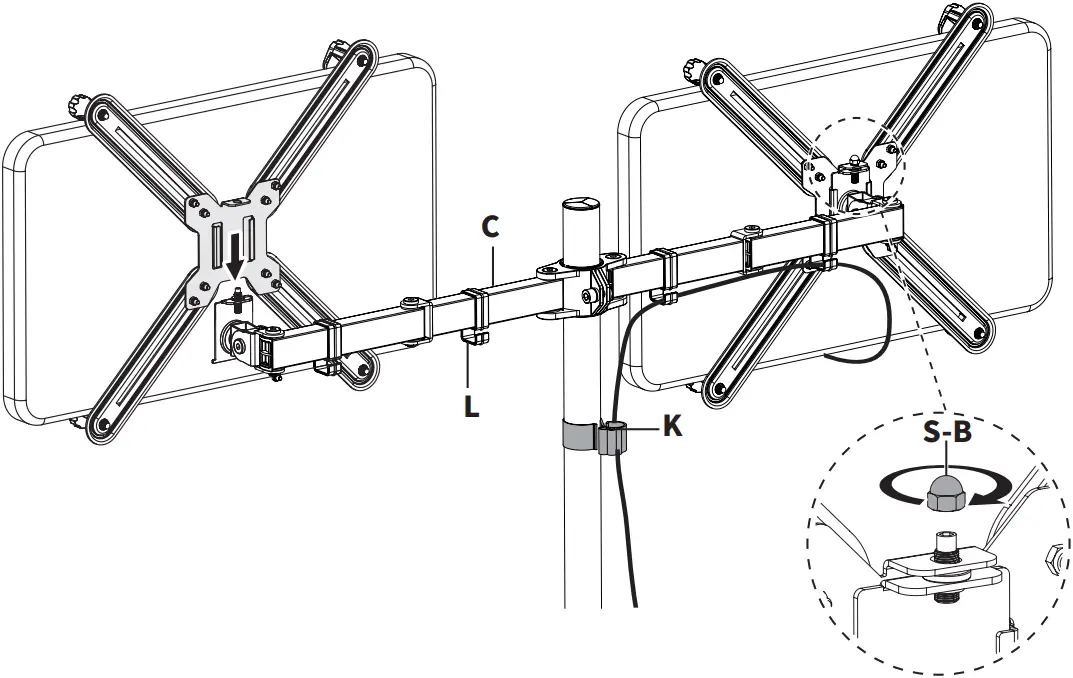

Slide monitor assembly onto Swivel Arm (C) and secure with M6 Security Screw (S-B). Route cables through Arm Cable Clips (L) and Pole Cable Clip (K).
STEP 8

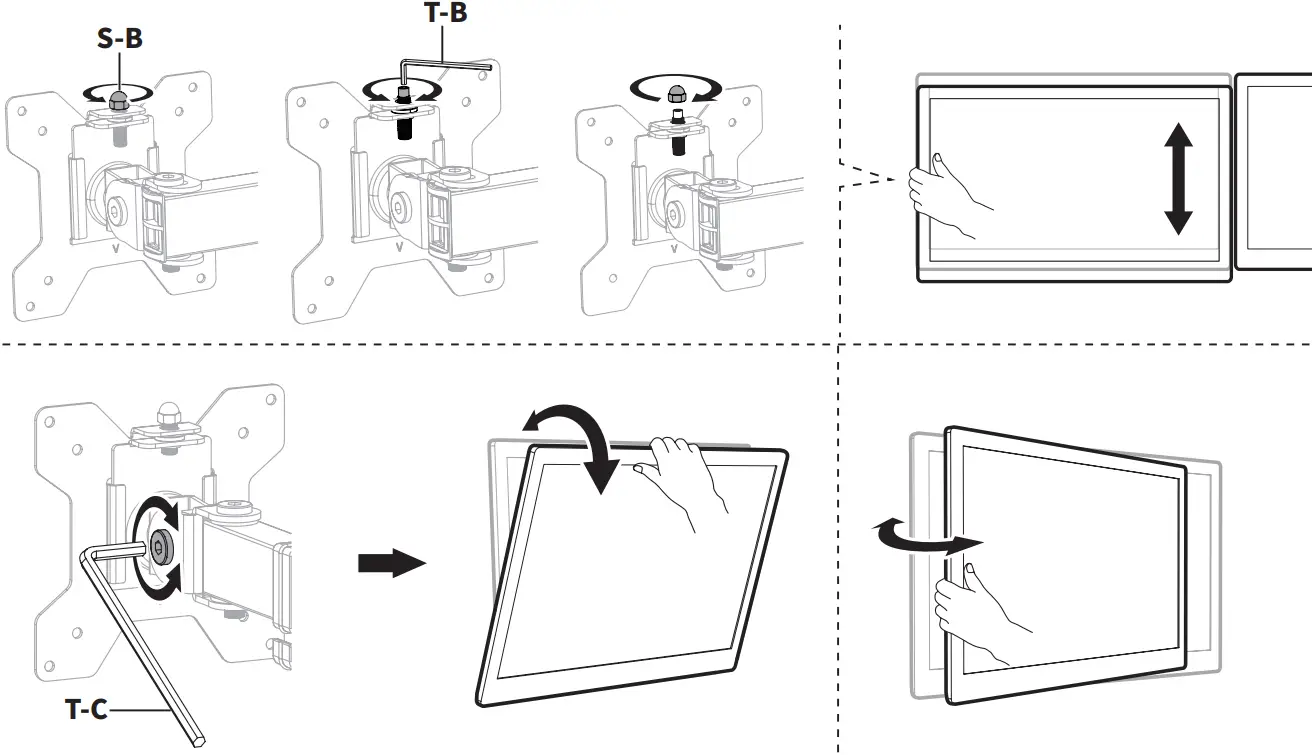

To level monitors, remove M6 Security Nuts (S-B) and tighten or loosen adjustment screws using 3mm Allen Wrench (T-B). Once level, fasten M6 Security Nuts (S-B) back into place. Adjust the monitor tilt using 5mm Allen Wrench (T-C).
CAUTION:

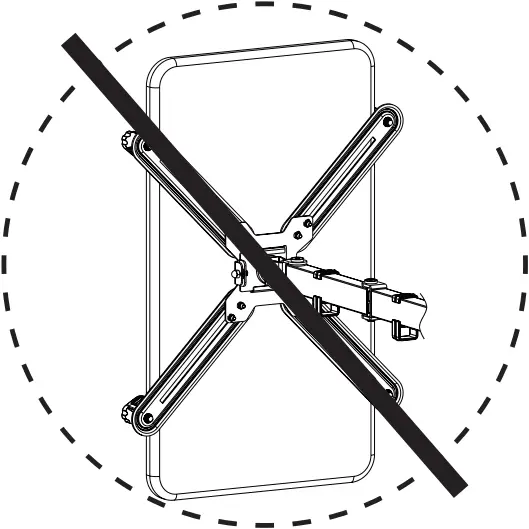

To avoid risk of monitors sliding off, DO NOT rotate monitors beyond +5° or -5°.
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
LAST UPDATED: 01/16/2023
REV1.2
