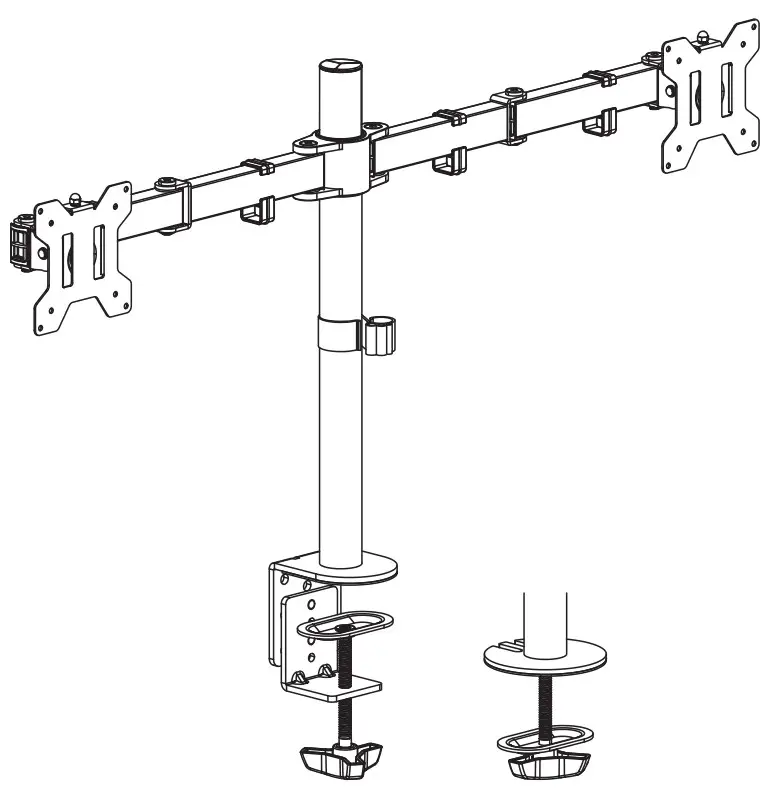

STAND-V002/W/WD Steel Dual Monitor Desk Mount
Instruction ManualDual Monitor Desk Mount
SKU: STAND-V002/W/WD
Instruction Manual

Contents hide

1 STAND-V002/W/WD Steel Dual Monitor Desk Mount

2 PRE-ASSEMBLY | BEFORE YOU BEGIN

3 PACKAGE CONTENTS

4 ASSEMBLY STEPS

5 CHECK OUT OTHER GREAT PRODUCTS FROM

6 Documents / Resources

6.1 References

7 Related Posts

STAND-V002/W/WD Steel Dual Monitor Desk Mount

ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/stand-v002
[email protected]
309-278-5303
www.vivo-us.com

Contact Us First!
DO NOT RETURN ITEM
Our friendly product support team is here to help!
PERSONABLE CUSTOMER SUPPORT
7AM – 7PM
Monday-Friday

	Give us a Call: 309-278-5303
	Chat Us: www.vivo-us.com
	Email Us: [email protected]

We’re Here for You!
Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST.
We offer immediate assistance with rapid response times from customer service agents and product techncians to help you every step of the way!
Missing a Part?
If any parts are received damaged / defective OR you are missing a part, please reach out to us within 30 days of product delievery to have it replaced at no cost.
We are happy to replace parts to ensure you have a fully functioning product

PRE-ASSEMBLY | BEFORE YOU BEGIN

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is ! not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV CART.
USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WEIGHT CAPACITY
DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury.Product Warranty
For the most up to date details on your product’s warranty, please visit the product’s listing on our website or reach out to customer support. vivo-us.com/products/stand-v002
Returns | Product Didn’t Work Out?
We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or [email protected].
Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense.

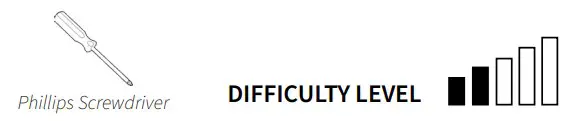

TOOLS NEEDED:

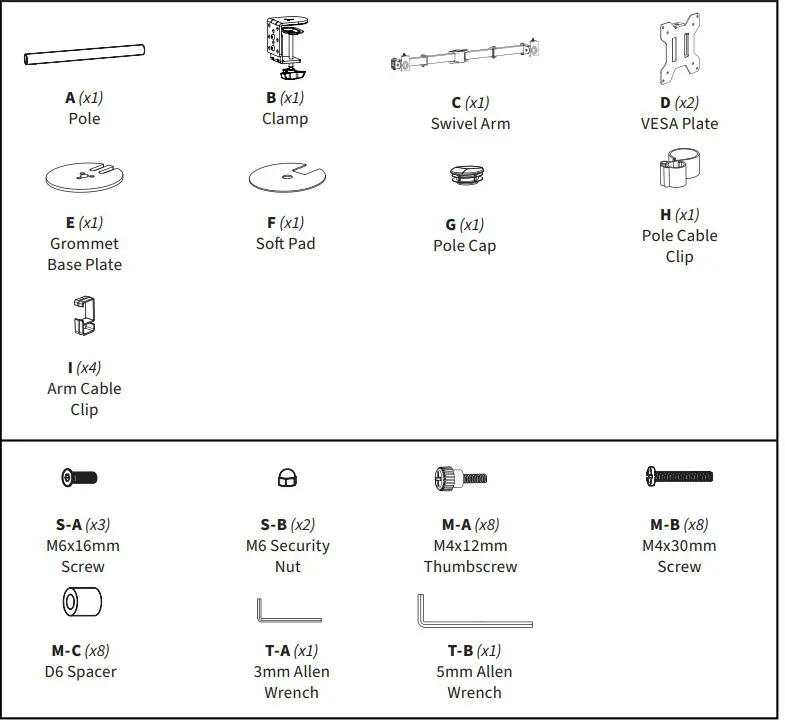

PACKAGE CONTENTS

Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us.NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

ASSEMBLY STEPS

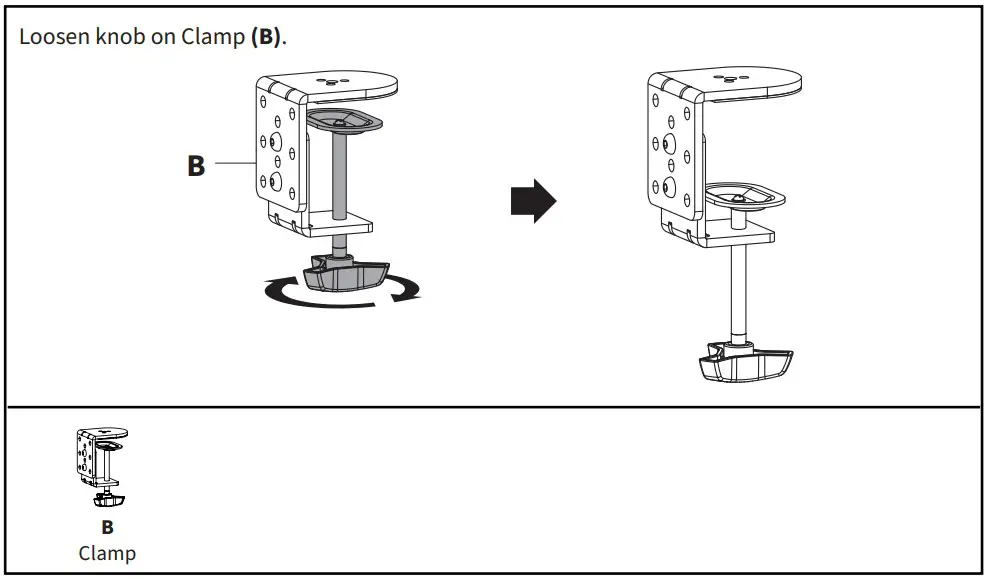

STEP 1: Loosen Clamp STEP 2: Option A
Desk Clamp Installation

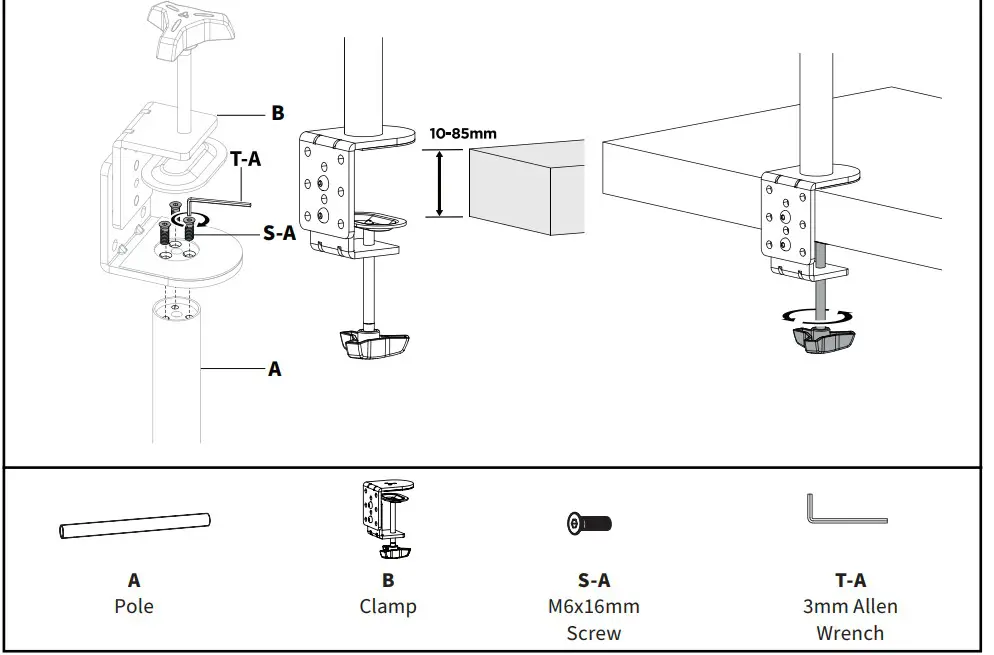

Mount Clamp (B) to Pole (A) using M6x16 Screws (S-A) 3mm Allen Wrench (T-A). Secure assembly to desktop by tightening knob on Clamp (B).STEP 2: Option B
Grommet Installation

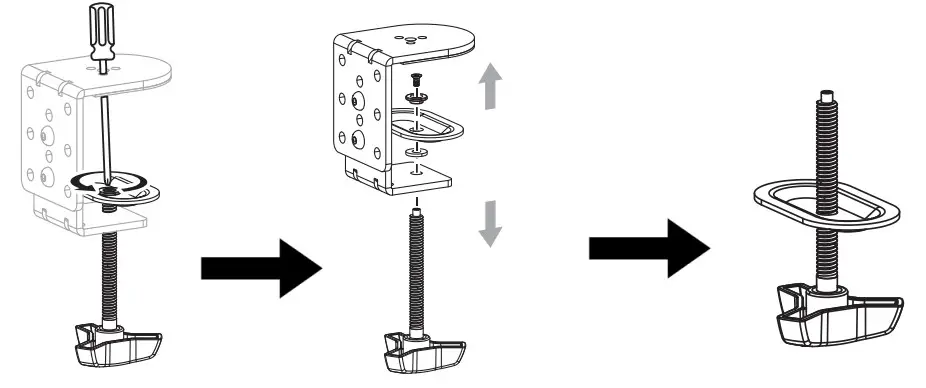

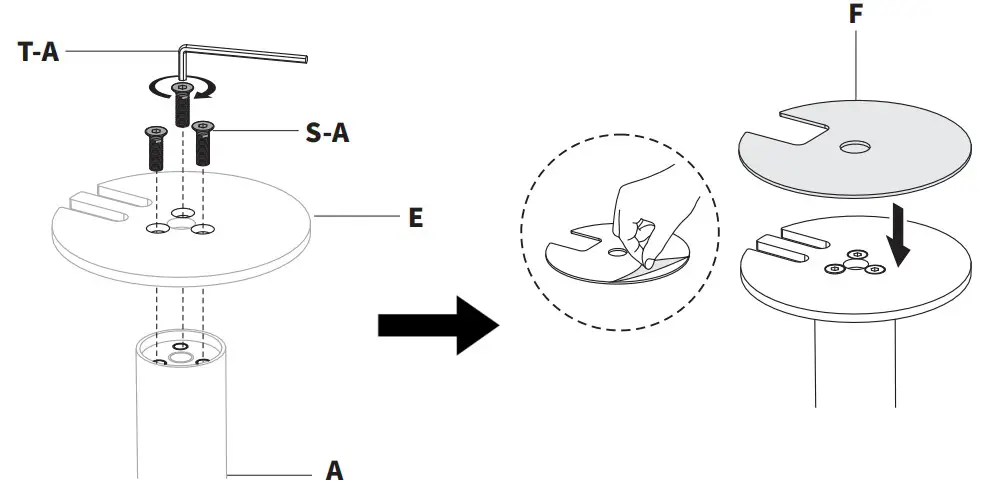

Using a Phillips screwdriver, remove the screw from Clamp (B) and separate Clamp Bolt (B1) and Clamp Plate (B2) from the clamp assembly. Thread Clamp Plate (B2) onto Clamp Bolt (B1). Mount Grommet Plate (E) to Pole (A) using M6x16 Screws (S-A) and 3mm Allen Wrench (T-A).

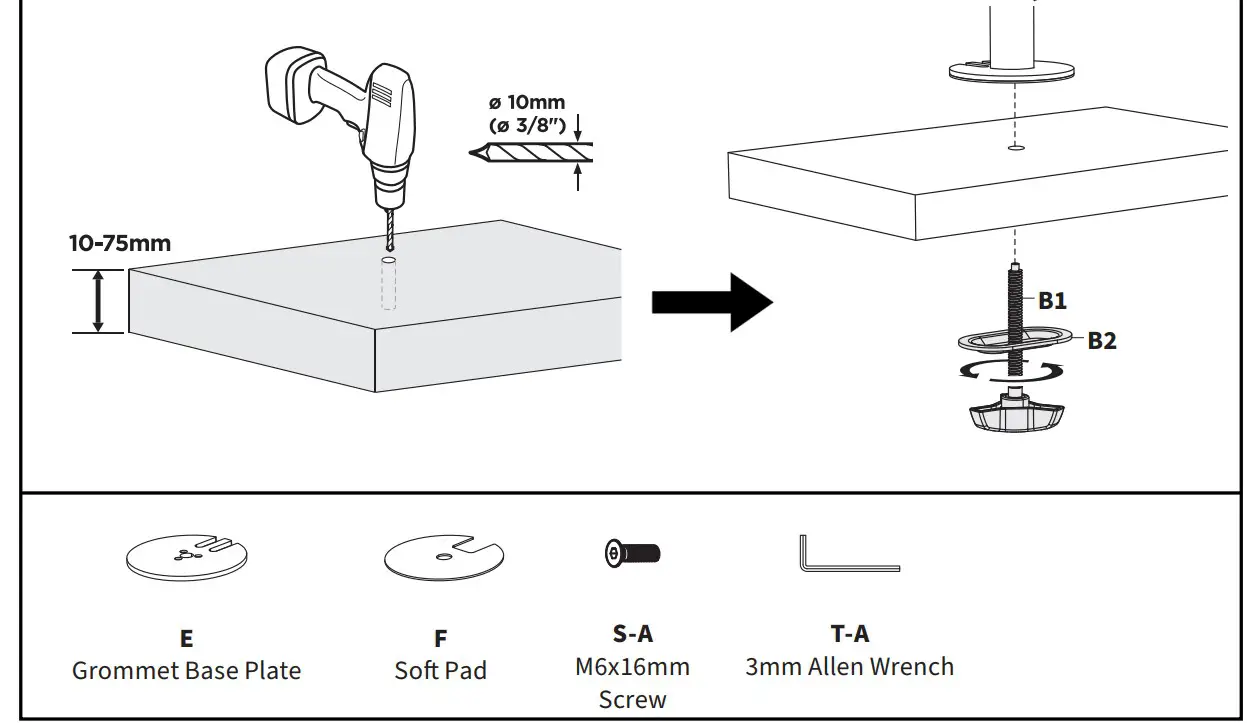

Remove adhesive backing from Soft Pad (F) and adhere to Grommet Plate (E)If not using an existing through-hole for mounting, use a 3/8” (10mm) drill bit to create a mounting hole in the desired location. Thread Clamp Bolt (B1) with Clamp Plate (B2) through the mounting hole and into Pole (A).STEP 3: Install Arm

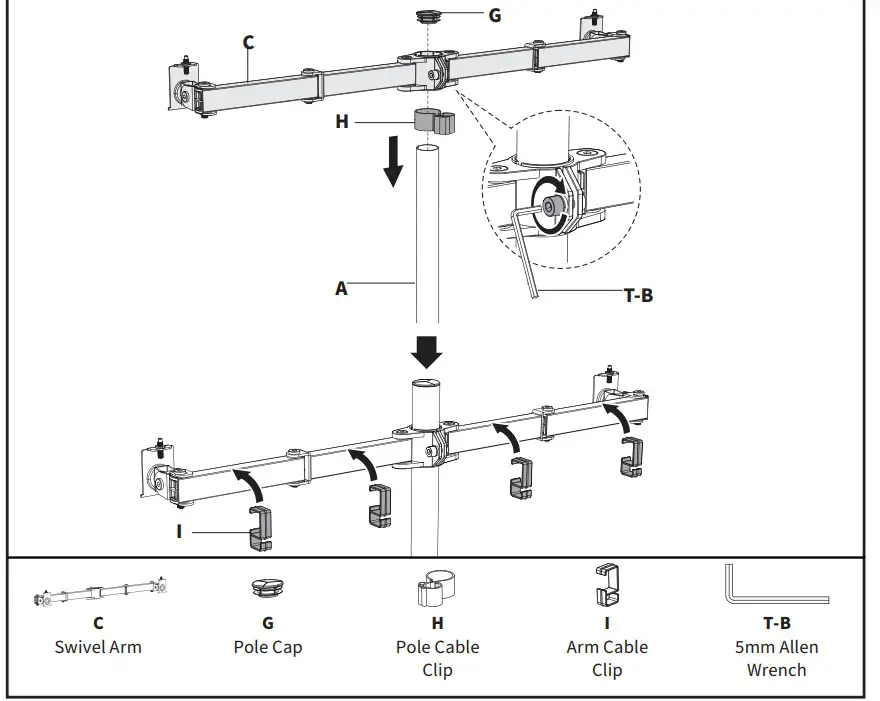

Slide Pole Cable Clip (H) and Swivel Arm (C) onto Pole (A). Secure Swivel Arm (C) in place using 5mm Allen Wrench (T-B). Attach Pole Cap (G) to Pole (A). Attach Arm Cable Clips (I) to Swivel Arm (C).
STEP 4: Attach VESA Plate
Secure VESA Plates (D) to monitors using M4x12 Thumbscrews (M-A) or M4x30 Screws (M-B). D6 Spacers (M-C) may be required.

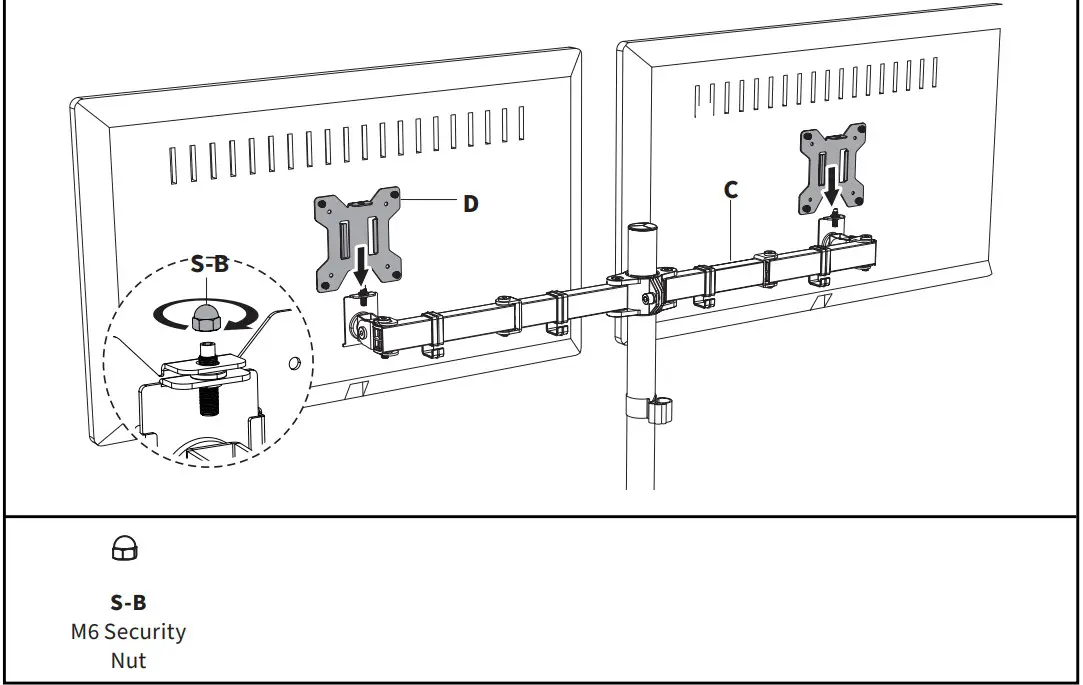

STEP 5: Install Monitors
Slide monitors with VESA Plates (D) onto Swivel Arm (C). Secure VESA Plates (D) in place using M6 Security Nuts (S-B).STEP 6: Manage Cables

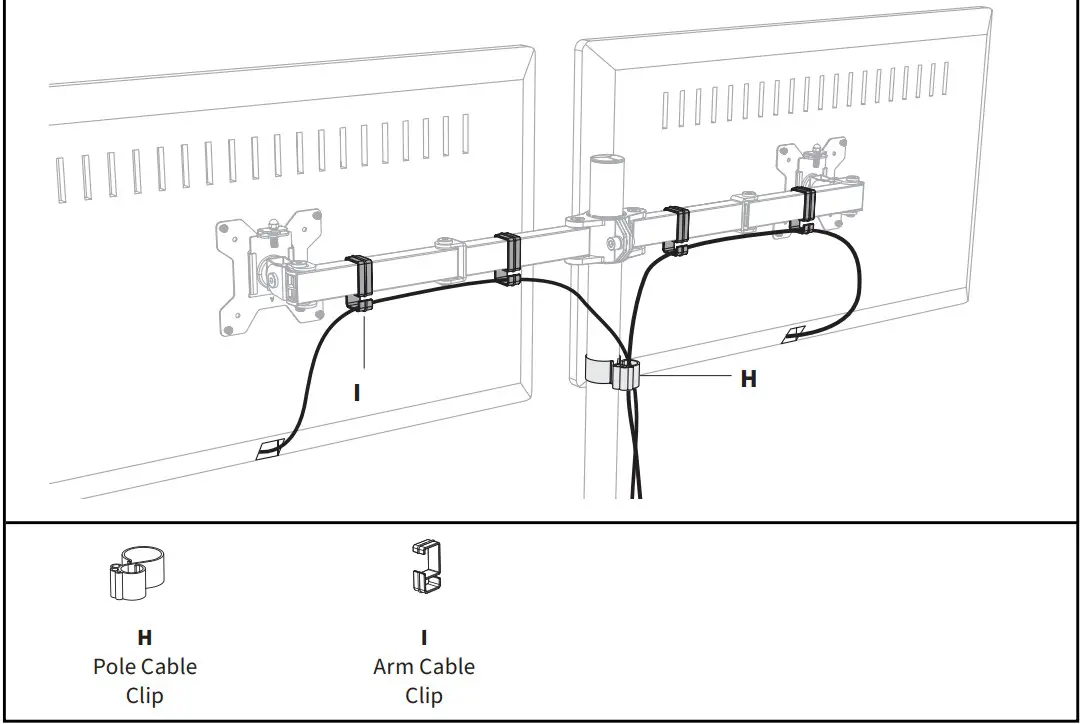

Manage cables using Arm Cable Clips (I) and Pole Cable Clip (H). STEP 7: Adjust Height

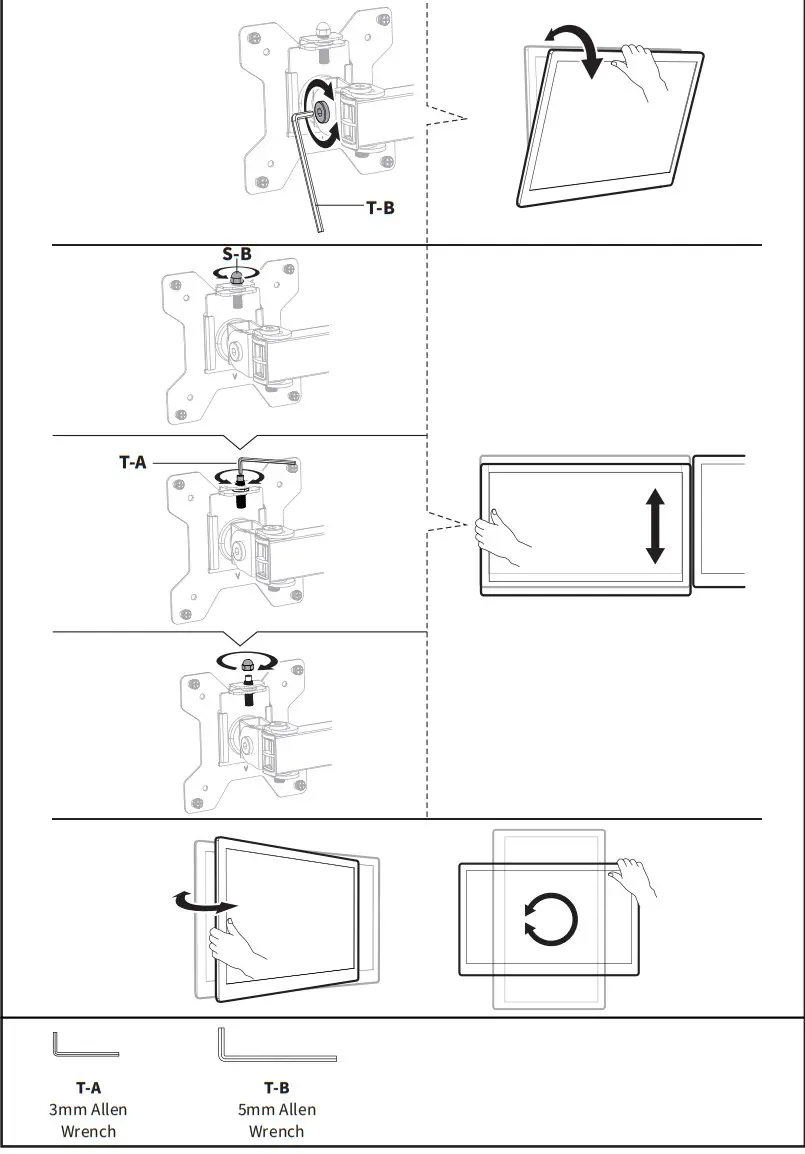

Adjust the monitor tilt using 5mm Allen Wrench (T-B). To level monitors, remove M6 Security Nuts (S-B) and tighten or loosen adjustment screws using 3mm Allen Wrench (T-A). Once level, fasten M6 Security Nuts (S-B) back into place.

Note: If the display does not stop at your desired position, tighten the screw as shown.
