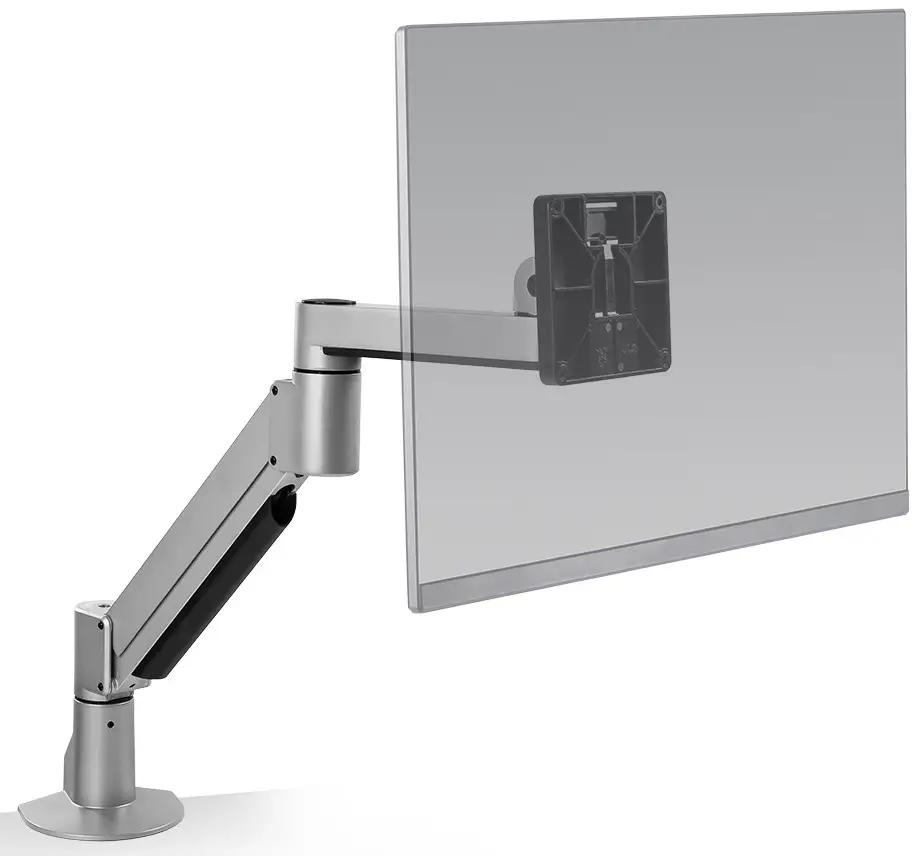

HAT COLLECTIVE 7000 Articulating Monitor Mount Instruction Manual
Note: Parts may be shipped in separate boxes, please review all packaging prior to discarding.

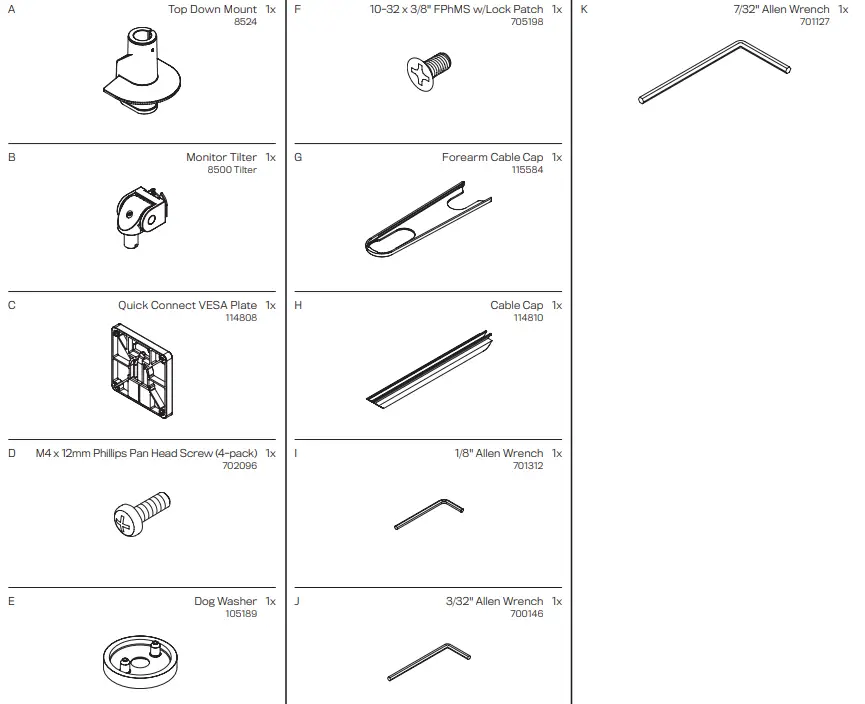

Package Content

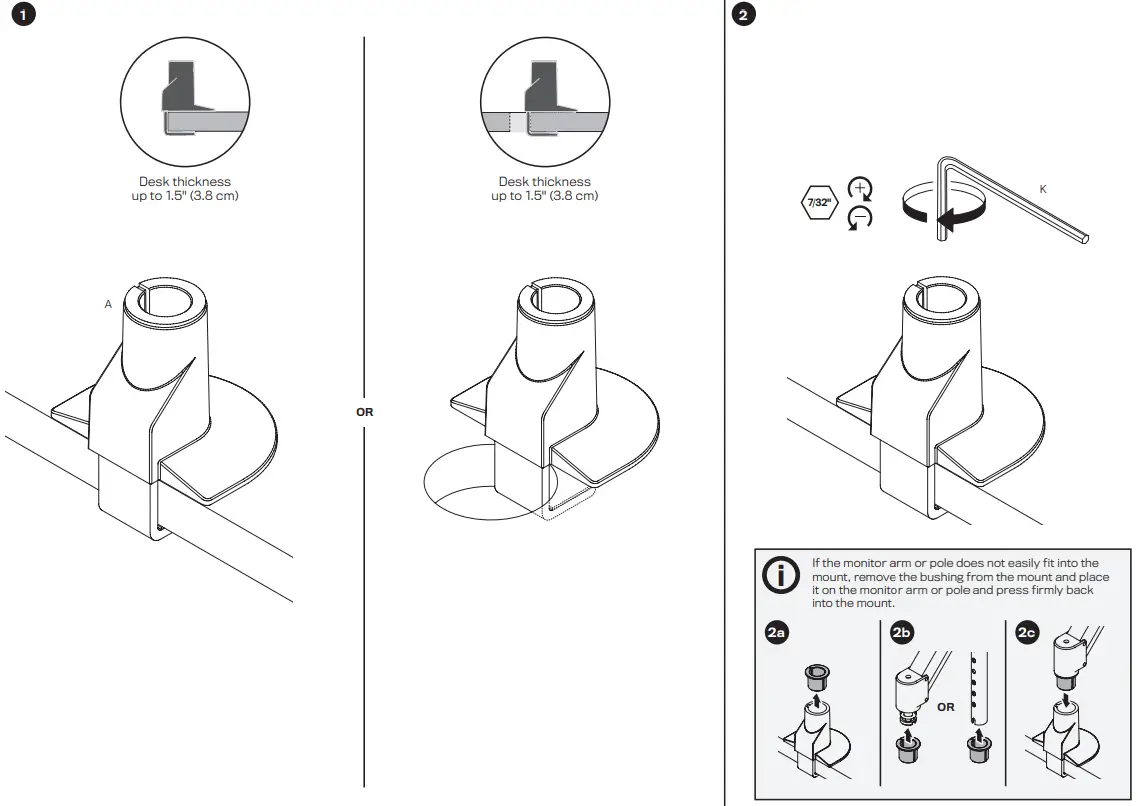

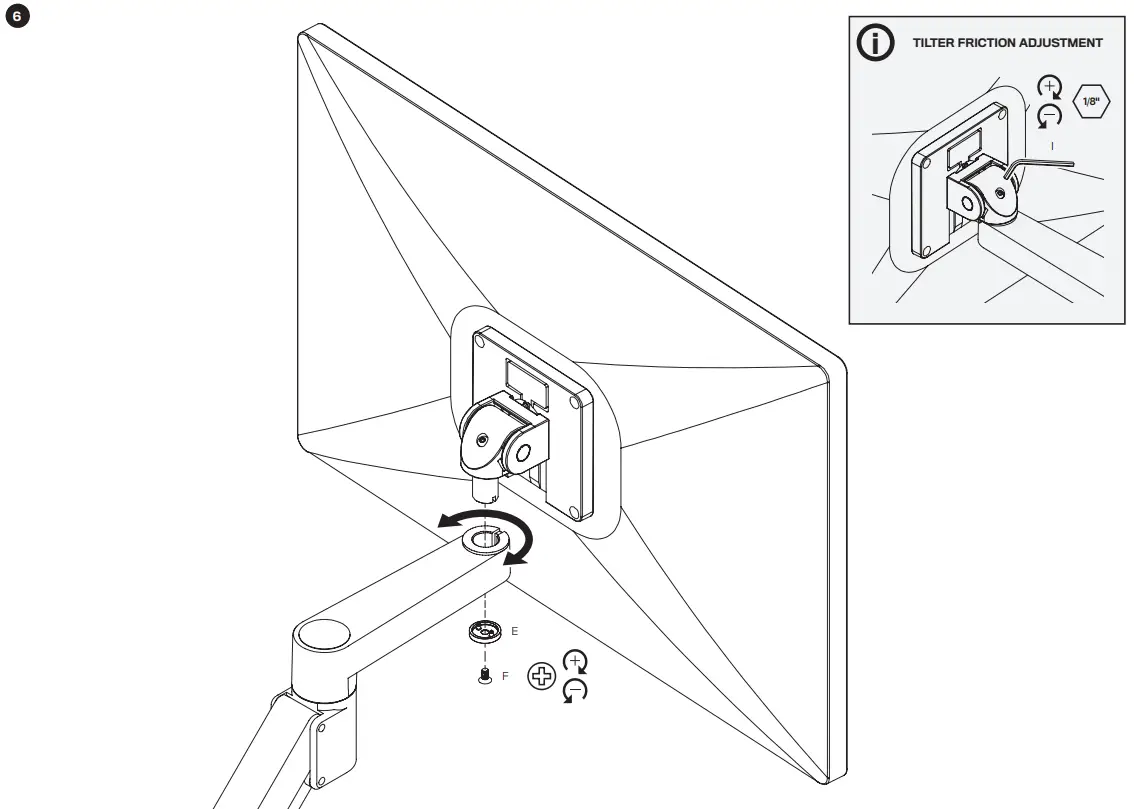

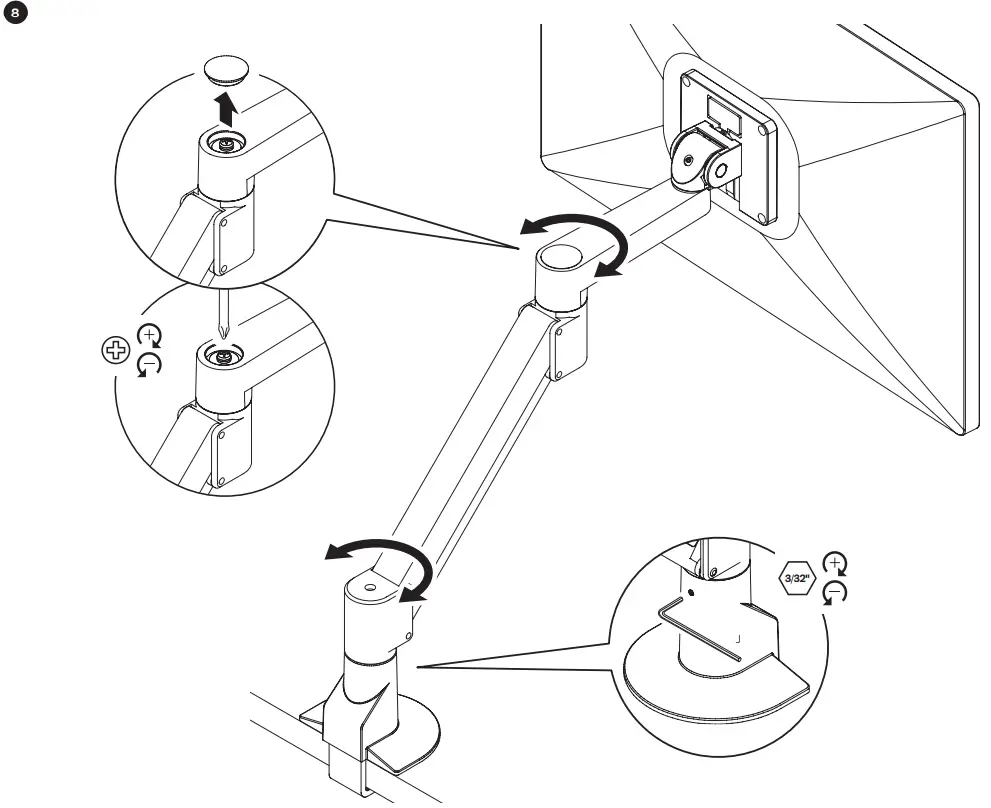

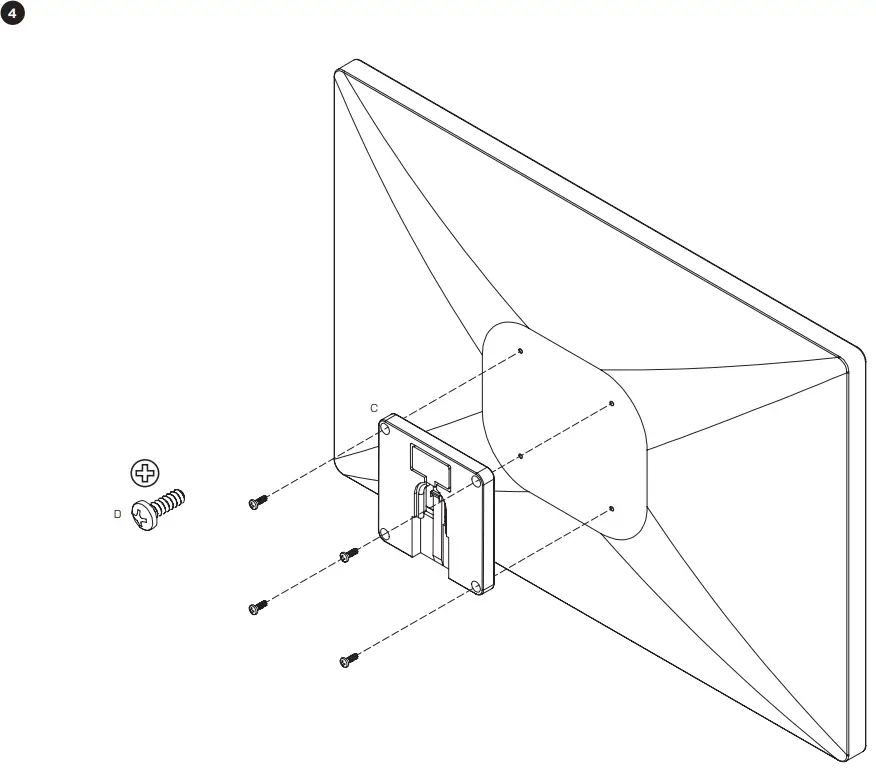

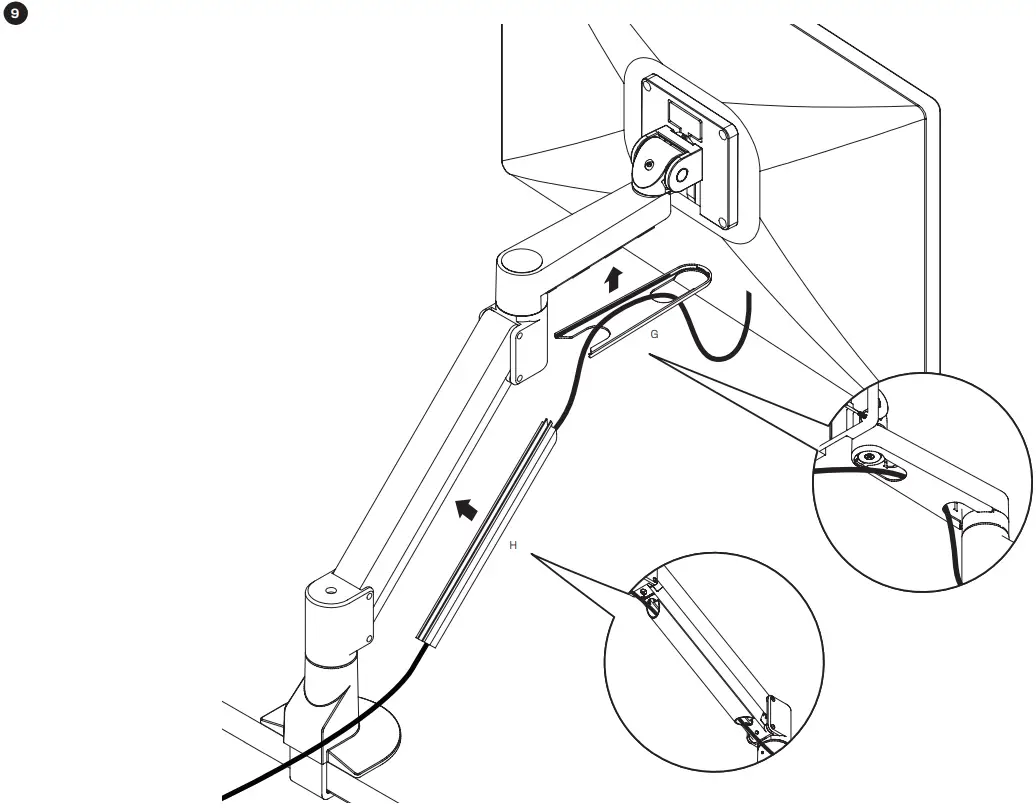

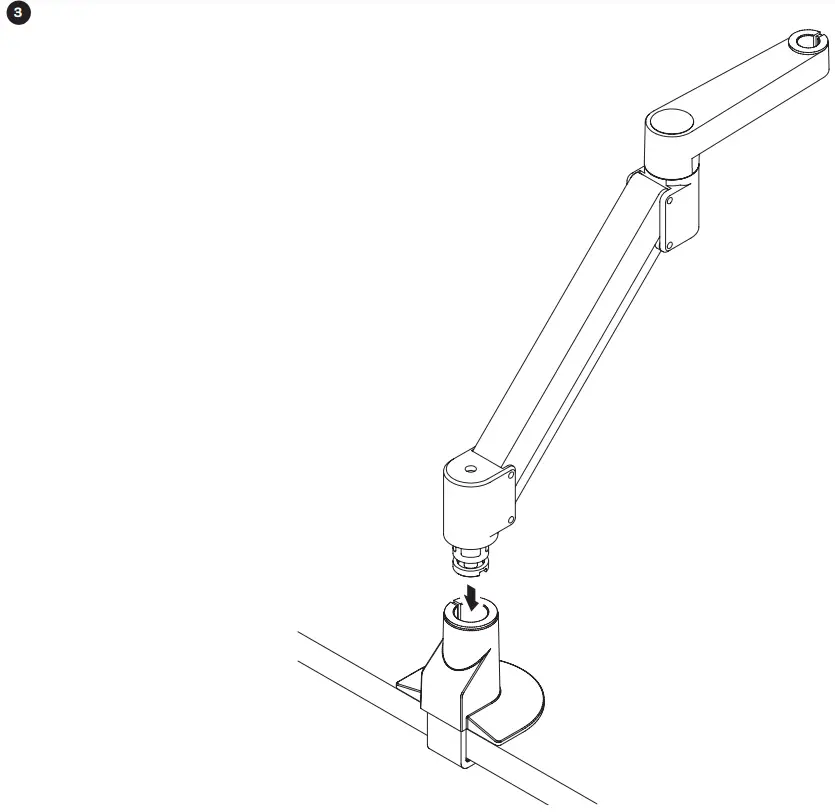

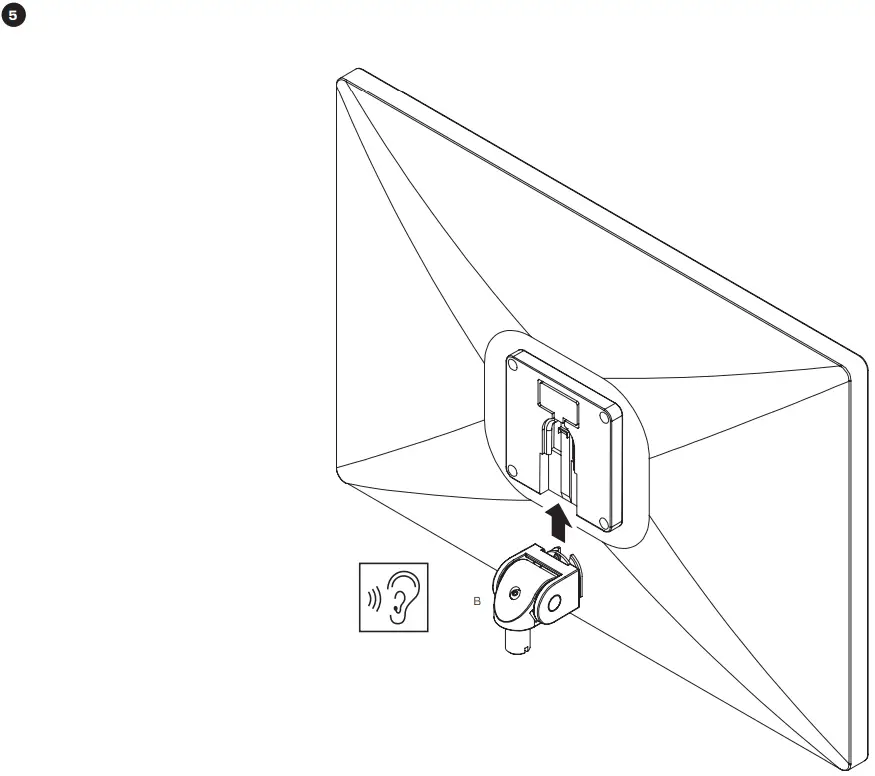

Assembly Instructions

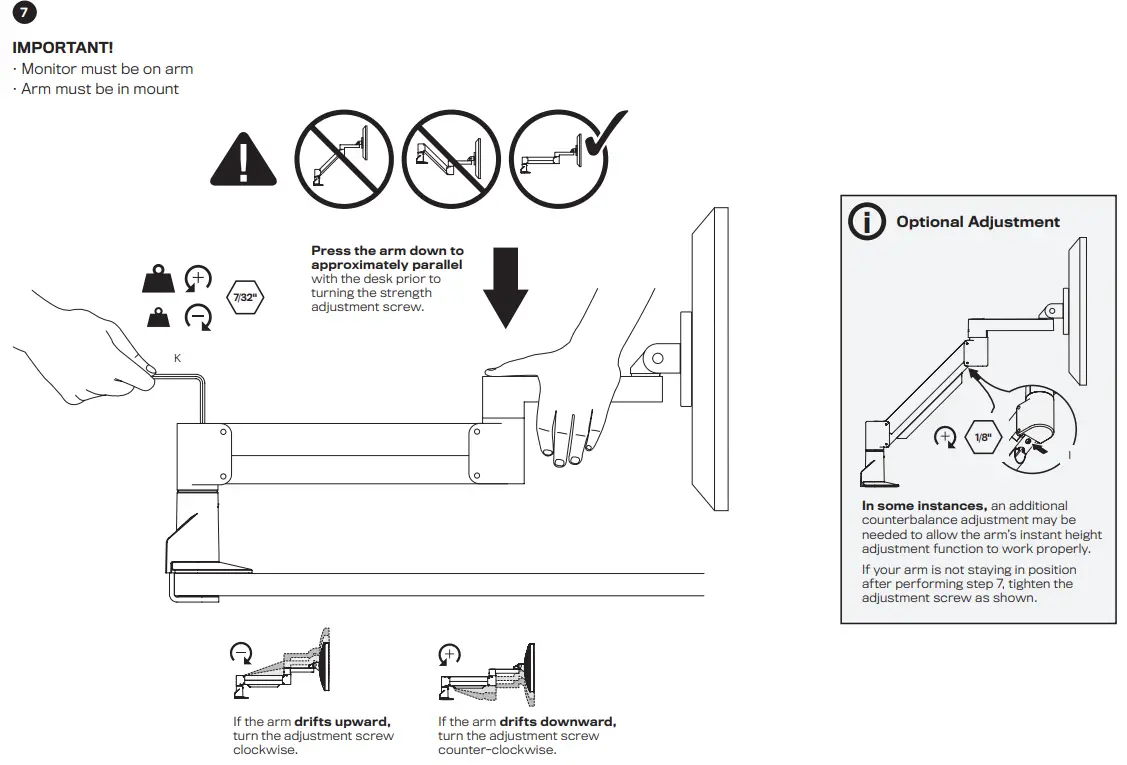

Depending on the weight of your monitor, you may have to make 15-20 turns.

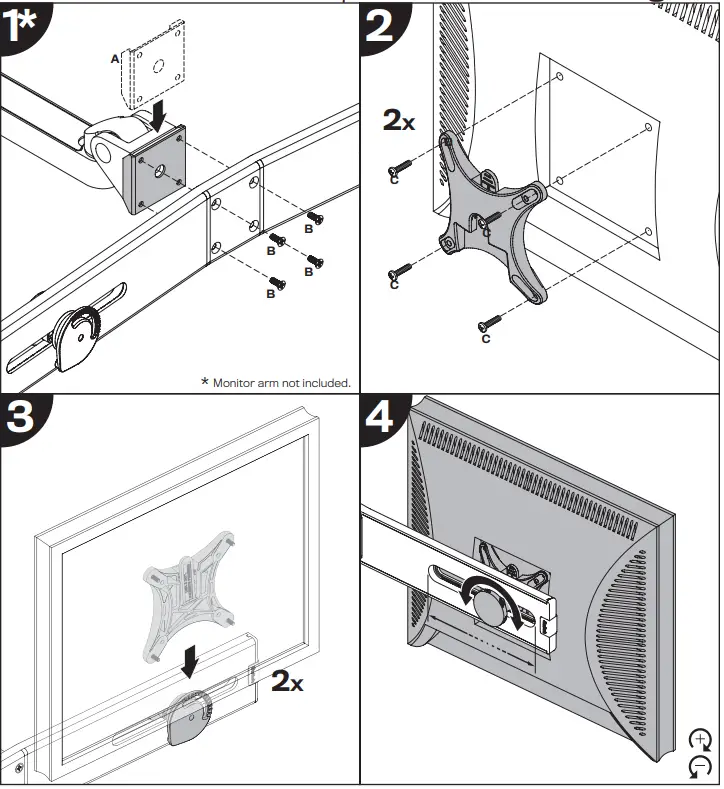

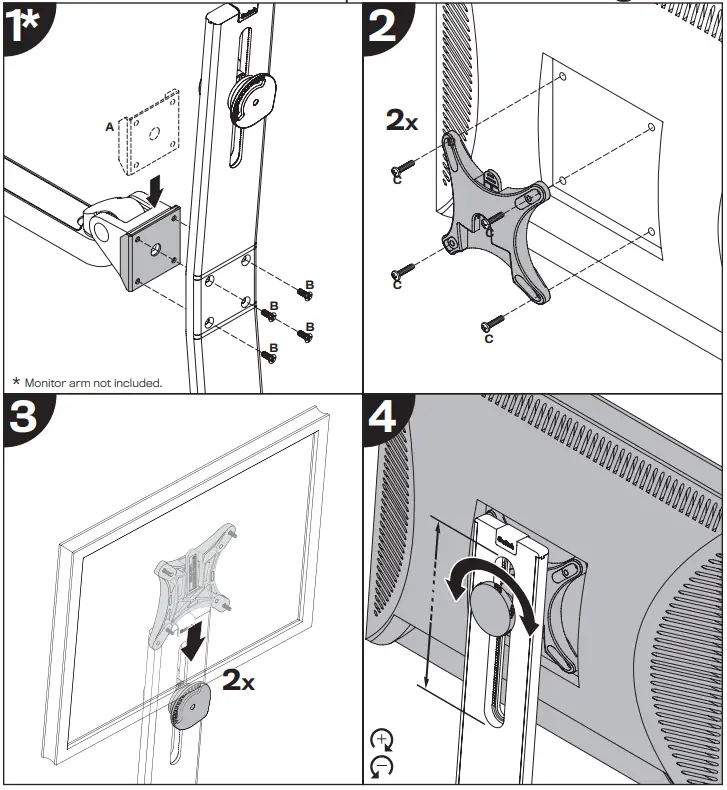

Installation Instructions
Horizontal Positioning
Vertical Positioning
Parts List
| ITEM | DESCRIPTION / PART NO. | QUANTITY |
 | Rotation Prevention Bracket 106271 | 1 |
 | 10-32 x 1/2″ FPhMS 709129 | 4 |
 | M4 x 12mm Pan Head Screw 701153 | 8 |
 | 75/100mm VESA® Adapter 109464 | 2 |
