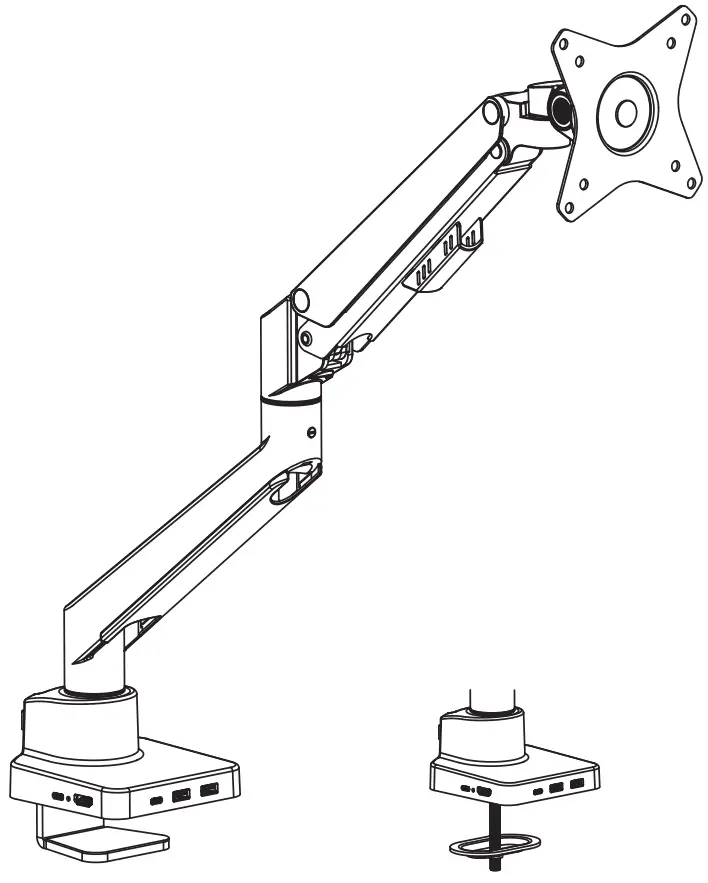

SpeaKa Professional SP-MM-600 1x Monitor Desk Mount
| Support VESA mount 75×75 100×100 |
|  |
FLAT/CURVEDMOUNTING INSTRUCTIONS

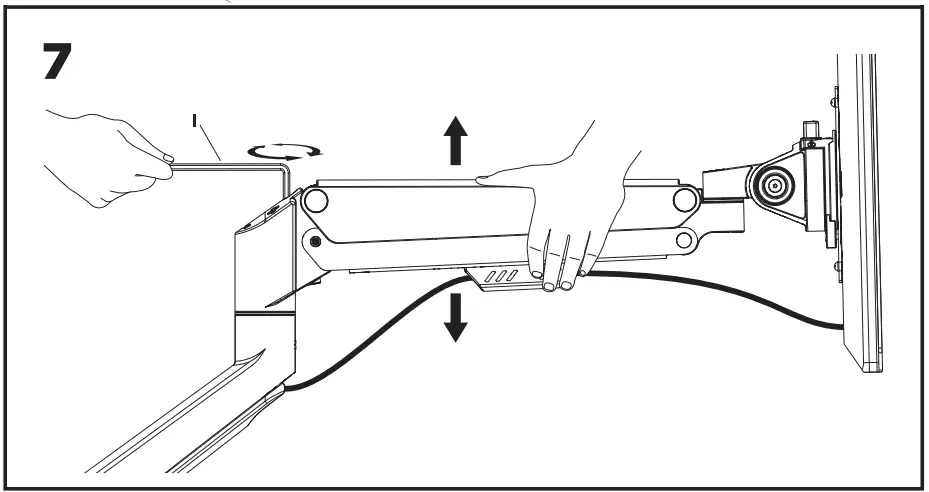

To properly balance the arm with monitor mounted, adjust the spring tension using the supplied Allen Key as follows:

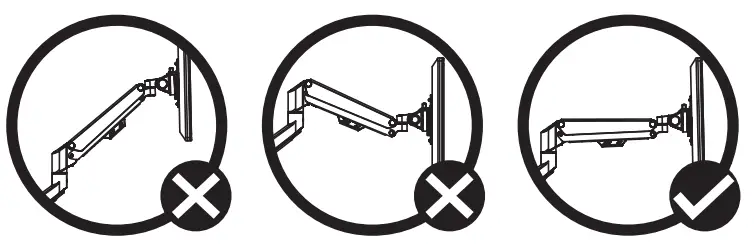

First, position and firmly hold the arm horizontally as shown. Ask for assistance should you require it.
CAUTION: To avoid damage to monitor or mount, always keep the arm in a horizontal position while making adjustments. Again, ask for assistance if required.
If the arm drops, turn the adjustment screw counter-clockwise until it stays in a horizontal position.
If the arm rises, turn the adjustments crew clockwise until it stays in a horizontal position.
CAUTION:
DO NOT over tighten the screws.

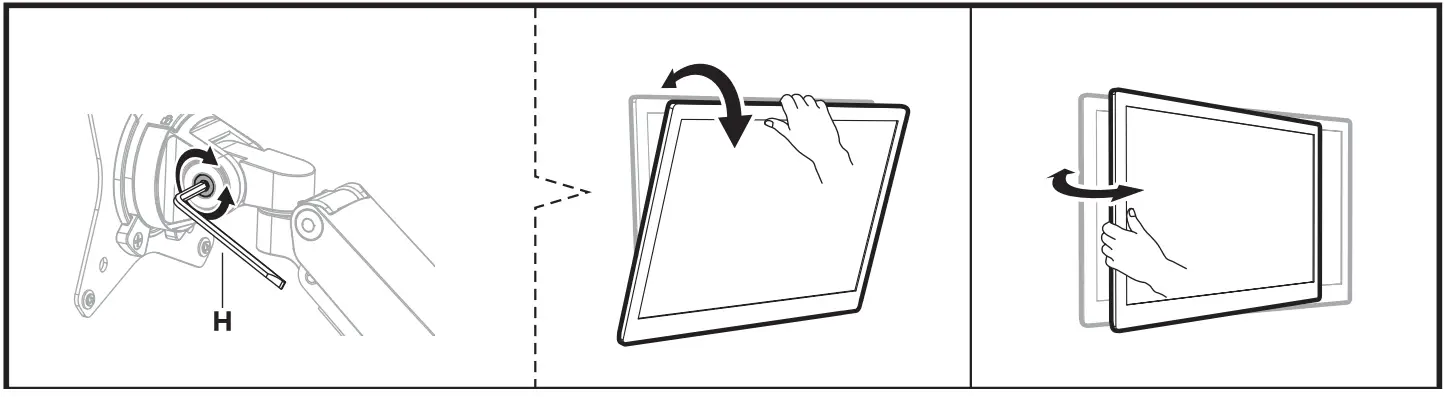

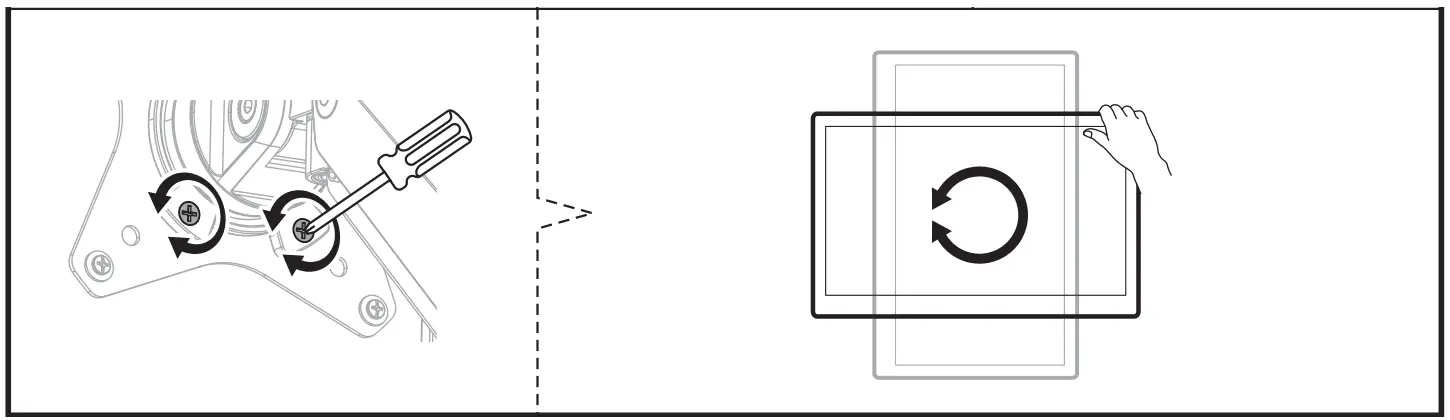

Note: If the display does not stop at your desired position, tighten the screws as shown.
Note: If the display does not stop at your desired position, tighten the screws as shown.
1 | 100W PD Port | PD charging up to lOOW for dock station |
2 | Power Light | The light is on when powered |
3 | HDMI Port | This HDMI port supports media display with resolutions up to 4K@60Hz |

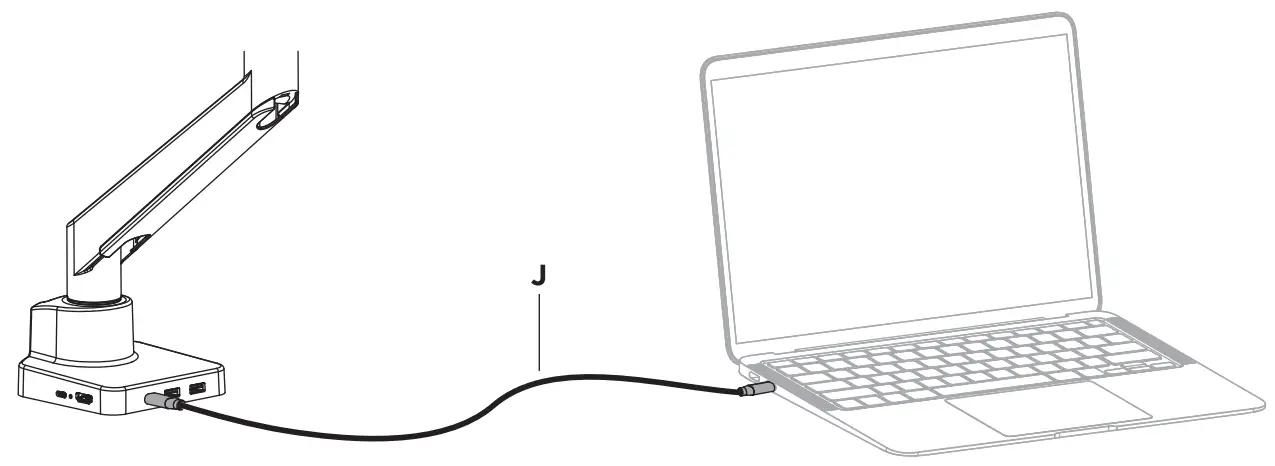

4 | USB-C® Upstream Port | Connects full featured USB-C® cable (J) to laptop; Supports laptop charging at 87W max |
5 | USB-A Downstream Port | USB 3.1 Gen 1 (SY, 0.9A max) |
6 | RJ45 Ethernet Port | Gigabit Ethernet. Transfer rate 10Mbit/100Mbit/1Gbit |

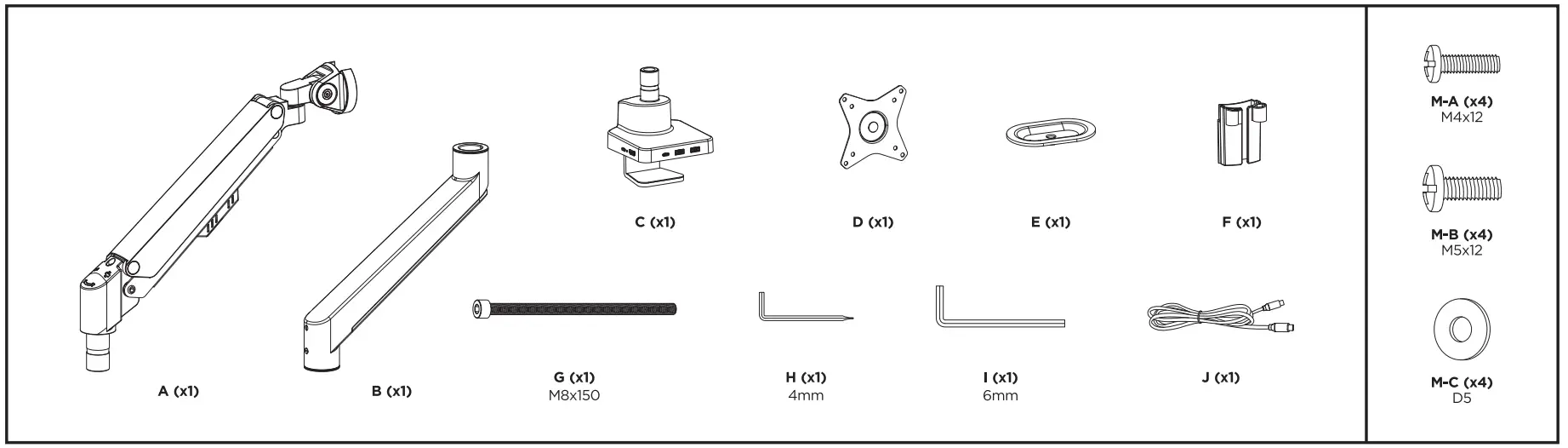

PARTS

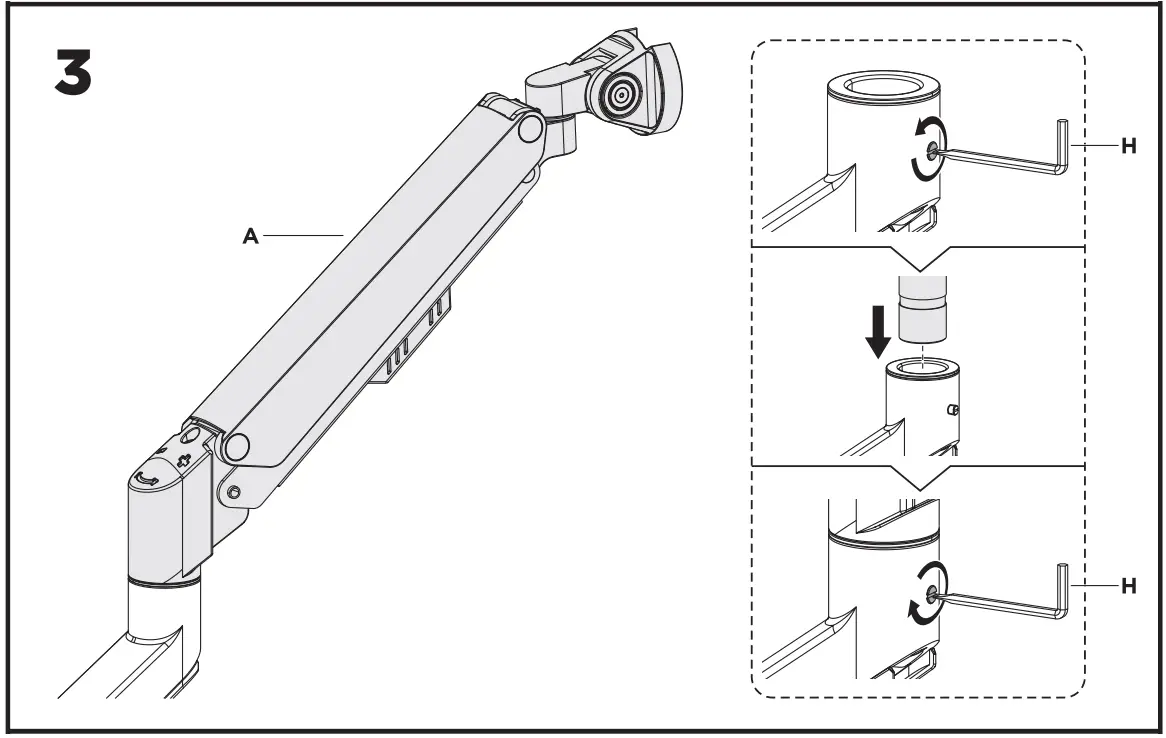

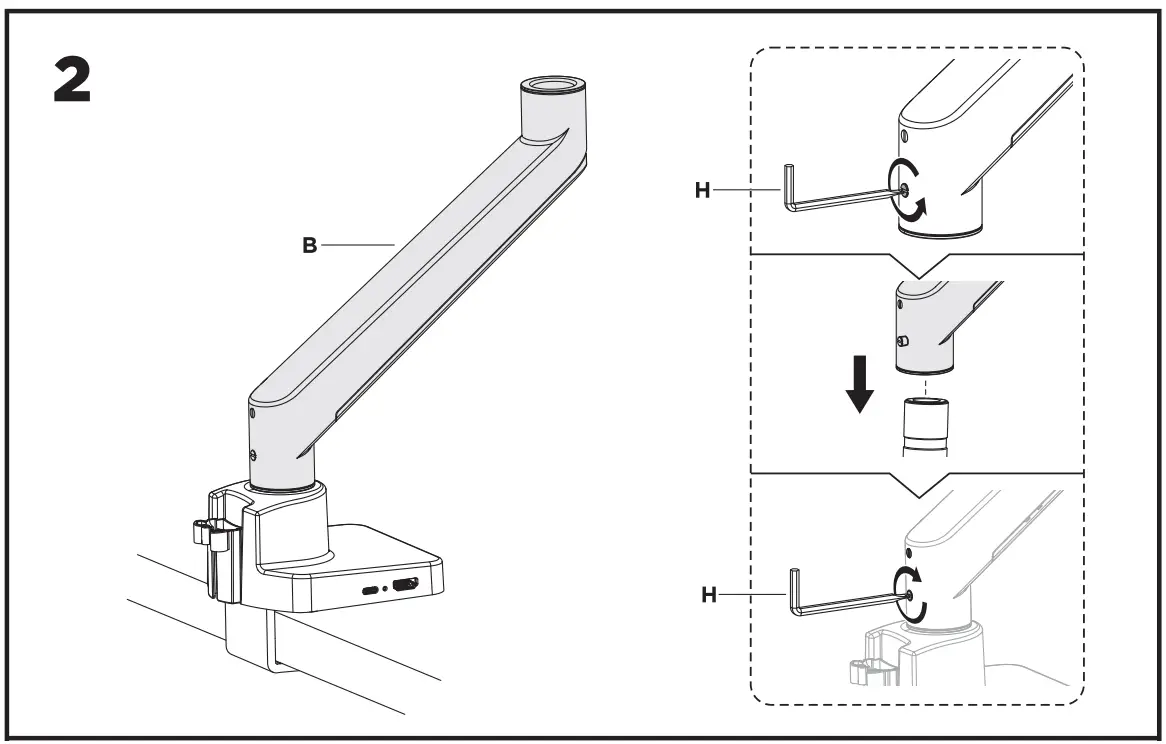

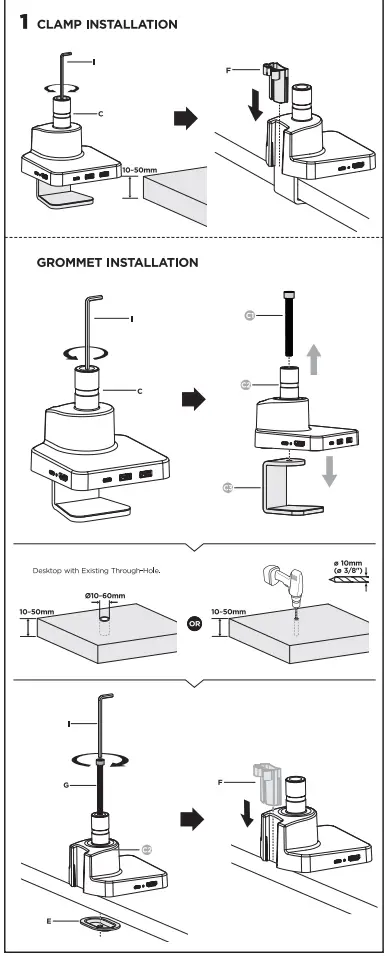

INSTALLATION INSTRUCTIONS
Important Safety Instructions
Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
- Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
- Safety gear and proper tools must be used. This product should only be installed by professionals.
- Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

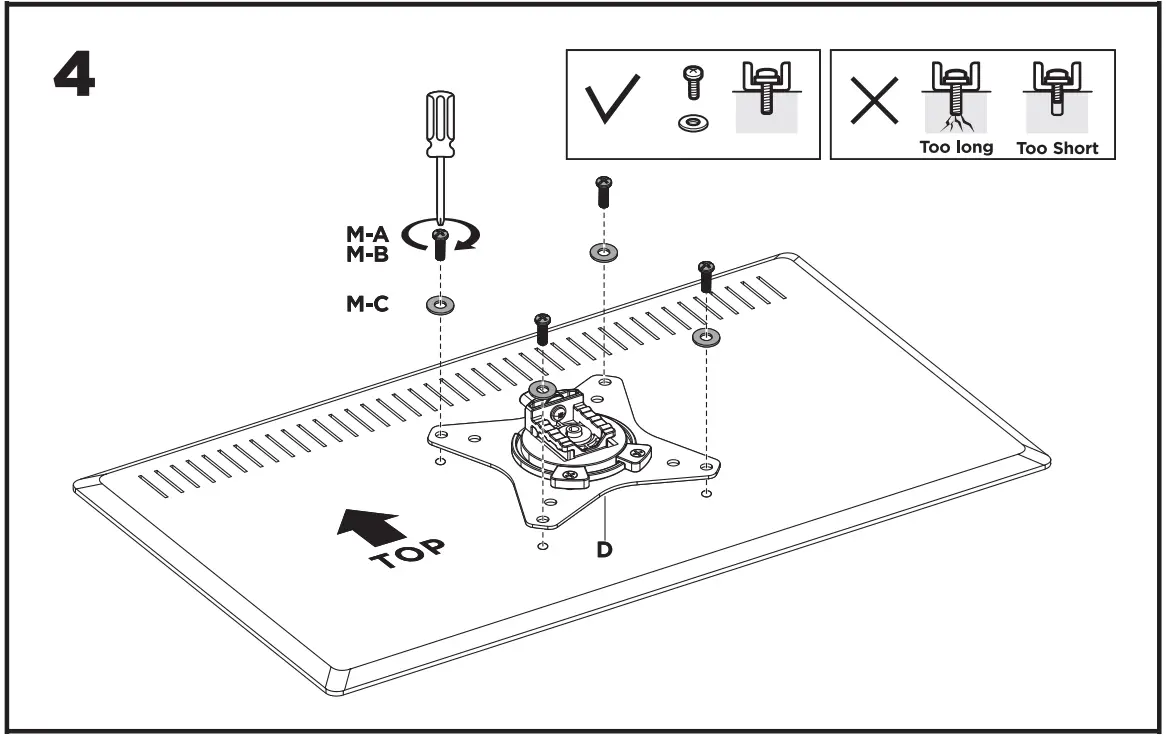

- Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
- This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.
MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).
