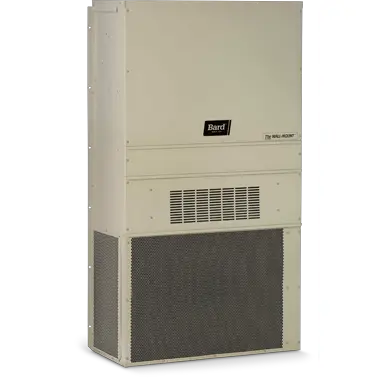

Bard W18AB-A, W24AB-A, W24AB-B, W24AB-C, W24AB-D, W24AB-F Wall Mounted Packaged Air Conditioner

General Notes

Revised and/or additional pages may be issued from time to time.
A complete and current manual consists of pages shown in the following contents section.

Important

Contact the installing and/or local Bard distributor for all parts requirements. Make sure to have the complete model and serial number available from the unit rating plates.

CABINET COMPONENTS

Dwg No.	Part Number	Description	W18AB-A	W24AB-A	W24AB-B	W24AB-D	W24AB-C	W24AB-F
1 1 1	113-141-*  113-361 k 113-141-4 	Top Rain Flashing Top Rain Flashing Top Rain Flashing	X X X	X X X	X X X	X X X	X X X	X X X
2 2 2	S507-311-*  S507-318-*  S507-317 k	Top Top Top	X X X	X X X	X X X	X X X	X X X	X X X
3 3	S123-126 S123-140 k	Drain Pan Drain Pan	X X	X X	X X	X X	X X	X X
4 4 4	S509-445 S509-447  S509-449 k	Upper Back Upper Back Upper Back	X X X	X X X	X X X	X X X	X X X	X X X
5	105-1302	Grommet Retainer	X	X	X	X	X	X
6 6 6	S501-933-*  S501-994 k S501-937 	Right Side Right Side Right Side	X X X	X X X	X X X	X X X	X X X	X X X
7 7 7	S543-175-*  S543-185 k S543-184 	Right Side Cover Plate (Outer) Right Side Cover Plate (Outer) Right Side Cover Plate (Outer)	X X X	X X X	X X X	X X X	X X X	X X X
8	113X480	Filter Bracket	2	2	2	2	2	2
9	137-259	Fill Plate	X	X	X	X	X	X
10 10	S132-104 S132-172	Control Panel Cover (Inner) Control Panel Cover (Inner)	X	X	X	X	X	X
11	113-140	Bottom Mounting Bracket	X	X	X	X	X	X
12 12 12	S153-218  S153-405 k S153-387 	Disconnect Access Door Disconnect Access Door Disconnect Access Door	X X X	X X X	X X X	X X X	X X X	X X X
13 13 13	S533-228-*  S533-235 k S533-236 	Control Panel Cover (Outer) Control Panel Cover (Outer) Control Panel Cover (Outer)	X X X	X X X	X X X	X X X	X X X	X X X
14 14 14	118-124-*  118-140 k 118-141 	Side Grille Side Grille Side Grille	2 2 2	2 2 2	2 2 2	2 2 2	2 2 2	2 2 2
15	Control Panel Assembly	See Control Panel Assy. Drawing & Parts List Assy.	X	X	X	X	X	X
17 17	S536-176 S536-878 k	Cond. Partition Block Off Plate Cond. Partition Block Off Plate	X X	X X	X X	X X	X X	X X
18 18	S127-467 S127-534 k	Lower Base Lower Base	X X	X X	X X	X X	X X	X X
19 19	125-080 125-082 k	Fan Shroud Fan Shroud	X X	X X	X X	X X	X X	X X
20 20	S521X528 S521-553 k	Condenser Partition Condenser Partition	X X	X X	X X	X X	X X	X X
21	FAD-NE2	Fresh Air Damper Assembly	X	X	X	X	X	X
22 22 22	118-101-*  118-106 k 118-144 	Condenser Grille Condenser Grille Condenser Grille	X X X	X X X	X X X	X X X	X X X	X X X
23 23 23 23 23 23 23 23 23	S553-537-*  S553-547 k S553-548  S553-539-*  S553-555 k S553-556  S553-666-*  S553-692  S553-693 k	Vent Option Door Vent Option Door Vent Option Door Vent Option Door with ERV Vent Option Door with ERV Vent Option Door with ERV Vent Option Door with CRV or ECON-S Vent Option Door with CRV or ECON-S Vent Option Door with CRV or ECON-S	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X
24 24 24	S553-538-*  S553-552-*  S553-551 k	Filter Door Filter Door Filter Door	X X X	X X X	X X X	X X X	X X X	X X X
25 25 25	S514-240-*  S514-237-*  S514-236 k	Upper Front Upper Front Upper Front	X X X	X X X	X X X	X X X	X X X	X X X
26	121X480	Blower Partition	X	X	X	X	X	X
27	105X850	Side Support	X	X	X	X	X	X
28	137-694	Bottom Evaporator Fill	X	X	X	X	X	X
29 29 29	S501-934-*  S501-995 k S501-940 	Left Side Left Side Left Side	X X X	X X X	X X X	X X X	X X X	X X X
30	147-044	Evaporator Support	X	X	X	X	X	X
31	S111X032	Outlet Air Frame Assembly	X	X	X	X	X	X
32	135X127	Heat Shield	X	X	X	X	X	X
33 33 33	109-444 109-446  109-448 k	Lower Back Lower Back Lower Back	X X X	X X X	X X X	X X X	X X X	X X X
NS	5252-033	Bard Nameplate	X	X	X	X	X	X

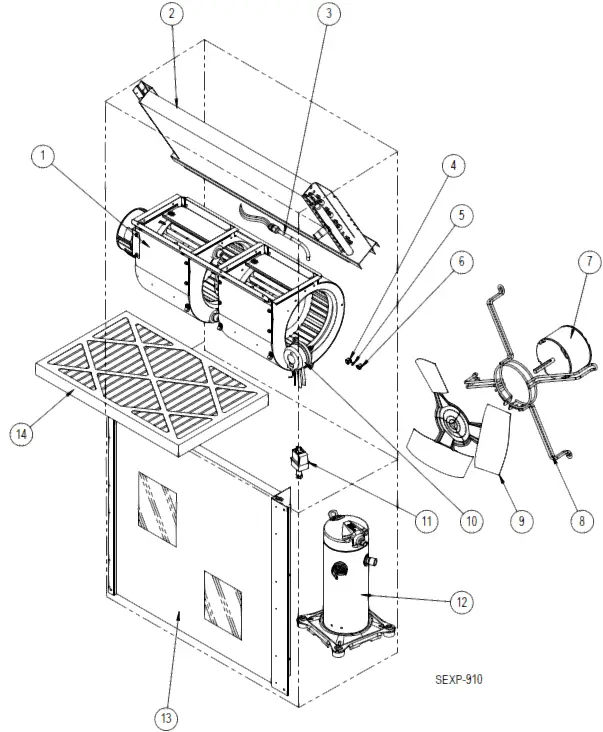

FUNCTIONAL COMPONENTS

Dwg No.	Part Number	Description	W18AB-A	W24AB-A	W24AB-B	W24AB-D	W24AB-C	W24AB-F
1 1 1	S900-358-002 S900-359-001 S900-358-001	Blower Assembly Blower Assembly Blower Assembly	X	X	X	X	X	X
2 2 2 2	917-0381BX 917-0382BX 917-0353BX 917-0354BX	Evaporator Coil with Distributor Assembly Evaporator Coil – Coated with Distributor Assembly Evaporator Coil with Distributor Assembly Evaporator Coil – Coated with Distributor Assembly	X X	X X	X X	X X	X X	X X
3 3	800-0458 800-0481	Distributor Assembly Distributor Assembly	X	X	X	X	X	X
4	1171-023	1/4″ Receptacle	X	X	X	X	X	X
5	1171-024	1/4″ Turn Retainer	X	X	X	X	X	X
6	1171-022	1/4″ Turn Fastener	X	X	X	X	X	X
7 7	8103-028 8103-030	Condenser Motor Condenser Motor	X	X	X	X	X	X
8 8	8200-001 8200-050 	Fan Motor Mount Stainless Steel Fan Motor Mount	X X	X X	X X	X X	X X	X X
9 9 9 9	5151-033 5151C003  5151-046 5151C046 	Fan Blade Coated Fan Blade Fan Blade Coated Fan Blade	X X	X X	X X	X X	X X	X X
10	CMC-31	Dirty Filter Switch Kit	X	X	X	X	X	X
11 11	CMA-37 CMA-38	Modulating Low Ambient Control (Screw On) k 460V Modulating Low Ambient Control k	X	X	X	X	X	X
12 12 12 12 12	8000-433 8000-434 8000-435 8000-436 8000-437	Compressor Compressor Compressor Compressor Compressor	X	X	X	X	X	X
13 13 13 13	5051-205BX 5054-205BX 5051-204BX 5054-204BX	Condenser Coil Condenser Coil – Coated Condenser Coil Condenser Coil – Coated	X X	X X	X X	X X	X X	X X
14 14 14 14 14	7004-011 7003-032 7004-025 7004-059 7004-061	Air Filter 1″ Throw-Away (16x25x1) Air Filter 1″ Washable k (16x25x1) Air Filter 2″ Pleated k (16x25x2) Air Filter 2″ Pleated – MERV 11 k (16x25x2) Air Filter 2″ Pleated – MERV 13 k (16x25x2)	X X X X X	X X X X X	X X X X X	X X X X X	X X X X X	X X X X X
NS NS	8406-142 8406-140	High Pressure Switch (Screw On) Low Pressure Switch (Screw On)	X X	X X	X X	X X	X X	X X
NS	5201-021	Filter Drier	X	X	X	X	X	X
NS	5451-024	Tubing Isolation Grommet	X	X	X	X	X	X
NS	6031-009	Coremax Value Core	X	X	X	X	X	X
NS	1171-028	Filter Door Clip	2	2	2	2	2	2
NS	1171-057	Filter Door Screw	2	2	2	2	2	2
NS	1171-027	Filter Door Screw Retainer	2	2	2	2	2	2
NS	CMC-29	Freeze Thermostat Kit	X	X	X	X	X	X

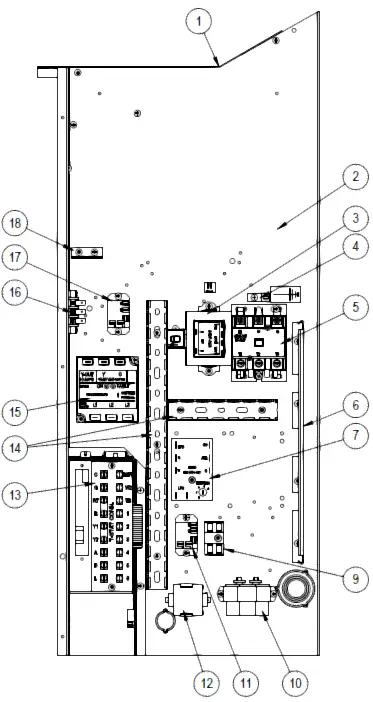

CONTROL PANEL

Dwg No.	Part Number	Description	W18AB-A	W24AB-A	W24AB-B	W24AB-D	W24AB-C	W24AB-F
1	117X137	Control Panel Top	X	X	X	X	X	X
2	117X407	Control Panel	X	X	X	X	X	X
3 3	8407-068 8407-069	Transformer Transformer	X	X	X	X	X	X
4	8611-006	Ground Terminal	X	X	X	X	X	X
5 5	8401-033 8401-035	Compressor Contactor Compressor Contactor	X	X	X	X	X	X
6	135-122	Wire Shield	X	X	X	X	X	X
7	8201-164	Compressor Control Module	X	X	X	X	X	X
9	8607-017	Terminal Block (Optional)	X	X	X	X	X	X
10 10 10	8552-047 8552-050 8552-002	Compressor Capacitor Compressor Capacitor Outdoor Motor Capacitor	X	X	X	X	X	X
11	8201-130	Alarm Relay (Optional)	X	X	X	X	X	X
12	8551-004	Start Device (PTCR) (Optional)	X	X			X
13	8607-063	Low Voltage Terminal Strip	X	X	X	X	X	X
14 14	8611-140-1400 8611-140-0500	Cable Duct – 14″ Piece Cable Duct – 5″ Piece	X X	X X	X X	X X	X X	X X
15	8201-126	Phase Monitor			X	X		X
16	8607-042	Blower Speed Terminal	X	X	X	X	X	X
17	8201-130	Blower Control Relay	X	X	X	X	X	X
18	141-188	Plug Support Bracket	X	X	X	X	X	X
NS	3000-1598	Blower Power Plug	X	X	X	X	X	X
NS NS	3000-1607 3000-1599	Blower Speed Plug Blower Speed Plug	X	X	X	X	X	X
NS	3000-1524	Vent Jumper Plug	X	X	X	X	X	X
NS	8615-035	Circuit Breaker 20A 2 Pole (Opt.) 	X				X
NS	8615-036	Circuit Breaker 25A 2 Pole (Opt.) 		X
NS	S8615-067	Toggle Disconnect (Optional) 				X		X
NS	8615-056	Circuit Breaker 15A 3 Pole (Opt.) 			X
NS NS	8607-013 113-601	Terminal Block 2 Pole Terminal Block Bracket						X X
NS	4095-197	Wiring Diagram	X
NS	4095-196	Wiring Diagram		X			X
NS	4095-296	Wiring Diagram			X
NS	4095-381	Wiring Diagram				X
NS	4095-640	Wiring Diagram						X
NS NS	3000-1224 3000-1231	Compressor Plug/Harness Compressor Plug/Harness	X	X	X	X	X	X
NS NS NS NS	3003-047 3003-048 3003-049 3003-052	Control Panel Harness Control Panel Harness Control Panel Harness Control Panel Harness	X	X	X	X	X	X
NS	3000-1608	Low Voltage Terminal Block Harness	X	X	X	X	X	X
NS	S910-2047	Complete Low Voltage Box Assembly (Sheet Metal, LVTS & Wire Harness)	X	X	X	X	X	X

NS = Not Shown
Circuit breakers listed are for units without electric heat, “0Z” models. See heater replacement parts manual for units with electric heat.

BLOWER ASSEMBLY

Dwg No.	Part Number	Description	W18AB-A	W24AB-A	W24AB-B
1 1 1 1 1 1	S8105-064-0147 S8105-064-0148 S8105-065-0149 C8105-064-0147 C8105-064-0148 C8105-065-0149	Blower Motor & Control (230/208V) Blower Motor & Control (230/208V) Blower Motor & Control (460V) Programmed Control Only (230/208V) Programmed Control Only (230/208V) Programmed Control Only (460V)	X O	X O	X O
2	151-115	Housing	2	2	2
3	144-183	Cutoff	X	X	X
4	5152-092	Wheel 9-6 CW	X	X	X
5	5152-093	Wheel 9-6 CCW	X	X	X
6	105-1061	Back Brace	X	X	X
7	5451-011	Grommets	6	6	6
8	8200-031	Motor Mount	X	X	X
9	103-435	Front Brace	X	X	X
10	113-721	Motor Control Bracket	X	X
