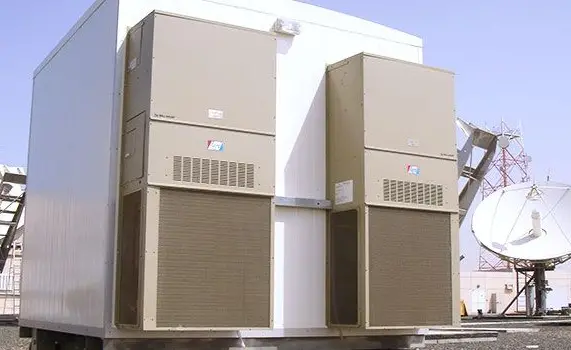

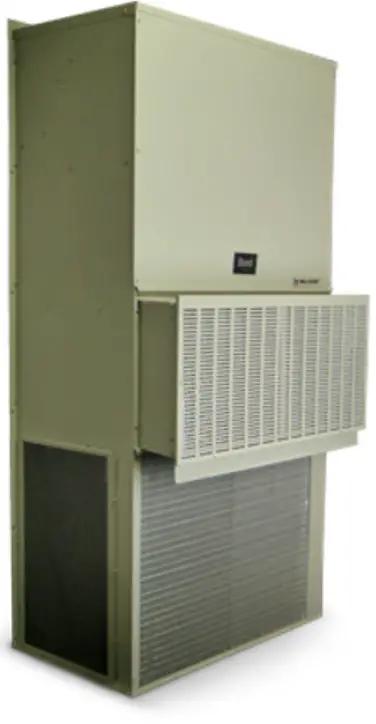

Bard W30AB-A, W30AB-B, W30AB-C, W30AB-D, W30AB-F, W36AB-A , W36AB-B, W36AB-C, W36AB-D, W36AB-E, W36AB-F, W30ABDA, W30ABDB, W30ABDC, W36ABDA, W36ABDB, W36ABDC, W36ABDV Wall Mounted Packaged Air Conditioner

General Notes

Revised and/or additional pages may be issued from time to time.
A complete and current manual consists of pages shown in the following contents section.

Important

Contact the installing and/or local Bard distributor for all parts requirements. Make sure you have the complete model and serial number available from the unit rating plates.

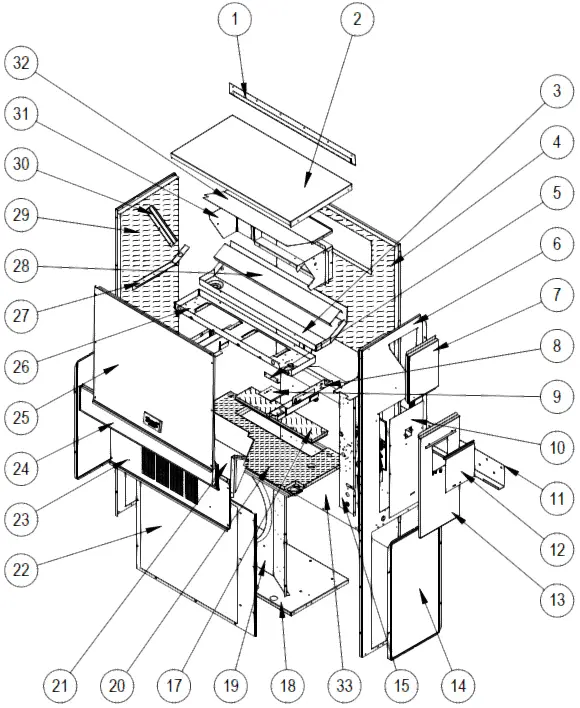

CABINET COMPONENTS

Dwg No.	Part Number	Description	W30AB-A, B, D	W30AB-C, F	W30ABDA, B	W30ABDC	W36AB-A, B, D, E	W36AB-C, F	W36ABDA, B	W36ABDC, V
1 1 1	113-149-*  113-360 k 113-149-4 	Top Rain Flashing Top Rain Flashing Top Rain Flashing	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
2 2 2	S507-308-*  S507-319 k S507-320 	Top Top Top	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
3 3	S123-127 S123-141 k	Drain Pan Drain Pan	X X	X X	X X	X X	X X	X X	X X	X X
4 4 4	S509-451 S509-455 k S509-453 	Upper Back Upper Back Upper Back	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
5	105-1302	Grommet Retainer	X	X	X	X	X	X	X	X
6 6 6	S501-933-*  S501-994 k S501-937 	Right Side Right Side Right Side	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
7 7 7	S543-175-*  S543-185 k S543-184 	Right Side Cover Plate (Outer) Right Side Cover Plate (Outer) Right Side Cover Plate (Outer)	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
8	113X480	Filter Bracket	2	2	2	2	2	2	2	2
9	137-259	Fill Plate	X	X	X	X	X	X	X	X
10 10	S132-104 S132-172	Control Panel Cover (Inner) Control Panel Cover (Inner)	X	X	X	X	X	X	X	X
11	113-140	Bottom Mounting Bracket	X	X	X	X	X	X	X	X
12 12 12	S153-218  S153-405 k S153-387 	Disconnect Access Door Disconnect Access Door Disconnect Access Door	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
13 13 13	S533-228  S533-235 k S533-236 	Control Panel Cover (Outer) Control Panel Cover (Outer) Control Panel Cover (Outer)	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
14 14 14	118-124-*  118-140 k 118-141 	Side Grille Side Grille Side Grille	2 2 2	2 2 2	2 2 2	2 2 2	2 2 2	2 2 2	2 2 2	2 2 2
15	Control Panel Assembly	See Control Panel Assy. Drawing & Parts List Assy.	X	X	X	X	X	X	X	X
17 17	S536-498 S536-877 k	Cond. Partition Block Off Plate Cond. Partition Block Off Plate	X X	X X	X X	X X	X X	X X	X X	X X
18 18	127-471 S127-528 k	Lower Base Lower Base	X X	X X	X X	X X	X X	X X	X X	X X
19 19	125-081 125-083 k	Fan Shroud Fan Shroud	X X	X X	X X	X X	X X	X X	X X	X X
20 20	S521X527 S521-552 k	Condenser Partition Condenser Partition	X X	X X	X X	X X	X X	X X	X X	X X
21	FAD-NE3	Fresh Air Damper Assembly	X	X	X	X	X	X	X	X
22 22 22	118-103-*  118-108 k 118-145 	Condenser Grille Condenser Grille Condenser Grille	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
23 23 23 23 23 23 23 23 23	S553-523-*  S553-540-*  S553-665-*  S553-549 k S553-557 k S553-694 k S553-550  S553-558  S553-695 	Vent Option Door Vent Option Door with ERV Vent Option Door with CRV or ECON-S Vent Option Door Vent Option Door with ERV Vent Option Door with CRV or ECON-S Vent Option Door Vent Option Door with ERV Vent Option Door with CRV or ECON-S	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X	X X X X X X X X X
24 24 24	S553-524-*  S553-553 k S553-554 	Filter Door Filter Door Filter Door	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
25 25 25	S514-241-*  S514-238 k S514-239 	Upper Front Upper Front Upper Front	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
26	121X467	Blower Partition	X	X	X	X	X	X	X	X
27	105X850	Side Support	X	X	X	X	X	X	X	X
28 28	137-685 137-722	Bottom Evaporator Fill Bottom Evaporator Fill	X	X	X	X	X	X	X	X
29 29 29	S501-934-*  S501-995 k S501-940 	Left Side Left Side Left Side	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
30	147-044	Evaporator Support	X	X	X	X	X	X	X	X
31	S111X247	Outlet Air Frame Assembly	X	X	X	X	X	X	X	X
32	135X123	Heat Shield	X	X	X	X	X	X	X	X
33 33 33	109-450 109-454 k 109-452 	Lower Back Lower Back Lower Back	X X X	X X X	X X X	X X X	X X X	X X X	X X X	X X X
NS	135-329	Air Baffle	X	X			X	X
NS	5252-033	Bard Nameplate	X	X	X	X	X	X	X	X

EXterior cabinet parts are manufactured with various paint color options. To ensure the proper paint color is received, include the complete model and serial number of the unit for which cabinet parts are being ordered.
Exterior cabinet parts are manufactured from stainless steel Code “S”
Exterior cabinet parts are manufactured from aluminum Code “A”

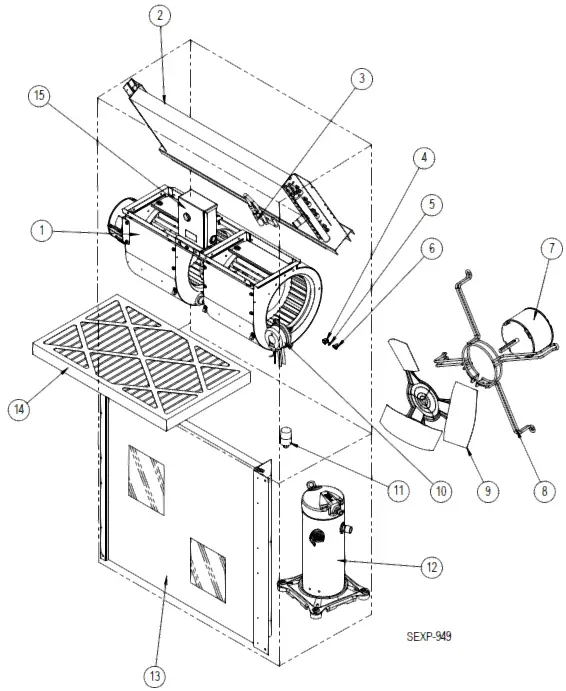

FUNCTIONAL COMPONENTS

Dwg No.

Part Number

Description

W30AB-A

W30AB-B

W30AB-C

W30AB-D

W30AB-F

W36AB-A

W36AB-B

W36AB-C

W36AB-D

W36AB-E

W36AB-F

S900-360-001 S900-361-001 900-360-002

900-361-002

Blower Assembly Blower Assembly Blower Assembly Blower Assembly

917-0355BX

917-0356BX

917-0357BX

917-0358BX

Evaporator Coil w/Distributor Assy. Evaporator Coil – Coated w/Distributor Assy. Evaporator Coil w/Distributor Assy.

Evaporator Coil – Coated w/Distributor Assy.

X X

800-0456

800-0479

Distributor Assembly Distributor Assembly

1171-023

1/4″ Receptacle

1171-024

1/4″ Turn Retainer

1171-022

1/4″ Turn Fastener

8103-029

8103-030

Condenser Motor Condenser Motor

8200-001

8200-050

Fan Motor Mount

Stainless Steel Fan Motor Mount

X X

5151-045

5151C045

Fan Blade

Coated Fan Blade

X X

CMC-31

DIrty Filter Switch Kit

CMA-39

Low Ambient Control (Screw On) k

8000-277

8000-365

8000-366

8000-438

8000-278

8000-283

8000-342

8000-439

Compressor Compressor Compressor Compressor Compressor Compressor Compressor Compressor

5051-203BX

5054-203BX

5051-202BX

5054-202BX

Condenser Coil Condenser Coil – Coated Condenser Coil Condenser Coil – Coated

X X

7004-019

7003-031

7004-026

7004-048

7004-062

Air Filter 1″ Throw-Away (16x30x1) Air Filter 1″ Washable k (16x30x1) Air Filter 2″ Pleated k (16x30x2)

Air Filter 2″ Pleated MERV 11 k (16x30x2) Air Filter 2″ Pleated MERV 13 k (16x30x2)

X X X X X

NS NS

8406-142

8406-140

High Pressure Switch (Screw On) Low Pressure Switch (Screw On)

X X

5201-021

Filter Drier

5451-024

Tubing Isolation Grommet

6031-009

Coremax Valve Core

1171-028

Filter Door Clip

1171-057

Filter Door Screw

1171-027

Filter Door Screw Retainer

CMC-29

Freeze Thermostat Kit

NS – Not Shown

Used with stainless steel cabinet option k
Optional on these models

EEV CONTROLLER ASSEMBLY

Dwg No.	Part Number	Description	S910-2050-001
1	143-219	EEV Control Box Cover	X
2	127-572	EEV Control Box	X
3 3	S8301-079-0001 5651-246	EEV Control Module & Stator Cable EEV Stator Cable Only	X X
4	8201-130	Control Relay	X
5	3000-1602	Main Wire Assembly	X
6	3000-1611	Transducer Wire Assembly – Connects to EEV Board	X
NS	3000-1603	Transducer Wire Assembly – Connects to Transducer
7	8408-056	EEV Thermistor	X
8	8611-075	Clear Snap Plug	X

CONTROL PANEL

Dwg No.

Part Number

Description

W30AB-A

W30AB-B

W30AB-C

W30AB-D

W30AB-F

W36AB-A

W36AB-B

W36AB-C

W36AB-D

W36AB-E

W36AB-F

117X137

Control Panel Top

117X407

Control Panel

8407-068

8407-069

Transformer Transformer

8611-006

Ground Terminal

8401-033

8401-035

Compressor Contactor Compressor Contactor

135-122

Wire Shield

8201-164

Compressor Control Module

8607-017

Terminal Block (Optional)

8552-052

8552-002

8552-062

Compressor Capacitor Outdoor Motor Capacitor Compressor Capacitor

8201-130

Alarm Relay (Optional)

8551-004

Start Device (PTCR) (Optional)

8607-063

Low Voltage Terminal Strip

8611-140-1400

8611-140-0500

Cable Duct – 14″ Piece Cable Duct – 5″ Piece

X X

8201-126

Phase Monitor

8607-042

Blower Speed Terminal

8201-130

Blower Control Relay

141-188

Plug Support Bracket

8615-038

Circuit Breaker 35A 2 Pole (Opt.) 

8615-054

Circuit Breaker 20A 3 Pole (Opt.) 

8615-051

Circuit Breaker 25A 3 Pole (Opt.) 

8615-052

Circuit Breaker 30A 3 Pole (Opt.) 

8615-095

Toggle Disconnect (Optional) 

NS NS

8607-013

113-601

Terminal Block 2 Pole Terminal Block Bracket

X X

4095-196

Wiring Diagram

4095-296

Wiring Diagram

4095-378

Wiring Diagram

4095-640

Wiring Diagram

3000-1598

Blower Power Plug

3000-1599

Blower Speed Plug

3000-1524

Vent Jumper Plug

NS NS

3000-1224

3000-1231

Compressor Plug/Harness Compressor Plug/Harness

NS NS NS

3003-047

3003-048

3003-049

Control Panel Harness Control Panel Harness Control Panel Harness

3000-1608

Low Voltage Terminal Block Harness

S910-2047

Complete Low Voltage Box Assembly (Sheet Metal, LVTS & Wire Harness)

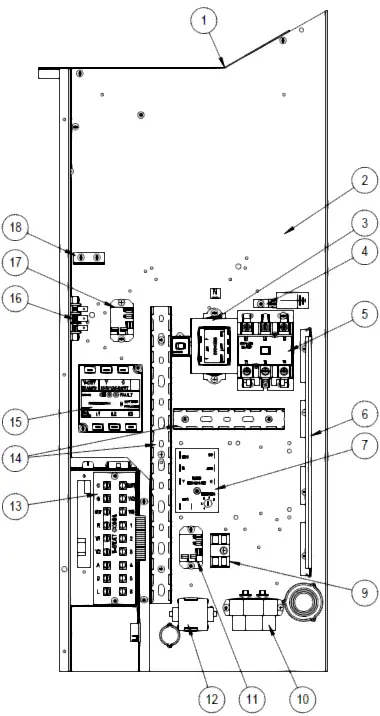

Dwg No.	Part Number	Description	W30ABDA	W30ABDB	W30ABDC	W36ABDA	W36ABDB	W36ABDC	W36ABDV
1	117X137	Control Panel Top	X	X	X	X	X	X	X
2	117-407	Control Panel	X	X	X	X	X	X	X
3 3	8407-068 8407-069	Transformer Transformer	X	X	X	X	X	X	X
4	8611-006	Ground Terminal	X	X	X	X	X	X	X
5 5	8401-033 8401-035	Compressor Contactor Compressor Contactor	X	X	X	X	X	X	X
6	135-122	Wire Shield	X	X	X	X	X	X	X
7	8201-164	Compressor Control Module	X	X	X	X	X	X	X
8	8201-113	Dehum. Logic Control	X	X	X	X	X	X	X
9	8607-017	Terminal Block (Optional)	X	X	X	X	X	X	X
10 10	8552-052 8552-002	Compressor Capacitor Outdoor Motor Capacitor	X	X	X	X	X	X	X
11	8201-130	Dehumidification Control Relay	X	X	X	X	X	X	X
12	8551-004	Start Device (PTCR) (Optional)	X			X
13	8607-063	Low Voltage Terminal Strip	X	X	X	X	X	X	X
14 14	8611-140-1400 8611-140-0500	Cable Duct – 14″ Piece Cable Duct – 5″ Piece	X X	X X	X X	X X	X X	X X	X X
15	8201-126	Phase Monitor		X	X		X	X	X
16	8607-042	Blower Speed Terminal	X	X	X	X	X	X	X
17	8201-130	Blower Control Relay	X	X	X	X	X	X	X
18	141-188	Plug Support Bracket	X	X	X	X	X	X	X
NS	8615-038	Circuit Breaker 35A 2 Pole (Optional) 	X			X
NS	8615-054	Circuit Breaker 20A 3 Pole (Optional) 		X
NS	8615-051	Circuit Breaker 25A 3 Pole (Optional) 					X
NS	8615-095	Toggle Disconnect (Optional) 			X			X	X
NS NS NS NS	4095-198 4095-297 4095-379 4095-641	Wiring Diagram Wiring Diagram Wiring Diagram Wiring Diagram	X	X	X	X	X	X	X
NS	3000-1598	Blower Power Plug	X	X	X	X	X	X	X
NS	3000-1599	Blower Speed Plug	X	X	X	X	X	X	X
NS	3000-1524	Vent Jumper Plug	X	X	X	X	X	X	X
NS NS	3000-1224 3000-1231	Compressor Plug/Harness Compressor Plug/Harness	X	X	X	X	X	X	X
NS NS	3003-050 3003-051	Control Panel Harness Control Panel Harness	X	X	X	X	X	X	X
NS	3000-1608	Low Voltage Terminal Block Harness	X	X	X	X	X	X	X
NS	S910-2047	Complete Low Voltage Box Assembly (Sheet Metal, LVTS & Wire Harness)	X	X	X	X	X	X	X

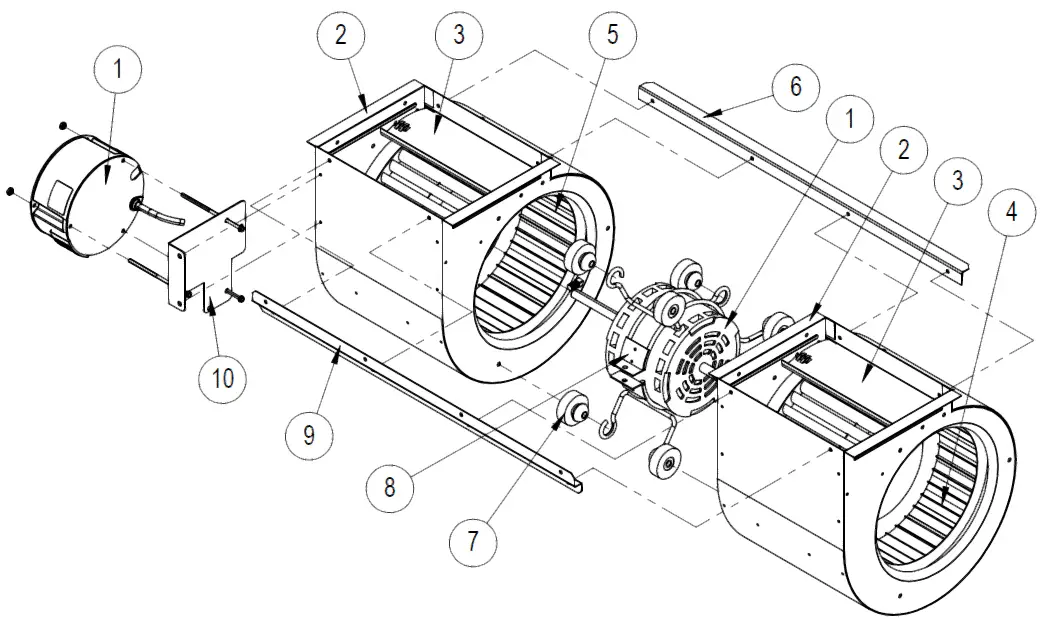

BLOWER ASSEMBLY

Dwg No.	Part Number	Description	S900-360-001	S900-360-002	S900-361-001	S900-361-002
1	S8106-068-0150	Blower Motor & Control (230/208V)	X O	X O	X O	X O
1	S8106-068-0152	Blower Motor & Control (230/208V)
1	S8106-069-0151	Blower Motor & Control (460V)
1	S8106-069-0153	Blower Motor & Control (460V)
1	C8106-068-0150	Programmed Control Only (230/208V)
1	C8106-068-0152	Programmed Control Only (230/208V)
1	C8106-069-0151	Programmed Control Only (460V)
1	C8106-069-0153	Programmed Control Only (460V)
2	151-111	Housing	2	2	2	2
3	144-174	Diffuser	2	2	2	2
4	5152-090	Wheel CW	X	X	X	X
5	5152-091	Wheel CCW	X	X	X	X
6	105-870	Back Brace	X	X	X	X
7	5451-011	Grommets	6	6	6	6
8	8200-031	Motor Mount	X	X	X	X
9	103-401	Front Brace	X	X	X	X
10	113-721	Motor Control Bracket	X	X	X	X
