REPLACEMENT PARTS MANUAL
WALL-MOUNTED
PACKAGED AIR CONDITIONER
Models:
| W30AB-A W30AB-B W30AB-C W30AB-D W30AB-F W36AB-A W36AB-B W36AB-C W36AB-D | W36AB-E W36AB-F W30ABDA W30ABDB W30ABDC W36ABDA W36ABDB W36ABDC |
General Notes
- Revised and/or additional pages may be issued from time to time.
- A complete and current manual consists of pages shown in the following contents section.
Important
- Contact the installing and/or local Bard distributor for all parts requirements. Make sure you have the complete model and serial number available from the unit rating plates.
Bard Manufacturing Company, Inc.
Bryan, Ohio 43506
www.bardhvac.com
Manual: 2110-1449D
Supersedes: 2110-1449C
Date: 4-14-20
Contents hide

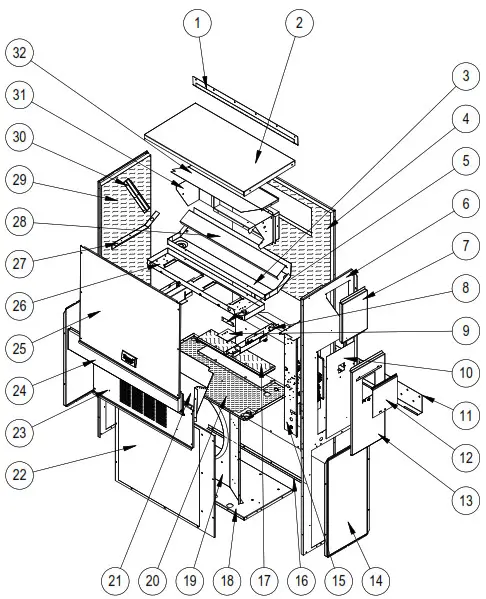

CABINET COMPONENTS
SEXP-907

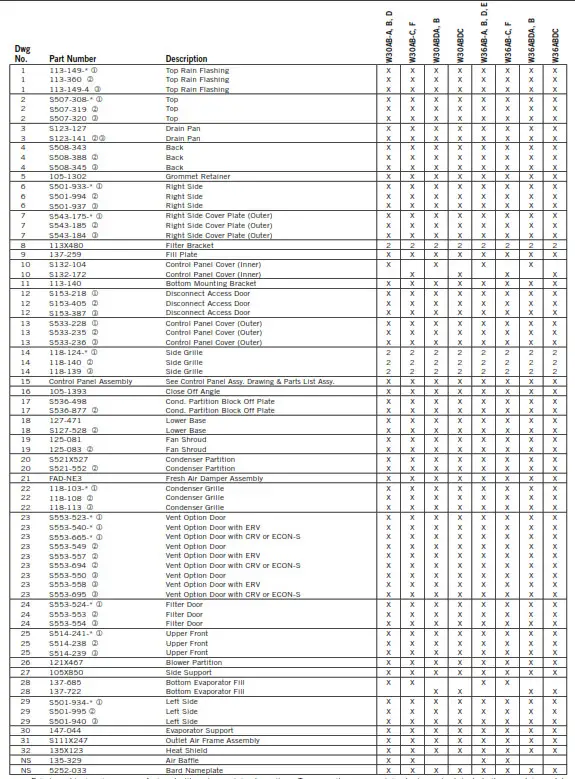

CABINET COMPONENTS – STANDARD & DEHUMIDIFICATION
FUNCTIONAL COMPONENTS
FUNCTIONAL COMPONENTS – STANDARD
NS – Not Shown
- Used with stainless steel cabinet option
- Optional on these models

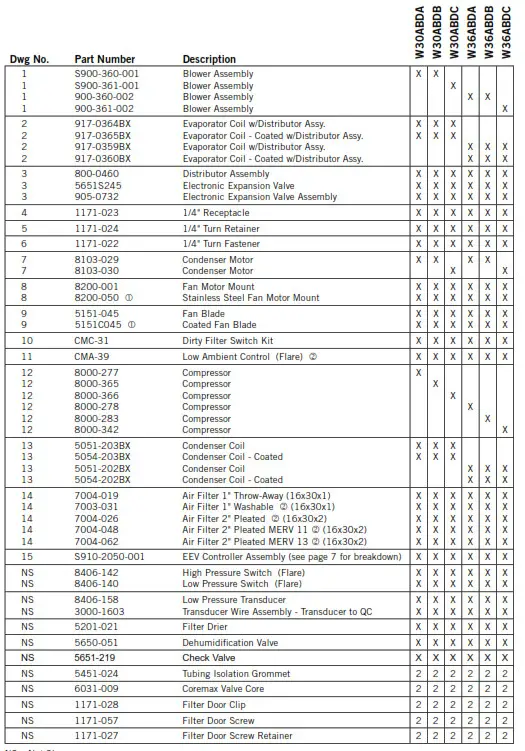

FUNCTIONAL COMPONENTS – DEHUMIDIFICATION
NS – Not Shown
- Used with stainless steel cabinet option
- Optional on these models

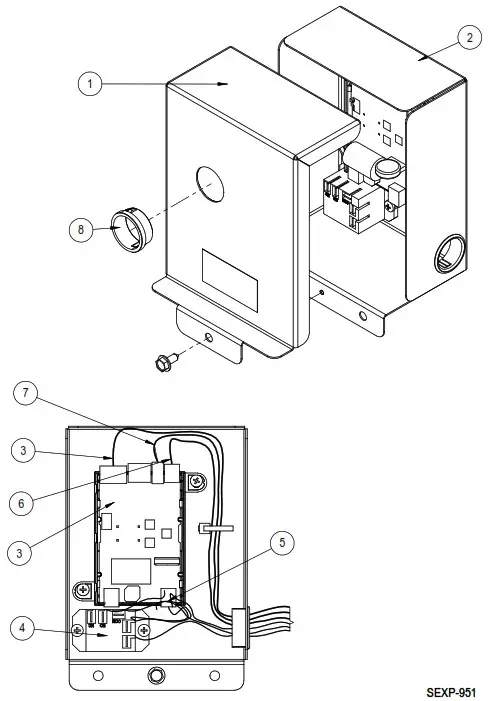

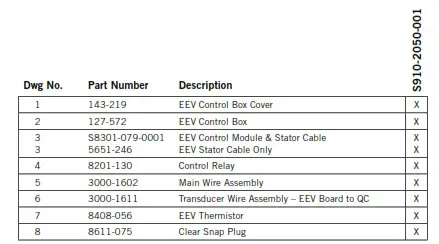

EEV CONTROLLER ASSEMBLY

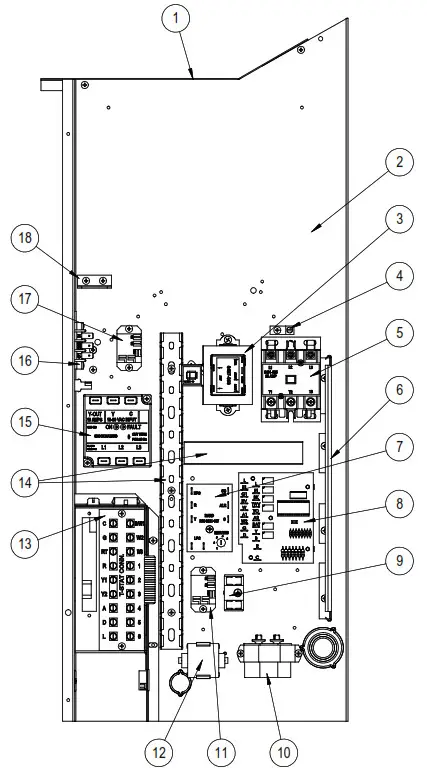

CONTROL PANEL

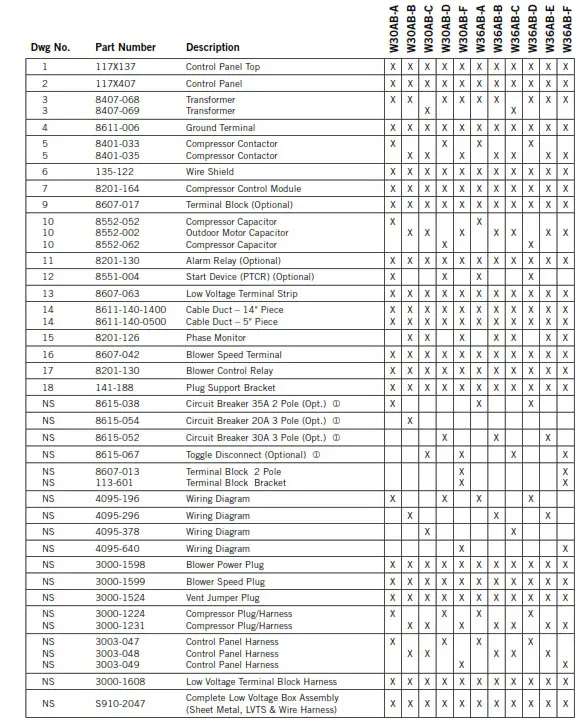

CONTROL PANEL – STANDARD
CONTROL PANEL – STANDARD
NS = Not Shown
- Circuit breakers listed are for units without electric heat, “0Z” models. See heater replacement parts manual for units with electric heat.
SEXP-908

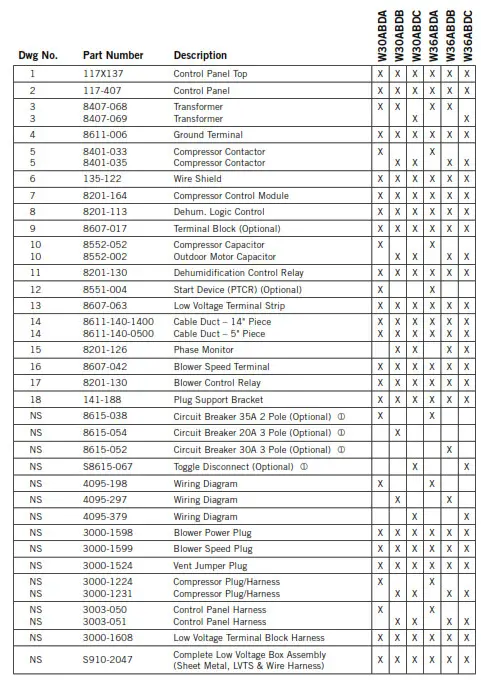

CONTROL PANEL – DEHUMIDIFICATION
NS = Not Shown
- Circuit breakers listed are for units without electric heat, “0Z” models. See heater replacement parts manual for units with electric heat.

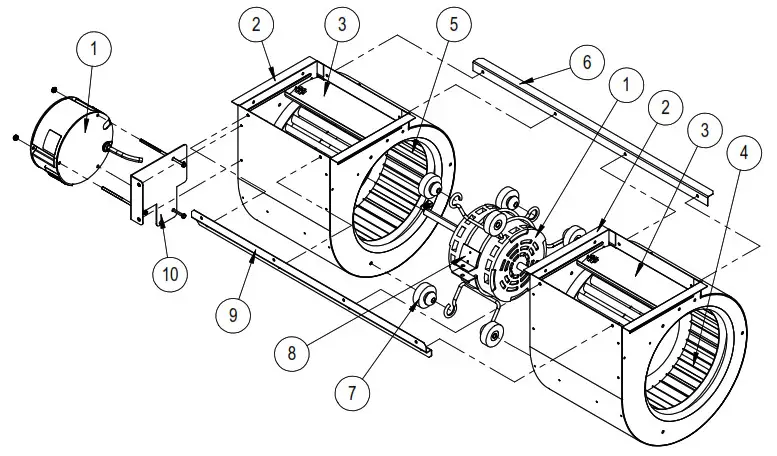

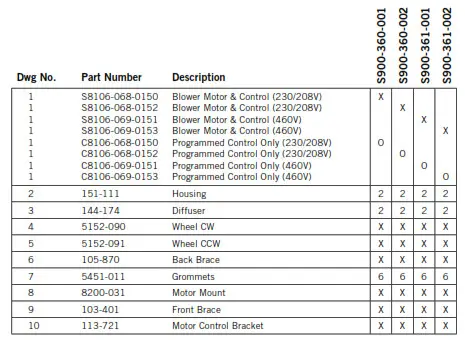

BLOWER ASSEMBLY
