Altronix Altv615dcul 16 Fused Outputs Cctv Power Supply Installation Guide

More than just power.™
ALTV615DCUL Series
CCTV Power Supplies
Installation Guide

Models Include:

Overview:

ALTV615DCUL Series DC CCTV Power Supplies provide 6 – 15VDC distributed via fuse or PTC protected outputs for powering CCTV cameras, heaters, and other video accessories.

ALTV615DCUL Series Reference Chart:

Specifications:

Agency Listings:

• UL Listed for Commercial CCTV Equipment (UL 2044).
  CUL Listed – CSA Standard C22.2 No.1-98, Audio, Video, and Similar Equipment.

Input:

• Input 115VAC, 50/60Hz.

Output:

• Sixteen (16) individual outputs.
• 6VDC to 15VDC field adjustable.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Filtered and electronically regulated outputs.

Features:

• AC input and DC output LED indicators.
• Power ON/OFF switch.
• The unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.

Enclosure Dimensions (H x W x D approx.): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm).

CAUTION: This installation should be made by qualified service personnel and should conform to the National Electrical Code and all local codes.

Installation Instructions:

1. Mount the unit in the desired location.
2. Connect AC power to the two black and two white flying leads of the transformer (Fig. 1, pg. 3).
   Units with line cord installed skip Step 2.
   Use 18 AWG or larger for all power connections. Connect the green ground leads to earth ground (Fig. 1, pg. 3).
   Keep power-limited wiring separate from non-power-limited wiring.
   Minimum 0.25” spacing must be provided. Use separate knockouts.
3. Adjust output voltage (unit is factory set at 12VDC): use the trimpot on the power supply board prior to connecting CCTV devices (Fig. 1a, pg. 3).
4. Measure output voltage before connecting devices. This helps avoid potential damage.
   CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the output voltage.
5.  Connect devices to the terminals marked [1P – 1N] through [16P – 16N] on PD16W/PD16WCB board, carefully observing the correct polarity (Fig. 1, pg. 3).
   Terminals marked [1P – 16P] are positive (+) and terminals marked [1N – 16N] are negative (–).
6. Green LED will illuminate when the unit is powered.
7. Upon completion of wiring secure enclosure door with screws (supplied).

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

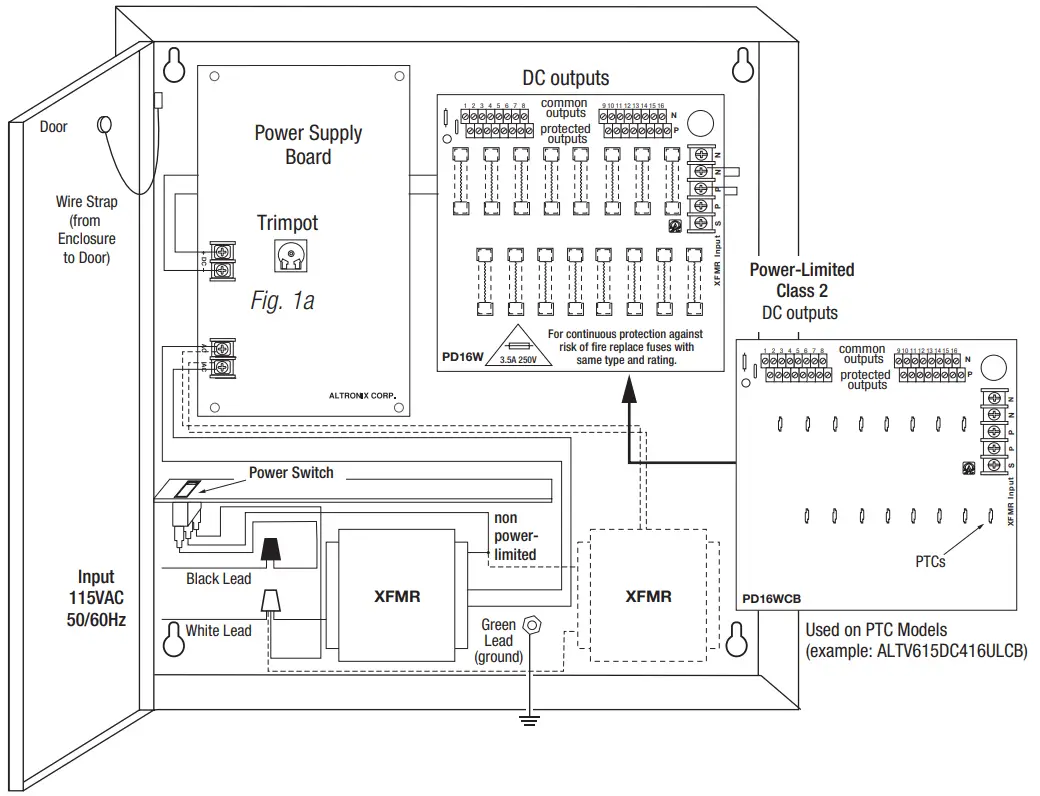

Terminal Identification:

Power Supply Board

PD16W/PD16WCB – Distribution Module

Fig. 1
CAUTION: De-energize the unit prior to servicing. For continued protection against fire, and hazards replace the fuse with the same type and rating: 3.5A, 250V. Do not expose the unit to rain or moisture.

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: To reduce the risk of electric shock do not open the enclosure.
There are no user-serviceable parts inside.
Refer servicing to qualified service personnel.

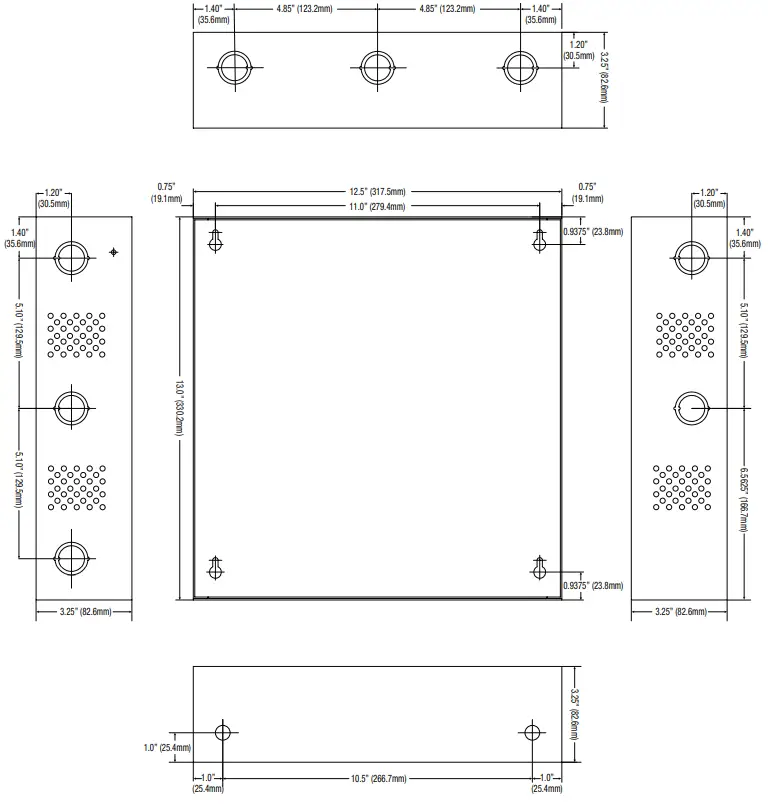

Enclosure Dimensions (H x W x D approximate): 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm)

For models with the factory-installed 3-wire line, cord add the suffix “3”, e.g. ALTV615DC616UL3

Installing Company: _______________
Service Rep. Name: ________________
Address: ________________________
Phone #: _______________________

Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA
phone: 718-567-8181
fax: 718-567-9056
website: www.altronix.com
e-mail: [email protected]
Lifetime Warranty
