niko 353-602111 Motion Detector
Motion detector M42MR, 230 V, 1 channel, 12-13 m, 360°, for surface mounting

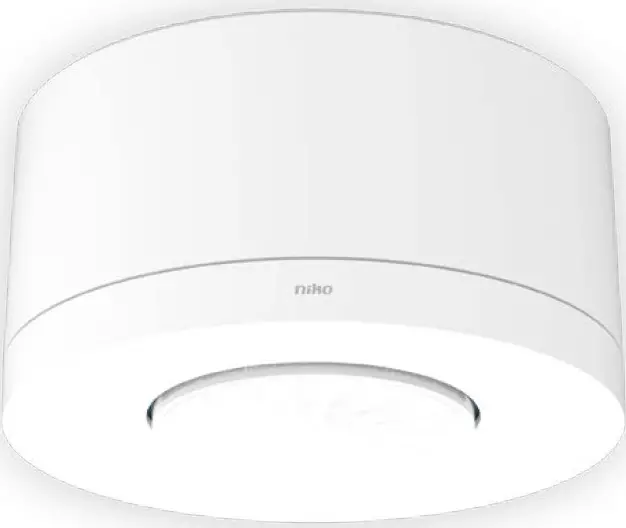

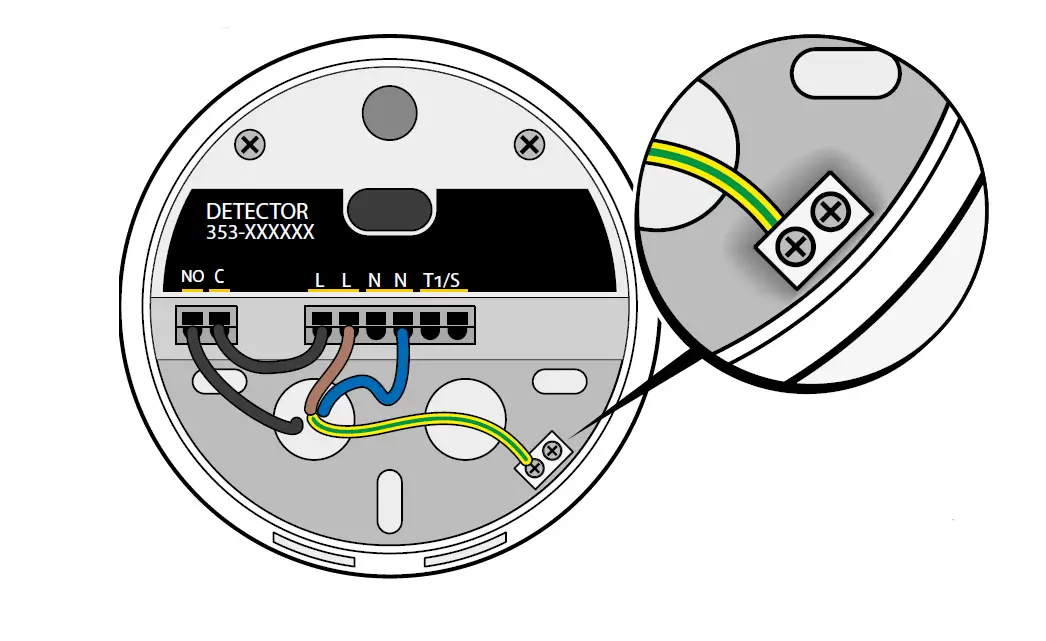

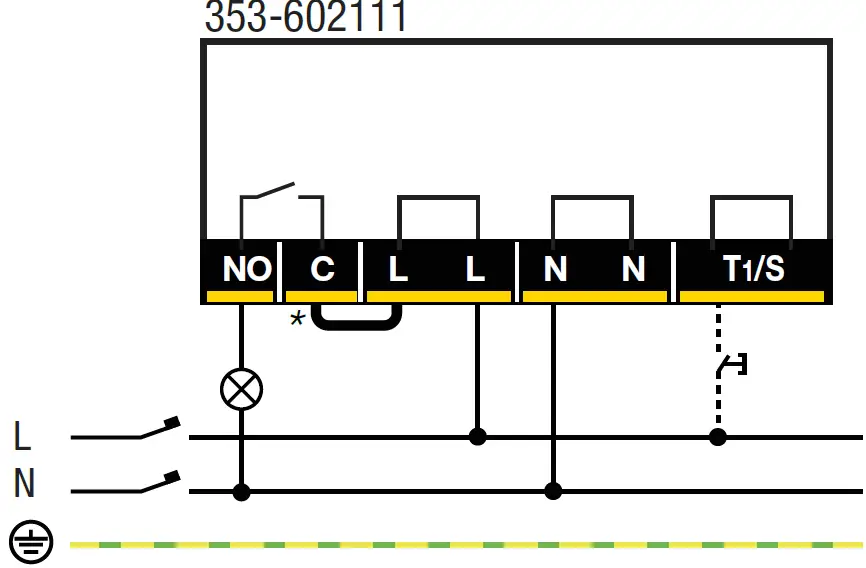

Wiring

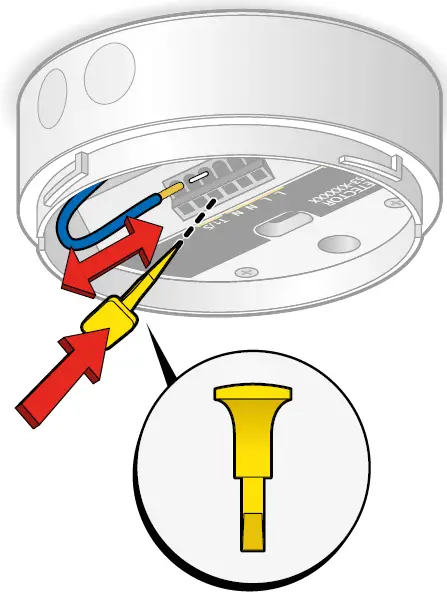

- Remove if you want to use the contact as a dry contact (potential-free).
- This product must be secured with a miniature circuit breaker (MCB) of max. 16 A in the electrical cabinet. The MCB rating is limited by national installation rules.

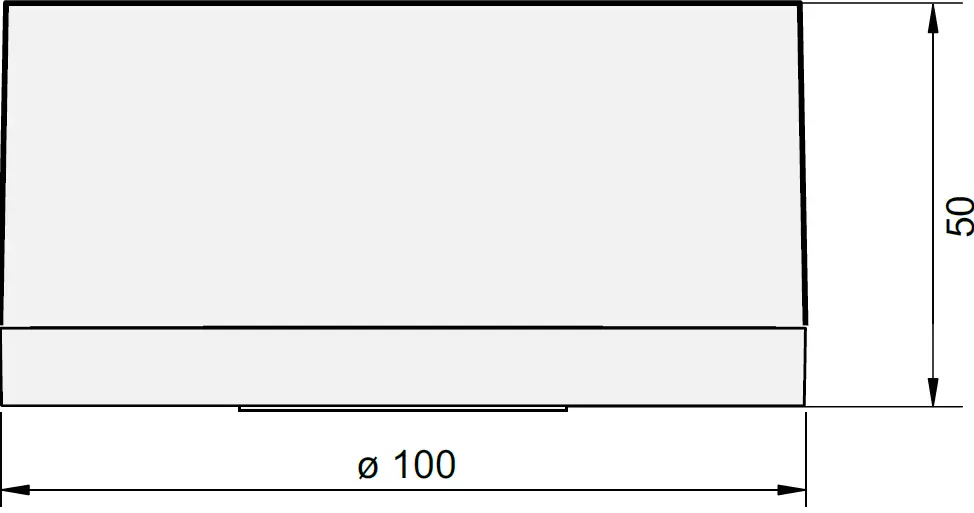

Dimensions
Dimensions

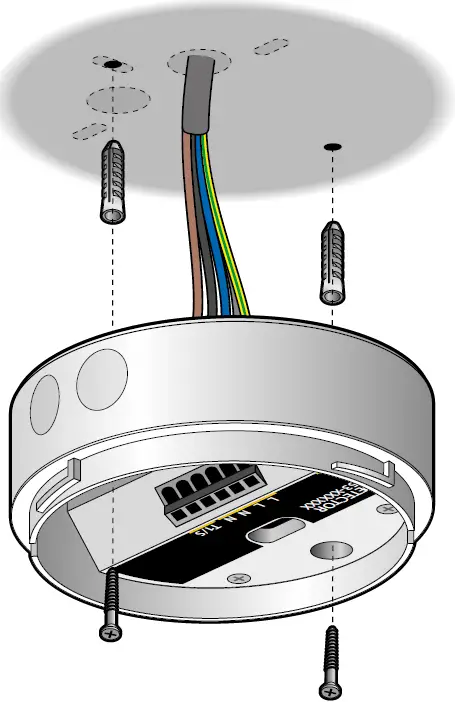

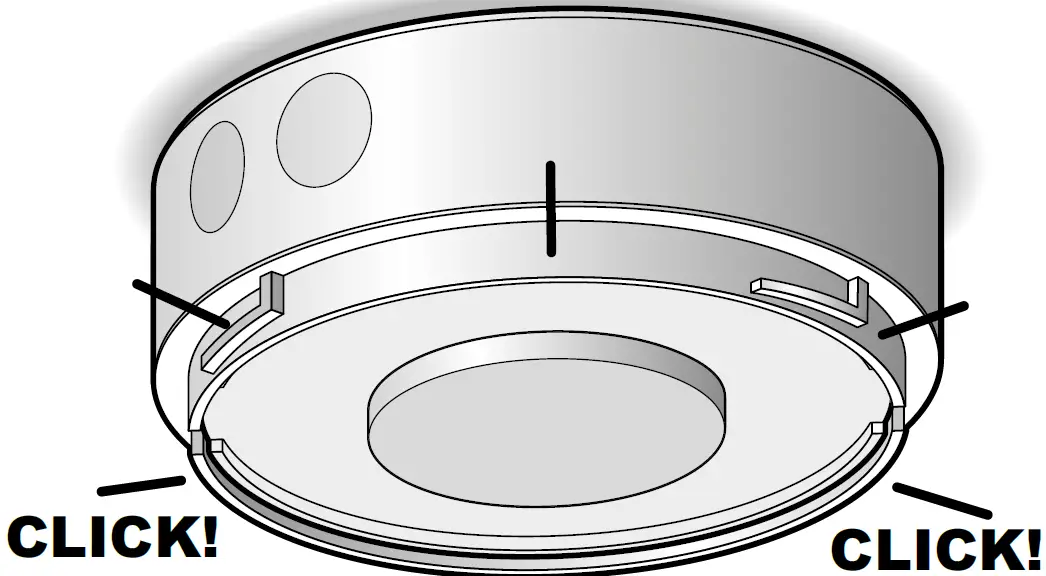

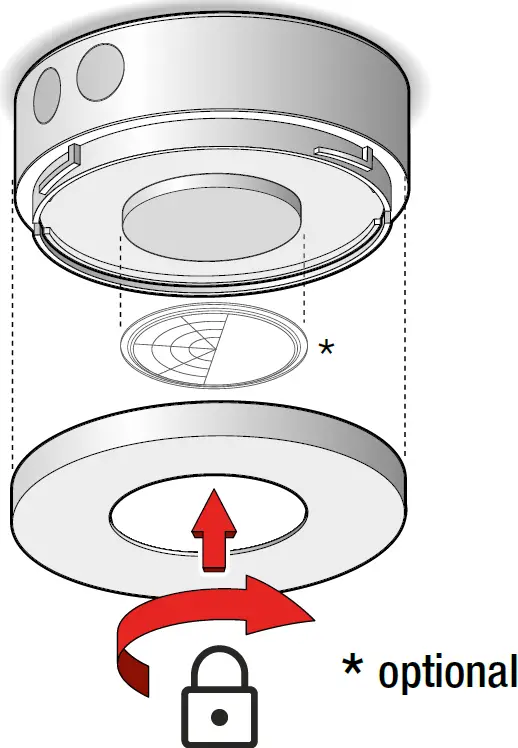

Installation
Installation

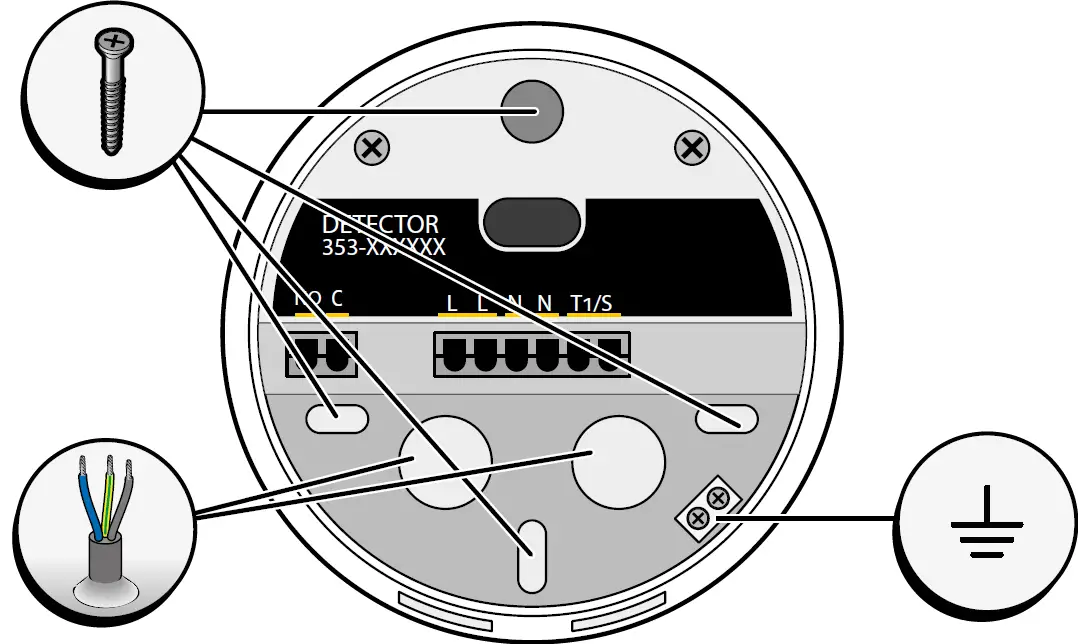

- If a grommet needs to be replaced, please make sure the new grommet is halogen-free.

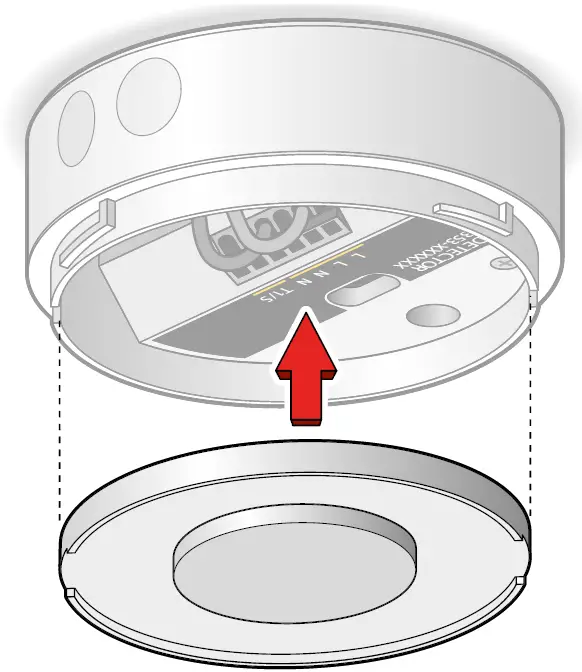

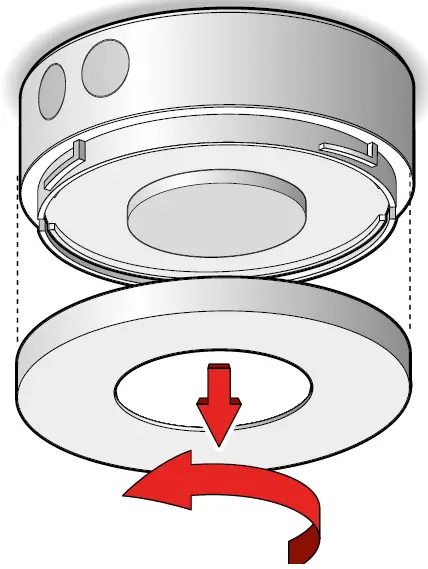

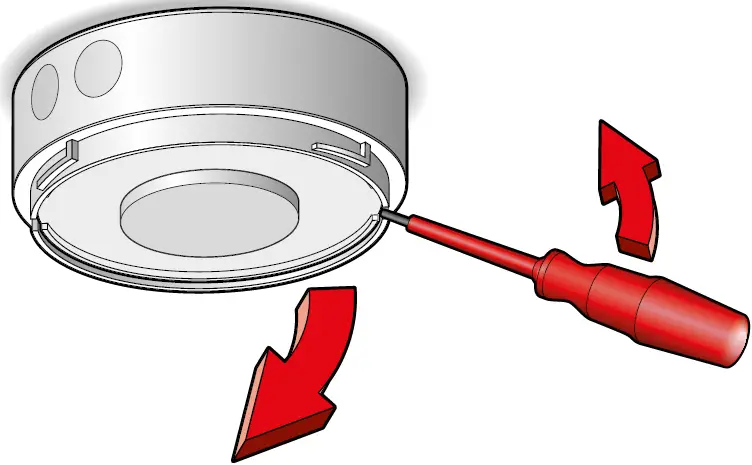

Dismantling
App settings
 |  |  | |
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behaviour
| Green LED continuous on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuous on |  | Error | More info –> |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
detector toolSpecifications
Specifications
- Article number 353-602111
- Configuration 230 V Master
- Input voltage 230 Vac ± 10 %, 50 Hz
- Maximum power consumption 0.2 W
- Circuit breaker maximum MCB rating 16 A*
- Relay contact NO (max. μ10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1) 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5) 1200 VA
- Maximum load economy lamps (CFLi) 350 W
- Maximum load LED lamps 230 V 350 W
- Maximum load LED driver 500 VA
- Maximum load electronic transformer 500 VA
- Maximum capacitive load 140 μF
- Maximum switching current 165 A/20 ms – 800 A/200 μs
- Light intensity range 20 – 2000 lux, ∞
- Number of channels 1 channel
- Switch-off delay pulse, 15 s – 120 min, ∞
- Hysteresis on light intensity + 10%
- Detection angle 360 °
- Detection range (PIR) Ø 12 m from a height of 3 m
- Ambient temperature -25 – +40 °C
- Mounting method surface mounting
- Mounting height 2 – 3.5 m
- Colour white (RAL 9010)
- Dimensions visible (HxWxD) 100 x 100 x 50 mm
- Dimensions (HxWxD) 100 x 100 x 50 mm
- Wire capacity 1.5/2.5 mm²
- Maximum range Bluetooth® (free field, depending on the device) 50 m
- Operating frequency 2.4 GHz
- Maximum radio frequency power -2 dBm
- Protection degree IP54
- Impact resistance IK02
- Modification of settings app (iOS/Android) and 2-way Bluetooth® communication
- Halogen-free yes
- Marking CE
- The MCB rating is limited by national installation rules.

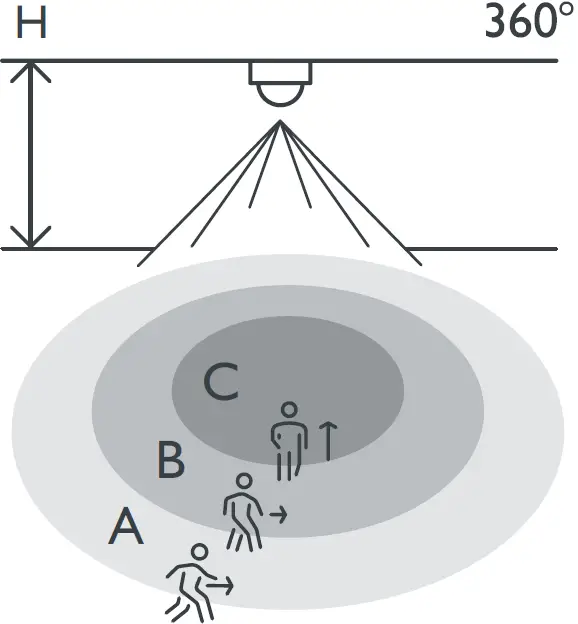

Detection area
| H | A | B | C |
| Walking | Across | Towards | |
| 2.5 m | ø 13 m | ø 11 m | ø 3 m |
| 3.0 m | ø 12 m | ø 12 m | ø 3 m |
- Measured according to EN/IEC63180
Troubleshooting’
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct | Check the wiring scheme |
| The ambient light is too strong | Check the response value luminosity and raise the value if necessary | |
| Load does not turn off | The switch-off delay is too long | Check the switch-off delay and shorten the delay if necessary |
| The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity | |
| App cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
