Manual
Presence detector
353-650021
4 Year warranty
Presence detector P46MR, DALI-2, secondary and BMS, 12-13 m, 360°, for flush-mounting box

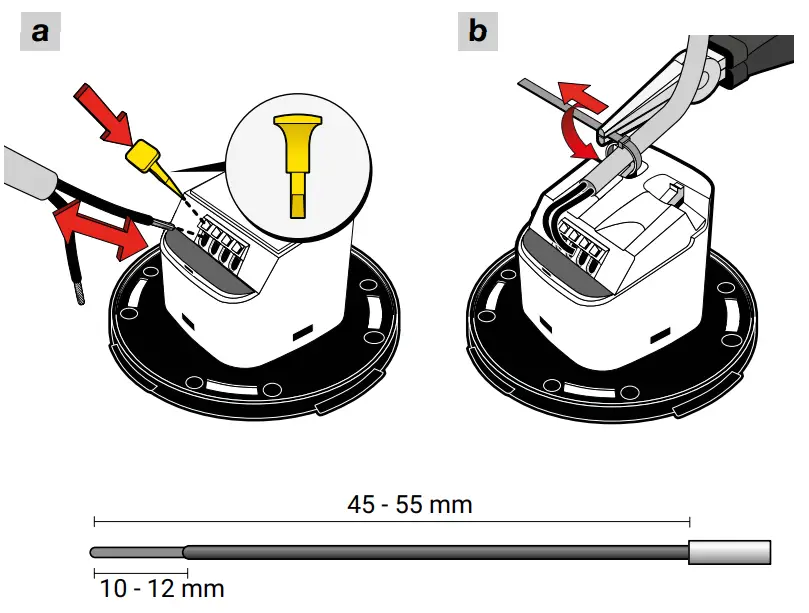

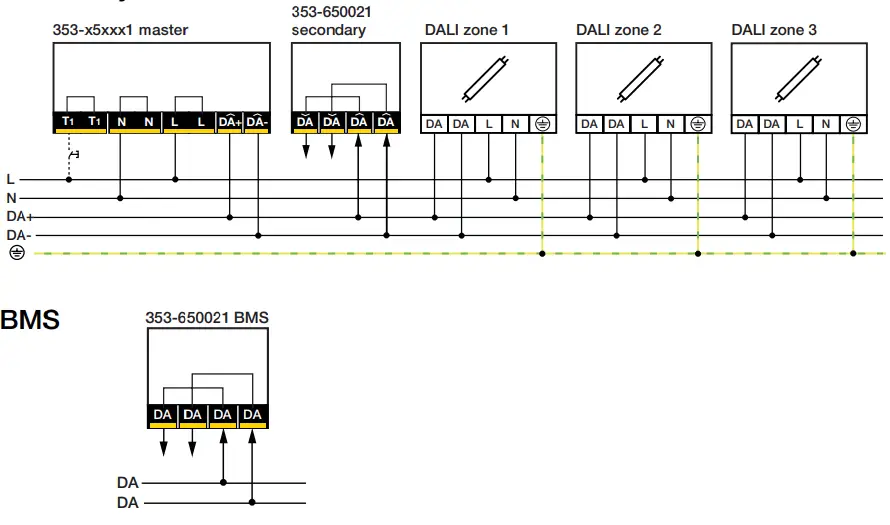

Wiring
230 V/DALI power – OFF
Secondary

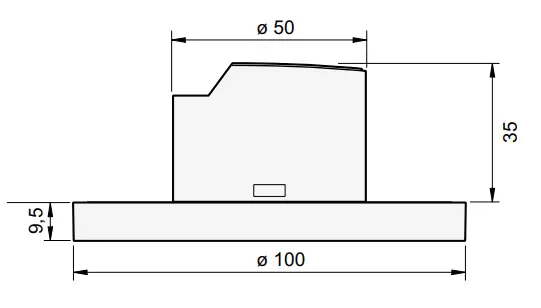

Dimensions

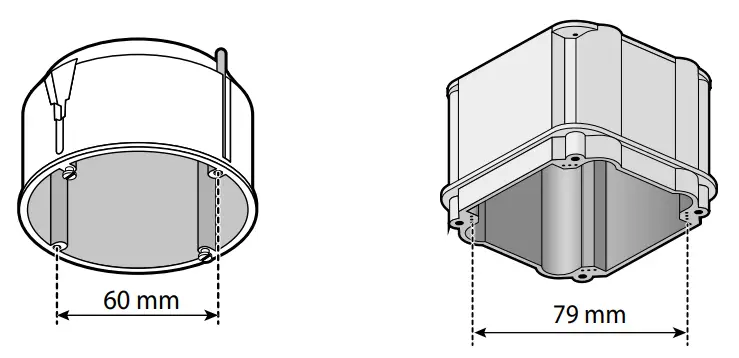

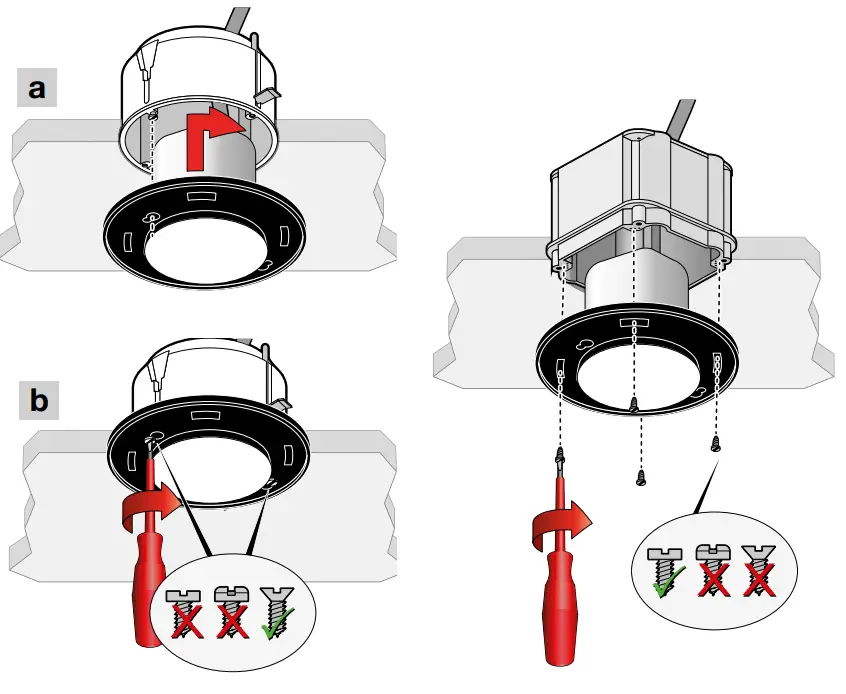

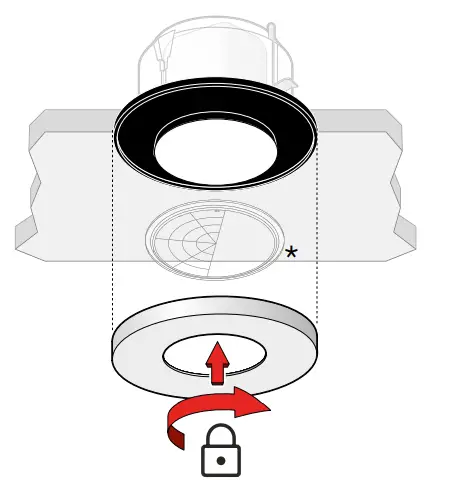

Installation
230 V/DALI power – OFF
Installatie
 |  |
 | |
App settings
230 V/DALI power – ON
| Sensitivity | |
| Factory Settings | High |
Settings by BMS software
Table memory bank 2
| Address | Description | Default value | Memory type |
| 0x00 | Address and last accessible memory location | 0x03 | ROM |
| 0x01 | Indicator byte (manufacture definable) | 0x00 | any |
| 0x02 | 60 mm Memory bank lock byte (◇0x55 = Read Only else Read/ Write) | 0xFF | RAM |
| 0x03 | 79 mm PIR sensitivity segment A (MR, LR and HC detectors) 4 = MAX 3 = HIGH 2 = LOW 1 = MIN 0 = OFF | 0x03 | NVM |
| 0x04 | PIR sensitivity segment B (LR and HC detectors) 4 = MAX 3 = HIGH 2 = LOW 1 = MIN 0 = OFF | 0x03 | NVM |
| 0x05 | PIR sensitivity segment C (LR and HC detectors) 4 = MAX 3 = HIGH 2 = LOW 1 = MIN 0 = OFF | 0x03 | NVM |
| 0x06 | LUX range 0 = NORMAL 0 – 1023 lux, 10-bit 1 = HIGH 0 – 10360 lux, 14 bit | NVM |
LED behavior
230 V/DALI power – ON
| Green LED continuously on |  | Connection OK | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuously on |  | Error | More info –> |
| Blue LED flashing |  | Walk test active |

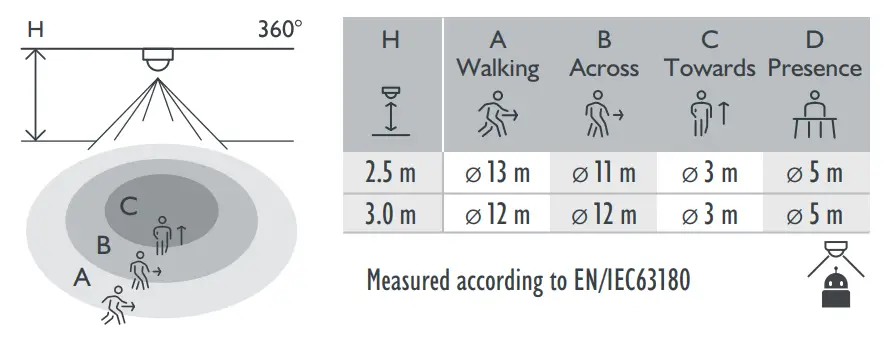

Detection area
Troubleshooting
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct | Check the wiring scheme |
| Load does not turn off | The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity |
| App cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
Specifications
| Article number | 353-650021 |
| Configuration | DALI-2 secondary/BMS |
| Input voltage | via the DALI bus |
| Maximum current consumption | 28.1 mA |
| Nominal current consumption (12 V, 25°C) | 8.1 mA |
| Maximum startup time DALI | < 1200 ms |
| Maximum PIR detection startup time | 70 s |
| Light intensity range | 0 – 10360 lux (see DALI BMS settings) |
| Detection angle | 360° |
| Detection range (PIR) | ø 12 m from a height of 3 m |
| Ambient temperature | -25 – +40 °C |
| Mounting method | flush-mounting box |
| Mounting height | 2 – 3.5 m |
| Colour | white (RAL 9010) |
| Dimensions visible (HxWxD) | 100 x 100 x 9.5 mm |
| Dimensions (HxWxD) | 100 x 100 x 44.5 mm |
| Wire capacity | 1.5/2.5 mm² |
| Protection degree | IP20 |
| Impact resistance | IK02 |
| Modification of settings | app (iOS/Android) and 2-way Bluetooth® communication/BMS software |
| Maximum range Bluetooth® (free field, depending on the device) | 50 m |
| Operating frequency | 2.4 GHz |
| Maximum radio frequency power | -2 dBm |
| Halogen-free | yes |
| Marking | CE |
Support & contact
nv Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
www.niko.eu
+32 3 778 90 80
[email protected]
Niko prepares its manuals with the greatest care and strives to make them as complete, correct and up to date as possible. Nevertheless, some deficiencies may subsist. Niko
cannot be held responsible for this, other than within the legal limits. Please inform us of any deficiencies in the manuals by contacting Niko customer services at [email protected].
