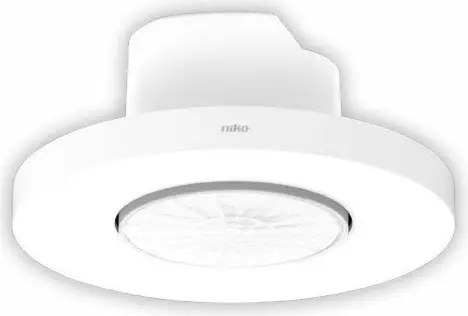

niko 353-651421 Presence Detector User Manual

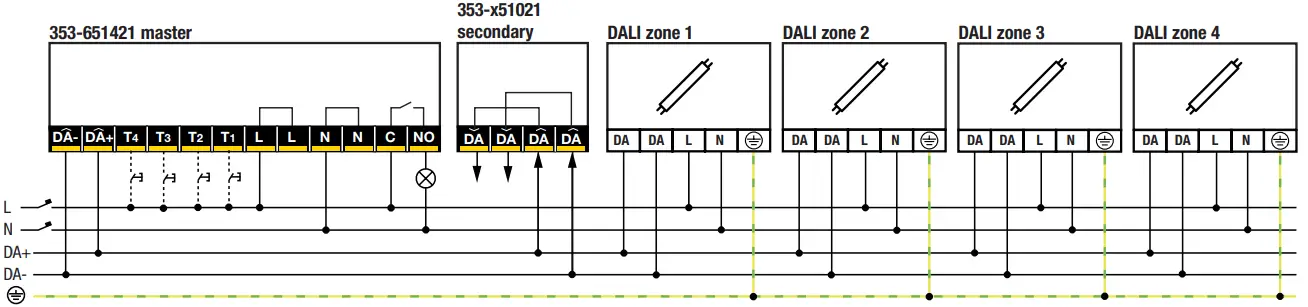

Wiring
230 V – OFF
This product must be secured with a miniature circuit breaker (MCB) of max. 16 A in the electrical cabinet. The MCB rating is limited by national installation rules.

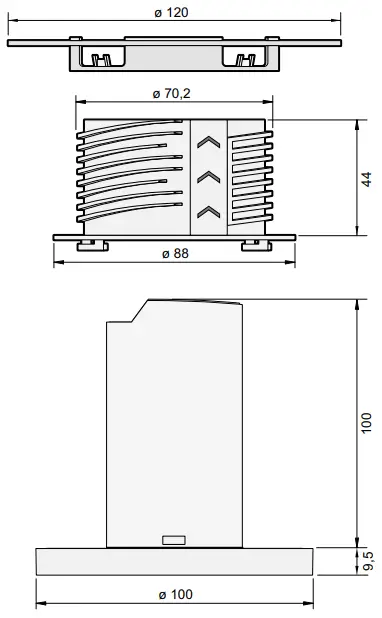

Dimensions

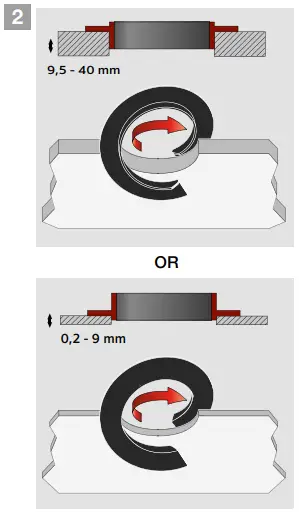

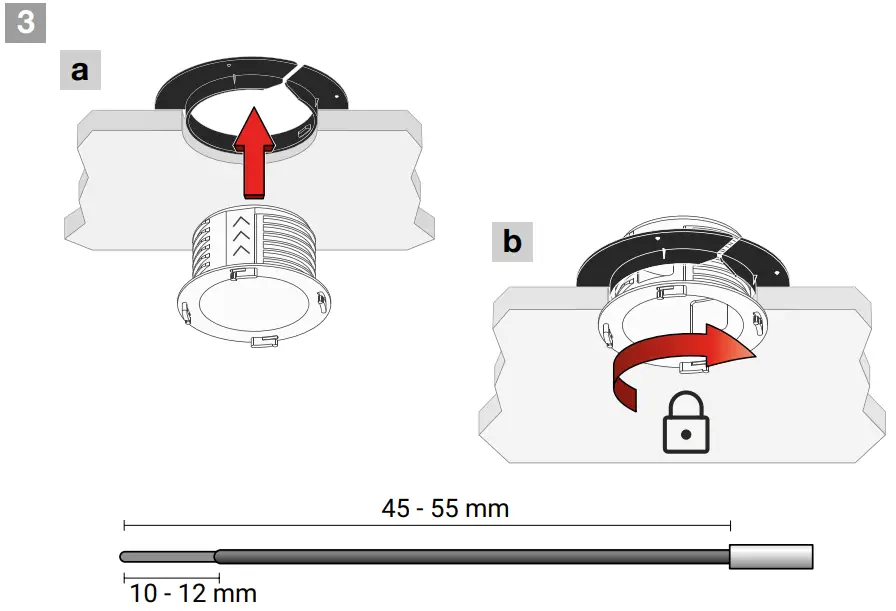

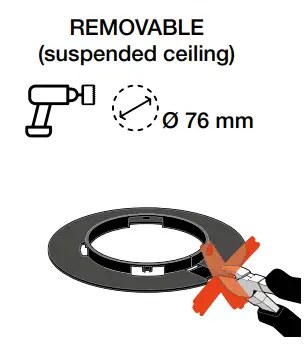

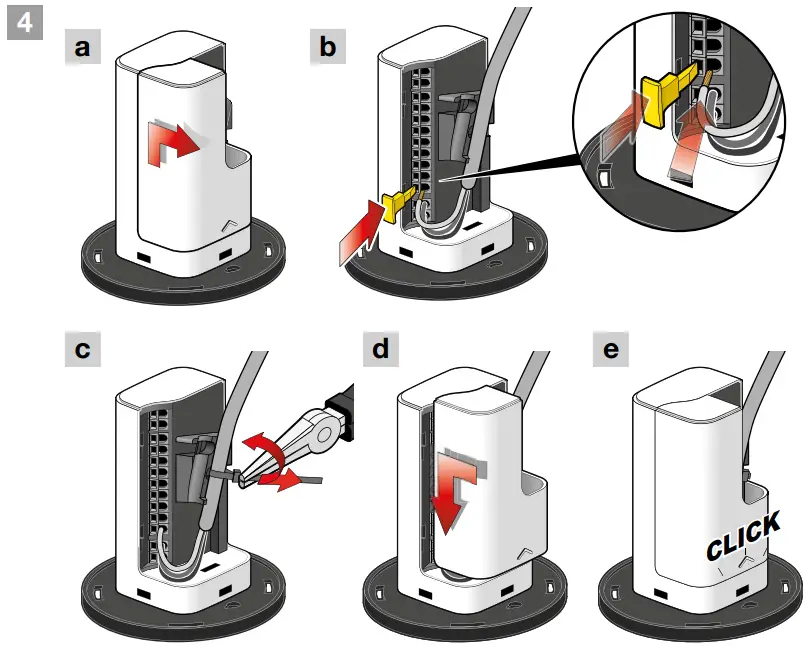

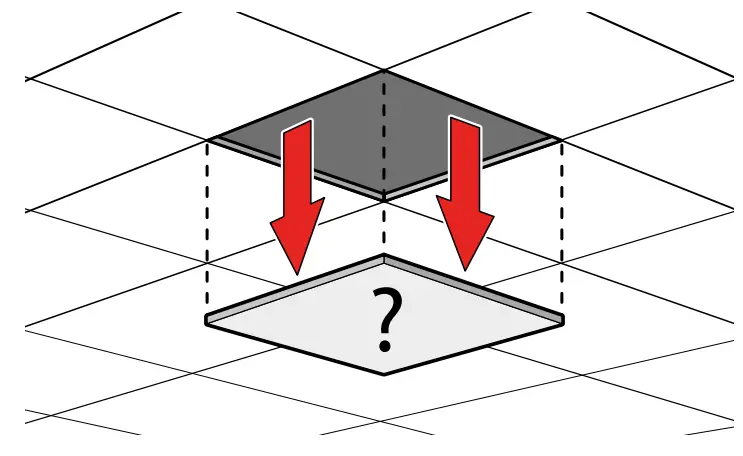

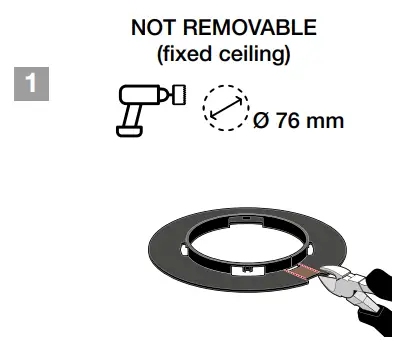

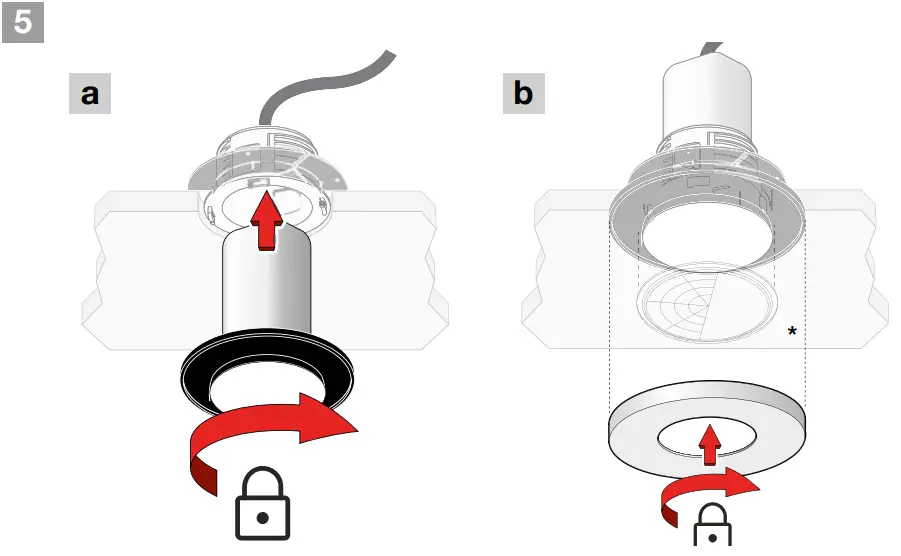

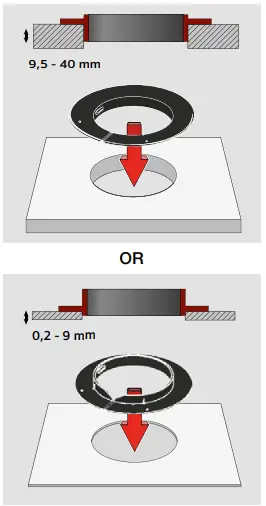

Installation
230 V – OFF

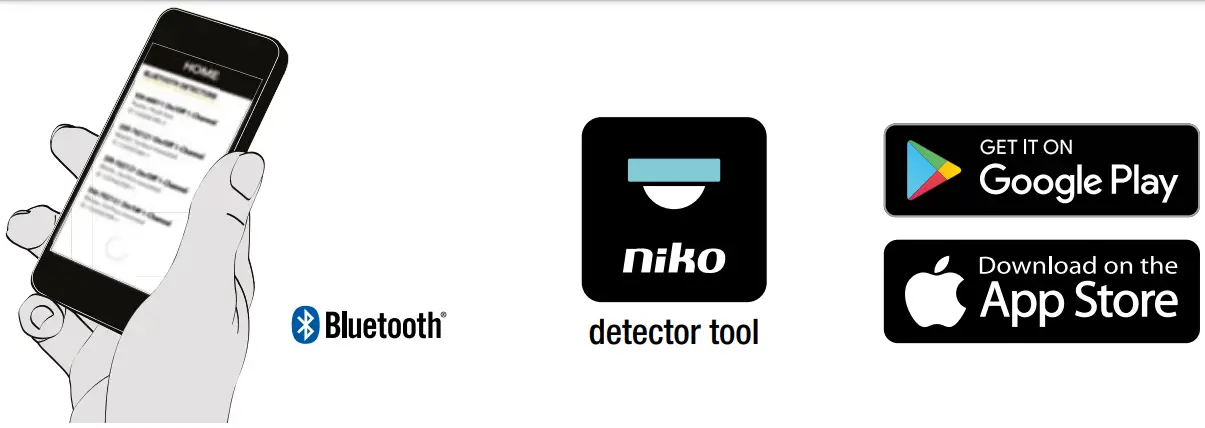

App settings
230 V – ON
Factory settings
- Switch ON/OFF
- 500 lux
- 15 min
LED behaviour
230 V – ON
| Green LED continuous on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuous on |  | Error | More info –> detector tool |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
Specifications
- Article number: 353-651421
- Configuration: DALI-2 master
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Maximum power consumption: 0.6 W
- Maximum power consumption wireless link active: 0.65 W
- Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
- Short circuit behaviour restart period: every 14 s until success
- Detector output: DALI Broadcast/DALI Adressable
- Circuit breaker: maximum MCB rating 16 A*
- Relay contact: NO (max. µ10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps 230 V: 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms – 800 A/200 µs
- Maximum voltage on the DALI bus: 15 Vdc
- Maximum guaranteed current on the DALI bus: 200 mA
- Maximum supply current: 250 mA
- Maximum startup time DALI: < 1200 ms
- Maximum PIR detection startup time: 70 s
- Maximum number of dimmable zones: 4
- Maximum number of control gear on the DALI bus: 64
- Light intensity range: 20 – 2000 lux, ∞
- Switch-off delay: pulse, 20 s – 120 min, ∞
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush mounting with SnapFit mounting bracket
- Mounting height: 2 – 3.5 m
- Drill diameter: 76 mm
- Minimum flush mounting depth: 100 mm
- Colour: white (RAL 9010)
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Dimensions (HxWxD): 120 x 120 x 109.5 mm
- Wire capacity: 1.5/2.5 mm²
- Protection degree: IP20
- Impact resistance: IK02
- Modification of settings: app (iOS/Android) and 2-way Bluetooth® communication
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Halogen-free: yes
- Marking: CE
* The MCB rating is limited by national installation rules.

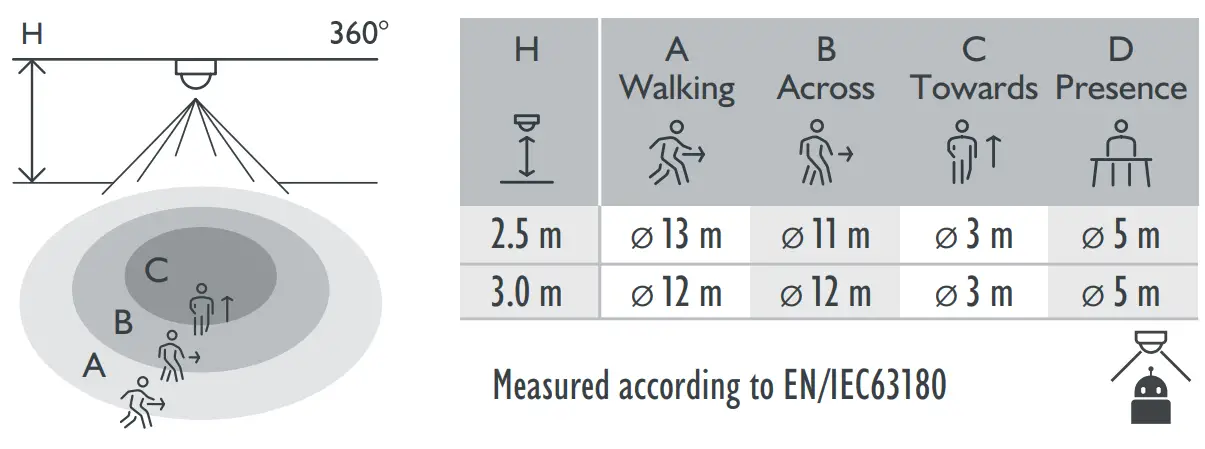

Detection area
Troubleshooting
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct The ambient light is too strong | Check the wiring scheme Check the response value luminosity and raise the value if necessary |
| Load does not turn off | The switch-off delay is too long The detector receives false triggers | Check the switch-off delay and shorten the delay if necessary Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity |
| App cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
