Niko 353-601021 Presence Detector User Manual (+ PDF)

niko 353-601021 Presence Detector

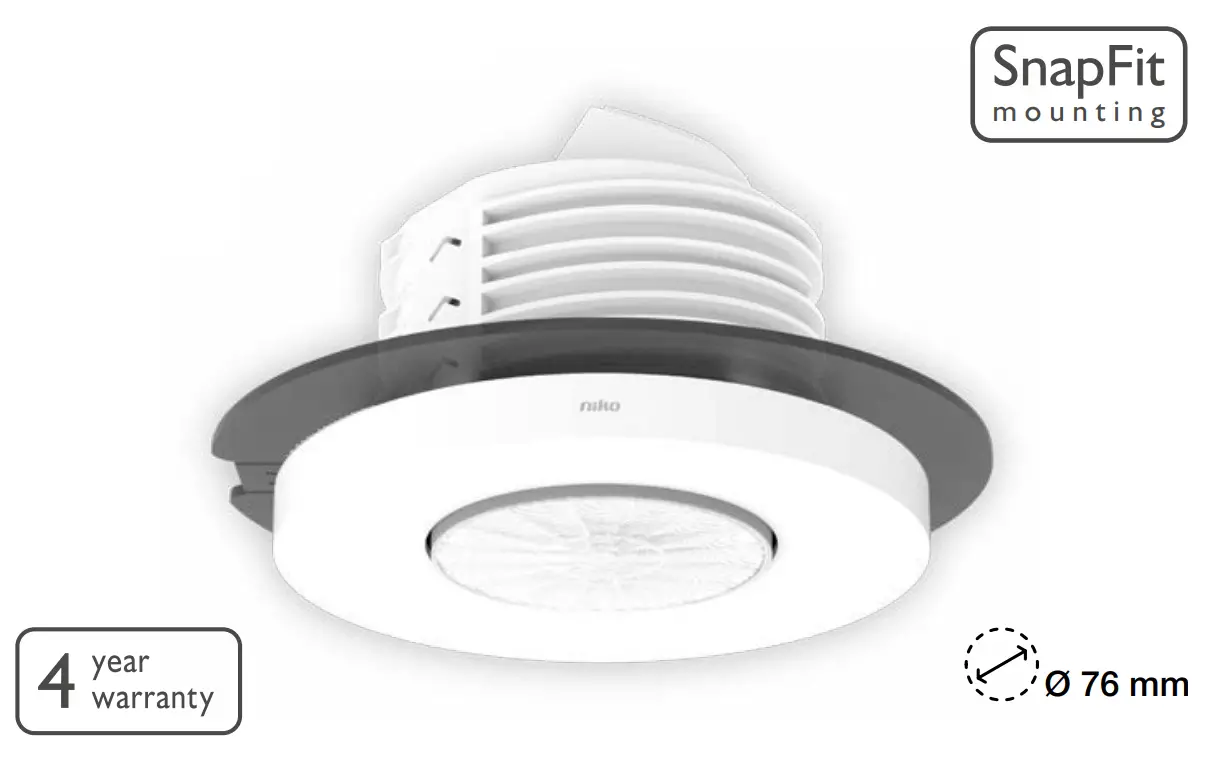

Presence detector P41MR, 230 V, secondary, 12-13 m, 360°, SnapFit, for flush mounting

Contents hide

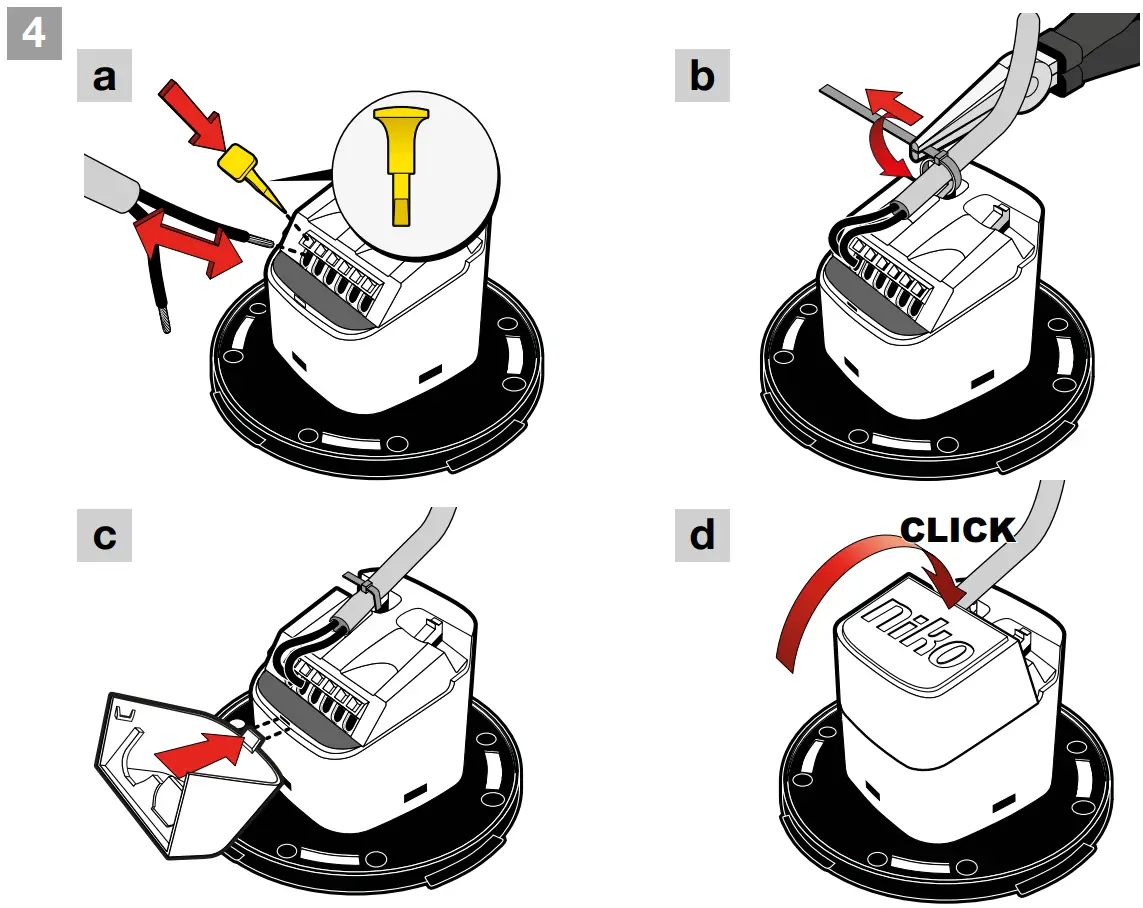

* remove if you want to use the contact as a dry contact (potential-free)

Green LED continuous on	Connection OK
Green LED flashing	Warming up	Wait
Red LED continuous on	Error	More info –> detector tool
Red LED flashing	The detector has detected an error, please check the app notifications for more information
Blue LED flashing	Walk test active

Article number	353-601021
Configuration	230 V Secondary detector
Input voltage	230 Vac ± 10 %, 50 Hz
Maximum power consumption	0.2 W
Detection angle	360°

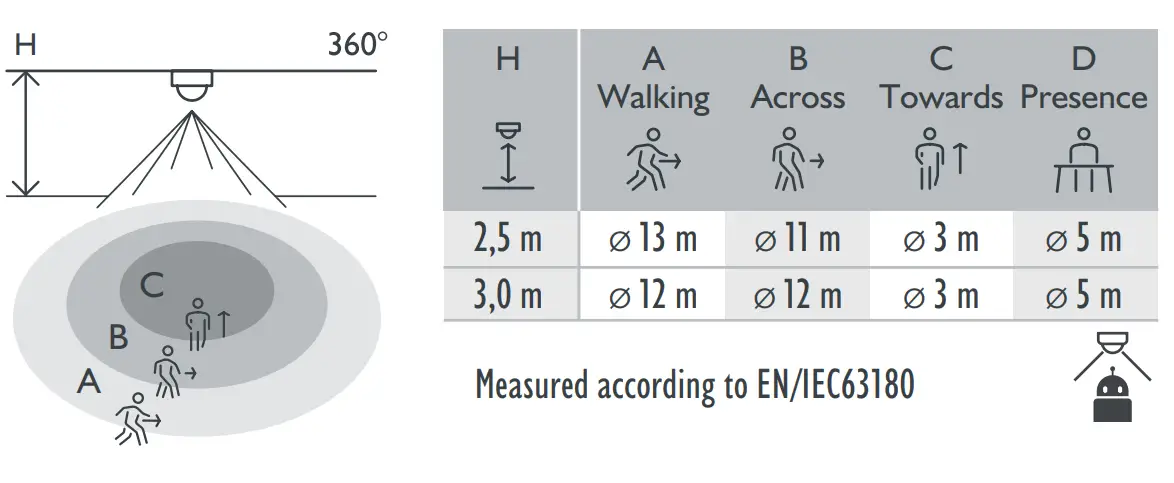

Detection range (PIR)	Ø 12 m from a height of 3 m
Ambient temperature	-25 – +40 °C

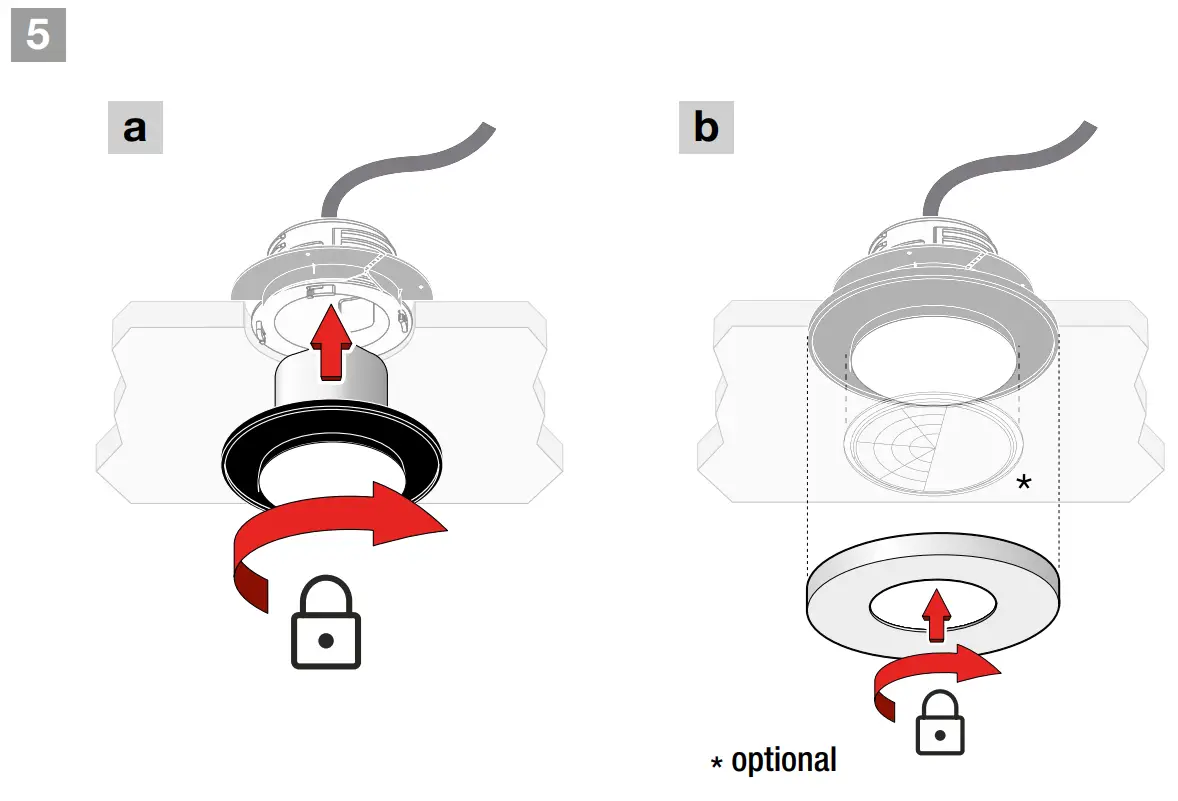

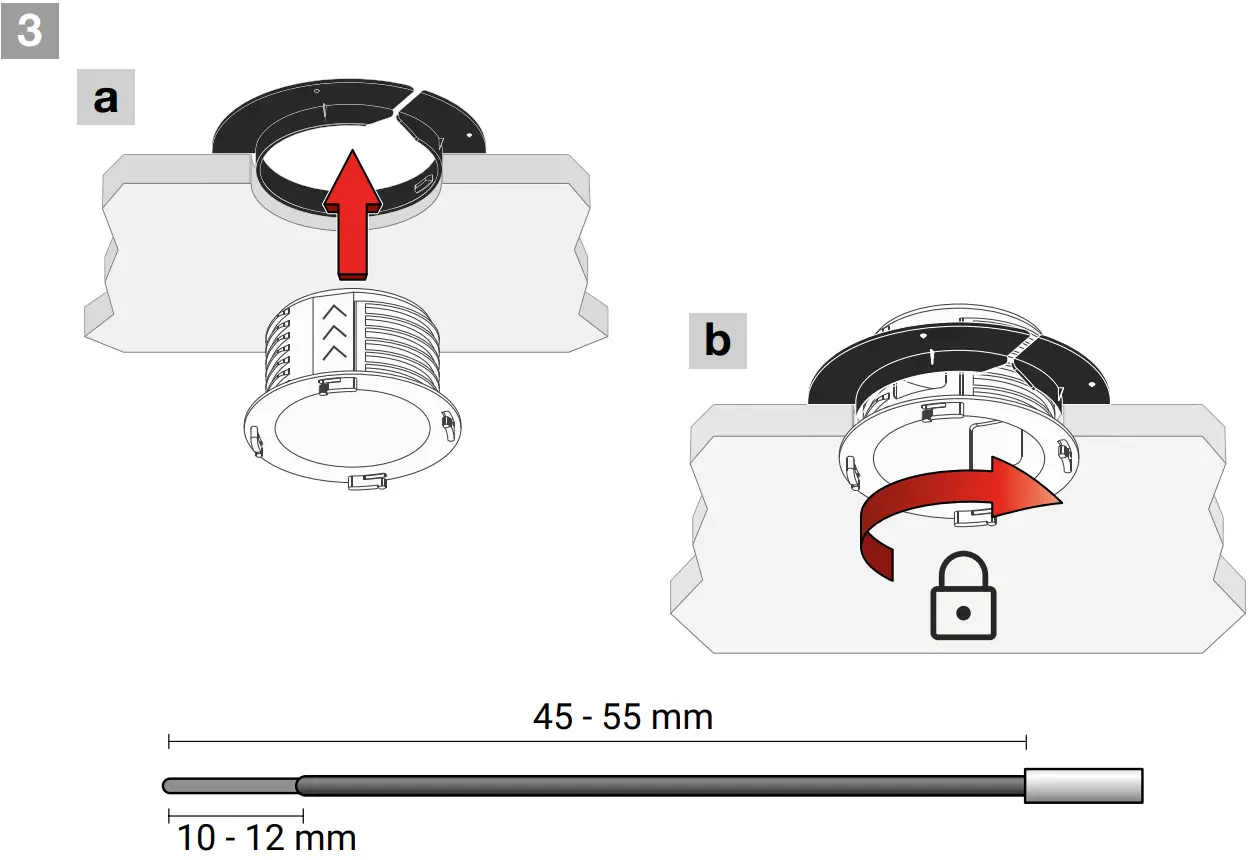

Mounting method	flush mounting with SnapFit mounting bracket
Mounting height	2 – 3.5 m

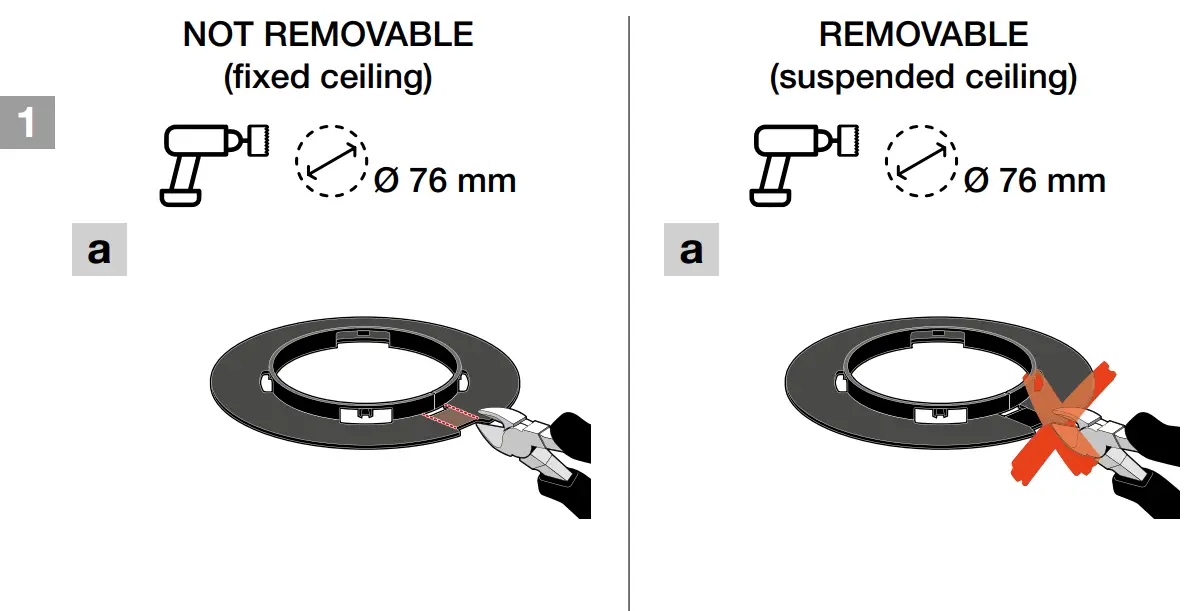

Drill diameter	76 mm

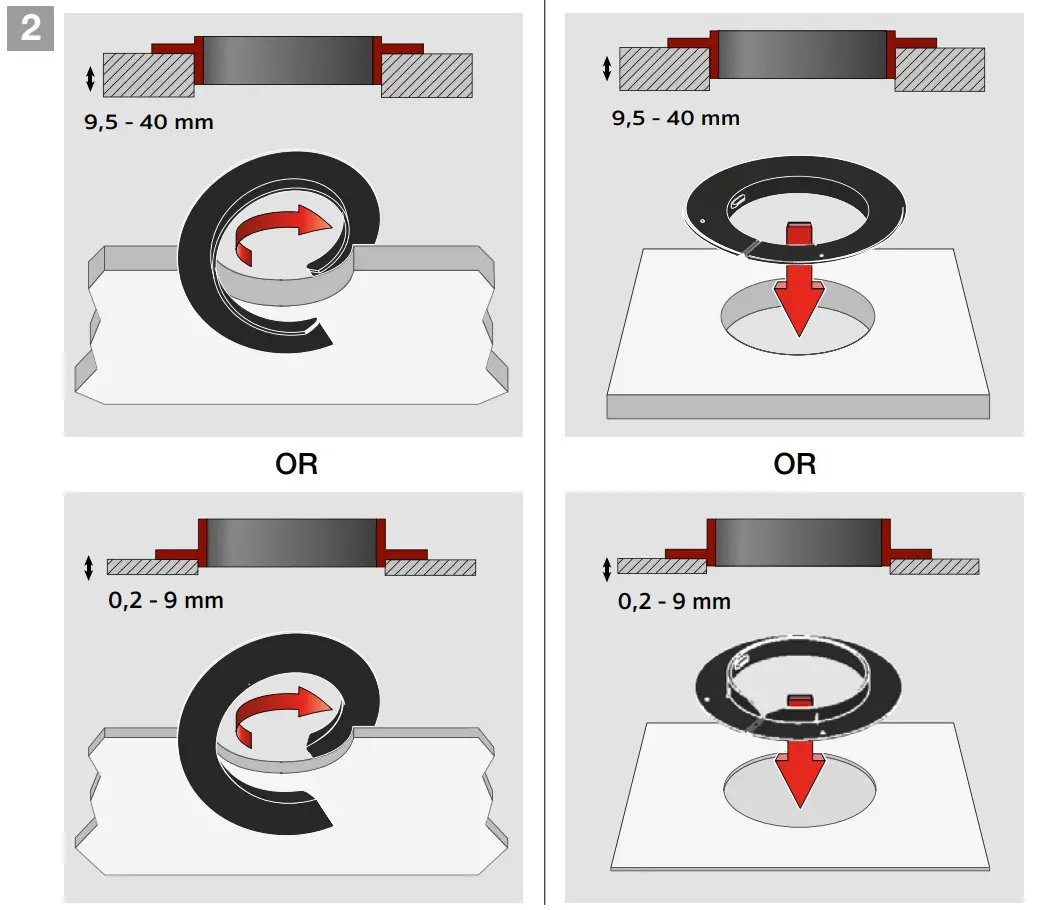

Minimum flush mounting depth	56.9 mm
Colour	white (RAL 9010)

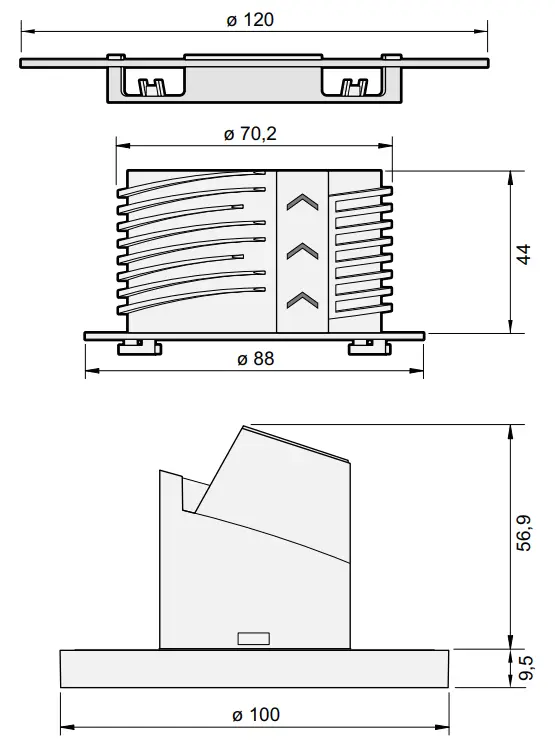

Dimensions visible (HxWxD)	100 x 100 x 9.5 mm
Dimensions (HxWxD)	120 x 120 x 66.4 mm
Wire capacity	1.5/2.5 mm²
Maximum range Bluetooth® (free field, depending on the device	25 m
Operating frequency	2.4 GHz
Maximum radio frequency power	-2 dBm
Protection degree	IP20
Impact resistance	IK02

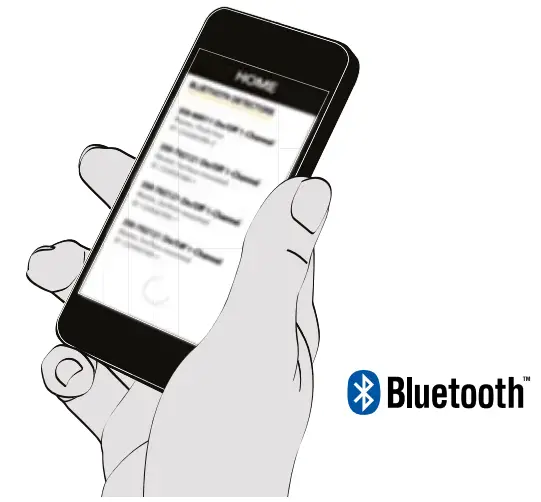

Modification of settings	app (iOS/Android) and 2-way Bluetooth® communication
Halogen-free	yes
Marking	CE

Problem	Possible cause	Proposed solution

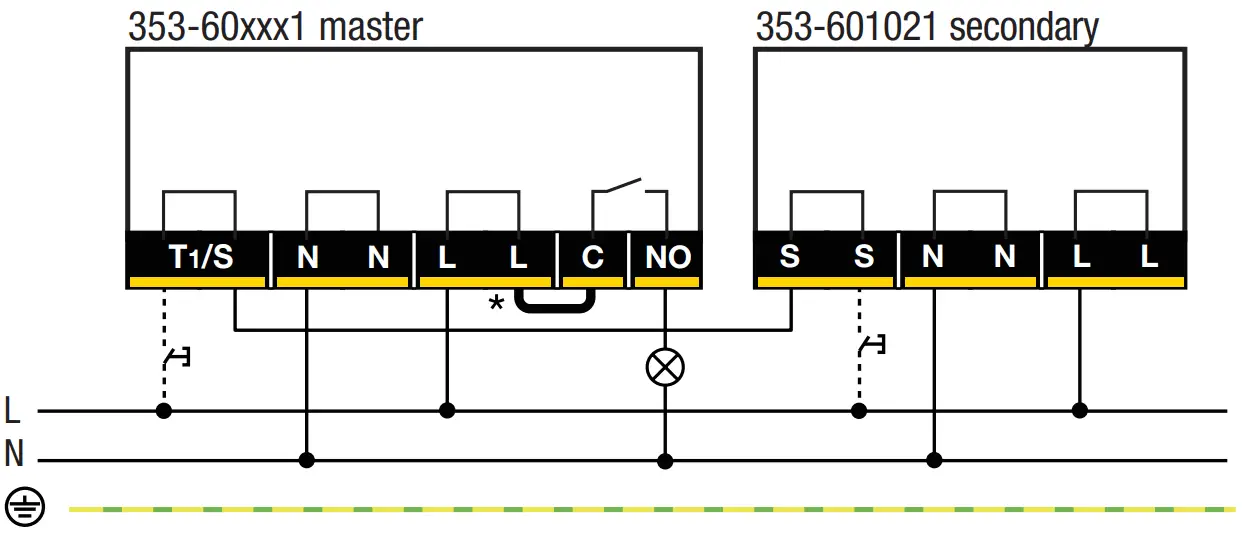

Load does not turn on	The wiring is not correct	Check the wiring scheme

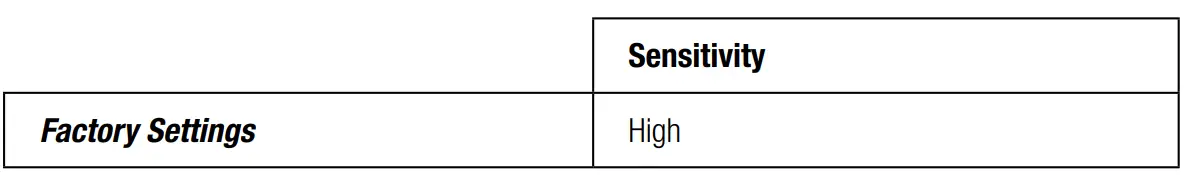

Load does not turn off	The detector receives false triggers	Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity
App cannot connect to the detector	Bluetooth® has been disabled on your mobile device	Enable Bluetooth® on your mobile device
