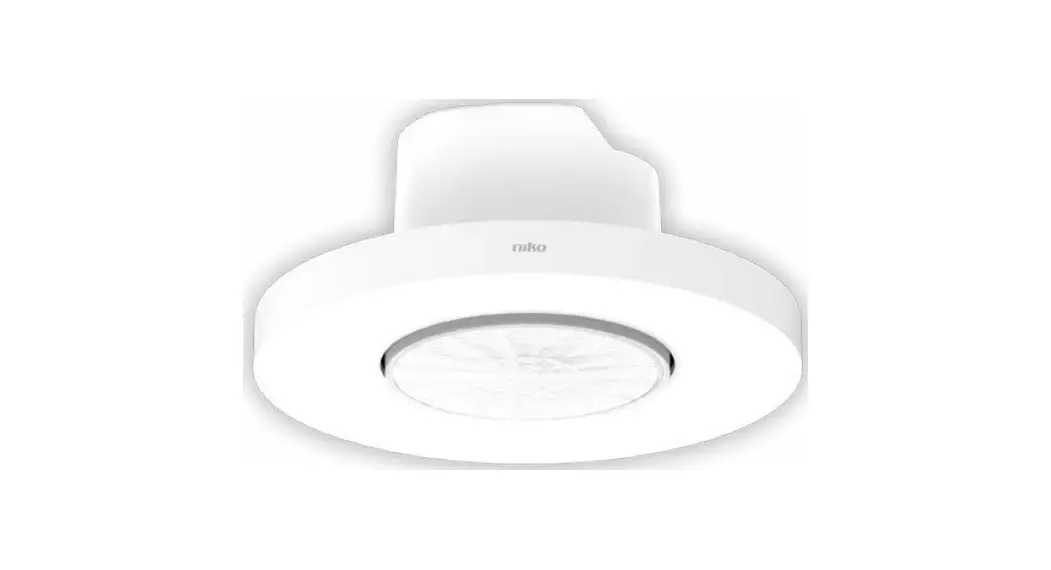

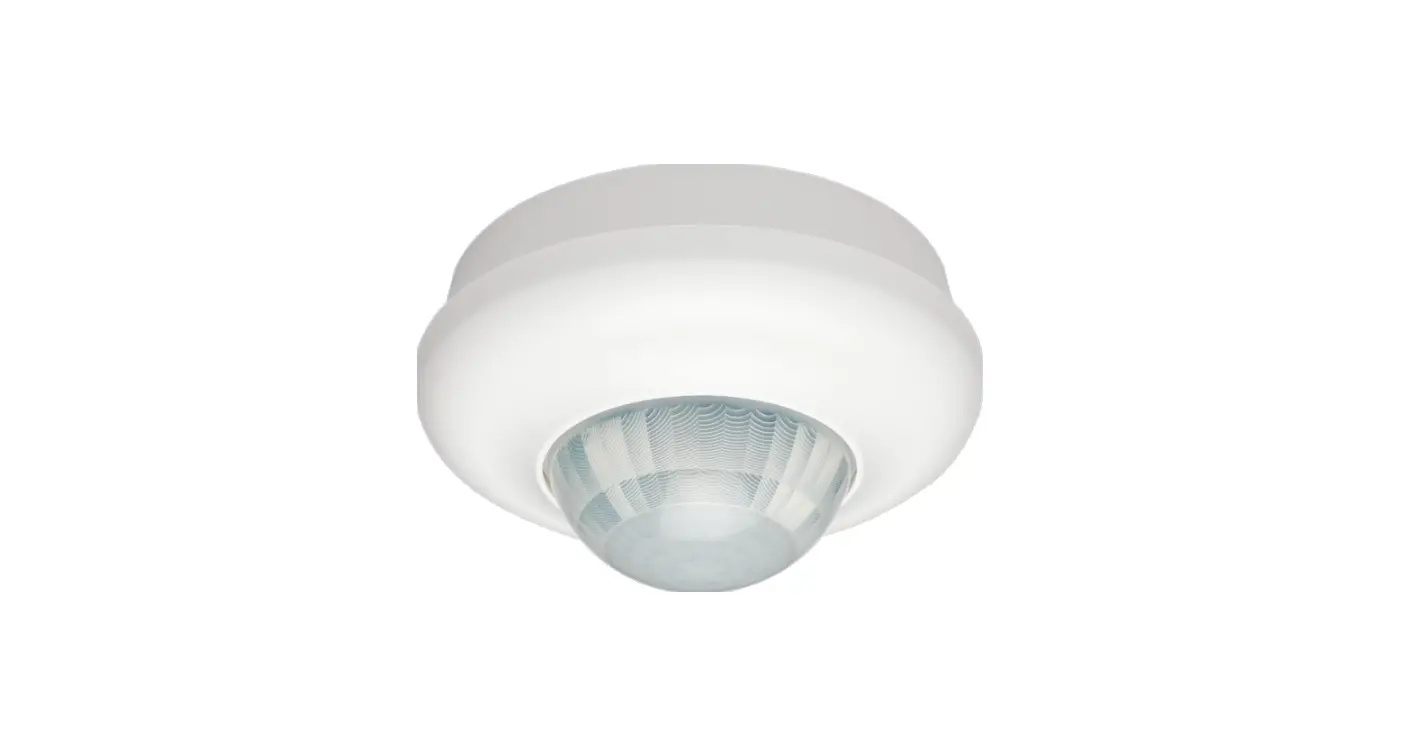

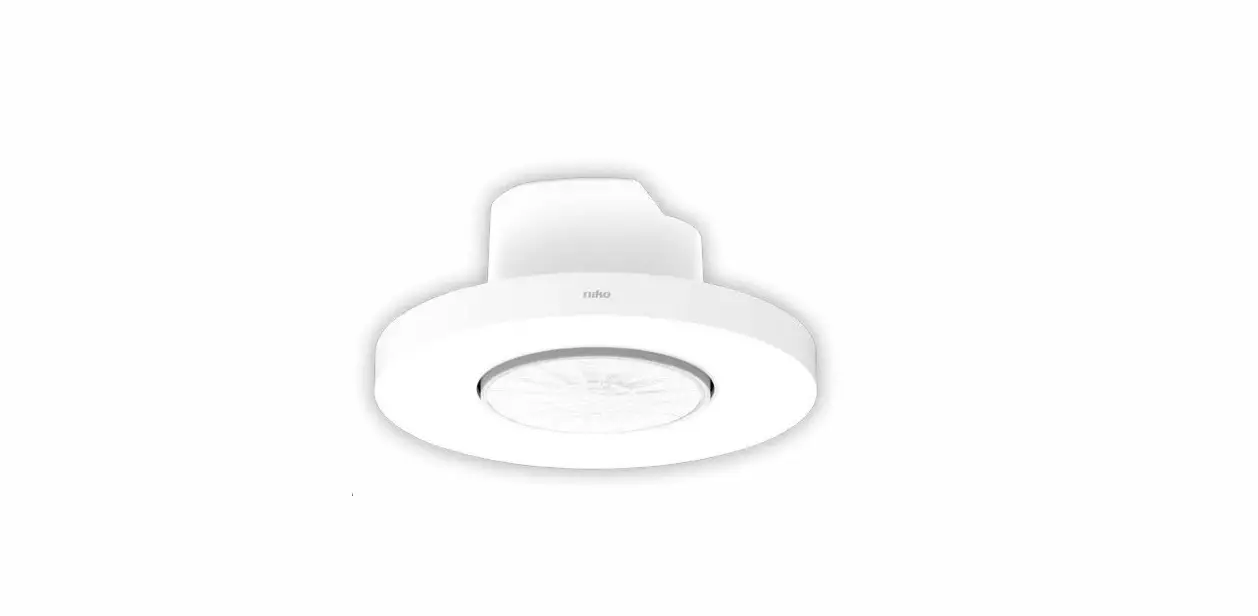

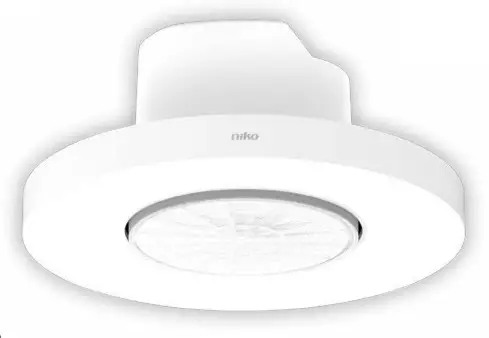

niko 353-650321 Presence Detector for Flush Mounting Box Instruction Manual

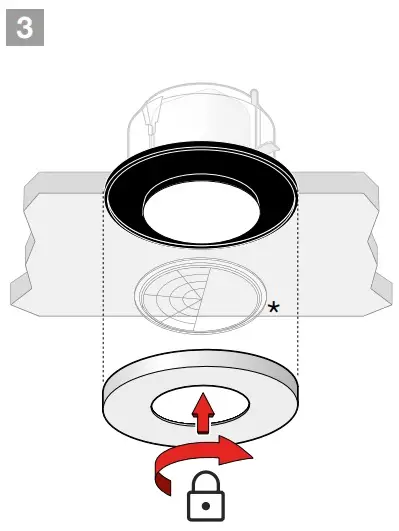

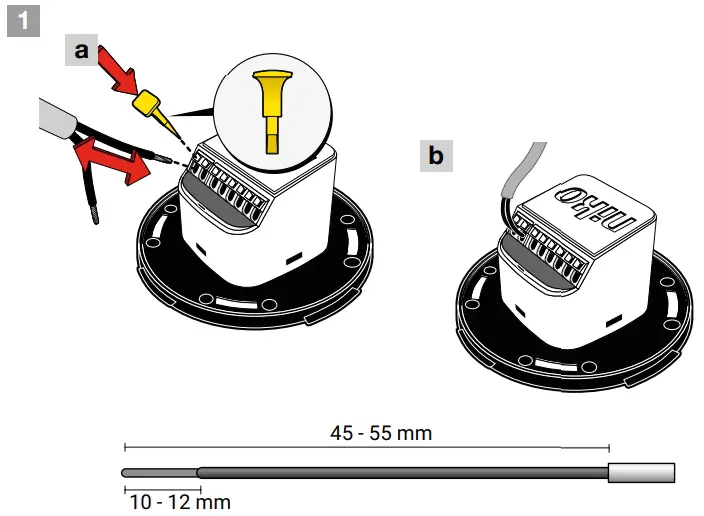

Installation

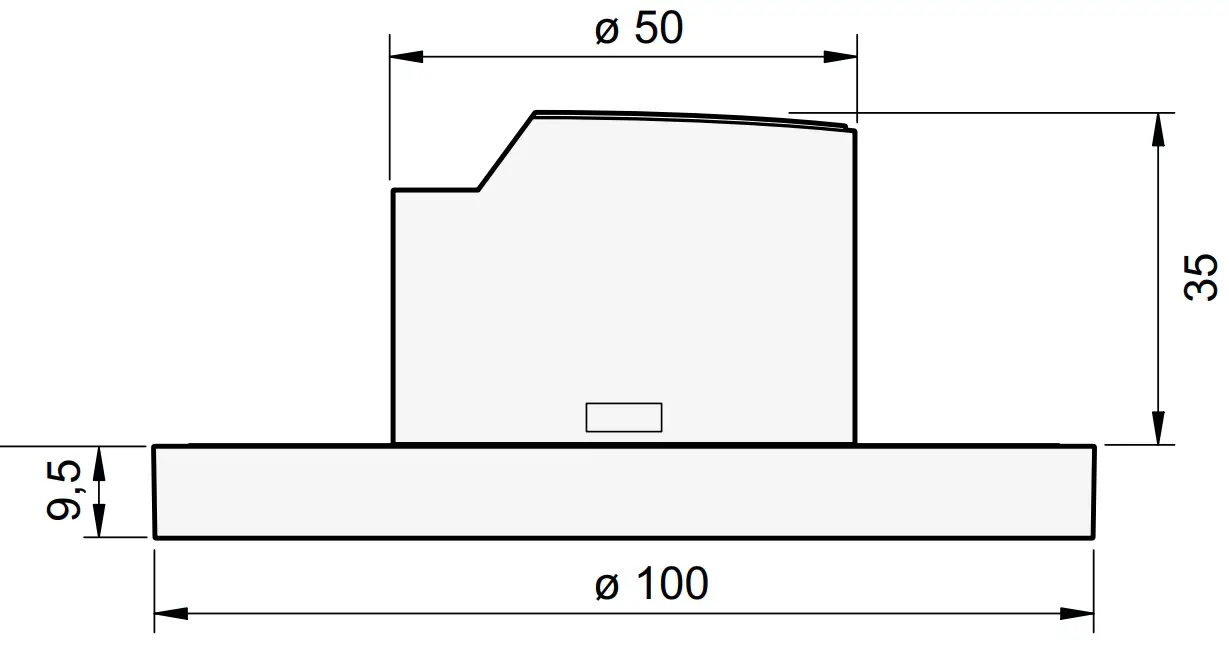

Dimensions

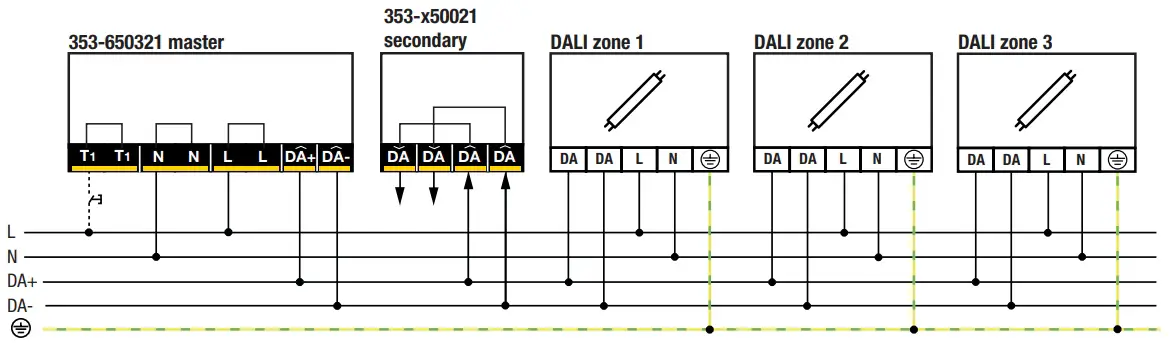

Wiring
230 V – OFF

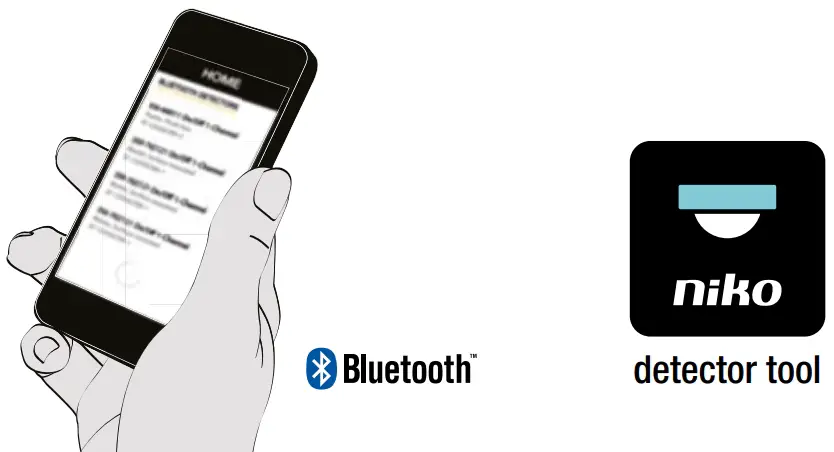

App settings
 |  |  | |
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behaviour
| Green LED continuous on |
| Connection OK | |
| Green LED breathing |
| Connection OK, overrule ON | |
| Green LED flashing |
| Warming up | Wait |
| Red LED continuous on |
| Error | More info –> |
| Red LED breathing |
| Warning | |
| Blue LED flashing |
| Walk test active |
Specifications
- Article number: 353-650321
- Configuration: DALI-2 master
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Maximum power consumption: 0.3 W
- Short circuit behaviour shutdown trigger: voltage below 12 V, exceeding 1.3 s
- Short circuit behaviour restart period: every 14 s until success
- Detector output: DALI Broadcast/DALI Adressable
- Maximum voltage on the DALI bus: 15 Vdc
- Maximum supply current: 250 mA
- Maximum guaranteed current on the DALI bus: 100 mA
- Maximum startup time DALI: < 1200 ms
- Maximum PIR detection startup time: 70 s
- Maximum number of control gear on the DALI bus: 64
- Number of dimmable zones: 3
- Light intensity range: 20 – 2000 lux, ∞
- Switch-off delay: pulse, 20 s – 120 min, ∞
- Detection angle: 360°
- Detection range (PIR): ø 12 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method: flush-mounting box
- Mounting height: 2 – 3.5 m
- Colour: white (RAL 9010)
- Dimensions visible (HxWxD): 100 x 100 x 9.5 mm
- Dimensions (HxWxD): 100 x 100 x 44.5 mm
- Wire capacity: 1.5/2.5 mm²
- Protection degree: IP20
- Impact resistance: IK02
- Modification of settings: app (iOS/Android) and 2-way Bluetooth® communication
- Maximum range Bluetooth® (free field, depending on the device): 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: -2 dBm
- Halogen-free: yes
- Marking: CE

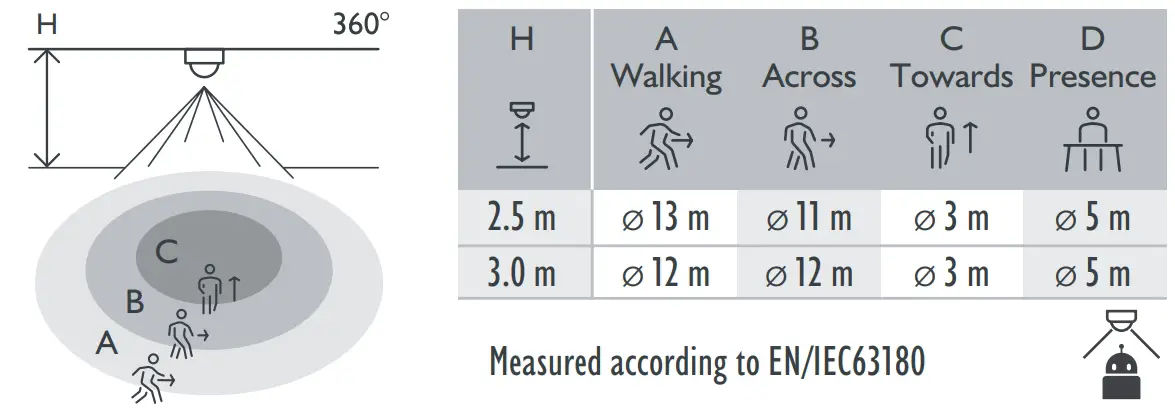

Detection area
Troubleshooting
Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct | Check the wiring scheme |
| The ambient light is too strong | Check the response value luminosity and raise the value if necessary | |
| Load does not turn off | The switch-off delay is too long | Check the switch-off delay and shorten the delay if necessary |
| The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity | |
| App cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
