Manual
Presence detector
353-701221
SnapFit m o u n t i n g

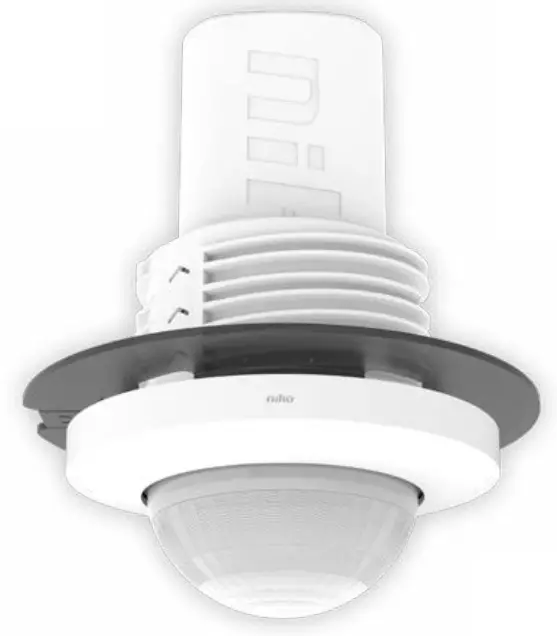

Presence detector P42LR, 230 V, 2 channel, master, 32-37 m, 360°, SnapFit, for flush mounting

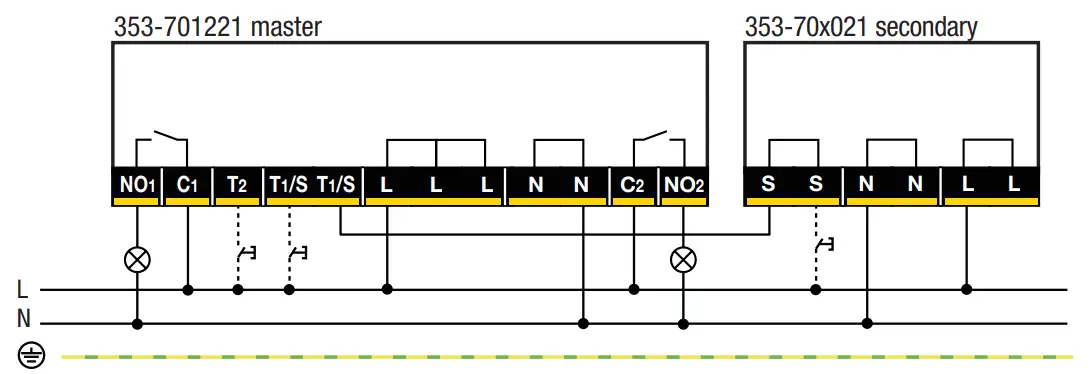

Wiring
230 V – OFF
Aansluitschema

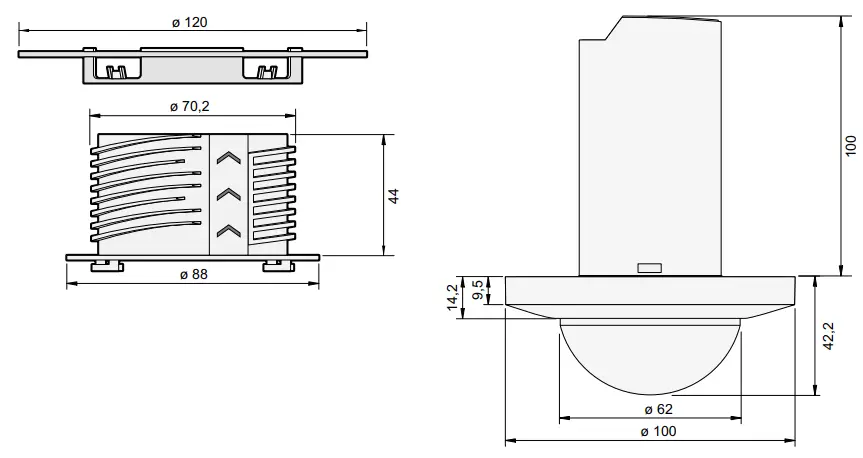

Dimensions
Afmetingen

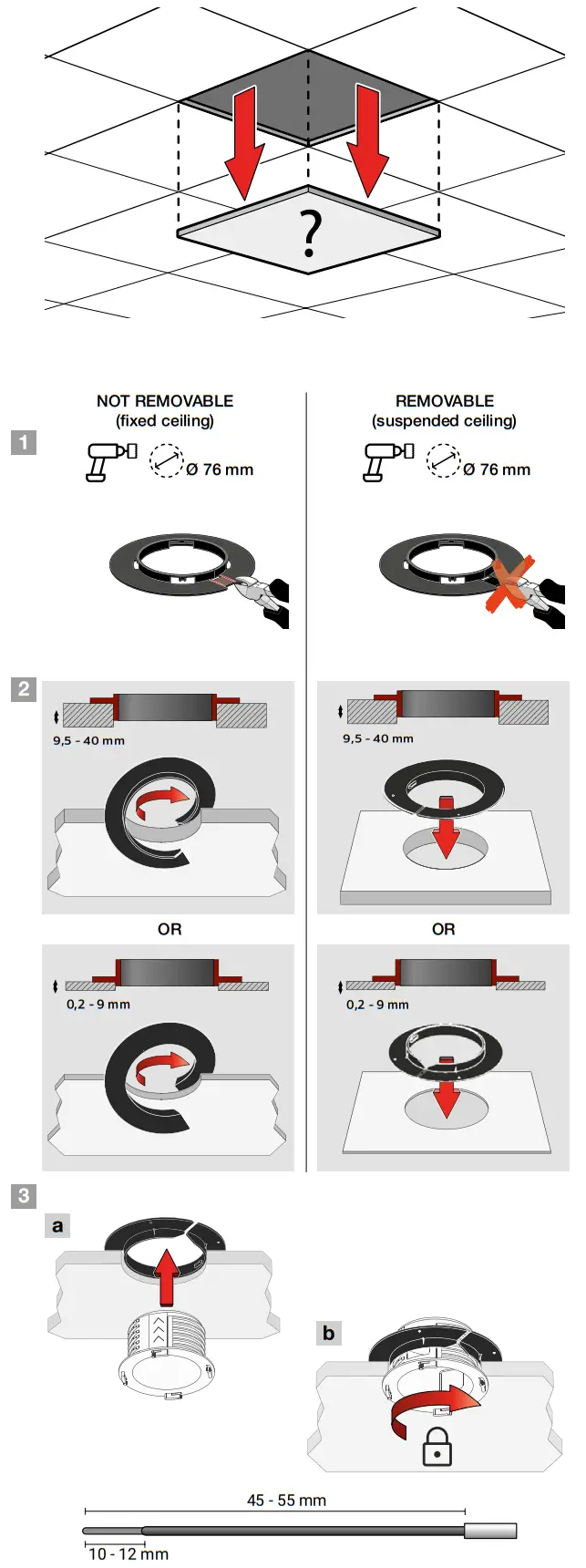

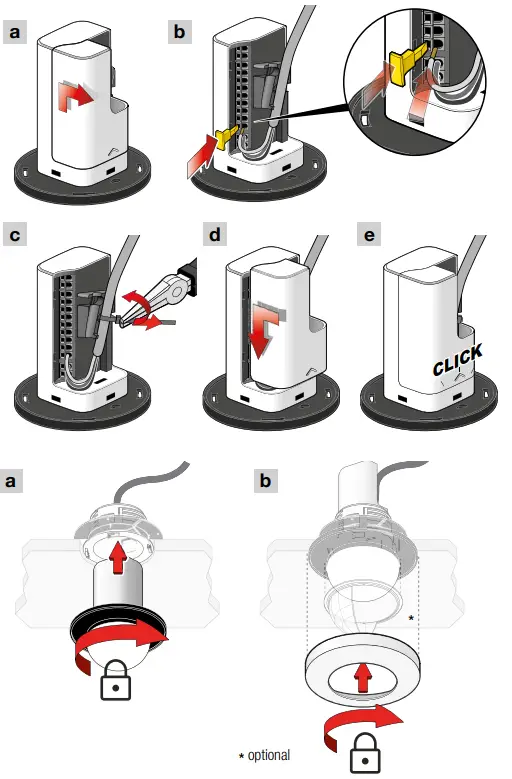

Installation
App settings
App-instellingen
 |  |  | |
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behavior
| Green LED continuously on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuously on |  | Error |  |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
Specifications
| Article number | 353-701221 |
| Configuration | 230 V Master 2 ch |
| Input voltage | 230 Vac ± 10 %, 50 Hz |
| Maximum power consumption | 0.2 W |
| Relay contact | 2 x NO (max. µ10 A), potential-free |
| Maximum load incandescent and halogen lamps (cosφ = 1) | 2300 W |
| Maximum load fluorescent lamps (cosφ ≥ 0.5) | 1200 VA |
| Maximum load economy lamps (CFLi) | 350 W |
| Maximum load LED lamps 230 V | 350 W |
| Maximum load LED driver | 500 VA |
| Maximum load electronic transformer | 500 VA |
| Maximum capacitive load | 140 µF |
| Maximum switching current | 165 A/20 ms or 800 A/200 µs |
| Light intensity range | 20 – 2000 lux, ∞ |
| Number of channels | 2 channels |
| Maximum number of secondary detectors | 10 |
| Switch-off delay | pulse, 15 s – 120 min, ∞ |
| Hysteresis on light intensity | 10% |
| Detection angle | 360° |
| Detection range (PIR) | Ø 37 m from a height of 3 m |
| Ambient temperature | -25 – +40 °C |
| Mounting method | flush mounting with SnapFit mounting bracket |
| Mounting height | 2 – 3.5 m |
| Drill diameter | 76 mm |
| Minimum flush mounting depth | 100 mm |
| Colour | white (RAL 9010) |
| Dimensions visible (HxWxD) | 100 x 100 x 42.2 mm |
| Dimensions (HxWxD) | 120 x 120 x 142.2 mm |
| Wire capacity | 1.5/2.5 mm² |
| Maximum range Bluetooth | 50 m |
| Operating frequency | 2.4 GHz |
| Maximum radio frequency power | -2 dBm |
| Protection degree | IP20 |
| Impact resistance | IK04 |
| Modification of settings | app (iOS/Android) and 2-way Bluetooth® communication |
| Halogen-free | yes |
| Marking | CE |

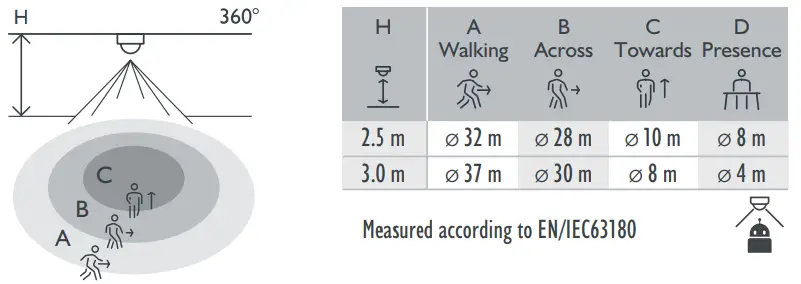

Detection area
Detectiebereik
Troubleshooting
Probleemoplossing
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct The ambient light is too strong | Check the wiring scheme Check the response value luminosity and raise the value if necessary |
| Load does not turn off | The switch-off delay is too long The detector receives false triggers | Check the switch-off delay and shorten the delay if necessary Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity |
| The app cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
Support & contact nv Niko sa
Industriepark West 40
9100 Sint-Niklaas, Belgium
www.niko.eu
+32 3 778 90 80
[email protected]
Niko prepares its manuals with the greatest care and strives to make them as complete, correct and up to date as possible. Nevertheless, some deficiencies may subsist. Niko cannot be held responsible for this, other than within the legal limits. Please inform us of any deficiencies in the manuals by contacting Niko customer services at [email protected].
