niko 353-701111 Motion Detector

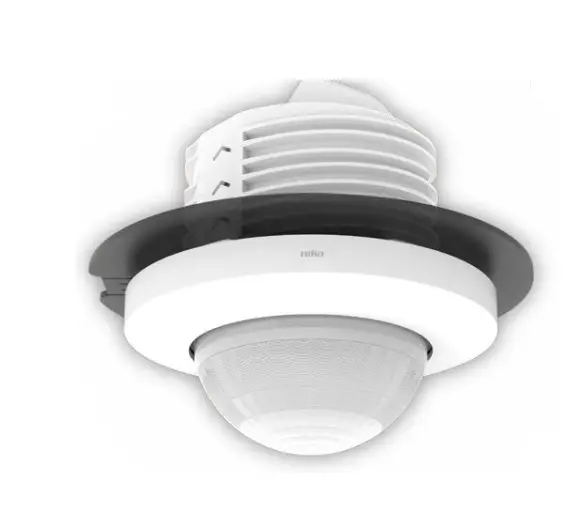

Motion detector M42LR, 230 V, 1 channel, 32-37 m, 360°, SnapFit, for flush mounting

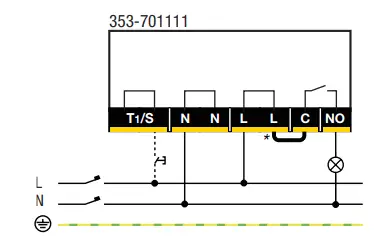

Wiring
Remove if you want to use the contact as a dry contact (potential-free).
This product must be secured with a miniature circuit breaker (MCB) of max. 16 A in the electrical cabinet. The MCB rating is limited by national installation rules.
Dimensions

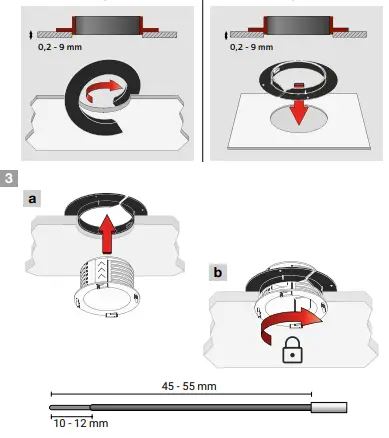

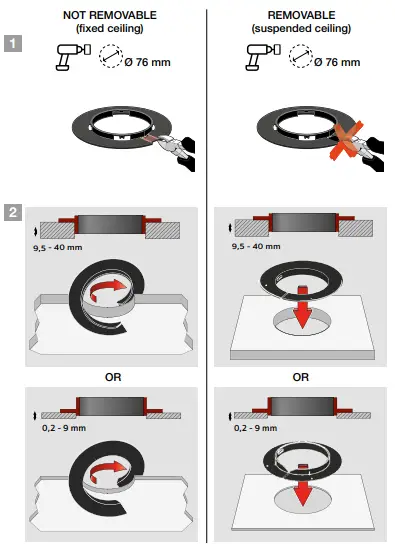

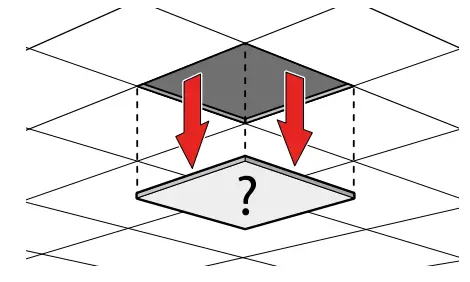

Installation

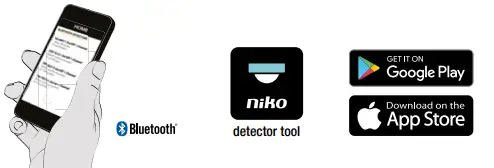

App settings
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behaviour
| Green LED continuous on | Connection OK | ||
| Green LED breathing | Connection OK, overrule ON |  | |
| Green LED flashing | Warming up | Wait | |
| Red LED continuous on | Error | More info –>
detector tool | |
| Red LED breathing | Warning | ||
| Blue LED flashing | Walk test active |
Specifications
- Article number: 353-701111
- Configuration: 230 V Master
- Input voltage: 230 Vac ± 10 %, 50 Hz
- Maximum power consumption: 0.2 W
- Circuit breaker maximum MCB rating: 16 A*
- Relay contact NO: (max. µ10 A), potential-free
- Maximum load incandescent and halogen lamps (cosφ = 1): 2300 W
- Maximum load fluorescent lamps (cosφ ≥ 0.5): 1200 VA
- Maximum load economy lamps (CFLi): 350 W
- Maximum load LED lamps: 230 V 350 W
- Maximum load LED driver: 500 VA
- Maximum load electronic transformer: 500 VA
- Maximum capacitive load: 140 µF
- Maximum switching current: 165 A/20 ms or 800 A/200 µs
- Light intensity range: 20 – 2000 lux, ∞
- Number of channels: 1 channel
- Switch-off delay pulse,: 15 s – 120 min, ∞
- Hysteresis on light intensity: + 10%
- Detection angle: 360°
- Detection range (PIR): Ø 37 m from a height of 3 m
- Ambient temperature: -25 – +40 °C
- Mounting method flush mounting with SnapFit: mounting bracket
- Mounting height: 2 – 3.5 m
- Drill diameter: 76 mm
- Minimum flush mounting depth: 56.9 mm
- Colour white: (RAL 9010)
- Dimensions visible: (HxWxD) 100 x 100 x 42.2 mm
- Dimensions (HxWxD): 120 x 120 x 99.1 mm
- Wire capacity: 1.5/2.5 mm²
- Maximum range Bluetooth®: (free field, depending on the device) 50 m
- Operating frequency: 2.4 GHz
- Maximum radio frequency power: –2 dBm
- Protection degree: IP20
- Impact resistance: IK04
- Modification of settings app (iOS/Android) and 2-way Bluetooth®: communication
- Halogen-free: yes
- Marking: CE

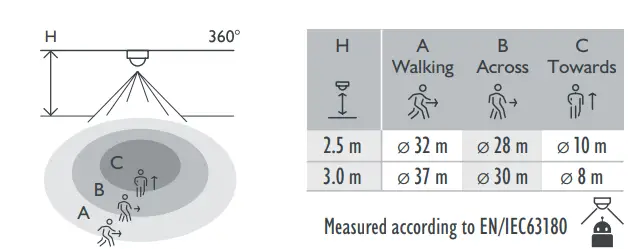

Detection area
Troubleshooting
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct | Check the wiring scheme |
| The ambient light is too strong | Check the response value luminosity and raise the value if necessary | |
| Load does not turn off | The switch-off delay is too long | Check the switch-off delay and shorten the delay if necessary |
| The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity | |
| App cannot connect to the detector | Bluetooth® has been disa- bled on your mobile device | Enable Bluetooth®on your mobile device |
