353-600111 Motion Detector
Instruction Manual
4 Year warranty

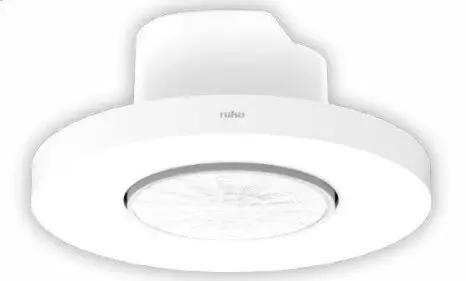

Motion detector M42MR, 230 V, master, 12-13 m, 360°, for flush-mounting box

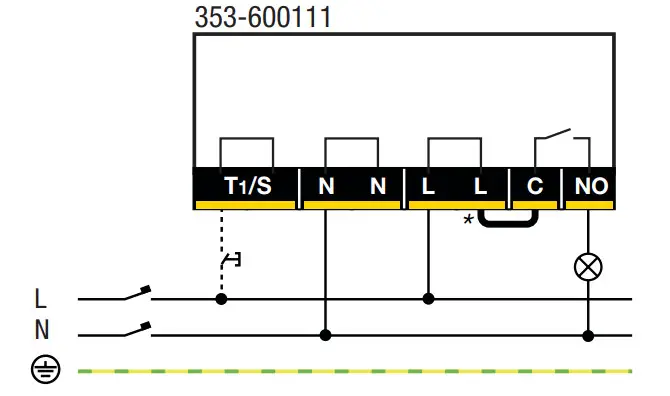

Wiring
230 V – OFF
* Remove if you want to use the contact as a dry contact (potential-free).
This product must be secured with a miniature circuit breaker (MCB) of max. 16 A in the electrical cabinet, limited by national installation rules.

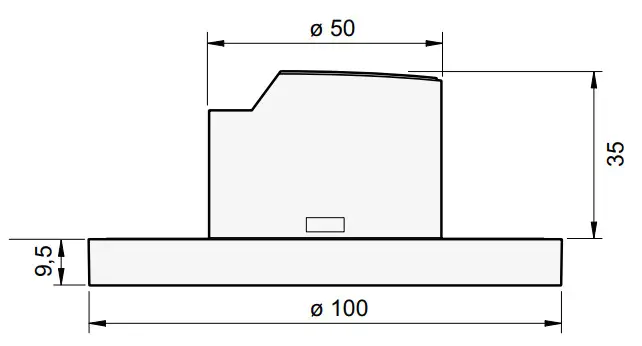

Dimensions

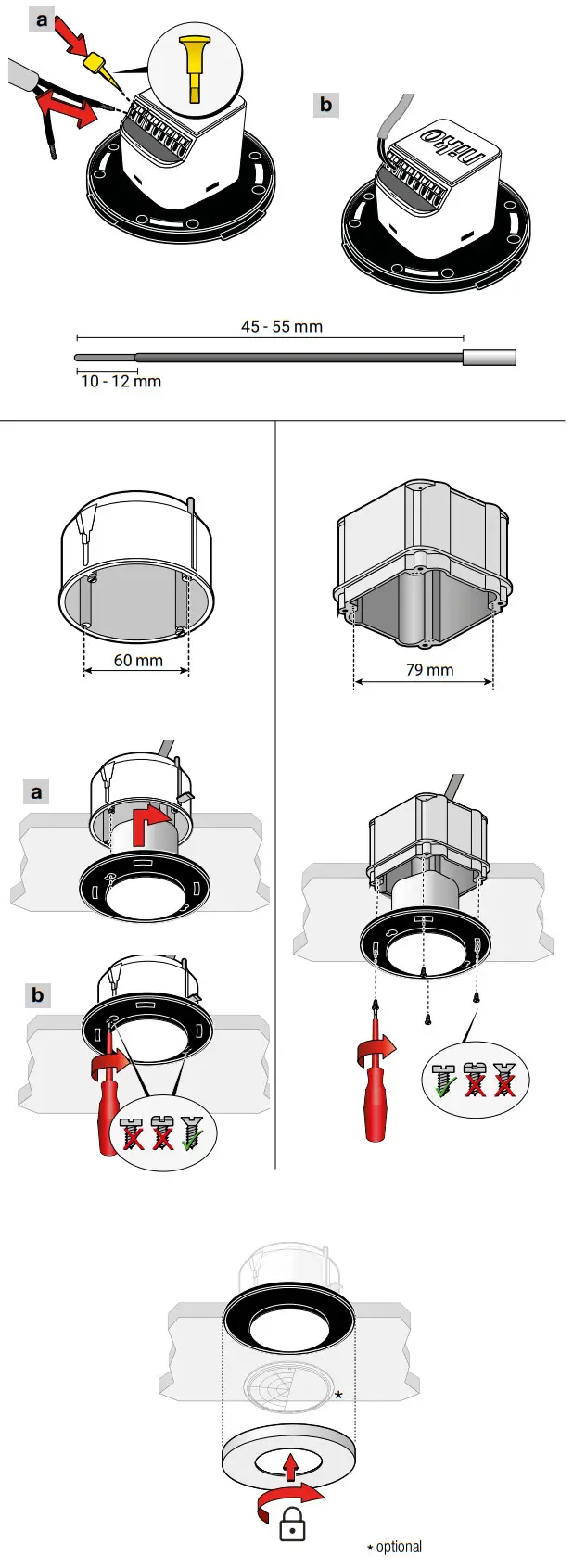

Installation
230 V – OFF
App settings
 |  |  | |
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behavior
230 V – OFF
| Green LED continuously on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuously on |  | Error | More info –> detector tool |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
Specifications
| Article number Configuration | 353-600111 |
| Input voltage | 230 V Master |
| Maximum power consumption | 230 Vac ± 10 %, 50 Hz |
| Circuit breaker (*) | 0.2 W |
| Relay contact | maximum MCB rating C16 |
| Maximum load incandescent and halogen lamps (cosφ = 1) | NO (max. µ10 A), potential-free |
| Maximum load fluorescent lamps (cosφ ≥ 0.5) | 2300 W |
| Maximum load economy lamps (CFLi) | 1200 VA |
| Maximum load LED lamps 230 V | 350 W |
| Maximum load LED driver | 350 W |
| Maximum load electronic transformer | 500 VA |
| Maximum capacitive load | 500 VA |
| Maximum switching current | 140 µF |
| Light intensity range | 165 A/20 ms or 800 A/200 µs |
| Number of channels | 20 – 2000 lux, ∞ |
| Switch-off delay | 1 channel |
| Hysteresis on light intensity | pulse, 15 s – 120 min, ∞ |
| Detection angle | 10% |
| Detection range (PIR) | 360° |
| Ambient temperature | Ø 12 m from a height of 3 m |
| Mounting method | -25 – +40 °C |
| Mounting height | flush-mounting box |
| Colour | 2 – 3.5 m |
| Dimensions visible (HxWxD) | white (RAL 9010) |
| Dimensions (HxWxD) | 100 x 100 x 9.5 mm |
| Wire capacity | 100 x 100 x 44.5 mm |
| Maximum range Bluetooth® (free field, depending on the device) | 1.5/2.5 mm² |
| Operating frequency | 50 m |
| Maximum radio frequency power | 2.4 GHz |
| Protection degree | -2 dBm |
| Impact resistance | IP20 |
| Modification of settings | IK02 |
| Halogen-free | app (iOS/Android) and 2-way Bluetooth® communication |
| Marking | yes |

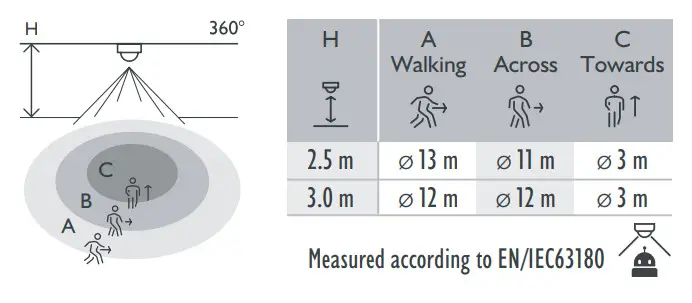

Detection area
Troubleshooting
| Problem | Possible cause | Proposed solution |
| Load does not turn on | The wiring is not correct | Check the wiring scheme |
| The ambient light is too strong | Check the response value luminosity and raise the value if necessary | |
| Load does not turn off | The switch-off delay is too long | Check the switch-off delay and shorten the delay if necessary |
| The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity | |
| The app cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
