Instruction Manual
Swiss Garde 360 Presence KNX/KLR RA
| Item no. | Model | EAN |
| (351-) 25032 | SG360KNX/KLR RA 16 m | 3.51E+12 |
| (351-) 25034 | SG360KNX/KLR RA 16 m EB | 3.51E+12 |
| (351-) 25036 | SG360KNX/KLR RA 30 m | 3.51E+12 |

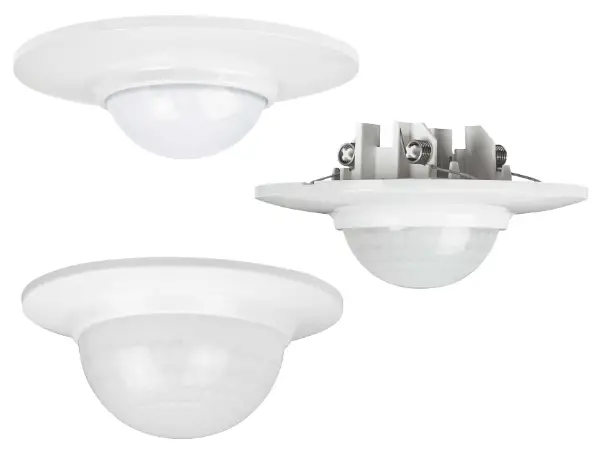

Presence detectors 360° KNX/KLR RA/EA for ceiling flush-mounting
The family of Swiss Garde 360 Presence KNX/KLR RA/EA presence detectors is characterized by the following outstanding features:
- 2 -channel constant light control
The in-built 2-channel constant light control can be easily adjusted to meet any customer’s needs. The two light channels can be controlled via parametrizable offset. (-50%, synchronous, +50%) using different light values. - 1 light output for switching, dimming, or scenery selection.
- Standby light
If the light channel is set to dimming absolute, an emergency standby light can be programmed using the standby value [%] and standby duration [min/h]. Two value pairs can be read out from the KNX bus. - 1 HVAC channel controls heating, ventilation, and air conditioning. This output can be used for presence detection. Additionally, alarm systems with parametrizable switch-on delay can be implemented.
- 1 Threshold switch in lux with hysteresis setting
- 1 brightness output in lux (2 Byte)
- 3 Pyro detectors
Three PIR sensors with a 360° detection area can be activated individually or in pairs.
Important notice
The presence detectors Swiss Garde 360 Presence KNX/KLR RA/EA/EB is suitable for ceiling mounting indoors only. In case of errors such as continuous light, controlled switching, etc., please consult page 7 „troubleshooting“.
Function
The presence detector Swiss Garde 360 Presence KNX/KLR RA/EA/EB reacts to heat radiation of moving bodies. A person approaching the monitored area automatically triggers the connected light. If no motion is detected again, the light will automatically switch off after a delay time configured in ETS. In case of activated standby, the light will stay on at reduced intensity during the set time period (mode dimming complete/ constant light control).
Installation
Connect the presence detector as follows:
red wire (+) to be connected to red terminal
black wire (-) to be connected to grey terminal
Application notes
A detailed description of the communication objects and all parametrizable functions can be found in the following separate document:
Swiss Garde 360 Presence KNX/KLR RA/EA/EB APPLICATION NOTES
SG360P KNX/KLR RA 16m (351- 25032)

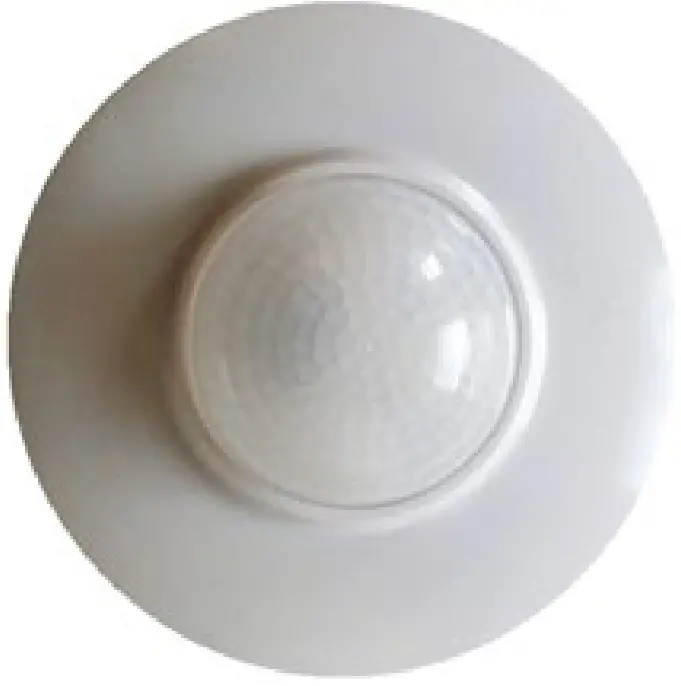

frontal view

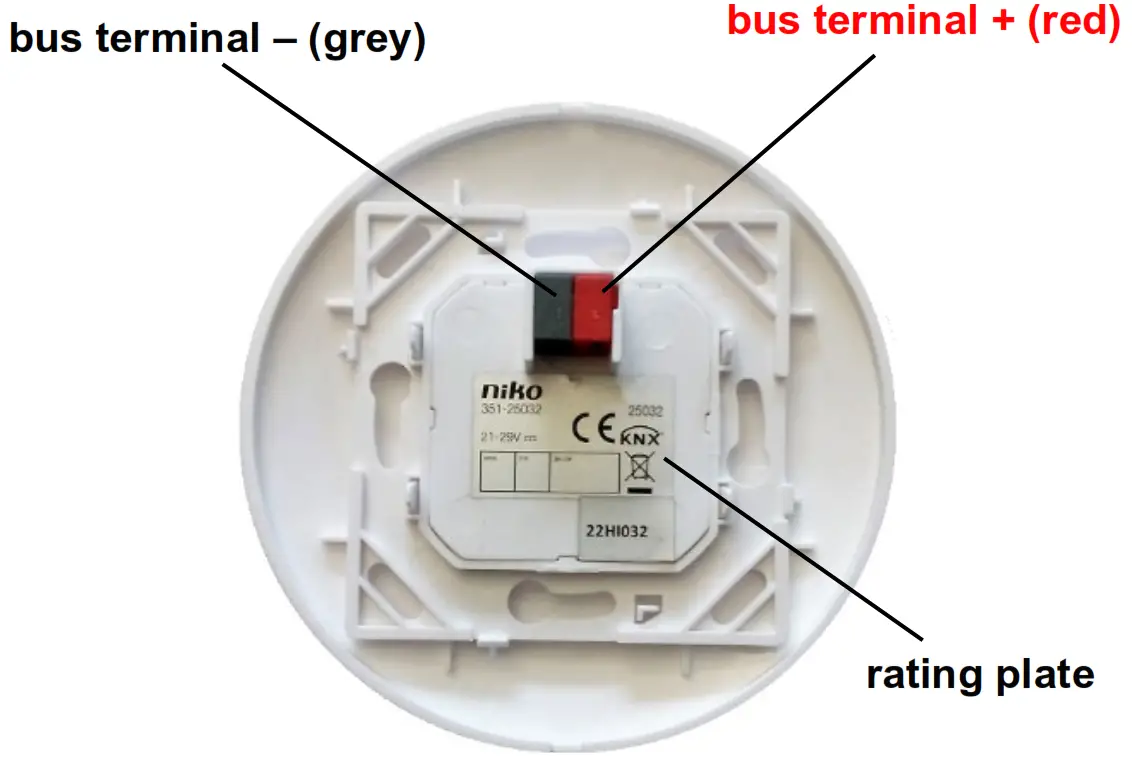

rear view

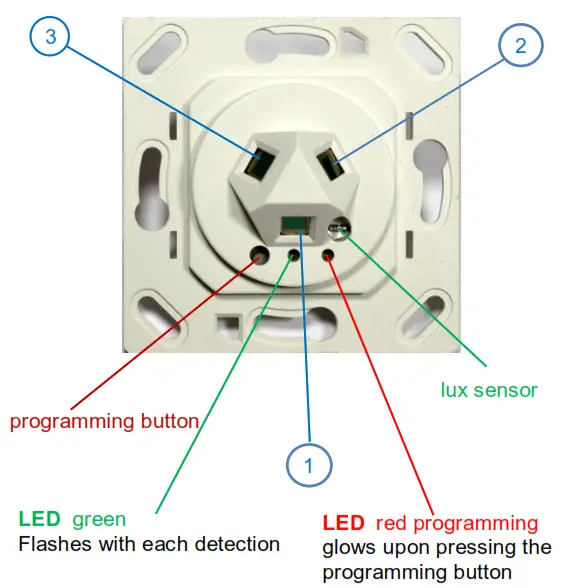

PIR sensors numbering
The PIR sensors 1 2 3 can be activated via ETS individually or in groups, using the above numbering scheme.
After KNX/EIB bus connection: the detector takes approx. 1 min. to reach a stable working condition!

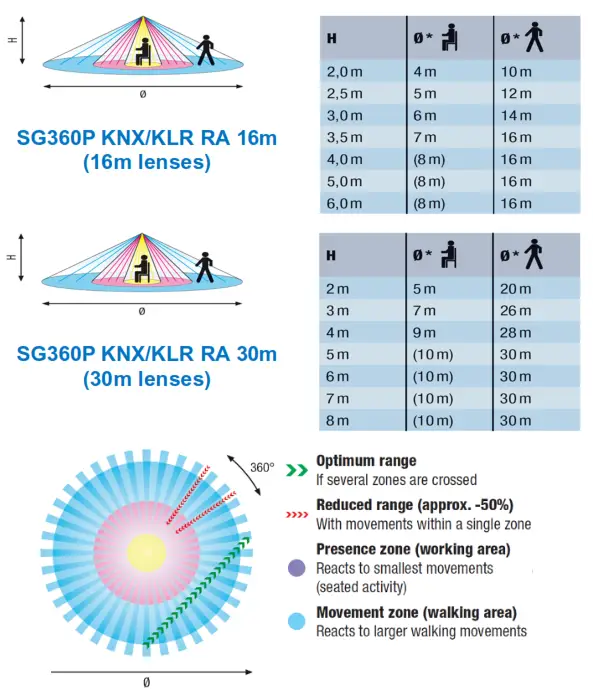

Detection range
the 360° omnidirectional detection range, as well as the dense detection area, allow for an optimal function. The range depends on the mounting height as well as the angle of approach (high sensitivity when crossing a switching segment). Since the device registers the temperature differences between the source of heat and the ambient temperature, the detection range may vary depending on site conditions (floor heating, etc.).
Troubleshooting
| Error | Cause/remedies |
| load doesn`t switch ON | • twilight value set to high • check light/luminaire/fuses |
| Detector triggers ON and OFF without reason or light never turns OFF: | • check detection area for potential causes of false triggering: animals, heating, etc. may all doing faulty switching • check distances to lamps (heat- reflection or direct light influence) • detector is to sensitive, reducing the detection range sensitivity (1…10) via ETS. |
| Turns the ON during day- time: | • twilight adjustment set to high: set to a lower value via ETS (menu light) |

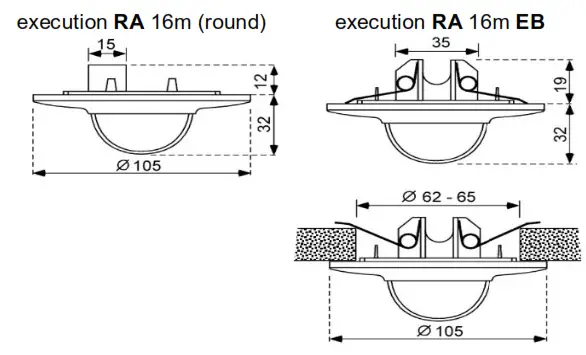

Device dimensions
Technical data
| nominal voltage: | 24V DC (21 – 30V DC) |
| power consumption | 0,4 W |
| PIR- sensors: | 3 Pyro detectors |
| sensitivity: | adjustable via ETS in 10 steps |
| light measuring: | brightness sensor with linear output |
| lux value: | value readable (5 – 2000lux, 2 Byte) |
| switching criteria: | motion and brightness |
| detection range: | 360°, ceiling mounted |
| range height= 3m/ RA 16m: | Ø6m presence, Ø14m motion |
| range height= 3m/ RA 30m: | Ø7m presence, Ø26m motion |
| recom. mounting height: | 2m – 6m (25032, 25034) 2m – 8m (25036) |
| mounting: | ceiling or false-ceiling mounting |
| available accessory: | AP/UP- housing, IP55 -housing |
| protection rating: | IP 20, indoor mounting, class II |
| temperature range: | – 20°C bis +40 °C |
| dimensions: | RA 16 m: Ø105 x 44 mm RA 30 m: Ø105 x 51mm RA 16 m EB: Ø105 x 51 mm |
Warnings regarding installation
The installation of products that will permanently be part of the electrical installation and which include dangerous voltages should be carried out by a qualified installer and in accordance with the applicable regulations. This user manual must be presented to the user. It should be included in the electrical installation file and it should be passed on to any ew owners. Additional copies are available on the Niko website or via Niko customer services.
CE marking
This product complies with all of the relevant European guidelines and regulations. For radio equipment, Niko LLC declares that the radio equipment in this manual conforms with 2014/53/ EU directive. The full text of the EU declaration of conformity is available at www.Niko.EU under the product reference, if applicable.
Environment
This product and/or the batteries provided cannot be disposed of in the non-recyclable waste. Take your discarded product to a recognized collection point. Just like producers and importers, you too play an important role in the promotion of sorting, recycling, and reuse of discarded electrical and electronic equipment. To finance rubbish collection and waste treatment, the government levies recycling charges in certain cases (included in the price of this product).
nv Niko sa, Industriepark West 40, 9100 Sint-Niklaas, Belgium
www.niko.eu,
+32 3 778 90 80,
[email protected]
Edition 12-2021
